Fire Bricks

We are leaders in the market for providing best range of High Alumina Bricks

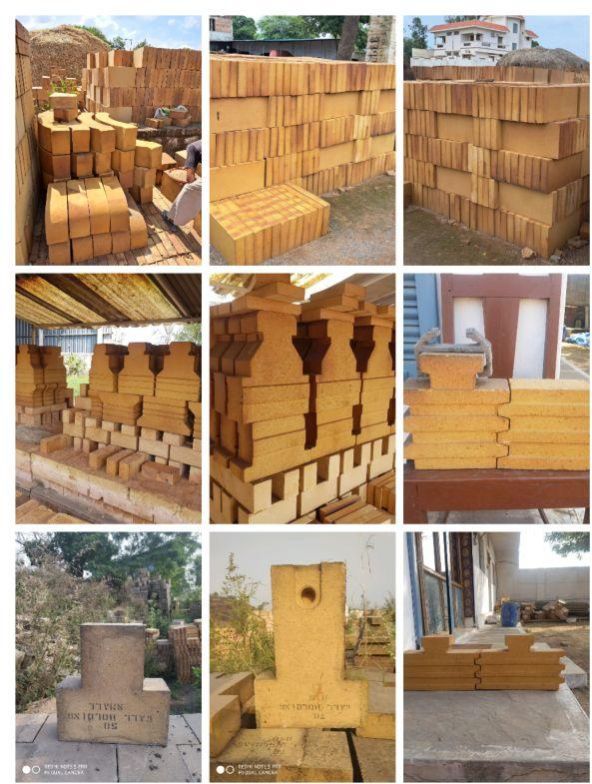

High Alumina Bricks

High Alumina Bricks
₹ 125 - ₹ 3,450 / Nos Get Latest Price
  • Material High Alumina
  • Texture Solid
  • Shape Rectangular
  • Application Construction
  • Size Standard
  • Country of Origin India

Industries we serve



  • Chemical & Carbon
  • Cement & Lime Industries
  • Engineering Industries
  • Foundries & Metal Works
  • Glass & Ceramics Works
  • Iron & Steels
  • Refineries
  • Sugar & Fertilizers
  • Thermal Power stations

Technical Details

Product Name  Chemical Analysis (%) Apparent Porosity(%)  Bulk Density (g/cc) Min. CCS (kg/cm²) PLC(%) PCE(◦C/0C) Min. RUL (Ts◦C) Application Area
Al2O3 Fe2O3
TCC - 30D 28-31 1.7-2.2 13-18 2.1 400-700 ± 0.5 at 1300◦C/2h   1330-1360 Back up of Aluminium pot furnace and other applications.
TCC - 40 36-40 2.5-3.5 17-22 2.15 350-550 -0.8 to 0.3 at 1400◦C/2h 1659/29 1350-1400 Cement preheater,Cyclone, Silicate Furnace & other moderate heat applications.
TCC - 40S 38-41 1.8-2.5 16-21 2.2 400-600 0.8 to 0.3 at 1450◦C/2h 1665/30 1370-1420 Special bricks for Cement Preheater & Cyclone.
TCC - 42D 41-43 1.3-1.7 15-18 2.25 450-650 -0.6 to 0.2 at 1450◦C/2h 1717/32 1450-1480 Dense brick for Blast Furnace & Anode Baking Furnace (ABF)
TCC - 45 42-45 2.5-3.5 17-22 2.23 400-500 -0.8 to 0.3 at 1400◦C/2h 1665/30 1360-1410 Cement preheater,Cyclone, Silicate Furnace & other moderate heat applications.
TCC - 45S 42-46 1.8-2.5 16-21 2.25 400-600 -0.8 to 0.3 at 1450◦C/2h 1683/31 1390-1440 Special purpose Cement Preheater, Cyclone, Chemical Plants,Sulphur Furnaces, Lime Kiln & Glass Tank Furnace.
TCC - 45D 44-48 1.2-1.5 14-18 2.35 450-700 -0.5 to 0.2 at 1450◦C/2h 1743/33 1460-1500 Blast Furnace, Preheating Zone of Cement Rotary Kiln & Glass Tank Furnace.
TCC - RW     17-21 2.25 400-600 -1.0 to 0.2 at 1450◦C/2h 1683/31 1390-1440 Reheating Furnace Wall
TCC - 50 47-50 2.6-3.5 17-21 2.32 450-650 -0.8 to 0.4 at 1450◦C/2h 1717/32 1400-1450 Preheating Zone of Cement Rotary Kiln & Reheating Furnace Wall.
TCC - 50S 47-50 1.8-2.2 16-21 2.3 450-650 -1.0 to 0.3 at 1450◦C/2h 1717/32 1400-1450 Dense brick for Petro-Chemicals,Fertilizer Plants & Anode baking Furnace.
TCC - RR     16-22 2.35 450-650 -0.5 to 1.0 at 1450◦C/2h 1743/33 1430-1480 Reheating Furnace Roof.
TCC - 55 52-55 2.9-3.9 17-22 2.42 450-650 -0.5 to 1.0 at 1450◦C/2h 1743/33 1400-1440 Preheating Zone of Cement Rotary Kiln & Reheating Furnace Wall.
TCC - 55S 52-56 1.7-2.2 16-21 2.35 500-700 -0.8 to 0.3 at 1500◦C/2h 1763/34 1450-1500 Reheating Furnace Roof & Petro Chemicals.
TCC - SILL 56-59 1.0-1.5 17-21 2.35 400-600 ± 0.7 at 1500◦C/2h 1804/36 1500-1540 Glass Tank Furnace & Frit Furnace.
TCC - 60 57-60 3.4-4.2 17-22 2.5 550-800 -0.4 to 2.0 at 1450◦C/2h 1785/35 1420-1450 Reheating Furnace Wall, Ladle Back up.
TCC - 60L 57-61 2.8-3.8 17-22 2.45 500-800 -0.2 to 2.2 at 1500◦C/2h 1785/35 1430-1470 Reheating Furnace Wall, Ladle Back up.
TCC - 60S 58-61 1.7-2.2 16-21 2.45 500-800 -0.4 to 0.8 at 1500◦C/2h 1804/36 1470-1510 Sulphur Furnace,Alakli Resistant Bricks for Cement Rotary Kin & Ladle Back up.
TCC - 60M 59-61 0.9-1.1 14-18 2.45 600-800 ± 0.5 at 1600◦C/2h 1820/37 1630-1670 Blast Furnace Stove Checkers,Solid Wall Bricks & Glass Tank Furnace.
TCC - 62DB 61-63 1.2-1.7 14-18 2.45 500-800 ± 0.8 at 1500◦C/2h 1785/35 1500-1530 Blast Furnace Stove Checkers,Solid Wall Bricks & Glass Tank Furnace.
TCC - 62D 61-64 1.2-1.5 13-16 2.5 600-900 ± 0.5 at 1500◦C/2h 1804/36 1500-1550 Blast Furnace Hearth,Non-Recovery Coke Oven,Glass Tank Furnace & Frit Furnace.
TCC - 628RN 62-64 0.9-1.2 42339 2.5 650-900 ± 0.2 at 1500◦C/2h 1820/37 1500-1550 at 4kg/cm² Blast Furnace Hearth,Non-Recovery Coke Oven,Glass Tank Furnace.
TCC - 70N 64-67 3.5-4.4 17-23 2.55 500-800 0.5 to 2.5 at 1450◦C/2h 1804/36 1440-1470 Boiler Cupola & Steel Foundry
TCC - 70 67-70 3.4-4.0 17-22 2.6 600-900 0.3 to 2.5 at 1450◦C/2h 1804/36 1460-1480 Boiler Cupola & Steel Foundry & Reheating Furnace.
TCC - 70S 67-70 2.8-3.2 17-22 2.6 600-900 0.5 to 3.0 at 1500◦C/2h 1804/36 1460-1480 Burning Zone of Cement Rotary Kiln & Steel Ladle.
TCC - 70L 67-70 2.4-2.8 16-21 2.55 600-800 0.5 to 2.5 at 1500◦C/2h 1804/36 1460-1480 Burning Zone of Cement Rotary Kiln & Steel Ladle.
TCC - 70/20 68-71 1.8-2.2 16-21 2.55 600-900 0.2 to 2.0 at 1500◦C/2h 1804/36 1470-1500 Burning Zone of Cement Rotary Kiln & Steel Ladle.
