Our Products

Roller Tinning Machine

DESIGN HIGHLIGHTS

  • Easy and Fast Setting of various Sizes.
  • SS304 Stain Less steel body.
  • Silicon Roller With SS Spindle.
  • Branded Geared PMDC Drive Motor.
  • Nickel chrome Plated Side and Guide plate for Rust Proof working.
  • Heavy Sheet Metal fabrication for sturdy working.
  • Digital Temperature control.
  • Digital Speed Control.
  • 1500 Watt Heaters for Fast Melting Start Up Time.

STANDARD ACCESSORIES

  • SS Cover

OPTIONAL ACCESSORIES

  • Tin Bars
View Complete Details

PCB V-Scoring Machine

DESIGN HIGHLIGHTS

  • Easy and Fast Setting of V-Scoring Sizes for various width.
  • Fine Depth Setting.
  • Harden Ground and Hard chrome Plated Guide Plates for Long Life working.
  • Scale For fast setting.
  • Dull chrome plated and Ground Base plate.

STANDARD ACCESSORIES

  • Cutter - 1 Nos Carbide
  • Suitable Spanners and Allen Keys Set

OPTIONAL ACCESSORIES

  • Cutters
  • Cutter Support Bearings
  • Cutters shafts

PACKING WOODEN CRATE

View Complete Details

PRECISION MICRO DRILLING MACHINE

DESIGN HIGHLIGHTS


  • Flat Belt design for long life and Noise free service.
  • Maintenance Free, Long Life bearings
  • In-built lamp for clear view.
  • Chrome plated column for rust proof working.
  • Fine depth Control adjustment. *T-Slots for clamping.
  • Column with key Guide for fix up down movement.

STANDARD ACCESSORIES


  • 0 To 6 mm Drill Chuck.
  • On-Off Switch duly wired.
  • Belt, Lamp &T-Nuts For Clampin./li>

OPTIONAL ACCESSORIES


  • Coolant System.
  • Induction Motor, 3 Phase, 50 Hz, 2 Pole.
  • Of Branded Make.

SEE VIDEO OF PRECISION MICRO DRILLING MACHINE

View Complete Details

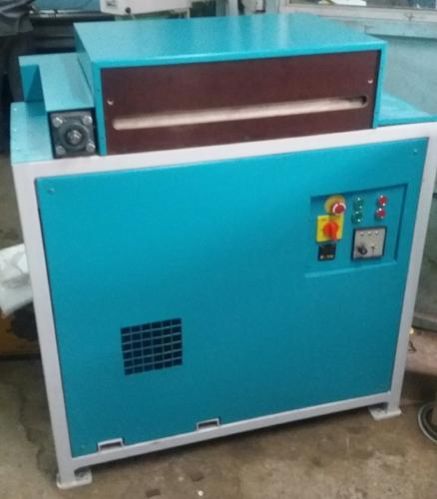

PCB DRIER

  • Power 230V, 50Hz, Single Phase
  • Availability 150 kg
  • Operation Semi-Automatic
  • Air Blower 2 Hp Turbo Blower
  • Roller Drive Motor 0.37 Kw PMDC Motor
  • Conveyor Rollers Neoprene Rubber, 12Nos Through PMDC Drive
  • Roller Speed 0-6 Mtrs/Min
  • Damping Cloth Towel squeeze
  • Minimum PCB Width 80 mm
  • Max PCB Width 600 mm
  • Max. Thickness 0.8 to 3.2
  • Cutter Cooling Not Applicable
  • Body Structure MS Plate Profile and Sheet
  • Overall Size 1150*425*1100

DESIGN HIGHLIGHTS

  • Fast Warm Up Time.
  • High Velocity and High Pressure Turbo Blower for Removal of Water from Holes as well as V- Groves and Slots.
  • Space Saving.
  • 12 NosDrying Rollers.
  • 5 Nos Air Knife from Top and Bottom for Over All Effect.
  • 3 Kw Heaters for Faster Warm Up.
  • Internal Parts SS 304 And Plated for rust Proof condition.
  • Digital Temperature Controller.
  • Digital Drive for Speed Control of Rollers.
  • 600 mm Width for Higher Output.

STANDARD ACCESSORIES

  • 3 Mtrs Cable.

OPTIONAL ACCESSORIES

  • Work Tables.
View Complete Details

Drilling Machine

DESIGN HIGHLIGHTS


  • Flat Belt design Noise free service.
  • Maintenance Free, Long Life bearings.
  • In-built lamp for clear view.
  • Chrome plated column for rust proof working.
  • Fine depth Control adjustment.
  • Column with key Guide for fix up down movement .

STANDARD ACCESSORIES


  • 0 To 6 mm Drill Chuck
  • On-Off Switch duly wired
  • Induction Motor, 3 Phase, 50 Hz, 2 Pole Of Branded Make
  • Belt, Lamp

OPTIONAL ACCESSORIES


  • Single Phase Motor with No Extra

SEE VIDEO OF PCB DRILLING MACHINE DM-01-PCB


DESIGN HIGHLIGHTS

  • Flat Belt design Noise free service.
  • Maintenance Free, Long Life bearings.
  • In-built lamp for clear view.
  • Chrome plated column for rust proof working.
  • Fine depth Control adjustment.
  • Column with key Guide for fix up down movement .

STANDARD ACCESSORIES


  • 0 To 6 mm Drill Chuck
  • On-Off Switch duly wired
  • Induction Motor, 3 Phase, 50 Hz, 2 Pole Of Branded Make
  • Belt, Lamp

OPTIONAL ACCESSORIES


  • Single Phase Motor with No Extra

SEE VIDEO OF PCB DRILLING MACHINE DM-01-PCB


View Complete Details

PCB Cutting Machine

DESIGN HIGHLIGHTS


  • Pnumatic Clamping.
  • Pin Registration Type.
  • Easy and Fast Setting of various Sizes.
  • Fast change over from one setting to another.
  • Harden Ground Cutter Shaft for Long Life working.
  • Nickel chrome Plated Side and Guide plate for Rust Proof working.
  • Heavy Sheet Metal fabrication for sturdy working.
  • Timer Belt And Pulley arrangement for Positive Drive.
  • Liner Bearing and Bars.
  • LED Lamp for Clear View.

STANDARD ACCESSORIES


  • Protection Cutter Cover- With Sensor
  • Cutters-170mmX25 mm ID X 2.4mm Thk
  • Electro Plated Diamond Wheel
  • Scale Marking
  • Required Allen key and Spanner Set

OPTIONAL ACCESSORIES


  • Cutters

SEE VIDEO OF PCB EDGE PROFILING MACHINE EP 01

View Complete Details

PCB Drilling Machine

  • Application PCB Drilling Purpose
  • Brand Name Techneit
  • Machine Type Manual
  • Design Standard
  • Power Consumption 1/2 HP
  • Capacity 0.3-6 mm
  •
  • Minimum Order Quantity 1 Piece
View Complete Details
