Our Products
We offer a complete product range of Stainless Steel Ceiling, Aluminum Ceiling Extruded Profiles, Acoustic Baffle Ceiling, t-15 black white reveal groove suspension ceiling system and Multi-D Ceiling
Techno Acoustic Baffles offer an innovative acoustic baffle ceiling solution that can maximize the design quotient without compromising on the degree of noise reduction. Baffles are highly customizable and can turn your creative imagination into reality.
| Sound Absorption: | Products tested by ARAINRC value: Up to 0.9 NRC |
| Composition | 100% PET |
| Standard Thickness | 10mm/20mm/30mm/40mm/50mm/60mm/70mm can be customized as per design |
| Standard Height | 50mm/80mm/100mm/150mm/200mm/250mm- can be customized as per design |
| Customization | Available as per requirement |
| Flammability | Tested as per EN-13501 by SGS |
Techno has developed a range of drop Aluminum ceiling bands of various heights and colours. Techno CloudTMprofiles are Aluminum ceiling extruded profiles specifically engineered and designed to take care of vertical drops and their edges in False Ceilings. They help in creating beautiful and well finished edges for drops and have a feeling of lightness and floating below the other part of false ceiling without seeing the suspension wires. Full range of accessories required for installing and fixing of Techno CloudTMprofiles have been developed and made available on demand.
The various size options:
A) 50 x 20 mm
B) 56 x 20 mm
C) 100 x 20 mm
| 600 x 600 mm Tiles300 x 1200 mm Tiles600 x 1200 mm Planks300 x 1200 mm Planks |
Clip in tiles are press fit tiles fixed to the concealed clip in profile which is suspended from the slab by means of the dash fastener & GI wire with level adjustment.
| Sizes | 600 x 600 mm Tiles600 x 1200 mm Panels300 x 1200 mm Panels |
| Edges | Square EdgeBeveled Edge |
| Materials | Pre-coated GI |
| Types | Plain TilesPerforated Tiles (1.8 mm diameter) |
Besides the utility based ceiling in metal tiles Techno is glad to introduce a range of architectural & durable open cell ceiling options, open cell ceiling andperforated metal ceilingsare profiles made from aluminum roll formed sheets & are introduced to form various cell sizes.
| Cell Size | 75 x 75 / 100 x 100 / 150 x 150 / 200 x 200 mm75 x 150 / 200 x 100 mmAny other size and colour as per requirement |
| Section Size | 50 x 10 / 40 x 10 mm |
| Materials | Aluminium / GI Powder-coated / Pre-coated GI |
| Sizes | 600 x 600 mm Tiles600 x 1200 mm Planks300 x 1200 mm Planks |
| Edges | Tray TilesTegular Tiles |
| Thickness | PPGI: 0.45/0.50 mmSS 304: 0.50 mm |
| Materials | Pre-coated GI |
| Types | Plain TilesPerforated Tiles (1.8mm & 2.3 mm diameter) |
Techno Ceiling offers a wide range of tiles in stainless steel with various sizes & finishes.
Lay-In Tileswith 15mm SS T-Grids are available.A combination of T-Grid with SS capping and Lay-In Tiles made out of SS 304 of various finishes.
Clip-In Tiles: SS Clip in tiles with various finishes & sizes are possible.
| Sizes | 600 x 600 mm300 x 1200 mm |
| Thickness | 0.50 mm |
| Finishes | SS304 Brush finish |
| ApplicationAreas | 1. Clean Rooms2. Operation Theatres3. Kitchens |
Techno has developed a range of drop Aluminum ceiling bands of various heights and colours. Techno CloudTMprofiles are Aluminum ceiling extruded profiles specifically engineered and designed to take care of vertical drops and their edges in False Ceilings. They help in creating beautiful and well finished edges for drops and have a feeling of lightness and floating below the other part of false ceiling without seeing the suspension wires. Full range of accessories required for installing and fixing of Techno CloudTMprofiles have been developed and made available on demand.
The various size options:A) 50 x 20 mmB) 56 x 20 mmC) 100 x 20 mm
It is further possible to use these in combination since they are designed to interlock on each other. Accessories are made in Galvanized steel in the following dimensions.
A) Corner Connector (Right Angle)B) Straight ConnectorC) T-bar Connector
These profiles are also available in circular shapes of diameters more than 1200mm.

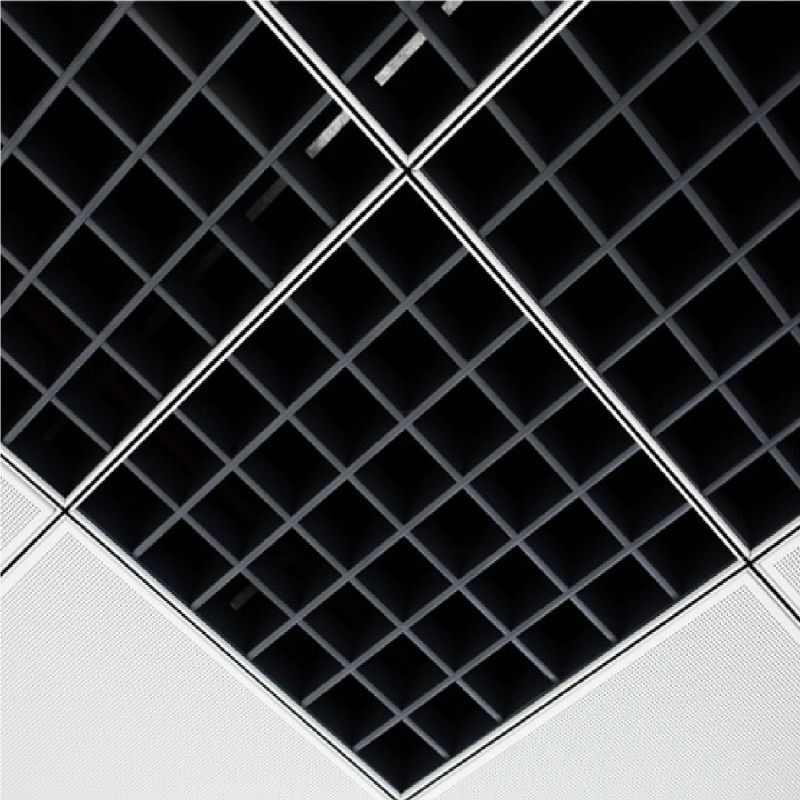

OperaBlack & White Groove Suspension Ceiling SystemMain Runner15 x 35 x 3000 / 15 x 42 x 3000 mmCross Runner15 x 35 x 1200 / 15 x 42 x 1200 mm15 x 35 x 600 / 15 x 42 x 600 mmWall Angle14 x 20 x 3000 mmColours of CappingWhite / BlackPossible ModulesWhite Grid with White GrooveWhite Grid with Black Groove

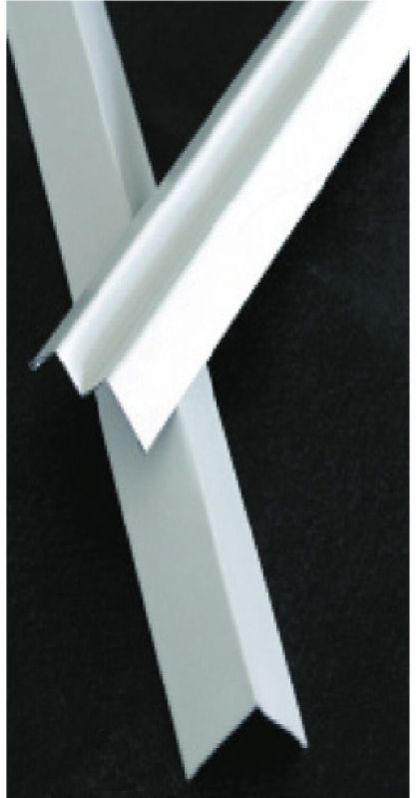

Techno Suspension System comes along with a wide range of perimeter trims made out of Pre-coated GI as well as aluminum extruded profile. They are available in standard Black and White colours.
| Perimeter Trims/Wall AngleFor T-24 GridFor T-15 GridAluminium Wall Angle | Length 3000mm20 x 22, 24 x 24 White / Black14 x 20 White / Black14 x 20 |
| W-Angle | 10 x 10 x 10 x 15 mm |
| Slotted Angle | 20 x 22 mm |

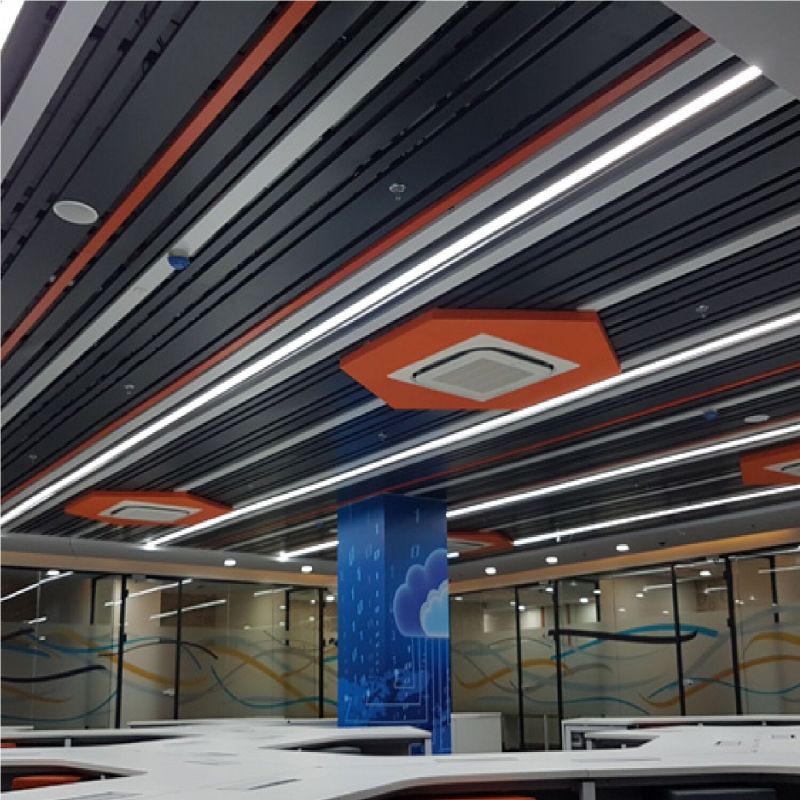

The key feature of this system is the endless permutations and combinations of panel widths and depths which paves the way for architects to create unique designs by using the same system repeatedly.
| Section Size | Multi-DW: 60 / 110 / 210 / 235 mmH: 23 mmClear Gap: 18/38mm | Multi-WDHxW: 25100 / 7575 / 12550 /17525 mmClear Gap: 25mm |

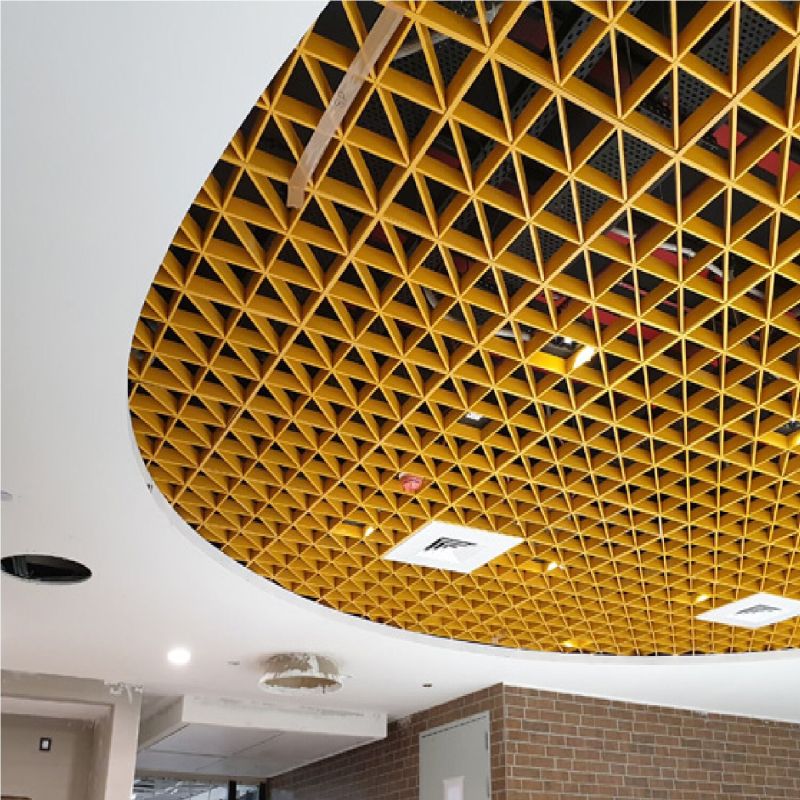

Techno Diagonal CellTMis specially designed to break free from the monotonous box design. It is a simple yet sleek system which has been developed in-house by engineers at Techno.
| Cell Size | 200 x 200 mm |
| Section Size | 50 x 10 mm |
| Materials | Aluminium / GI Powder-coated / Pre-coated GI |
