Leading Manufacturer, Supplier & Retailer of Junction Box, Fuse Base, Limit Switches, Indicating Light and Rotary Switches.
INTRODUCTION
TEKMECmake seriesTLSLimitSwitches arebeingmanufacturedas per rigid quality standards conforming to IS/IEC 60947 (Pt. 5 / Sec. 1). These Limit Switches performs in most contaminated atmosphere.
KEY FEATURES
High AccuracyLong Electrical / Mechanical Life.Protection against oil, dust and other industrial conditions.
ENCLOSURES
Limit Switches enclosure has been designed for service under most aggressive conditions. A rubber diaphragm with a sealing ring under the push rod guide provides protection against any leakage from this direction. A ridge on the housing along with oil resistant rubber gasket under the cover prevents oil and water seepage. External mounting holes further ensure oil tightness. The enclosure complies with IP65 protection requirement.
OPERATION
An ingenious design of the limit switch head permits rotation in steps of 90 thus enabling use of the actuating rod from any of the four directions Limit Switch are available with straight as well as angular roller levers. Straight lever is used with horizontal actuator while angular lever for vertical actuator.
CONNECTIONS
Terminals are suitable for straight end connections for two wires of equal or different sizes.
HIGH ACCURACY
Close tolerances for push rod guide and contract bridge lead to very high level of accuracy. Position of contacts for the Limit Switches maintained within very fine tolerances even after a large number of operations.
APPLICATIONS
For optimum utilisation of TEKMECLimit Switches, appropriate application is very important.
*Applied force should not be excessive. *Roller Lever should not be in opposition to the actuating movement.* Push Rod speeds upto 1M/sec are permitted in the direction of stroke. * Speed of moving contacts should not be less than 0.015 M/sec for DC* For lower operating speeds, use snap action switches.*Avoid installing Limit Switches in locations subject to heavy vibrations. * Actuator angle can be upto 45 with roller lever with actuationin the direction of roller level.
CONTACT BLOCKS
Contact Block has 1NO & 1NC contact. Contact Blocks can be used as a limit switch by itself in control cabinets and other similar applications. If desired, a transparent cover can be provided over the contact to protect against the dust settling on the contacts. Three types of Contact Blocks are available:
Normal:for relatively quick operation.
Snap Action:for slow operation
The contacts are made from special silver alloy which ensures satisfactory operationeven atlow voltages. Contacts are rated at 10 Amp
Additional Information:
Delivery Time : 10-12 Working days
INTRODUCTION
TEKMEC make Push Button Switches, Selector Switches and Pilot Lamps are normally suitable for Control & Auxiliary Circuits, A.C. or D.C. backed by years of proven performance in the field.These devices have contact reliability, increased operational safety, compactness and reduced labour input. The availability of two separate models of contact blocks-rear wire connection type for panel mounting application and front wire connection type for base mounted and other features make them an ideal choice for panels, control desks, control stations, machine tools etc.
These devices generally comply with the requirement of IS/IEC : 60947-5-1 (2003).
SALIENT FEATURES
Very good flame resistance.Interchangeable blocks provide multiple contact configurations at site.Tekmecs traditional hall mark for precision & exacting quality and assurance for consistency & reliability. Safe in operation, locking device unaffected by vibration.Self wiping contacts ensure trouble free operation.State-of-the-art workmanship aesthetic elegance.Tekmecs more than two decades of trust and confidence.Protection against electrical shock (Unit Earthed).
Push Buttons & Selector Switches are available in Chrome Plated Metallic body & Bezel as well as in Glass filled thermoplastic body & bezel and are functionally interchangeable. The elements are interchangeable and can be stacked without additional hardware, 1 to 4 element (NO or NC) can be used with Push Buttons and Selector Switches. For illuminated Push Buttons 1 or 2 element (NO or NC) may be used. The Pilot Lights and illuminated switches are suitable for direct supply or supply through series resistor, using bayonet cap filament bulb type BA-9S for both AC/DC supply from 6V to 230V. Indicating Lights with switching device and integral LED modules can be directly mounted on panel and rated voltage can be directly applied to the module input. These are available in Standard and barrel type enclosure in Thermoset (DMC) and Thermoplastic housing for AC/DC and AC or DC supply.
SIGUT TERMINATION
This unique feature is highly safety oriented. It increases safety to the
user by preventing accidental contact by the user with live terminals.
COMPACT 22.5mm DIAMETER
The smaller mounting diameter reduces mounting space by 30% as compared to conventional 30.5mm design.
ENERGY SAVER
22.5mm devices require lamp with 2/2.6W instead of 7 to10 Watt Lamps used in30.5mm devices. This results in energy saving.
MOUNTING
Screw driver is required for fixing these devices on to panelhaving thickness of 1 to 6mm in any position. The whole assembly is locked into position with the help of two M4 pointed screw on the bracket. These screws also ensure the earthing.We recommend fixing centres as per standard. The Screws should be tightened simultaneously to an extent as to pierce through the paint on the panel from inside.
-FLUSH BUTTONSpring Return
-PROJECTING BUTTONSpring Return
-PROJECTING BUTTO Push to On Push to Off
-BOOTED BUTTONSpring ReturnFor Flush Actuator
-MUSHROOM BUTTON(HEAD 40mm) Spring ReturnWITH PADLOCKING DEVICE
-MUSHROOM STAYPUT BUTTON(HEAD 40mm)Press to Lock & Turn to ResetWITH PADLOCKING DEVICE STAYPUT(HEAD 30mm)
-TWIN BUTTONSpring Return with Green Knob marked I & Red Knob marked O
-LUMINOUSTWIN BUTTONNOSPRING RETURNWith Green Knob marked I & Red Knob marked O with LampHolder with BA9S bulb 2.6W & with Cluster LED
-RELAY RESET BUTTONSpring ReturnProjecting Button Flush Button
-MUSHROOM HEADKEY LOCKABLE ACTUATORKEY REMOVABLE IN :Pressed (Actuated) Position Unpressed (Unactuated) Position Pressed & Unpressed Position Press to Lock, Key to Reset
-SELECTOR MAINTAINED CONTACTTwo PositionThree Position
-KEY SELECTOR TWO POSITIONMAINTAINED CONTACTKEY REMOVABLE IN : Right PositionLeft PositionRight & Left Position
For extended range, please contact
Additional Information:
Delivery Time : 5-6 working days depending on quantity
INTRODUCTION
TEKMEC also offers very wide range of LED Control & Signalling Devices. LED Indicators are available in Flame Retardent DMC (Dough Moulding Compound). Thermoplastic, Metallic Barrel enclosure and other versions.
SALIENT FEATURES
Suitable for wide range of 6.5mm, 9.5mm, 12.5mm, 14.5mm, 16.5mm, 19.5mm , 22.5mm, 30.5mm.
Besides Conventional Plastic & Brass enclosures, also available in DMC moulding, which has got strength and is Flame Retardent, with Brass Lens Holder & nut fixing feature.
Lens moulded out of High special Transmission grade polycarbonate matching with LED for excellent spectral transmissivity.
Very low current consumption i.e. 0.5 watt only at 220V AC as compared to conventional Filament Bulb Lamp Holder.
LED INDICATORS
Withstands 25% Voltage variation without change in illumination or life. Solid State Device - Shock Proof & very low temperature rise.Slim modules (6.5mm to 12.5mm) Available 110/220V AC OR DC Rating.
Additional Information:
Delivery Time : 5-6 Working Days
INTRODUCTION
TEKMEC make Rotary Switches are designed and engineered for a new level of switching efficiency and elegant looks. These are manufactured in accordance with the latest engineering practices and emerging out with the largest range of Rotary Switches. Cam Operated Rotary Switches have versatile mounting options to suit any kind of application. These switches are suitable for AC as well as DC applications upto 200Amps.
SALIENT FEATURES
Rugged Construction.
Aesthetic Design.
Temperature Withstand Capability.
Enhanced Life.
Selection for Operating Knob.
On-site adjustment for Mounting Plate.
DESIGN
TEKMEC Switches have different switching stages with double pair of contacts. Each pair consists of two fixed contact plates and one movable contact plate. The rotation is provided by movement of slide. The slide rests on a CAM disc. This CAM disk has grooves according to the sequential operation rotated by switch handle through a hexagonal shaft.
CHOICE OF OPERATING KNOBS
Operating device can be selected from a wide range of knobs and handle, depending on operational convenience.
Pistol GripLever TypeLong HandleBall GripTear DropFlag Handle
Knob indicates switching position of the switch. A variety of elegant colour combinations for plate and knob are offered to suit the panel and other instruments.
MOUNTING
The switches can be mounted on Panel Flush or base mounted. wide range of mounting combinations are available which can be supplied on request.
Lock & KeyDoor InterlockKey OperatedPadlock Front Plate & Knob are available in different type & sizes.
ENCLOSURE
Aluminium enclosure for Max 2 Switching Operation
Standard Plastic Front and Knob.Plastic enclosure for Max 2 switching operations. Padlocking
Device for M3 Pad Locks (Optional), for Aluminium & Plastic
enclosures for Round Knobs.Sheet Metal enclosures for Motor Control 2 Stage switching.
Operations Forward / Reverse.g operations. Padlocking
Device for M3 Pad Locks (Optional), for Aluminium & Plastic
enclosures for Round Knobs.Sheet Metal enclosures for Motor Control 2 Stage switching.
Operations Forward / Reverse.
Additional Information:
Delivery Time : Based on quantity required
We customise Junction Boxes as per the requirement and specifications.
They are available in FRP and Aluminium dye-cast material
Additional Information:
Delivery Time : 10-12 working days
Additional Information:
Delivery Time : 10-12 working days
We supply exothermic powder at best competitive prices.
The prices depend on the quantity one needs.
Additional Information:
Delivery Time : As per quantity ordered
| ENCLOSURE F.R.P . / Cast Aluminium / Sheet Metal Enclosure with IP-54/IP-55/IP-65 Degree of Protection Enclosure door will be bolted type.All components except the Push button / Selector Switch operating knobs will be base mounted. The cutout for ammeter will be covered with clear glass. Padlocking facility for the Stop Push button can be provided on the front plate if specified.Neoprene Gasket will be provided. TERMINALS Clip on/ Cage Clamp/ Cat M3 type terminals blocks suitable for connection of 1.5/2.5/4 mm sq.aluminium copper conductors. Terminal design ensure vibration-proof connections. Terminals for each push button to be brought out separately into the terminal chamber.MAKE : ELMEX / CONNECTWELL./ PHONIX / WAGO. MOUNTING All Push Button Stations will have four external lugs for fixing.The lugs shall be offset type to facilitate correct positioning. in case of FRP Enclosure mounting Lugs will be duly hot dip galvanised. EARTHING Enclosure of Local Control Stations will be provided with 1 or 2 nos. External earthing terminals , each complete with 2 plain and one spring washer and a nut. CABLE ENTRY Enclosure of all Push Button Sations will be provided with 2 cable entries 3/4 ET/BSC as desired at bottom unless required otherwise.These will be provided with knockout stoppers.Cable Glands can be provided if required at extra cost. |
1
| TM TEKMEC PUSH BUTTON STATION |
| ELECTRICAL COMPONENTS PUSH BUTTONS The Start Push Button will be Flush Spring Return Type with green knob. The Stop Push Button will be red with Flush / Projected/Mushroom head. These can also be provided with Mushroom Head Stayput type with or without Latching Mushroom Head Key Lockable Type 22.5mm range have been considered for all Push Button Station. However , 30.5mm Push Buttons can also be provided on request. MAKE :TEKMECCONTACT ELEMENTS START Push Button will be provided with 1NO OR 1NO+1NC and STOP Push Button will have 1NC OR 1NO+1NC Contact Block. Contact Block s are rated for 4/10A / 500V AC & 1A / 220V dc. Contact Arrangement can be increased upto 2NO + 2NC for each Push Button MAKE :TEKMEC AMMETERS Ammeters will be of 72 * 72 mm / 96 * 96mm moving iron type with Class I accuracy direct CT operated (CT provided elsewhere) with 1 Amp. CT secondary rating .All ammeterwill be Industrial grade accuracy and will have a basic range of 0-1/6 with suppressed scale calibration will be as per data sheets. MAKE :RISHABH / AE / TEKMEC INDICATING LAMP 22.5mm Indicating Lamp shall be Low Burden Filament type /LED/NEON with bayonet cap or with LED Lamps lenses will be of polycarbonate or other equivalent unbreakable material. MAKE :TEKMEC SELECTOR SWITCHES Selector Switches will be CAM type , Spring Loaded , Key Lockable suitable for 10/16A single pole MAKE :TEKMECWIRING Local Control Stations will be duly wired from Contact Terminals to clip on type Terminal Blocks with PVC insulated copper cable max. Size 2.5 mm sq. / 4mm sq./10mm sq. Requisite space is provided between gland plate and terminals. MAKE : POLYCAB/HAVELLS or any ISI mark PAINTING (IN CASE OF CAST ALUMINIUM & SHEET METAL ENCLOSURE ONLY) Push Button Station enclosure is cleaned & anti corrosive treatment is given , finally painted with either stove enamel or epoxy paint or powder coated. NAME PLATE Each Control Stations can be provided with engraved perspex nameplates with white letters on black background. (Inscription details to be provided by the purchaser). Push Button Switches , Indicating Lamps etc. Will be provided with legend plates indicating their respective function. |
Additional Information:
Delivery Time : As per specifications and quantity

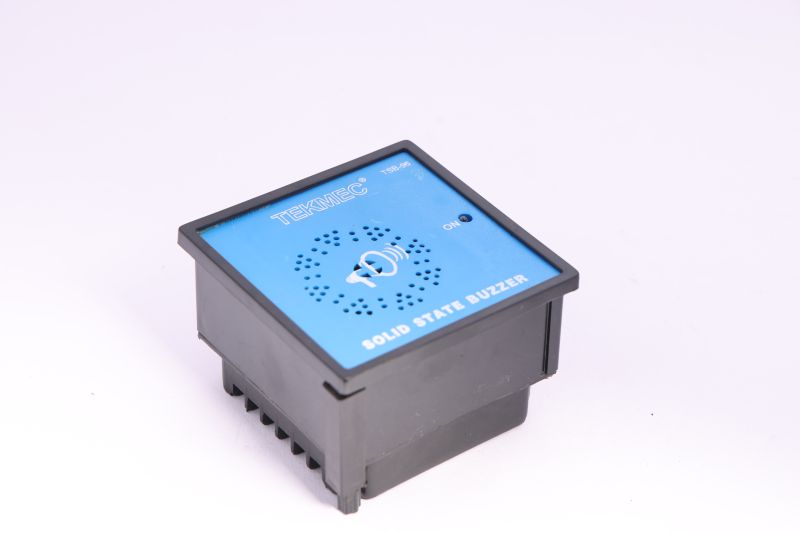

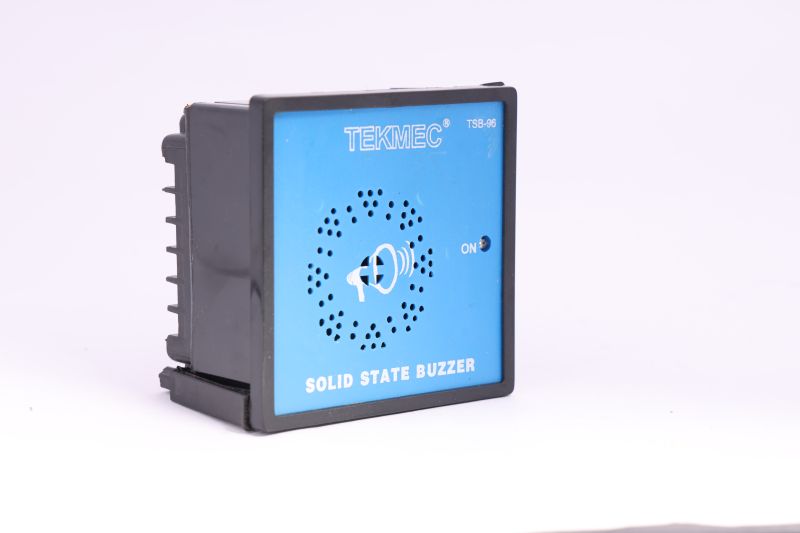

Technical Specification-
Panel Out size-90mm x90mm.
Mechanical Dimension -96mm x96mm x80mm.
Operating Voltage Range - 10% of rated voltage. Burden less than 15mA at Nominal input.
Audio range -50 meters
Thermal rating -Continuous a120% of rated voltage.
Available in Three tones with toggle switch for sound selection
Application
(A.) Control Panel, (B.) Control Desk
Salient Features-
Electronic Circuit.
Long Life.
Low Power Consumption.
Generates no radio frequency voice. Protected against polarity reversal. Suitable for operation on A.Cor D.C. Exquisiteappearance.
Easy flush mounting for panels.
Additional Information:
Delivery Time : 7-8 Working Days
