Clamps And Clamping Equipment

We offer a complete product range of Lifting Clamp, Vertical Lifting TSEMP / STSMP, FHX / FHSX, Beam Lifting and Pipe Lifting Clamp

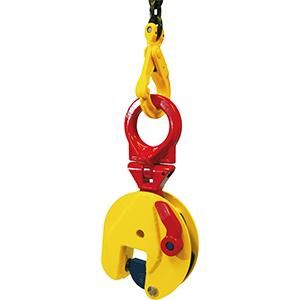

Lifting Clamp

Lifting Clamp
Best selling lightweight heavy duty clamp for universal liftingApplication: For vertical lifting, transporting and turning of all steel plates and structures from all positionsJaw openings available from: 0 to 150 mmTSEU STSU types are supplied with enlarged jaw openingWorking load limit (WLL) 750 - 30000kg (Higher WLL available upon request)Min . WLL is 10% of max . WLLnote: the plate surface of the material must have a hardness level of max. HrC 37345 Hb
View Complete Details
Ask Latest Price & Details
Vertical Lifting TSEMP / STSMP

Vertical Lifting TSEMP / STSMP
three way articulated linkage arrangement for flexible lifting and extended reach
Application:
  • For vertical lifting, transporting and turning of all steel plates and structures
  • Jaw openings available from: 0 to 100 mm
  • TSEMP / STSMP types are supplied with enlarged jaw opening
  • Working load limit (WLL) 750 - 9000kg (Higher WLL available upon request)
  • Min . WLL is 10% of max . WLL
  • note: the plate surface of the material must have a hardness level of max. HrC 37/345 Hb
Features and benefits:
  • With three way articulated linkage arrangement lifting shackle
  • Enjoy all the benefits of the TS clamps with extra reach and lifting flexibility
  • When attached to a fixed load bearing arm (e .g . spreader bar) the clamp will retain its
  • flexibility and no chain is needed
  • Due to length of the three way linkage arrangement the clamp can be lowered further
  • between standing plates or structures
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when
  • lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Maintenance-friendly, easy to exchange parts which are available upon request

Article Nr. Type Capacity (kg/pc) Jaw opening (mm) S T U V W X Y Weight (kg/pc)

850010 0.75 TSMP 750 0 - 13 47 30 307 100 37 37 10 2
850818 1 TSEMP 1000 0 - 25 56 45 403 141 37 47 15 4.5
850911 2 TSEMP 2000 0 - 35 78 64 516 183 56 56 16 8
850221 3 TSEMP 3000 0 - 35 78 64 516 183 56 56 16 8
851401 4.5 TSEMP 4500 0 - 45 85 70 650 228 60 78 20 19
850311 6 TSMP 6000 0 - 32 114 75 760 225 78 78 20 24
851511 6 TSEMP 6000 0 - 50 114 75 760 259 82 78 20 25.5
850411 7.5 TSMP 7500 0 - 40 111 75 800 246 76 82 20 29
851510 7.5 TSEMP 7500 0 - 55 111 75 792 267 70 86 20 30.5
851515 9 TSMP 9000 0 - 55 111 75 792 267 70 86 20 31

852210 6 STSMP 6000 40 - 90 114 75 756 275 70 78 20 26
854310 7.5 STSMP 7500 50-100 111 75 695 312 70 86 20 31.5
853315 9 STSMP 9000 50-100 111 75 792 312 70 86 20 32.5
View Complete Details
Ask Latest Price & Details
FHX / FHSX

FHX / FHSX
lightweight heavy duty clamp for horizontal lifting
Application:
  • For horizontal lifting and transporting of steel plates and other non-deflecting materials
  • Terrier FHX / FHSX lifting clamps must always be used in pairs (or multiple pairs)
  • Jaw openings available from: 0 to 150 mm
  • FHSX types are supplied with enlarged jaw opening
  • Working load limit (WLL) 1000 - 25000kg per pair (Higher WLL available upon request)
Features and benefits:
  • Compact design and high lifting capacity
  • Lightweight design for easy handling
  • Tough quality heavy duty welded body

Art no. Type Capacity (kg/pair) Jaw opening (mm) V S W T H X U Y Weight (kg/pc)

953100 1 FHX 1000 0 - 35 140 99 10 25 11.5 65 188 15 2.6
953200 2 FHX 2000 0 - 60 180 118 15 30.5 19.5 90 287 16 7
953300 3 FHX 3000 0 - 60 180 118 20 30.5 19.5 90 291 16 8
953400 4 FHX 4000 0 - 60 220 145 25 30.5 19.5 105 304 20 13
953600 6 FHX 6000 0 - 60 220 145 25 30.5 19.5 110 307 20 14
953800 8 FHX 8000 0 - 60 225 135 35 30.5 19.5 120 336 30 19
953010 10 FHX 10000 0 - 60 225 135 35 30.5 19.5 120 336 30 19
953012 12 FHX 12000 0 - 60 225 135 35 30.5 19.5 120 336 30 19
953015 15 FHX 15000 0 - 60 262 147 35 43 21.5 160 344 35 30
953025 25 FHX 25000 0 - 60 262 147 40 43 21.5 175 349 35 33

954200 2 FHSX 2000 0 - 100 180 120 15 30.5 19.5 90 383 15 9.2
954300 3 FHSX 3000 0 - 100 180 120 20 30.5 19.5 90 387 15 10
954400 4 FHSX 4000 0 - 100 220 145 25 30.5 19.5 105 414 20 15
954600 6 FHSX 6000 0 - 100 220 145 25 30.5 19.5 120 414 20 16.5
954800 8 FHSX 8000 0 - 100 225 135 35 30.5 19.5 120 428 30 21
954010 10 FHSX 10000 0 - 100 225 135 35 30.5 19.5 120 428 30 22
954012 12 FHSX 12000 0 - 100 225 135 35 30.5 19.5 120 428 30 22
853820 15 FHSX 15000 0 - 150 350 240 35 45 27.5 140 665 35 53
View Complete Details
Ask Latest Price & Details

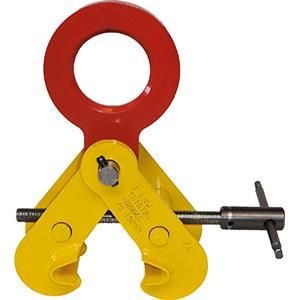

Beam Lifting

Beam Lifting
Multi purpose beam screw clamp
Application:
  • For horizontal lifting and transportation of steel (H) beams, profiles and structures
  • Can be used as upside down attached (temporary) lifting point
  • FSV Jaw openings available from: 75 to 450 mm
  • FSVS / FSVSU types are supplied with enlarged jaw opening: 75 to 560 mm
  • FSV Working load limit (WLL) 1000 - 10000kg . (Higher WLL available upon request)
  • FSVS / FSVSU Working load limit (WLL) up to 5000kg
Features and benefits:
  • Special design makes it possible to lift steel (H) beams and structures
  • Equal opening and closing of both jaws for simple and quick assembly
  • Welded jaw plates for better positioning and less damaging of load
  • FSVSU types are supplied with reinforced body and articulated lifting shackle
  • Lightweight, maintenance-friendly, heavy duty body

Article Nr. Type Capacity (kg/pc) Jaw opening (mm) S T V-max U-max H X Weight (kg/pc)

851400 1 FSV 1000 75-190 30 73.5 357 345 113-192 120 5
851500 2 FSV 2000 75-190 30 73.5 357 345 113-192 120 5
851600 3 FSV 3000 75-190 30 73.5 357 345 113-192 120 5
851700 4 FSV 4000 150-300 40 80 450 422 185-240 180 15
851800 5 FSV 5000 150-300 40 80 450 422 185-240 180 15
851110 10 FSV 10000 350-450 95 88 695 653 400-447 200 50

962000 2 FSVS 2000 75-420 30 73.5 540 428 114-275 120 7
963000 3 FSVS 3000 75-420 30 73.5 540 428 114-275 120 7
964000 4 FSVS 4000 150-560 40 80 708 545 173-362 180 18
965000 5 FSVS 5000 150-560 40 80 708 545 173-362 180 19.5

956300 3 FSVSU 3000 75-420 30 73.5 540 486 114-275 120 8
956400 4 FSVSU 4000 150-560 40 80 708 613 173-362 180 21
956500 5 FSVSU 5000 150-560 40 80 708 622 173-362 180 22
View Complete Details
Ask Latest Price & Details
Pipe Lifting Clamp

Pipe Lifting Clamp
Heavy duty clamp with high pressure resistant plastic for horizontal pipe lifting
Application:
  • For horizontal lifting and transporting of steel and concrete pipes without damaging the product
  • TPH-HD version is specially designed for extreme heavy duty lifting situations (eg . loading and unloading ships)
  • Terrier TPH lifting clamps must always be used in pairs
  • Jaw openings available up to 70 mm
  • Working load limit (WLL) 1500 - 60000kg per pair (Higher WLL available upon request
Features and benefits:
  • TPH Jaw is covered with a special high quality pressure resistant plastic
  • TPH-HD Jaw is covered with special high quality extreme high pressure resistant plastic
  • Maintenance-friendly clamps, plastic pressure resistant cover is pipe lifting easy to change
  • TPH-HD has special handle for easy handling
  • Compact design and high lifting capacity
  • Lightweight design for easy handling
  • Tough quality heavy duty body

Article Nr. Type Capacity (kg/pair) Jaw opening (mm) V S W U T X Y Weight (kg/pc)

960150 1.5 TPH 1500 40 120 70 50 185 16 41 25 2
960300 3 TPH 3000 40 120 70 50 185 16 41 25 2
960400 4 TPH 4000 50 140 70 58 204 26 41 25 3
960600 6 TPH 6000 50 140 70 58 204 26 41 25 3
960800 8 TPH 8000 70 140 70 58 224 26 45 25 3.4
960810 10 TPH 10000 70 140 70 58 224 26 85 45 7
960812 12 TPH 12000 70 140 70 58 224 26 85 45 7
960815 15 TPH 15000 70 155 70 76 250 26 100 60 9
960820 20 TPH 20000 70 155 70 76 250 26 100 60 9

965050 5 TPH-HD 5000 60 309 100 85 232 26 80 20 6.7
965100 10 TPH-HD 10000 60 319 100 85 236 36 80 30 9.7
965200 20 TPH-HD 20000 60 362 100 105 285 51 80 35 14
965300 30 TPH-HD 30000 60 387 100 115 310 58 80 40 19
965600 60 TPH-HD 60000 60 418 100 115 350 85 80 60 28.5
View Complete Details
Ask Latest Price & Details
Specials

Specials
Extra hardened pivot and cam for Hardox lifting
Application:
  • For vertical lifting, transporting and turning of all steel plates with a hardness of max . 50 HRC (for example Hardox 400 and 500) . Please ask for special specifications
  • Jaw openings available from: 0 to 55 mm . Working load limit (WLL) 750 - 7500kg
  • Min . WLL is 10% of max . WLL .
  • note: the plate surface of the material must have a hardness level of max. HrC 50/485 Hb
Features and benefits:
  • Equipped with an extra hardened pivot and cam
  • Cam is coloured green for easy identification
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Maintenance-friendly, easy to exchange parts which are available upon request

Artikel No. Model Capacity (kg) Jaw-opening (mm) S T U V W X Y weight (kg)
850000.5 0.75 TS-H 750 0 - 13 47 30 202 100 37 37 10 1.7
850880.5 1 TSE-H 1000 0 - 25 56 45 263 141 37 47 15 3.5
850901.5 2 TSE-H 2000 0 - 35 78 64 336 183 56 56 16 7
850331.5 3 TSE-H 3000 0 - 35 78 64 336 183 56 56 16 7
850451.5 4.5 TSE-H 4500 0 - 45 85 70 425 228 60 78 20 16
851411.5 6 TSE-H 6000 0 - 50 114 75 490 259 82 78 20 21
851501.5 7.5 TSE-H 7500 0 - 55 111 75 522 267 70 86 20 26

850010.5 0.75 TSMP-H 750 0 - 13 47 30 307 100 37 37 10 2
850818.5 1 TSEMP-H 1000 0 - 25 56 45 403 141 37 47 15 4.5
850911.5 2 TSEMP-H 2000 0 - 35 78 64 516 183 56 56 16 8
850221.5 3 TSEMP-H 3000 0 - 35 78 64 516 183 56 56 16 8
851401.5 4.5 TSEMP-H 4500 0 - 45 85 70 650 228 60 78 20 19
850311.5 6 TSMP-H 6000 0 - 32 114 75 760 225 78 78 20 24
851510.5 7.5 TSEMP-H 7500 0 - 55 111 75 792 267 70 86 20 30.5

855000.5 0.75 TSU-H 750 0 - 13 47 30 203 100 37 37 10 1.8
865800.5 1 TSEU-H 1000 0 - 25 56 50 292 141 37 47 15 3.8
855601.5 2 TSEU-H 2000 0 - 35 78 70 372 183 56 56 16 8
865331.5 3 TSEU-H 3000 0 - 35 78 70 372 183 56 56 16 8
865301.5 4.5 TSEU-H 4500 0 - 45 85 70 431 228 60 78 20 16.5
865411.5 6 TSEU-H 6000 0 - 50 114 78 527 259 82 78 32 24
855400.5 7.5 TSEU-H 7500 0 - 55 111 78 560 267 70 86 32 28
View Complete Details
Ask Latest Price & Details
Lifting Tongs

Lifting Tongs
Best selling lightweight heavy duty vertical lifting clampApplication: For Vertical lifting, transporting and turning of all steel plates and structures.Jaw openings available from: 0 to 150 mm.TSE STS types are supplied with enlarged jaw opening.Working load limit (WLL) 750 - 30000kg (Higher WLL available upon request).Min.WLL is 10% of max. WLL.
