Testing Instruments

Surat, Gujarat

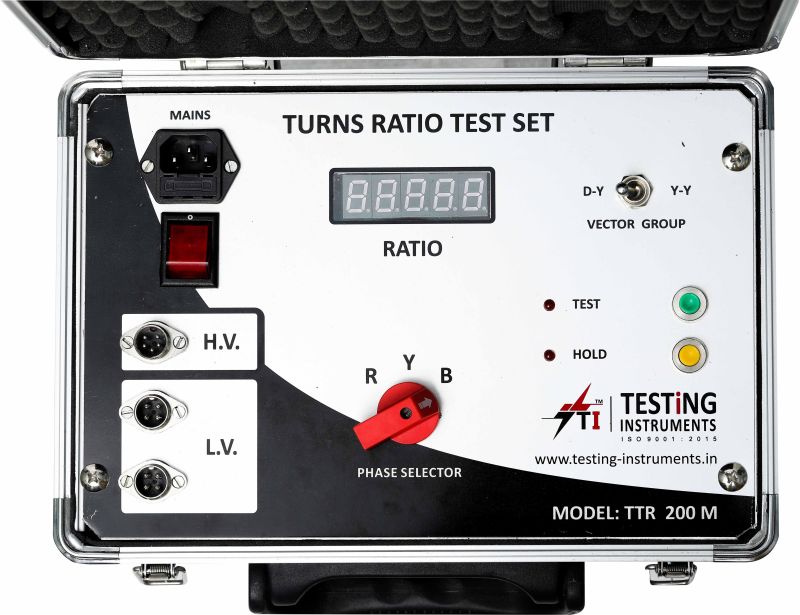

• Min. Order (MOQ) 1 Set
• Application For On-site Commissioning And Maintenance.
• Function Measures Transformer Turns Ratio.
• Model Number TTR 200 M
• Test Method Compares High And Low Voltage Windings.
• Measurements Digital Ratio Readout.
• Controls Phase And Vector Group Selector Switches.
• Design Compact, Portable Case With A Carrying Bag.
• Accessories Includes A Full Set Of Test Leads And Clamps.

• Min. Order (MOQ) 1 Piece(s)
• Application QC, Commissioning, Maintenance
• Number Of Flower Routine Test Set
• MS Box
• Function Routine Transformer Testing
• Measurements V, A, Ratio
• Controls Rotary Switches, E-stop
• Connections HV, LV, Magnetizing
• Portability Portable, Self-contained
• Safety Emergency Stop Button
• Model INST-60, INST-30
• Weight Light
• Structure Compact
• Functionality Multiple Function, General-purpose, Easy To Use

Additional Information:

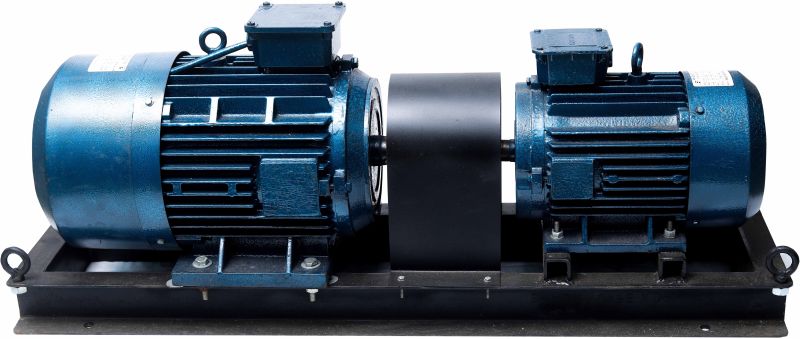

• Min. Order (MOQ) 10 Piece
• Application Test Labs, Industrial Use
• Function Converts Electrical Power
• Components Motor And Generator On A Common Base
• Design Rugged, Steel Base Frame
• Use Case Voltage And Frequency Conversion
• Protection Includes Overload And Overcurrent Protection
• Cooling Air-cooled Motor And Generator
• Mobility Equipped With Lifting Eyes For Transport
• Output Provides Stable, Isolated Power

• Min. Order (MOQ) 1 Set
• Application For On-site Commissioning And Maintenance.
• Power Source Operates On AC Mains Power
• Function Performs Multiple Routine Tests On Transformers.
• Tests Measures Transformer Ratio, Magnetizing Current, And Voltage Gain.
• Measurements Multiple Digital Displays For V, A, And P Measurements.
• Controls Includes Circuit Breakers And Selector Switches For Test Control.
• Connections Equipped With Various Input And Output Sockets.
• Design Housed In A Rugged, Portable Case With A Lid.

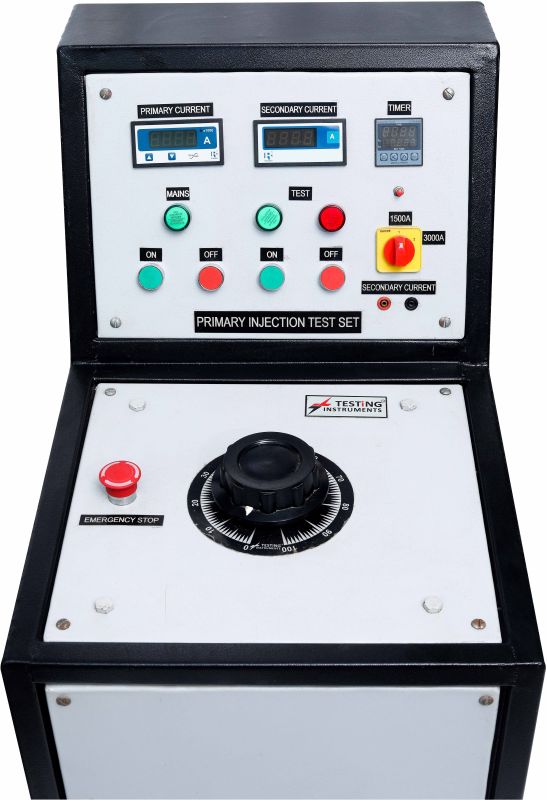

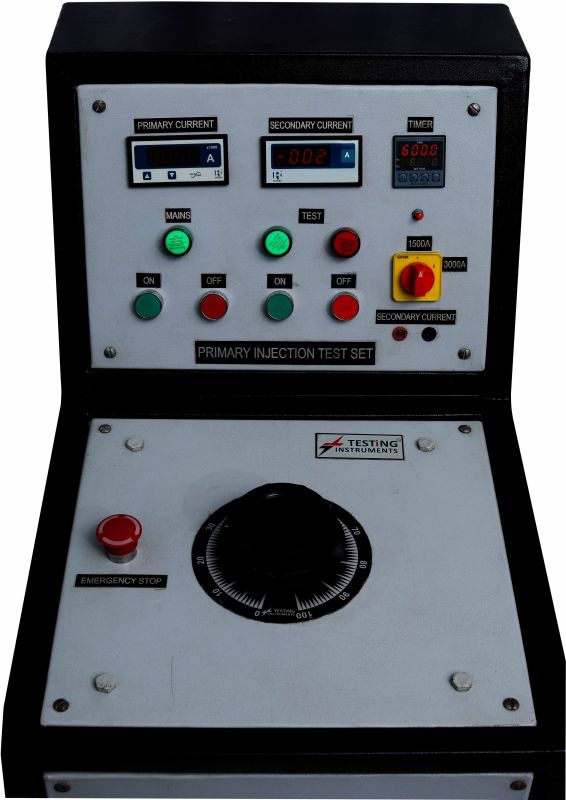

• Application On-site Commissioning And Testing
• Function Injects High Test Current
• Current Output Adjustable Up To 3000A
• Measurements Digital V, A, And Time
• Test Applications Circuit Breakers, CTs, Busbars
• Controls Large Rotary Adjustment Knob
• Safety Emergency Stop Button
• Design Portable, Rugged, Modular

• Min. Order (MOQ) 10 Piece(s)
• Application For Cables, Transformers, Switchgear
• Copper Wound Class F
• Function Tests Electrical Insulation
• Test Mode AC And/or DC Voltage
• Voltage Range Wide-ranging Output Up To 120kV+
• Safety Zero-start And Safety Interlocks
• Control Manual Or Automatic Operation
• Measurements Digital KV And MA Meters
• Design Portable, Modular, Rugged
• Standards Conforms To IEC, IEEE
• Material Copper Wound

Additional Information:

• Application Industrial, Test Labs, Industrial Use, Stepping Up Or Stepping Down Voltage
• Phase Three Phase
• Country of Origin 415 V
• Material CRGO
• Output Voltage 230-440 V
• Frequency 50-60 Hz
• Power AC
• Packaging Type Carton
• Cooling Type Air, Oil
• Current 2-300A
• Mounting Type Floor
• Winding Material Copper
• Function Adjusts Output Voltage
• Design Single-winding Construction
• Cooling Oil-filled With Radiator Pipes
• Mobility Mounted On Heavy-duty Wheels
• Control Manual Voltage Tap-changer
• Construction Rugged, Durable Tank
• Connection HV Output Bushing
• Brand TI

• Min. Order (MOQ) 10 Piece
• Application Transformer Oil Quality Control
• Function Measures Insulating Oil Strength
• Test Medium Transformer And Switchgear Oil
• Voltage Output Variable High Voltage
• Operation Automated Test Sequence
• Display Digital Readout For Breakdown Voltage
• Safety Interlocked Test Cell Chamber
• Design Portable, Rugged Case
• Compliance Conforms To International Standards

• Min. Order (MOQ) 1 Set(s)
• Application QC, Production, And Maintenance
• 5KV 30mA
• Function Tests Insulation Dielectric Strength
• Test Mode AC And/or DC Voltage
• Voltage Range Variable High Voltage Output
• Measurement Measures Leakage And Breakdown Current
• Safety Zero-start, Overload Protection
• Operation Automatic And Manual Modes
• Design Rugged, Portable, Field-ready
• Standards Conforms To IEC, UL, ASTM
• Voltage Capacity 5KV
• Tripping Setting Customer-specific
• Other Attributes Portable, Electric, Digital, Manufacturer's Warranty Included, CE Certified, Varies Based On Model, Varies Based On Model, Durable Materials, Varies, Secure Packaging, Industrial Testing Equipment, Optional Connectivity Features, Includes Necessary Accessories, Custom

Additional Information:
