Texcare Instruments

Hastsal, Delhi

We are offering highly efficient Pilling Tester that is used for determining the tendency to form pills on various fabrics. Pilling Tester takes test specimens from the fabric and it is rubbed against each other under controlled conditions. Further, the appearance of the test specimen is compared against the standard rating photographs, which are woven pilling photographs and knitted pilling photographs in order to grade the fabric. Technical Specifications :

• With 8 Nos. Pilling Tubes
• With Digital Display with 5 digit pre-set counter
• With Digital Pre-set Counter
• With Template for Sample Cutting
• Thickness of cork lining 3 mm
• ¼ HP Geared Motor 220V / 50 Hz
• Rotation of Boxes : 60RPM
• Size of Wooden Box : 225mm x 225mm x 225mm
• Size of test specimen : 125 x 125 mm
• Related Standards : BS 5811, ISO 12945-1

Cobb Sizing Tester machines are used to determine the water penetration in milligrams of paper, paper boards and corrugated fiber bands. We are the prominent Manufacturers, Suppliers and Exporters of Cobb Sizing Tester machines from New Delhi. The Cobb Sizing Tester machines provide accurate results in very little time. These Tester machines have a digital display. Specifications :

• Test Area : 100 cm Square
• Weight of Couch Roll : 10 Kg
• User Friendly Design, easy to tilt.
• Robber Gasket is provided to avoid Water Leakage

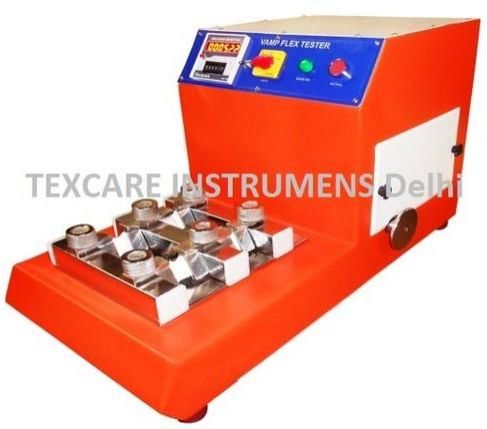

Shoe Vamp Flex Tester is machines used for assessing the tendency of shoe lining and upper material to crack while walking and other activities. The test specimen is held in V- Shaped grooves at both the ends. One is stationary while the other moves forward and backwards producing cracks on the vamp. The cycle is repeated until complete failure occurs. We are the trusted Manufacturer, Supplier and Exporter of Shoe Vamp Flex Tester from New Delhi. Customers can avail the Shoe Vamp Flex Tester at nominal rates from us. Technical Specification :

• Maximum opening between clamps : 28.5 ± 1.0 mm
• Minimum opening between clamps : 9.5 ± 0.5 mm for normal leathers 19.0 ± 1.0 mm for stiff leathers
• Movement of reciprocating clamp : 19.0 ± 1.0 mm for normal leathers 9.5 ± 0.5 mm for stiff leathers
• Frequency of oscillations : 300 ± 15 cycles/minute

Related Standards :

• SATRA PM 25  1992 : Physical Test Method
• PM 25 : Vamp Flex Test  Resistance to Creasing and Cracking

our paper gsm tester is a highly efficient tester that is applied in industries like textile, fabric, paper, etc., for ascertaining the precise gsm value. our paper gsm tester is generally used for obtaining gsm of foam, board, paper, fabric, laminated film and any sheet metal. paper gsm tester that we offer is durable and easy-to-use. it provides accurate and instant results. features :

• imported blades use in gsm cutter
• the system is made of aluminum body for light weight
• reasonable price and new design with high quality
• gsm cutter is utilized for the accurate chopping of fabrics, paper, flooring, etc.

related standards :

• iso 3801
• astm d3776 / 2646
• bs 3424 / 2471
• bsen 12127

technical specification :

• capacity : 300 gms ( 30000 gsm)
• least count : 0.01 gm (1 gsm)
• platform size : 130 mm
• power : 12v 300 ma ac adaptor
• led digital display
• with acrylic wind sealed
• warranty one year

other information :

• pay mode terms : t/t (bank transfer), western union, , debit & credit card
• minimum order quantity : 01 set
• port of dispatch : delhi india
• production capacity : 3000 units per month
• delivery time : ready stock
• packaging details : corrugated box

The Twist Tester machine is used to determine the twist per length. These Twist Tester machines are ideal to measure the twist in single, double and filament yarns. Our company is renowned for the accurate Twist Tester machines, we manufacture, supply and export from New Delhi. The attributes of the Tester include sturdy body, corrosion resistant, easy testing procedures and accurate results. Features:

• Fine finish
• Sturdiness
• Impeccable performance
• Inner Printer Installed
• Easy to Set Testing Procedures
• Accurate Determination of Properties
• Robust & Stable Body

Technical Specification :

• Yarn Test Length 50mm to 500 mm Adjustable
• Capable for Single and Double Yarn
• S / Z Switch for Selection of Twist Type
• Normal / Reverse Switch for selection of Normal Untwist of Reverse operation in witch Twist imparted in other direction.
• Reset Switch for Counter Reset
• Inverter Drive Motor ( Variable Speed )
• Speed Control By Regulator
• TPM Range : Up to 9999 TPM ( Direct TPM on Display)
• TPI Range : Up to 250 TPI
• Resolution : One Count for TPM / 0.25 Count for TPI

bursting strength tester is used to determine the bursting strength of leather, paper, textile, film, foils etc. our company is counted amongst the best manufacturers, suppliers and exporters of bursting strength tester from new delhi. the offered bursting strength tester machine asses the real time behavior and reliability of plastic, fiber and foils. our range of bursting strength tester machines produce accurate results and are low on maintenance too. feature :

• digital processor
• automatic & semi-automatic
• user-friendly menu interface
• iso calibration certificate
• high quality with reasonable price
• advanced micro computer controlling system
• printer facility (optional configuration)
• excellent power protection system that ensure data recovered when power cut off

technical specifications :

• texcare bursting strength tester
• maximum capacity : 35 kg/cm²
• test fluid : glycerin
• capacity of test fluid tank : 160 ml
• rate of fluid displacement : 95 cc / minute
• opening of upper clamp 31.5 mm
• opening of lower clamp 30.5 mm
• motor : 1/4 hp geared motor
• power 220 volt ac 50 hz.
• complete with all accessories including calibrated aluminum foil for calibration.

related standards :

• iso 2758, 2559, 3303, 3689
• bs 3424, 3137
• astm 3786, astm d 774

other information :

• pay mode terms : t/t (bank transfer), western union, , other
• minimum order quantity : one set
• port of dispatch : delhi, india
• production capacity : 200 machines per month
• delivery time : max 1 week
• packaging details : wooden packing, wooden crates, industrial packing

We are amongst the reliable Manufacturer, Exporter and Supplier of precisely designed Martindale Abrasion Tester. It is used for testing and determining the pilling and abrasion resistance of different fabrics, which includes non-woven, woven, coated and knitted fabric. Our Martindale Abrasion Tester is specifically designed to subject the specimen under controlled rubbing, at low pressures and in continuously changing direction. The test is conducted to access the resistance level of fabrics to abrasion, which is determined through the loss in mass of specimen or by number of rubs to break a yarn. Features :

• Excellent Testing Results
• PC Connect Interface
• Automatically Replace Nozzle
• Be able to preset tensile force
• Continuous Measuring Mode
• Adopt microcomputer command scheme
• Completely self-acting Electronic lone
• Exceptional conceived pneumatic clamp can satisfy the obligations of diverse kinds of check materials.

Technical Specification :

• No. of Heads : 4
• Working Pressure on test specimen : 3 KPA, 6KPA, 9KPA and 12 KPA (4 Nos each)
• Exposed area of Test Specimen : 6.45 cm²
• Maximum Available Pressure : 12 KPA (790 gms)
• Rotational speed of Outer peg : 48 ± 2 RPM
• Drive (Speed) ratio of Outer and Inner peg : 32 : 34
• Total Stroke of Outer and Inner Peg : 24 mm for Pilling 60 mm for Abrasion
• Power Supply : 230 V AC 50 Hz.
• Power Consumption : 0.2 KWH
• Related Standards : ISO 5470, BS 3424, 5690, JIS L 1096, ASTM 4966 / 4970-99, DIN 53863, 53865, SFS 4328

Ours is an acknowledged name involved in providing highly efficient Digital Tensile Strength Tester, which is used for determining the tensile strength and elongation of various products like rubber, fabric, wire, elastomers, cable, paper & packaging, etc. Digital Tensile Strength Tester is known for providing quality testing and widely used in research institutions, universities and colleges, industrial and mining enterprises, etc. Our Digital Tensile Strength Tester is based on the Constant Rate of Traverse (CRT) principle. The sample is held between the two jaws of the Digital Tensile Strength Tester in which the upper jaw remains stationary and the other is made to move at a known fixed speed with the help of motor, gear box and lead screw arrangement (100mm or 300mm per minute). Digital Tensile Strength Tester is also provided with hardened lead screws for frictionless durability. Related Standards :

• BS 1610
• BSES 1002-3
• ASTM E-4
• DIN 5122/1

Technical Specification :

• Capacity of Tester with capacity of 500kgf
• S Type Load Cell fixed with Top Grip
• Traverse Speed - Variable Spped 50 to 500 mm/min
• Max. Grip Separation 1000 mm
• Min. Grip Separation  25 mm
• Top Grip is fixed and Bottom Grip is Movable Type.
• Elongation measurement by Steel Scale and Digital Counter Meter Both.
• Digital Display of Load and Elongation.
• Peak Value of Last test can be read.
• User friendly key panel with switch of Zero setting and peak value of last test
• Motor : ½ HP Single phase 220V 50 Hz. ( for Capacity up to 100 Kgf )
• Power - 220 V AC 50 Hz.
• Safety Device  By Limit Switch to protect from Over Traverse.

Other Information :

• Pay Mode Terms : T/T (Bank Transfer), Western Union, Other
• Minimum Order Quantity : 01 Set
• Port of Dispatch : Delhi - India
• Production Capacity : 200 Machines per Month
• Delivery Time : Ready Stock
• Packaging Details : Wooden Packing

Shear Fatigue Tester determines the ability of polyurethane foam slabs to withstand repeated compressions. In the test the polyurethane foam slab is placed on a flat platform and is pressed down by horizontal cylindrical rollers at angle of 15 degree. We are counted amongst the best Manufacturers, Suppliers and Exporters of Shear Fatigue Tester from New Delhi. The Shear Fatigue Tester has an electronic counter, which records all the tests results and automatically stops the motor at the end. Technical Specification :

• Size of Test Specimen : 380 x 380 mm
• Flexing Frequency : 28 CPM
• Stroke Length of platform : 330 mm
• Diameter of Hole on Platform : 6 mm
• Distance between holes : 19 mm
• Diameter of Roller: 75 mm
• Angle of inclination : 15 deg.
• Length of Roller : 460 mm
• Power : AC 220 V 50Hz.

Related Standards : IS 7888 1976, ASTM D 3574 - 1986

We are a prominent Button Snap Pull Tester Manufacturer, Exporter and Supplier. Used to determine holding strength between button/snap and fabrics/garments, our Button Snap Pull Tester is supplied with self-calibration weight of 5.0 Kg. Fabricated with imported push pull gauge of IMADA Japan, Button Snap Pull Tester can measure up to 25 mm dia. Button. Our Button Snap Pull Tester is designed with Dial Gauge that displays the result in Kg. Also, Button Snap Pull Tester is provided with a Lower Grasp Button Accessories Kit. Technical Specification :

• Capacity 30 kg with least count of 250gms
• 3 Nos. of Grips supplied for all types of button/snaps
• All grips are made of Stainless Steel
  • GRIP-1 :
  Three Pronged Grip for testing four-hole buttons and jeans buttons
• GRIP-2 : Upper Universal Grip for testing female part of snap & male part of Stud
• GRIP-3 : Upper Stud Grip for testing male part of baby snaps

We are one of the leading Manufacturers, Exporters and Suppliers of Flammability Tester. Flammability Tester is used to measure ignition temperature of fabrics. Our Flammability Tester is well-equipped with PLC to manage testing unit. Designed with high grade test burner, our Flammability Tester facilitates burning at 45^o or 9^o. The precision-engineered exhaust vents of our Flammability Tester guarantee sensible ventilation and steady flame. Crystal rectifier panel of our Flammability Tester displays ignition time and burning time. Technical Specifications :

• Digital Timer
• Flame Length 16 mm
• Flame Source - L.P.Gas
• Flexible Tubing 1.5 meter
• Burning Area 105 mm x 40 mm
• Size of Specimen Holder 175 mm x 80 mm
• Multipurpose gauge to measure flame length.
• Specimen cutting template size 500mm x 150mm
• Specimen Holder receiver tray position 45o Angle
• Stainless Steel Body with fine quality acrylic door.

Related Standards :

• ASTM D 1230
• CRF 16-1610
• FTMS 191-5908

Tearing Strength Testers are used to measure the tearing strength of fabric, plastic, foils and films. These Tearing Strength Testers find application in textile and plastic industry. We are counted among the best Manufacturers, Suppliers and Exporters of Tearing Strength Testers based in New Delhi. The offered Tearing Strength Testers have digital synchronous counter and a high speed synchronous motor. It produces accurate results and prints the report. Features:

• Easy to Reset Counter
• Synchronous Motor Speed
• Excellent Testing Performance
• Longer Service Life
• Suitable for every kinds of fabrics.
• The measurement process is automatically generates, scan and reports which can be printed.

Technical Specifications:

• With Augmenting Weight of 1600gms (Self weight of pendulum), 3200gms, 6400gms.
• Distance Between Clamps : 2.8 mm
• Tearing Distance : 43 mm
• Slit Size: 20mm
• Template Size : as per ASTM Standard
• Scale Reading : 0 to 100% of Range (Least Count: 1%)
• With Self Calibration Checking Weight : 1600g, 3200g, 6400g
• With Specimen Cutting Template

Related Standards :

• ASTM D 1424 96
• BS 4253
• BSEN 13937
• DIN 53862

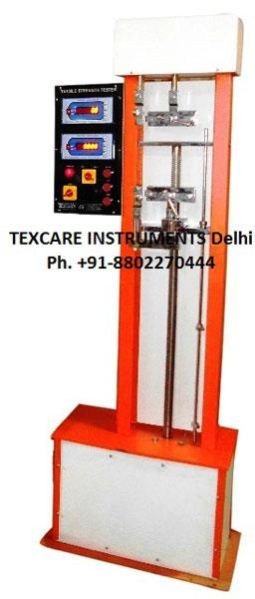

We are offering Tensile Strength Tester For Rubber And Plastic that is used for determining the breaking force of any fabric, rubber sheet and wire rope, HDPE Bag, cable, polymers, etc. Our Tensile Strength Tester For Rubber And Plastic is appreciated for its sturdy construction and precise results. Tensile Strength Tester For Rubber And Plastic that we offer consists of a lower stationary base plate and a fixed cross tie on two supporting columns along with a movable crosshead using a lead screw and nut mechanism. Our Tensile Strength Tester For Rubber And Plastic is suitable for testing extra-long test samples. Related Standards :

• ASTM D 434
• ASTM D 1578
• ASTM D 5034
• ASTM                  D 5035
• BS 1610
• BSEN 1002  3
• DIN 51221

Technical Specification :

• Capacity of Tester : 500 Kgf. (Accuracy : 100gm)
• S Type Load Cell fixed with Top Grip
• Traverse Speed : 300 & 500mm /min. (Adjustable)
• Variable Speed Models are also available
• Max. Grip Separation : 1000 mm
• Min. Grip Separation : 25 mm
• Top Grip is fixed and Bottom Grip is Movable Type.
• Elongation measurement by Steel Scale and Digital Counter Meter Both.
• Digital Display of Load and Elongation.
• Peak Value of Last test can be read on memory.
• User friendly key panel with switch of Zero setting and peak value of last test
• Motor : 1 HP Single Phase 220 V 50 Hz
• Power : 220 V AC 50 Hz.
• Safety Device : By Limit Switch to protect from Over Traverse.

Other Information :

• Minimum Order Quantity : 01 Set
• Port of Dispatch : Delhi-India
• Production Capacity : 200 Units per Month
• Delivery Time : Ready Stock
• Packaging Details : Wooden Packing

Customers can avail from us highly reliable Air Permeability Tester. Used to determine the volume of air passed through any textile fabric, Air Permeability Tester is fabricated with Branded Vacuum Pump in order to ensure hassle free functioning. Our Air Permeability Tester is suitable for filter fabric & non-woven fabric. The Air Permeability Tester features an arrangement for holding the test specimens between two flat faces and a vacuum system to draw air through the exposed area of the test specimens. The test specimen is held between two round-shaped grips of the tester. Vacuum is measured by the digital manometer in terms of mm of water level and airflow is measured by the Rotameters attached with the instrument. Moreover, our Air Permeability Tester features bright chrome plating finish in order to make the equipment resistant to corrosion. Technical Specification :

• Test Area :

4cm ² x 10 cm ²

• Rotameter :

• 0 60 LPH
• 0 900 LPH
• 600 6000 LPH
• Power -220 V AC 50 Hz.

Related Standards : IS 11056  1984, DIN 55887

Lea Strength Tester is the equipment used to measure the strength of yarn Lea or fabric. The device determines the breaking load of the Lea very accurately. Our company is a prominent Manufacturer, Supplier and Exporter of Lea Strength Tester from New Delhi. The offered Lea Strength Tester provides digital indication of all the elongation and breaking loads. Our range of Lea Strength Tester provides accurate results in no time. Technical Specifications :

• For Checking Tensile Strength of Fabric / Yarn Lea
• Digital Tensile Testing Machine â 500Kgf with S Type Load Cell
• Least Count - 0.1Kgf
• Traverse Speed - 300 mm / min
• Max. Grip Separation â1000mm
• Min. Grip Separation â 100mm
• Power - 220V AC 50Hz.
• Drive â 1H.P. Geared Motor
• Safety Device â With Limit Switch to protect from Over Traverse

Tensile Strength Tester that we offer is extensively used for determining the breaking force of any kind of fabric, board, plastic sheet and wire, HDPE bag, jute bag, yarn lea, cable, etc. Tensile strength determines the breaking point of any material, which means the point on which the material completely breaks or disfigured. The reading is shown in KGF (Kilogram Force). It also helps in measuring the elongation of materials. Tensile Strength Tester, we offer, is based on constant rate of traverse principle according to which one end of the test specimen will remain at the stationary grip and the other end moves at a known fixed speed. Our Tensile Strength Tester is microprocessor based and has the capacity to provide protection against overloads along with the facility of peak hold and auto calibration. Further, the load is indicated in kilograms or Newton. Related Standards :

• ASTM D 434
• D 1578
• D 5034
• D 5035
• BS 1610
• BSEN 1002 â 3
• DIN 51221

Technical Specifications :

• Capacity of Tester with accuracy of 100g : 250 Kgf. and 500 Kgf
• Capacity of Tester with accuracy of 10g : 20 Kgf, 50 Kgf and 100 Kgf
• S Type Load Cell fixed with Top Grip
• Traverse Speed : 300 & 100mm /min.
• Max. Grip Separation :1000 mm
• Min. Grip Separation : 25 mm
• Top Grip is fixed and Bottom Grip is Movable Type
• Elongation measurement by Steel Scale and Digital Counter Meter Both
• Digital Display of Load and Elongation
• Peak Value of Last test can be read
• User friendly key panel with switch of Zero setting and peak value of last test
• Motor : ½ HP Single phase 220V 50 Hz. (for Capacity up to 100 Kgf )
• Motor : 1 HP Single Phase 220 V 50 Hz (for Capacity up to 500 Kgf)
• Power : 220 V AC 50 Hz
• Safety Device : By Limit Switch to protect from Over Traverse

Other Information :

• Pay Mode Terms : T/T (Bank Transfer), Western Union, Other
• Minimum Order Quantity : 01 Set
• Port of Dispatch : Delhi - India
• Production Capacity : 200 Machines per Month
• Delivery Time : Ready Stock
• Packaging Details : Wooden Packing

Tensile Strength Tester for HDPE and PP Bags that we offer are widely used for testing HDPE and PP bags. Our Tensile Strength Tester for HDPE and PP Bags are based on a constant rate of traverse principle according to which one end of the test specimen is held in a stationary grip and the other end is made to move at a known fixed speed with the help of motor, gear box and screw arrangement. Tensile Strength Tester for HDPE and PP Bags are appreciated for their accurate results. Technical Specification :

• Capacity of Tester with accuracy of 100g. : 250 Kgf. and 500 Kgf.
• S Type Load Cell fixed with Top Grip
• Traverse Speed - 300 mm /min.
• Max. Grip Separation â1000 mm
• Min. Grip Separation â 25 mm
• Top Grip is fixed and Bottom Grip is Movable Type.
• Elongation measurement by Steel Scale and Digital Counter Meter Both.
• Digital Display of Load and Elongation.
• Peak Value of Last test can be read.

Delivery Time: Ready Stock

We are the main supplier of this product.

Indentation Hardness Tester is used to measure the Indentation of flexible foam. Indentation is the measure of softness of the foam. The Indentation is determined by measuring the force required to compress the foam to a certain percentage of its initial thickness. We are engaged in manufacture, supply and export of Indentation Hardness Tester based in New Delhi. Our Indentation Hardness Tester has a digital indicator and shear beam type of load. It is highly appreciated by the customers for the accurate results. Technical Specification :

• Size of Sample : 380 x 380 mm
• Area of Indentor : 323 cm²
• Diameter of Indentor : 202.8mm
• Capacity of Load : 100Kgf
• Accuracy of Load : 0.01Kgf (10gm)
• Traverse Measurement : 0 to 150 mm
• Speed of Movement of Indentor : 150 mm/ min
• Diameter of Hole on Platform : 6 mm
• Distance between holes : 19 mm
• Power : 220 V AC 50Hz.

Related Standards : IS 7888 1976, ASTM D 3574 - 1986

We are the main supplier of this product.

Box Compression Tester is a device used to measure the compression strength of any packaging and corrugated Box. The Box Compression Tester has two plates; one is attached to the load measuring system while the other plate is available. Our company is phenomenal in the manufacture, supply and export of Box Compression Tester from New Delhi. The offered Box Compression Tester has digital output and is highly appreciated for the accurate results. Technical Specification :

• Platform Size : 600 mm x 600 mm
• Maximum Load : 500 kgf
• Type : Compression
• Least Cost : 100 gms
• Power consumption : 1 KW
• Motor : 1/2 HP single phase 220V; AC Motor
• Speed of Movement : 10 +/- 3 mm/ min
• A must for all who wish to test stackability of their finished box samples.
• The equipment is built on a rigid metallic base plate and finished in Autumn Gray & Blue combination painting and bright chrome / zinc plating to give it a corrosion resistant finish.

Other Information :

• Minimum Order Quantity : 01 Set
• Port of Dispatch : Delhi -India
• Production Capacity : 60 Machines Per Month
• Delivery Time : 3 - 4 Week
• Packaging Details : Wooden Packing

Colorfastness of a textile material to washing is determined with the help of Washing Fastness Tester. We hold expertise in manufacturing, exporting and supplying Washing Fastness Tester. Washing Fastness Tester is made up of stainless steel ensuring high durability. The digital temperature indicator & controller, designed in the tester, helps in maintain temperature. Equipped with copper immersion heaters, our tester facilitates quick temperature raise. Our Washing Fastness Tester functions manually by agitating a specimen of textile in contact with pieces of specified adjacent fabrics in soap soda solution. The Washing Fastness Tester, offered by us, also works as a Wash-O-Meter, Launderometer and Colour Fastness Tester. Moreover, the Washing Fastness Tester is suitable for any dyed or printed textile. Technical Specification :

• Max temperature :

980 C

• 200 Nos. SS Balls are supplied with machine for beating samples during washing.
• 500 Nos ( 5 Pack of 100 Pcs.)
• Motor : ¼ HP geared motor Single phase
• Speed of Rotor Shaft â 40 RPM
• Power : 230 V AC 50 Hz.

Following Models are available :

• 8 x 550 ml Capacity ( As per ISO Standards )
• 8 x 1200 ml Capacity ( As per AATCC Standards)
• 4 x 550 ml + 4 x 1200 ml
• 8 x 550 ml + 8 x 1200 ml

Related Standards : ISO 105, BS 1006, AATCC 28, 61, 86, 132
