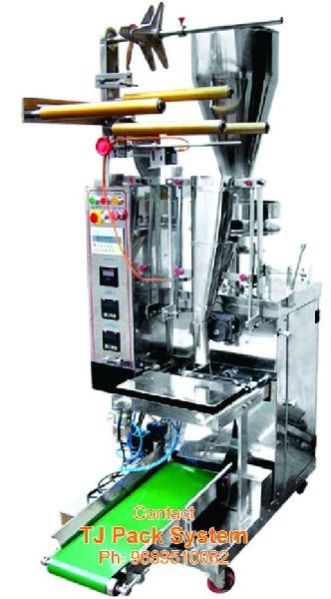

1 Products availableLeading Manufacturer, Supplier & Retailer of Half Pneumatic Cup Filler Machine, Fully Pneumatic Cup Filler Machine, Half Pneumatic Auger Machine for Powder, Fully Pneumatic Four Head Collar Type Machine and Fully Pneumatic Two Head Collar Type Machine.
The Fully Atomatic Semi Pneumatic From Fill and sealing Machine with Cup Filler, on Intermittent Machine Designed for The Efficient Packing of Product in Seal Pouches up to 500gm.
Technical Specifications
| Filling System | Volumetric Cup Filler |
|---|---|
| Filling Accuracy | +/-0.1% -+/-0.2% |
| Sealing Type | Center Seal / 3 Side Seal |
| Filling Range | 10 gm to 10 / 100 gm to 250 gm |
| Film role Material | Laminated Film in roll supported film eg. Aluminum Foil pe |
| Speed Capacity | 25 to 40 Bag/min (Varies with the nature of product & Filling Range) |
| Machine Size | 1050 mm x 990 mm x 1900 mm (LxWxH) |
| PLC | Delta |
| TC | Selectron |
| Power Consumption | 2.5kw |
| Optional | Batch Coding device |
| Weight | 450 Kg (Approx) |
| Application | Kurkure, Puffs, (Small Size) Tea, Sugar, rice etc. |
We offer our clients a safe payment procedure as we have both Online and Offline Payment Processing suiting the needs of the clients. Due to our commitment towards providing quality approved products to the clients, we source the raw materials only from the well-known and trusted vendors of the market.
Technical Specifications
| Packing Range |
|
|---|---|
| Filling System | Volumetric Cup Filler, Weight Filler (Available All Filling Systems) |
| Filling accuacy | +/-1% |
| Type of Dealing | Center Seal |
| Speed | 30 to 60 Bag / min (Varies with the nature of product & Filing range |
| Power | 3 Kw 230 c / AC / Single phase / 50 hz |
| Wooden Case | 1700 mm x 1000 mm x 1100 mm (HxWxL) |
| Machine Size | 1050 mm x 990mm x 2100 x (LxWxH) |
| Weight | 500 Kg (Approx) |
| Compressed Air | 6CFM @ 6 Bar |
| With Cup filler | To Pack Like Kurkure, Puffs, (Small Size) tea, Sugar, Rice etc. |
| With Weight filler | To Pack Like Kurkure, Puffs, Potato, Snacks, Namkeen (Mixture) Chanachure |
| Option | Batch coding Device |
Having a wide network, we work on all Payment Terms as per the suitability of our patrons. Our payment procedures are reliable and legal. We do not impose hidden charges. Utilizing the best-grade wrapping supplies, we pack our products securely to endure shipping and tag it correctly to offer product details such as address of manufacturer/ distributors, MRP, quantity etc.
Technical Specifications
| Filling System | Adjustable Auger Filling |
|---|---|
| Filling Accuracy | +/- 1 to -2 % Depend Upon Nature of Product |
| Sealing Type | Center Seal, / Three Side Seal |
| Filling Range | 50 gm to 500 gm |
| Packing Material | Sticky Power |
| Size of Bag / Pouch | W-100 to 360mm L-80 to 130mm |
| Speed Capacity | 20 to 35 Pouch Per Minute (H x W x L) |
| PLC | Delta |
| Filling System | Auger filler |
| Power | 220v Ac Single Phase and three Phase |
| Option | Bantch Coding Divice |
| Compressed air | 6CFM@ 6 bar |
| Application | Spices, Milk, powder, ice cream powder, basan, medical powder, any sticky powder etc. |
Clients can make payment through online and offline payment methods, with which they are comfortable. Our payment policies are transparent and we do not impose hidden charges. Our range is manufactured strictly as per the globally accepted norms, thus, you can rely on us completely.
Technical Specifications
| Packing Range |
100gm to 500gm |
|---|---|
| Filling System | 4 Head |
| Filling accuacy | -/+ 0.1% |
| Type of Dealing | Center Seal |
| Packing Material | Kurkure, Puffs, Namkeen, Grains etc. |
| Film Size | 100mm-450mm width x 100mm-200mm length |
| Speed | 20 to 25 bag/min (Varieswith the nature of products & filling range) |
| Machine Size | 72" 85" x 126" |
| Weight | 700 Kg (Approx) |
| Compressed Air | 6CFM @ 6 Bar |
| Option | Batch coding Device |
Buyers are free to place bulk as well as urgent orders with us and we ensure timely delivery of the same. We are well equipped with the most recent machines and technology that help us in conducting stringent check on the raw materials that are used while manufacturing.
Technical Specifications
| Packing Range |
|
|---|---|
| Filling System | Two Head Weighter |
| Type of Dealing | Center Seal |
| Packing Material | Fryms, Kurkure, Puffs, Namkeen, Grains etc. |
| Film Size | 100 mm - 400 mm width x 100 mm - 250mm Length |
| Film Roll Size | OD 250 to 440 mm max, ID Film reel pipe 75 mm min |
| Speed | 10 to 17 bag/min (Varies with the nature of product & Filling range) |
| Machine Size | 1200mm x 1400 mm x 250mm (LxWxH) |
| Weight | 650 kg (Approx) |
