Donat Trailer Ltd. Sti.

Konya, Turkey

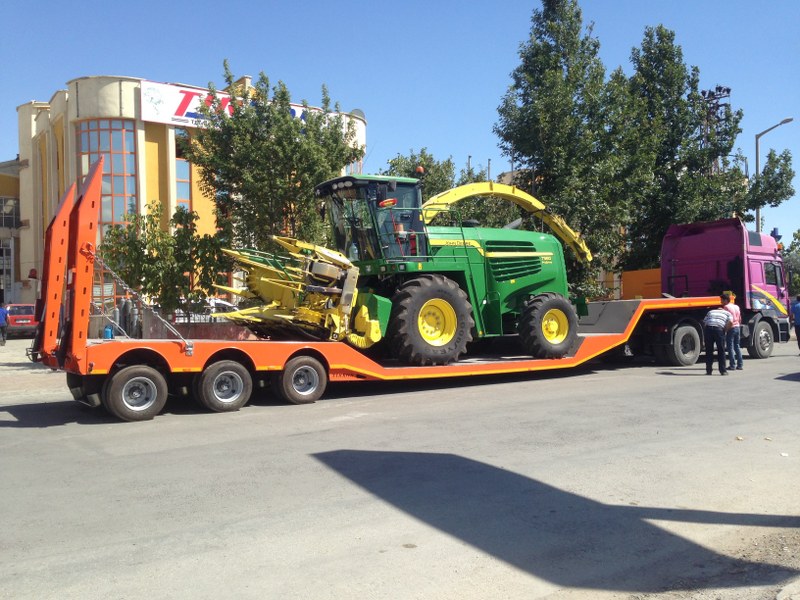

We are offering Lowbed Semi Trailer designed for heavy and long cargo with Donat Trailers long term experience and engineering. Lowbed Trailer has many variety regarding cargo. structure and accesories of Lowbed Trailer make it quality trailer. All lowbed chassis welding made by certified welder. Finishing of Donat Trailer lowbeds are anti-rust painted and sand blasted.Axles: Each has 12 tones loading capacity, drum brake, air suspension, fixed axle and self-steering or hydraulic steering axle. Brake System: Double line air brake system, Knorr-Bremse EBS brake system. Width: 2750 mm + 350 x 2 mm extending sideway. Ground clearance: from 870 mm to 1150 mm. Chassis: Made of ST52 steel sheet iron, Platform: Rhombus-shaped sheet iron and hard wooden floor is applied on wheel and for sides. King-Pin: 2 removable king pin or 3 king pin. (JOST Brand) Landing Legs: Front legs are mechanic lifter, 24 tones loading capacity. (JOST Brand) Ramp: Back ramps are double-acting hydraulic system. Electrically operated, hydraulic ramp. Tires: 235 75 R 17, 5 or diffirent size for weight units tires and rims Electric System: 24 V. Electric system in accordance with E.U Standards. Paint: After sand-blasting, double line epoxy coat and double line paint in requested colour is applied. Accessories: Tire scotch and holder, 211 extension bracket (350 + 350 mm.), side protection, metal sheet front panel (height 600 mm.), aluminium side panels at gooseneck area (height 600 mm.) 26 cargo tie-down collars, spare tire holder.

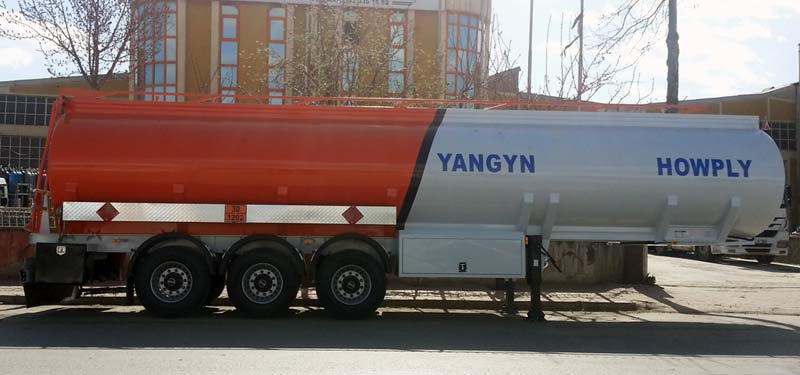

We are offering tanker semi trailer for fuel oil transport designed with donat trailers longterm experience and engineering. Tanker semi trailer capacity is around 20.000 38.000 liter. Donat can design tanker trailer for special purpose also. Delivery and discharge of tanker semi trailer is gravity discharge or with meter. Top loading or bottom loading tank trailers has advantages.

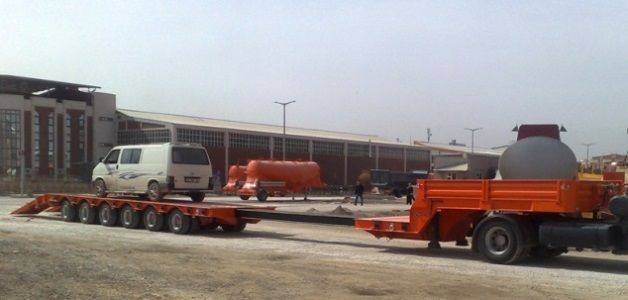

We are offering extendable lowbed trailer with its variety from 2axle to 8 axle, self-steering or hydraulic axle, extendable lowbed body structure made by donat trailers engineering. Lowbed trailer capacity can design from 20 tons to 150 tons for heavy cargo. Width of extendable lowbed semi trailer can be 2.550 mm 3150 mm. Generally, lowbed goosneck move hydraulicly because of cargo loading.

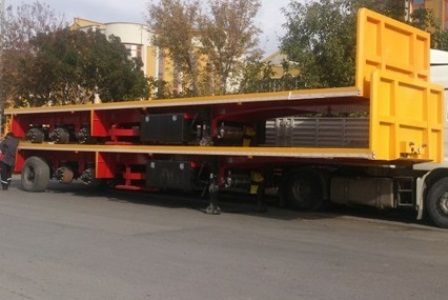

We are offering flatbed semi trailer designed for open and bulk cargo transport with donat trailers long term experience and engineering. Flatbed trailer has many variety regarding cargo. Structure and accesories of flatbed trailer make it quality trailer. All flatbed chassis welding made by certified welder. Finishing of donat trailer flatbeds are anti-rust painted and sand blasted.
