Loy-mak Makine San. Tic. A. S.

Bursa, Turkey, Turkey

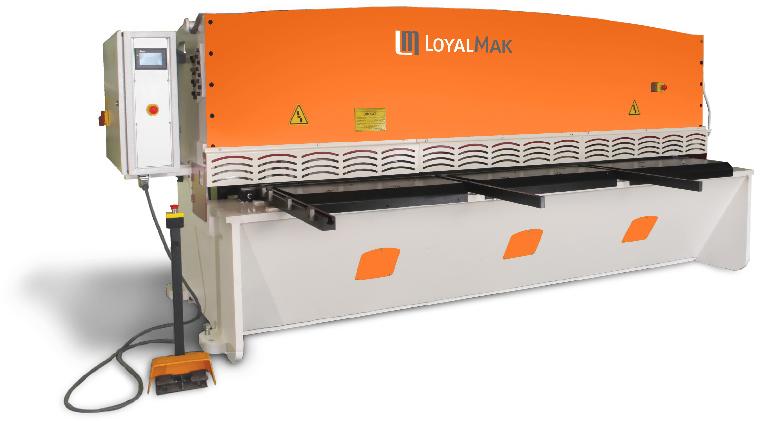

We are offering loyalmak easycut hydraulic swing beam guillotine shear.Easycut swing beam shears are designed to be rugged, everyday use machines to be utilized in rough production enviroments.Its sturdy frame, easy to use touchscreen controller, standard throat and rugged backgauge running on ballscrews by motors with brakes makes it aversatile shear from easy one cuts to demanding plate runs.Automatic angle adjustment for the cutting blade, blade gap adjustment and stroke adjustment make set up times shorter and more productive. standard features : rigid frame machined&welded from st44a1 steel. Hardened&ground cutting blades (4 sided ). Delta touchscreen controller 1000 mm backgauge on ballscrews and ac motor with brake. 1 meter front support arms. Sheet slider panels at the back. Hoerbieger hydraulic system. Siemens electrical system. Hydraulic hold downs. . Automatic blade gap adjustment system. Automatic stroke adjustment. optional equipments : front angle gauge. Sheet conveyor and stacking system. Sheet support system at the back ( to support thin sheets during cutting ). Oil cooler and oil heater. Light barriers on the front for finger protection. Laser cutting line.

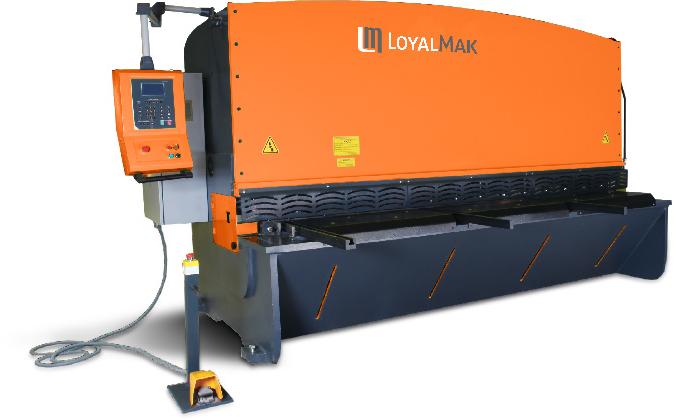

we are offering hydraulic variable rake guillotine shear.versacut variable rake shears are designed to be rugged, everyday use machines to be utilized in rough production enviroments. variable angle capability of versacut allows the operators to cut different plate thicknesses with minimum set up time.its sturdy frame, easy to use cybelec dnc 61 controller, standart throat and rugged backgauge running on ballscrews by motors with brakemakes it a versatile shear to run low volumehigh mix product runs as well as thin strips of all thicknesses.automatic angle adjustment for the cutting blade, blade gap adjustment and stroke adjustment make set up times shorter and more productive. standard features : rigid frame machined&welded from st44a1 steel. hardened&ground cutting blades (4 sided ). cybelec dnc 61 controller. 1000 mm backgauge on ballscrews and ac motor with brake. 1 meter front support arms. sheet slider panels at the back. hoerbieger hydraulic system. siemens electrical system. hydraulic hold downs. automatic angle adjustment for the cutting blade. automatic blade gap adjustment system. automatic stroke adjustment. optional equipments : front angle gauge. sheet conveyor and stacking system. sheet support system at the back ( to support thin sheets during cutting ). oil cooler and oil heater. light barrierson the front for finger protection. laser cutting line.

We are offering cnc hydraulic press brake.General features: robust steel frame ( st44 a1 ) machined with high precision (up to 0, 01 mm) and welded by professional certified welders.Chrome covered and honed cylinders and ground pistons with high quality seals. User friendly and easy to use cybelec dnc 60 controller. Hoerbieger hydraulics. 510 mm throat depth. High stroke and daylight. Quick release tool clamps with european and or american type fitting. Standart sectioned full lenght tooling, grounding and hardening. Y1-y2 synchronized hydraulic cylinders. Hgh-resolution linear scales for synronized ram operation. X+ r backgauge running on ballscrews and linear guides. Sliding front support arms. Side guards and back photocells for safety. Siemens electrical system. High safety pilz plc system. Manual crowning system. optional features : special stroke, daylight and throat. Laser guards for finger protection ( akas, lasersafe ). Oil heater, oil cooler. Opotinal tooling. Wila and wilson tool hydraulic tool clampings. Servo motor backgauge. Cybelec dnc880 2d graphic controller.

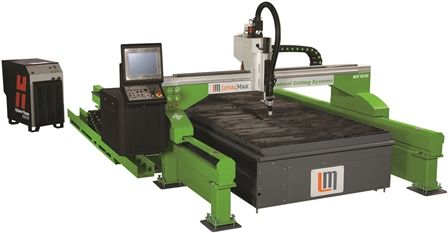

Plasma power supply the plasma power supply is the heart of a plasma cutting machine. It affects cutting speed, quality as well as operating expepnses directly. The worldwide known hypertherm ( usa ) power supplies are used in the loyal-mak machines. Torch height control unit : if the clearance between torch and the work plate is nor appropriate, it causes higher angles on the cutting contours and also lower quality cuts. Torch height control unit provides as optimum cutting distance to increase the cutting quality. Cnc control unit : embeded figure library allows the operator to cut simple parts faster and easier, cutting simuliation feature enables to test cutting process previously. Drawings can easily be sent to the controller by a usb flash disc. General specifications: high precision contour cut plasma power supply.Windows based nc control unit.Automatic nesting software.Automatic torch clearance control system.3d collision protection system.Automatical exhaust suction system for plasma cutting.Cutting table with higher load capacity for oxy cutting.Accurate servo controlled motors on the "y" and "x" axis.Durable grinded linear rail guides on the "y" axis.Grinded steel linear rail guides on the"x" axis.Accurate helical racks and pinions.
