Truemist Misting and Fogging System

Govindpuri, Delhi

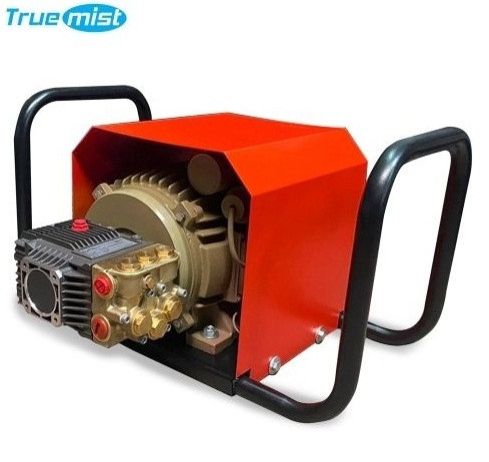

Truemist Misting and Fogging systems offers high pressure misting pumps in various capacities. We offer pressure pumps from various manufacturers including the following. Inter Pumps Pratissoli Pumps Xylem CAT Pumps Annovi Reverberi Pumps HAWK Pumps Riggers Pumps 70 kg/cm2 (1000 PSI) Misting Pump Capacity misting pumps can handle up to 300 misting nozzles Features and specification of misting pumps: Pressure range - 70 kg/cm2 (1000 psi) to 200 kg/cm2 Driven motor capacity : 3 HP to 10 HP Output LPM: 4 LPM to 20 LPM

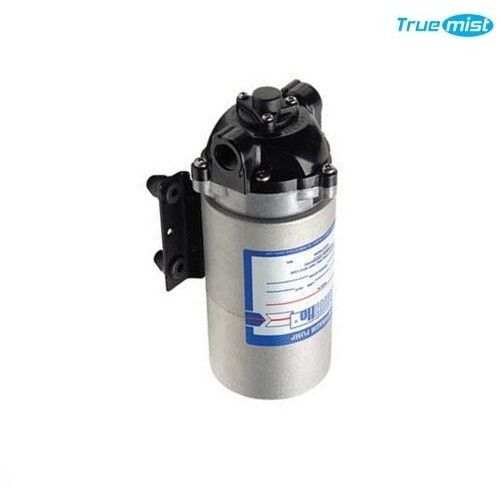

Key Operating Benefits Boosts pressure 40 to 120 psi (adjustable) Fixed pressure to 160 psi 3/8 " tube quick connectors inlet/outlet Up to 30, 000+ operating hours Whisper quiet less than 45 DBA Can run dry without damage Self-priming 60 " lift Low voltage (12-24V) for maximum safety Corrosion resistant exterior Continuous or intermittent operation This is 24V 2.5A SMPS Suitable for 25/50 L RO Systems Pressure setting= by pass 125psi Suction height= 2m

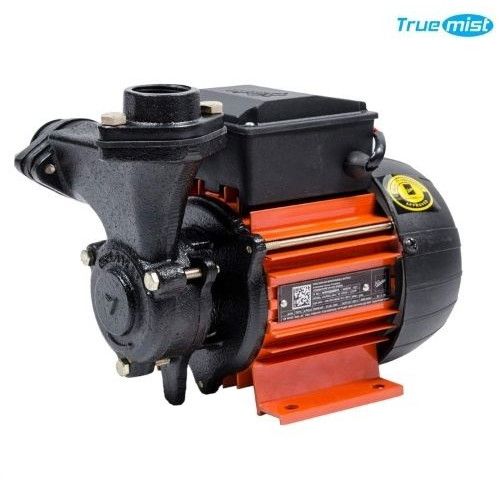

Low pressure misting pump. Mono block Pump used for misting application Operating Pressure - 10 kg/cm2 (150 psi) Special 1 HP Mono block pump with extra core to generate 10 kg/cm2 pressure

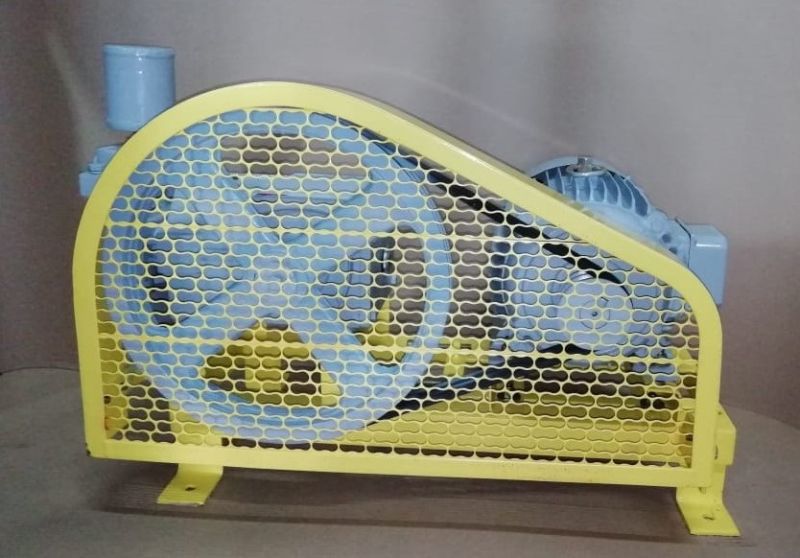

Belt Driven High Pressure Low flow Pump without shield 1000 PSI Pump Capacity: Up to 135 .008 Misting Nozzles Up to 90 .012 Misting Nozzles Up to 75 .014 Misting Nozzles 230 Volt/ Single Phase, 9 Amps Features: 2 HP TEFC Electric Motor, Dual Filter, Pressure Gauge, Drain Valve, Adjustable Regulator, Energy Savings, Continuous Duty, Motor Overload Protection, Low Water Cut-Off (Optional Stainless Steel 2-4 Zone Manifold Factory Installed) (Optional Solenoid Valves for Multiple Zones 24VAC, 120 VAC)

Xylem offers Flojet Triplex High-Pressure Pumps which are engineered to be the most advanced and reliable product available. The redesigned and improved pumps offer unequaled performance and life. Flojets unique three-chamber design allows these pumps to operate at exceptional flow rates and pressures. With operating pressures up to 150 PSI (10.3 Bar) and self-priming capabilities. Flojet Triplex pumps are designed to be the most versatile pumps on the market today. They are the ideal solution for applications including spraying, misting, filtration, cooling, dispensing, and pressure boosting. The Flojet Triplex Series High-Pressure Pumps are available now in 12V DC, 24V DC, 115V AC and 230V AC models, and being made from Santoprene/EPDM and Santoprene/Viton makes them capable of handling a broad range of chemicals. Features and Benefits Flow rates up to 1.4 GPM (5.3 LPM) and operating pressure of up to 150 PSI (10.3 Bar) Constructed from a selection of materials suitable for handling a broad range of chemicals Innovative bypass design Self-priming up to 8 ft (2.4m) Sealed motor Can run dry for extended periods of time without damage Coinjected molded diaphragm technology Consistent pressure over time

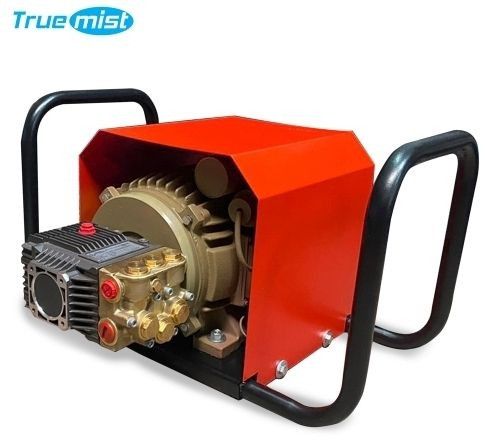

Truemist Misting and Fogging systems offers high pressure misting pumps in various capacities. We offer pressure pumps from various manufacturers including the following. Inter Pumps Pratissoli Pumps Xylem CAT Pumps Annovi Reverberi Pumps HAWK Pumps Riggers Pumps 35 kg/cm2 (500 PSI) Misting Pump Capacity misting pumps can handle up to 100 misting nozzles Features and specification of misting pumps: Pressure range - 50 kg/cm2 (500 psi) Driven motor capacity : 3 HP to 10 HP Output LPM: 4 LPM to 20 LPM

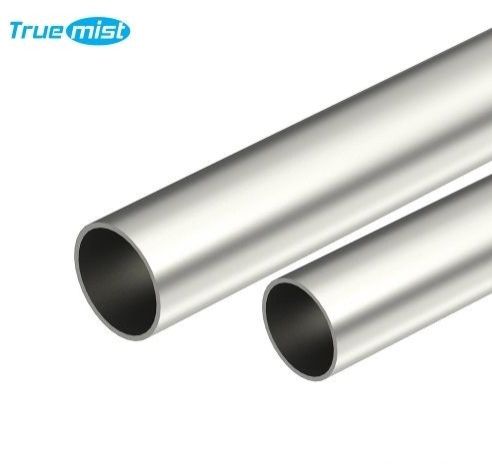

High Pressure SS Misting tube 3/8 " inch and Copper Tubing.

3/8 " O.D. Nylon Tube 1000 PSI rated 100 FT Roll Black

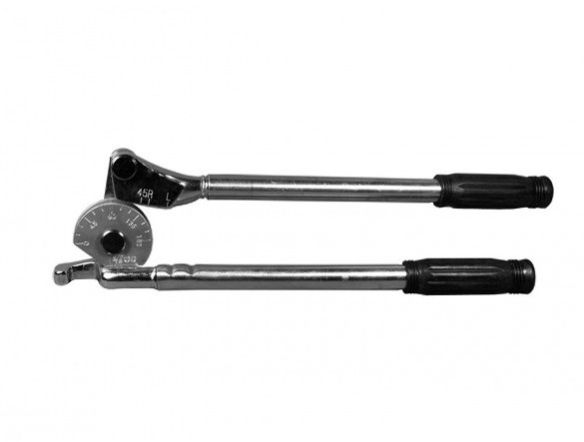

Bend Radius - 1-1/2 " Tube Size (Actual O.D.) - 3/8 " Combine accuracy with easy operation. Offset cushion grip handles eliminate knuckle cracking when forming 180 bends. A 90 start angle and unique oil-absorbing shoe minimize bending effort, while forming accurate bends in copper, steel and stainless steel tubing.

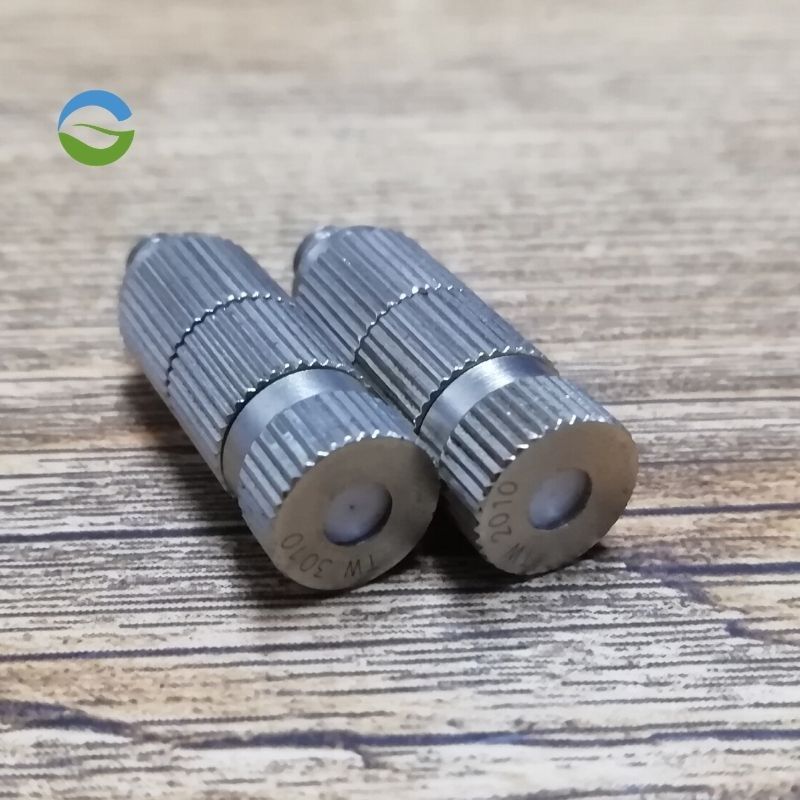

High Pressure anti drip misting nozzle sprays fine and low flow mists or fog by atomizing water. Made of stainless steel nozzles that can be hand tightened or tighten using a 13 mm spanner and seal with an O-Ring. These .10 mm nozzles are ideal for use in high-pressure systems in hot and dry climates. Misting nozzles function by atomizing pressurized water into aerosol particles that evaporate quickly. The smaller the water droplets, the better the cooling as the mist mixes with air swiftly and quickly. the throw of mist nozzles can go up to 2 to 3 meters. The typical flow rate is 35 ml per minute at 70 bar / 1000PSI. This nozzle is great for humidification on patios and is easily cleanable and provides years of clog-free misting. Tags: Anti drip mist nozzle High pressure SS Atomizing mist nozzle SS anti-drip mist nozzle hexagon misting nozzle

This applies to large areas such as warehouses and factories, and also to localized component cooling. Where a component or process is overheating, fogging can be the solution. Mist Nozzle for Out door cooling available with wide range of orifice from 0.10mm, 0.15mm, 0.20 mm, 0.30 mm, 0.40 mm, 0.50 mm, 0.60 mm These cleanable Anti-Drip nozzles provide long lasting performance for variety of applications with corrosive and higher viscosity liquids. Most common uses include mid/high pressure misting systems, mosquito/insect control systems, odor control and special effects. Misting / Fog Nozzles Characteristics: Cleanable Stainless Steel Orifice Fine Atomization 3/16 Thread Stainless Steel Body Built in Anti-Drip Feature High Pressure springs need 250 psi to open / Low pressure springs need 65 psi to open 100 psi (7 bar) is recommended. The .012/.30mm nozzle is the medium sized standard nozzle orifice. At 1, 000 psi (70 bar) pressure, the mean diameter of the droplets from this size orifice are 13.1 with droplets ranging from 1.6 to 39.1 with a spray diameter of between 65 degrees and 75 degrees. The .012/.30mm misting nozzle is ideal for applications requiring moderate flow with small droplet size. It has a similar performance to the .008/.20mm orifice nozzle with an increased flow rate. It is also commonly used for outdoor cooling applications. This nozzle can be used with any pressures.100 psi or more is better.

The 20" Big Blue Housing with 1 1/2" Inlet is a durable blue housing designed for water filtration. Compatible with standard filter cartridges, this housing is ideal for residential or commercial use. Its large size allows for efficient water filtration, making it a reliable choice for ensuring clean and safe water supply.

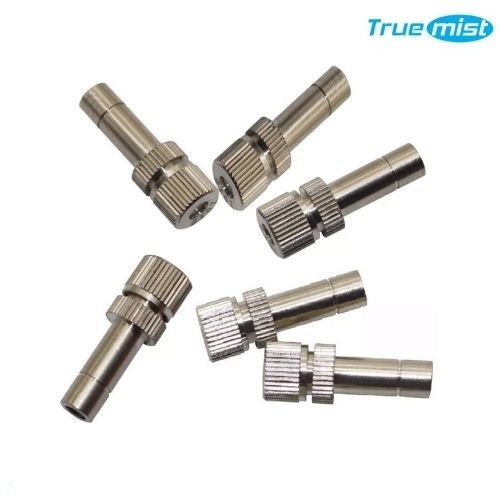

Pressure Requirements: Operates around 10 bar pressure, making them suitable for setups with moderate pump capabilities. Applications: Outdoor cooling (cafs, verandas, patios). Dust suppression in industries. Humidification in greenhouses. Special effects and environment control. Construction: Made from durable materials such as stainless steel or brass, ensuring longevity and resistance to corrosion. Water Droplet Size: Produces slightly larger droplets compared to high-pressure systems but still effectively achieves cooling and dust control. Efficiency: Designed for optimal performance with minimal water usage. These nozzles are cost-effective and are often integrated with low-pressure misting systems to balance performance and energy consumption. They are suitable for scenarios where extremely fine misting or high-pressure systems are not essential. Outer Shell - SS316 Insert - Brass nozzle orifice - 0.1 to 2.0 mm operating pressure - up to 10 bar for push fit connectors up to 80 bar for threaded connection other connection size available - 3/8 " & 1/2 " BSPT thread Low pressure mist nozzles are available with anti-drip function .

Micron-sized droplets evaporate on contact and immediately cool people, animals or objects in an area. This helps with theme park queues and large audiences. Spray mist cooling systems have also been used to great effect in industrial settings where temperature reductions of up to 10 degree Celsius have been achieved. This applies to large areas such as warehouses and factories, and also to localized component cooling. Where a component or process is overheating, fogging can be the solution. Mist Nozzle for Out door cooling available with wide range of orifice from 0.10mm, 0.15mm, 0.20 mm, 0.30 mm, 0.40 mm, 0.50 mm, 0.60 mm. Method of construction - Brass or Stainless Steel These cleanable Anti-Drip nozzles provide long lasting performance for variety of applications with corrosive and higher viscosity liquids. Most common uses include mid/high pressure misting systems, mosquito/insect control systems, odor control and special effects. Misting / Fog Nozzles Characteristics: Cleanable Stainless Steel Orifice Fine Atomization 3/16 Thread Stainless Steel Body Built in Anti-Drip Feature

Replacement filter housing for TrueMist Pumps; 3/8 " inlet/outlet. This housing utilizes the 10 " filters. Misting system water filters and accessories help strain out debris and impurities. When water passes through filters, particles and other matter become trapped. These misting system filters purify the water from unwanted particles and help you generate fine quality mist. The main function of a sediment filter is to remove large and fine particles from misting water. Sediments filters are designed to remove suspended solids, which are also known as sediment, turbidity, or particulate. A sediment filter essentially functions like a net that catches unwanted dirt particles as your water flows through the system. A sediment filter is attached at the point where water comes into your misting system. The filter has a bed of natural media (sand, anthracite, etc.). As the water passes through this bed, unwanted dirt particles become trapped. The water moves into the filter and leaves the sediment behind, then out of the filter so you get water coming into your home that is free from particulate. Only sediment that will become trapped in the bed of natural media is removed. Sediment filters do a good enough job to reduce the levels of unwanted particles to trace amounts which are deemed safe for drinking water. This means you can get drinkable, clean water with a sediment filter.

Stainless Steel High Pressure In Line Filter 3/8 " Push Lock with cleanable 100 Mesh Stainless Steel Filter Screen. The working pressure of the filter is up to 1000 psi. A must for all misting installations.

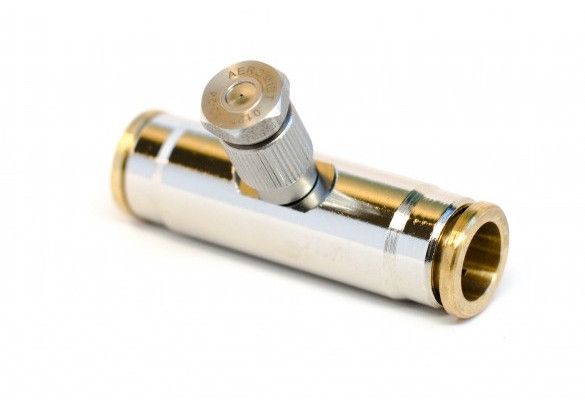

The Brass Nozzle Union 3/8 is a durable connector made of high-quality brass, designed to seamlessly connect a nozzle to a hose. This nozzle union, compatible with standard industry sizes, does not include a nozzle. Ensure a secure and reliable connection for your watering or spraying needs with this essential accessory.

Misting System Remote Monitoring using GSM based controller. Connect and operate your mist and fogging system form the convenience of Home and office with the misting / fogging system intergrated with remote monitors. We can also design and intergate the misting system with existing industrial controllers using SCADA or equivalent systems.

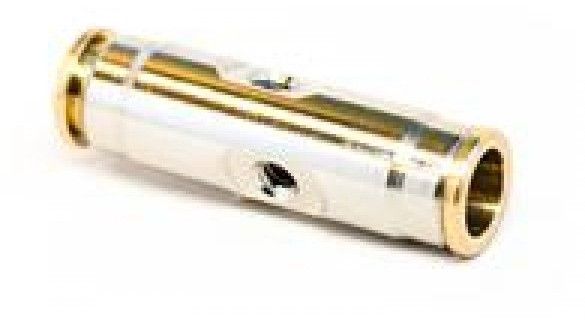

Introducing the SS Nozzle Union, a durable stainless steel fitting in a sleek silver color. This nozzle union is designed for plumbing applications, compatible with standard 3/8 inch fittings. Ensure a secure and reliable connection with this high-quality product.

Misting System Remote Monitoring using GSM based controller. Connect and operate your mist and fogging system form the convenience of Home and office with the misting / fogging system intergrated with remote monitors. We can also design and intergate the misting system with existing industrial controllers using SCADA or equivalent systems.

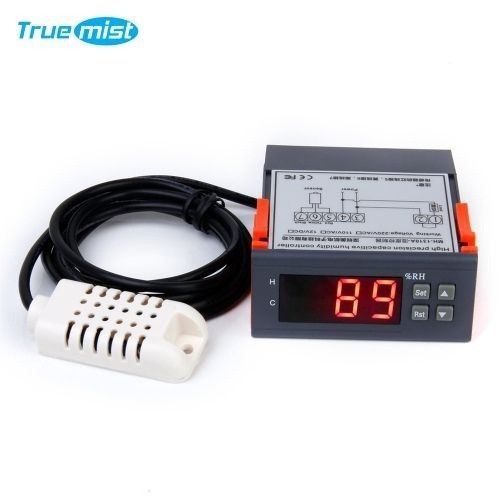

Misting system integrated with temperature control and humidity sensor & controller to automatically run the mist or fog system. Based on the size of the misting area, Areas can be sparated as zones with multiple temperature / humidity sensors and controllers can be integrated in to a centeralized system. Such type of fogging and misting systems are widely used in application where temperature and humidity plays a major role like Mushroom farms Greenhouse farms Battery manufacturing units Hydroponic farms Tea processing factory
