Our product range contains a wide range of Solar Panel
We are highly acclaimed in the market for offering a striking range of Solar Panel at budget friendly rates. We value our clients, and promise extraordinary fine quality products, and our range of products is acknowledged among our patrons for its anti-corrosive nature and majestic shine. We offer a wide range of panels in different sizes. Before supplying the product, we thoroughly check it as per the quality assurance tests to ascertain its quality and durability. We are located in Ahmedabad, Gujarat, India.
Leading Features :

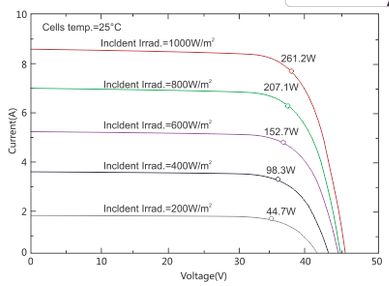

Graphical Image 01

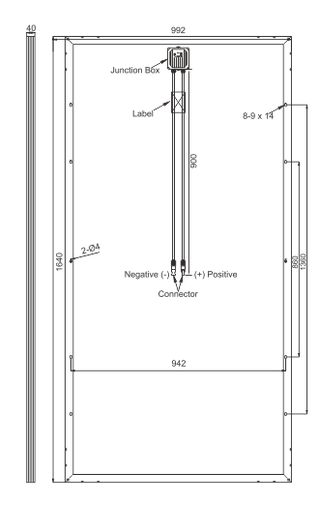

Graphical Image 02

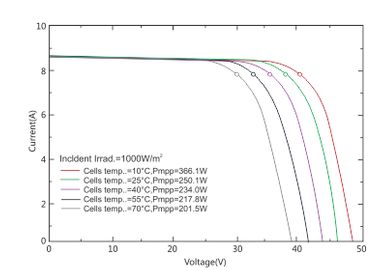

Graphical Image 03
Data Sheet
| Model type | URE250-60P |
|---|---|
| Peak power(Pmax) | 250W |
| Maximum power voltage(Vmp) | 30.39V |
| Maximum power current(Imp) | 8.23A |
| Open circuit voltage(Voc) | 36.97V |
| Short circuit Current(Isc) | 9.29A |
| Cell efficiency | 17. 60% |
| Module efficiency | 15. 37% |
| Maximum series Fuse Rating | 15A |
| Maximum system voltage | DC 1000V |
| Temp. Coeff.of Isc (TK lsc.) | 0.045%/°C |
| Temp. Coeff.of Voc (TK Voc) | -0.34%/°C |
| Temp. Coeff. Of Pmax (TK Pmax) | -0.47%/°C |
| Operating Temperature | ( – 40 – + 85%)°C |
| Normal Operating Cell Temperature | 45±2°c |
| Positive Tolerance | 0 – +3% |
| Cell type | Poly Crystalline silicon,156mmx156mm |
| Number of the cells | 60 cells in series |
| Weight | 18. 00Kg |
| Dimensions | 1640x992x40mm(64.56×39.06×1.58/1.4inch) |
| Front Glass | 3.2 mm tempered glass |
| Output Cables | 4 mm2, symmetrical lengths, 900 mm |
| Connectors | MC4 compatible IP67 |
Packing Configuration
| Container | 20′ GP | 40′ GP | 40′ HQ |
|---|---|---|---|
| Pieces per pallet | 46 | 46 | 56 |
| Pallets per container | 6 | 14 | 14 |
| Pieces per container | 276 | 644 | 784 |
Test Certifications And Warranties
| Standard Tests | IEC 61215, IEC 61730 |
| System Certificates | ISO 9001, ISO 14001 |
| Certifications | TUV, CEC, CHUBB, CE |
| Extreme wind and Snow loads Testing | Withstand extreme wind( 2400 Pascal) and snow loads(5400 Pascal) |
| Junction Box | Ip65 |
| Warranties | 10 Years material and workmanship warranty First 10 Years |
| 90% of warranted minimum power output and next 15 year | |
| 80% of warranted minimum power output. |
