Our Products
Our product range contains a wide range of Industrial Gate Valve, Cast Iron Gate Valve, Stainless Steel Gate Valve, Butt Weld End Gate Valve and Forged Steel Gate Valve
Temperature Control Valve - Series 36R
Self-Contained Valve/Actuator/Sealed Thermal System in One Compact Unit, Direct-Acting/Reverse-Acting
Control Valve - Series Hi-Flow
Linear Characteristics, 1/2" to 4" Sizes, 2-way or 3-way
Pneumatic Pilot Valve - Series 2V
2-way or 3-way, Ideal for Air/Water/Gas/Steam Service, Bronze Body
We put forth for our clients Cast Iron Gate Valve, which are anti-corrosive and used in applications where water is used. Manufactured in compliance with ASA, BS, DIN. and IS standards, these can withstand water hammering in pipelines. Keeping in mind different requirements of our clients, we offer our valves in various specifications:
Specifications
| Sizes in mm(inch) | Pressure Rating |
|---|---|
| 50 to 600 (2" to 24") | PN 10/16 |
| Design Std. | BS 5150, IS 14846. |
| Face to Face | BS 5150 & BS 5163, IS 14846. |
| Testing Std. | BS 5150, IS 14846. |
| Body Material | Cast Iron./Ductile iron |
| Wedge/Seatring | Cast Iron / Bronze./ SS |
| End Connection | Flanged. |
We offer an wide range of stainless steel gate valves. Following are the design features of Stainless Steel Gate Valves.
Features :
Testing according to :
Material Range :
Specifications
| Size | 2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | 26" | 28" | 30" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L-RF/BW | 216 | 282 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | 1245 | 1346 | 1397 |
| L-RTJ | 232 | 298 | 321 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 | 1271 | 1372 | 1422 |
| H 1 | 435 | 560 | 650 | 830 | 1080 | 1245 | 1510 | 1710 | 1870 | 2090 | 2310 | 2810 | 3120 | 3310 | 3535 |
| V | 200 | 225 | 250 | 350 | 400 | 450 | 500 | 600 | 600 | 720 | 800 | 10000 | G.O. | G.O. | G.O. |
Our range also includes Butt Weld End Gate Valves, which are dimensionally accurate, durable, and used in various industries. These are manufactured using latest technology with quality tested raw material to assure wear & tear resistance. In order to cater to diverse requirements of our clients, we offer these in various specifications.
Specifications :
Features :
Testing according to :
Material range :
Owing to the vast experience in this field, we are engaged in offering the high quality Forged Steel Gate Valves to our valuable customers. These products are suitable for horizontal installation. This product is equipped with optimum quality hard faced trim material that ensures perfect sealing and durability. We assure effective and timely delivery of this product. This product is offered with either threaded or socket-welded ends, as per the requirements of our customers.
Features :
Specifications
| Size | 40 | 50 | 65 | 80 | 100 | 150 |
|---|---|---|---|---|---|---|
| F/F | 34 | 45 | 48 | 50 | 52 | 56 |
| H | 140 | 140 | 140 | 150 | 180 | 205 |
| L | 185 | 185 | 185 | 225 | 225 | 330 |
Features :
Specifications
| Size | 2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | 30" | 34" | 36" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L-RF/BW | 368 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | Available on request | |||||
| L-RTJ | 371 | 473 | 549 | 711 | 842 | 1001 | 1146 | 1276 | 1407 | ||||||
| H 1 | 505 | 675 | 750 | 1010 | 1260 | 1530 | 1830 | 1995 | 2120 | ||||||
| V | 250 | 350 | 400 | 600 | 720 | G.O. | G.O. | G.O. | G.O. | ||||||
The Knife Gate Valves we manufacture have a strong construction and are highly durable. These products have high tolerance for heat and pressure. These products perform their operations of controlling the flow of liquid and gases very effectively. The manufacture of these products involves use of high quality raw materials acquired from reliable vendors. These products are further sent for a number of quality checks as we want to provide our customers high quality products. We provide these quality products at a very competitive price.
Features :

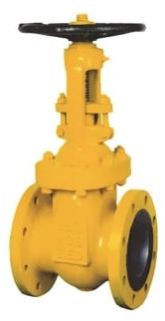

We are one of the leading manufacturers and suppliers of wide assortment of ASA Class Gate Valves. These products are widely used for effectively controlling the flow of the fluids. These dimensionally accurate valves also help in reducing pressure drop across the valve. These products are manufactured using latest technology and advance machinery, to ensure high standards of quality. These products are offered as oblique, straight angle, and needle patterns. These products are known for their dimensional accuracy and compact designs.
