Our Products
Our offered Product range includes Screened & Braided Flexible Cable, RUBBER TRAILING CABLE, Singlecore Rubber Trailing Cables, Trailing Cable and Instrumentation Cable.

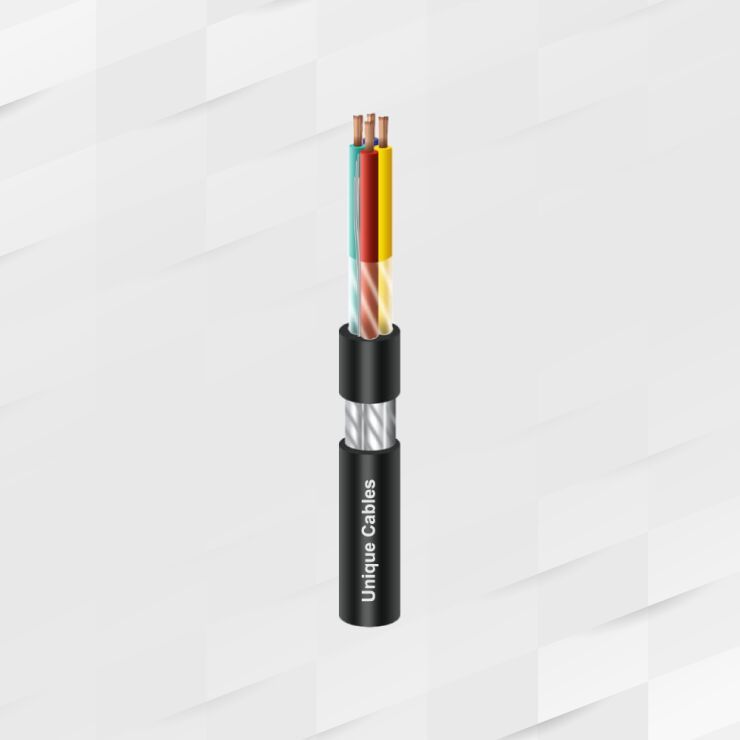

The annealed tinned/bare Electrolytic high conductivity copper multi strand flexible conductor as per IS: 8130/1984 of class-5, PVC insulated as per IS: 5831/1984, cores twisted together, Melinex taped. Shielded with aluminium mylar taped and screened with tinned copper braiding, taped again & overall PVC sheathed as per BS 5308 Part-2 multi core instrumentation Shielded Flexible cable.
The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interfere with other devices (see electromagnetic interference).The shield minimizes capacitive coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only.
A shielded cable is an electrical cable of one or more insulated conductors enclosed by a common conductive layer. The shield may be composed of braided strands of copper or aluminium mylar tape, or a layer of conducting polymer. Usually, this shield is covered with a jacket. The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interface with other devices (see electromagnetic interference). The shield minimizes capacitively coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only.

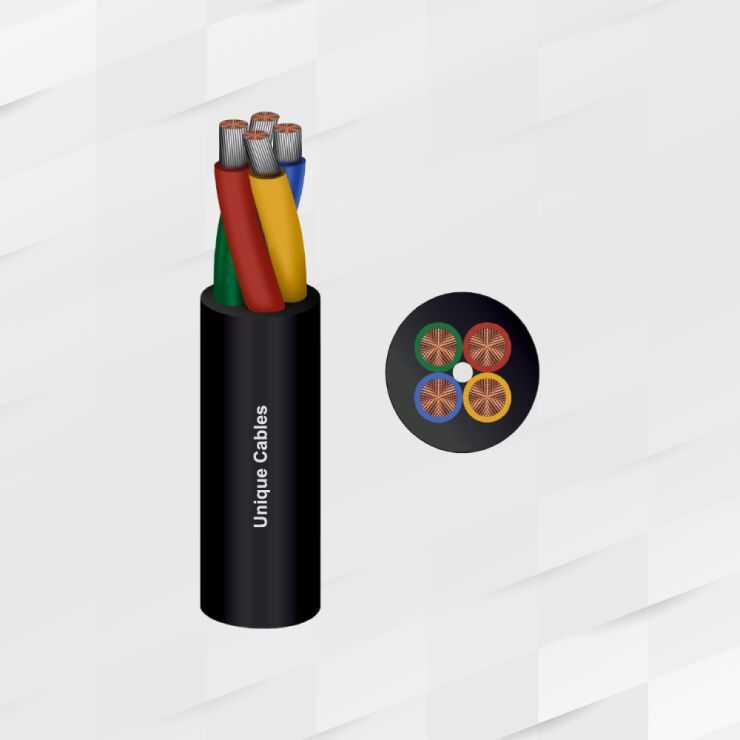

1.1 KV grade, ATC (Annealed Tinned Copper) conductor confirming to IS:8130/1984 class-V, Melinex taped, VIR (Vulcanized Rubber) type IE-1 insulated or EPR (Ethylene propylene Rubber) type IE-2 insulated confirming to IS:6380/1984, colour coded, cores laid-up with suitable center filler & overall TRS (Tough Rubber) type SE-1/SE-2 sheathed or HD-HOFR (Heat, Oil Resisting & Flame Retardant) PCP (Poly-Chloroprene) Type SE-3/SE-4 sheathed confirming to IS:6380/1984, Flexible Trailing cables confirming to IS:9968 (pt-I)1988.
These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Application include handling equipment mobile power supplies, worksites, CRD stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environment and severe industrial environments.
1.1 KV grade, ATC (Annealed Tinned Copper) conductor confirming to IS:8130/1984 class-V, Melinex taped, VIR (Vulcanized Rubber) type IE-1 insulated or EPR (Ethylene propylene Rubber) type IE-2 insulated confirming to IS:6380/1984, colour coded, cores laid-up with suitable center filler & overall TRS (Tough Rubber) type SE-1/SE-2 sheathed or HD-HOFR (Heat, Oil Resisting & Flame Retardant) PCP (Poly-Chloroprene) Type SE-3/SE-4 sheathed confirming to IS:6380/1984, Flexible Trailing cables confirming to IS:9968 (pt-I)1988.
Range: 1.5 sq.mm x to 300 sq.mm (Single & Multi Core)
1.1 KV grade, ATC (Annealed Tinned Copper) conductor confirming to IS:8130/1984 class-V, Melinex taped, VIR (Vulcanized Rubber) type IE-1 insulated or EPR (Ethylene propylene Rubber) type IE-2 insulated confirming to IS:6380/1984, colour coded, cores laid-up with suitable center filler & overall TRS (Tough Rubber) type SE-1/SE-2 sheathed or HD-HOFR (Heat, Oil Resisting & Flame Retardant) PCP (Poly-Chloroprene) Type SE-3/SE-4 sheathed confirming to IS:6380/1984, Flexible Trailing cables confirming to IS:9968 (pt-I)1988.
Range: 1.5 sq.mm x to 300 sq.mm (Single & Multi Core)

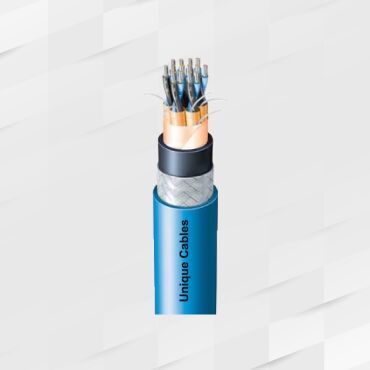

Unique make signal cables, Annealed Bare/Tinned copper conductor, PVC insulated and sheathed, shielded with Aluminium backed mylar taped with Annealed tinned copper conductor drain wire in continuos contact with aluminum side of tape, instrumentation Armoured/Unarmoured Cable conforming to BS:5308/II/1986&IS:1554/Part-1/1988.
These Cables are designed to carry communication and control signal in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue data or voice type and from a variety of transducers such as pressure, proximity or microphone. Collectively and individually screened pairs are available within the range where further signal security is required.
Unique Instrumental cable offers total interference free data transfer in measuring process- control & security systems. Instrumentation process in any industry is a very important factor for controlling various parameters during process. Microprocessor based control devices demand very low noise level & attenuation of signals in the cable. The calls for careful designing & manufacturing of cables with stringent quality control.
