Fire Extinguisher

We offer a complete product range of Clean Agent Fire Extinguishers, Automatic Modular Type Fire Extinguishers, Trolley Mounted Fire Extinguishers, Powder Portable Fire Extinguishers and Water / Foam Partable Fire Extinguishers

Clean Agent Fire Extinguishers

The extinguisher agent in Unity Safety Clean Agent Fire Extinguisher is HFC 236 fa, HEXAFLOUROPROPANE which is electrically non conductive, non - corrosive, environmental friendly and free residue & hence is a best replacement of HALON 1211.
Fire Extinguisher agent in Unity Safety Clean Agent Fire Extinguisher is in liquid form & when comes in contact with air turns in to gas form. It is effective on class A, B & C fires & it.
Gra p fire Clean Agent Fire Extinguisher / Automatic are available in capacities of To Kg., 5 Kg and as per requirement.

Technical Specification

Capacity (Ltr.)	2	4	6
Anti-Corrosive Inhibitor	Epoxy Polyester coating	Epoxy Polyester coating	Epoxy Polyester coating
confirming IS code	15683	15683	15683
Type of Extinguisher	Constant Pressure	Constant Pressure	Constant Pressure
Type of Extinguishing Media	HFC 236 fa	HFC 236 fa	HFC 236 fa
Wxpellant	Pressurized with N2 gas	Pressurized with N2 gas	Pressurized with N2 gas
Minimum Effective Discharge ( % )	95	95	95
Minimum Jet Length (mtrs.)	More than 2 mtr.	More than 2 mtr.	More than 2 mtr.
Discharge Time (Sec.)	More than 13 Sec.	More than 13 Sec.	More than 13 Sec.
Hydraulic Test Pressure ( Kgf/cm2)	35	35	35
Operating Position	Upright	Upright	Upright
Charged Pressure (Kgf/cm2)	18	18	18
Operating Temperature Range (°C)	0 to (+) 55	0 to (+) 55	0 to (+) 55
Opperating Valve	Squeeze Grip Type with Nozzle	Squeeze Grip Type with Discharge hose and Nozzle	Squeeze Grip Type with Discharge hose and Nozzle
Fire Rating	1A, 8B, C	2A, 13B, C	3A, 21B, C

View Complete Details

Ask Latest Price & Details

Automatic Modular Type Fire Extinguishers

This product of Unity Safety is a benchmark in the industry of fire safety. It is self sufficient in detecting and extinguishing fire in its installed local area. Being a portable item, it is easy to install and re-locate. Its high cost effectiveness and its active presence in case of emergencies and power failure without power back up, gives it a clear edge over the fixed be protection system. This Unity Safety product is the most efficient in its class since it doesn't need any human intervention or presence. Its like your 24 x 7 fire security guard for your most valuables. Its flexibility can be measured in terms of its fire-detecting temperature (varies from 56 deg. To 107 deg.) and its capacities (available in 2 kg, 4 kg, 5 kg, 6 kg, 9 kg, 10 kg, 15 kg).
Its non-human intervention for its working allows it to be installed in the remote areas where in case fire emergencies, human each could be delayed or is not possible.

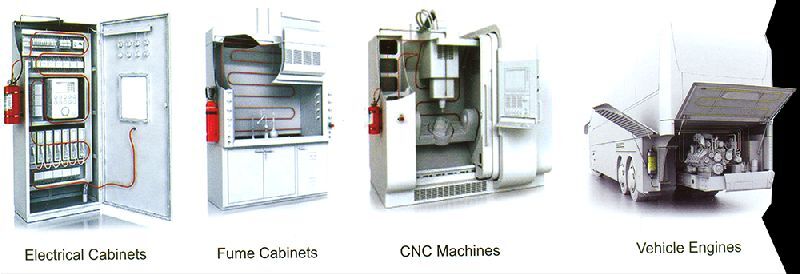

Its Most Efficient Applications Include :
Bus and Car Engines
Train : Electric Distributor Coach
Computer Area
Hotels, Restaurants, Motels
ATM Center
Server Rooms
Telecom Shelter and Tower
Paint and Varnish Rooms
Domestics Gas Storages
Fuel and Flammable Liquid Storage
Electrical Panels
Oil Fill-in Station

Technical Specification

CAPACITY in kg.	2kg Capacity	5kg Capacity	10kg Capacity	15kg Capacity
Media	ABC Powder / Clean Agent	ABC Powder / Clean Agent	ABC Powder / Clean Agent	ABC Powder / Clean Agent
Area Coverage	2-3m2 Approx	3-4m2 Approx	5-7m2 Approx	8-10m2 Approx
Test Pressure	30 kgf / cm	30 kgf / cm	30 kgf / cm	30 kgf / cm
Anti Corrosive Treatment	Powder Coated	Powder Coated	Powder Coated	Powder Coated
Shell Diameter	175mm 5%	240mm 5%	300mm 5%	405mm 5%
Overall Height	185mm 25%	265mm 25%	350mm 25%	255mm 25%
Charged Weight	3.5 kg approx.	7.5 kg approx.	13.5 kg approx.	20.5 kg approx.
Bulb Temperature	56-107 degrees	56-107 degrees	56-107 degrees	56-107 degrees
Charged Pressure	15 kgf / cm2	15 kgf / cm2	15 kgf / cm2	15 kgf / cm2
Operational time in second	5-7	8-10	10-15	18-24
Mounting	Ceiling Mounting Typae	Ceiling Mounting Typae	Ceiling Mounting Typae	Ceiling Mounting Typae

View Complete Details

Ask Latest Price & Details

Trolley Mounted Fire Extinguishers

Class A Fire. Wood, Textiles, Paper, Plastics, Clothes, Cotton, Mill, Jute Mill etc
Class B Fire Petroleum, Oil, Diesel, Paint, Varnish, Solvent, Aviation Fuel, Flammable and Volatil
Class C Fire Flammable Gasses, Live Electrical Equipments, Industrial Gases, Electrical Installati
Caution Do not use on Electrical Fire / Installation
Available in 20 Litres, 45 Liters, 60 Liters, 125 Liters

Technical Specification

Conforming IS Specn.	10658	10658	10658	13385	13385
Capacity (Kg)	25	50	75	50	50
Falling Ratio	BC / ABC	BC / ABC	BC / ABC	A Class	A & B Class
Type of Extinguishe	Dry Powder Type	Dry Powder Type	Dry Powder Type	Water Type	Macanical FoamType
Type of Extinguishing Media	Dry Chemical Powder	Dry Chemical Powder	Dry Chemical Powder	Soft Water	Water & AFFF (3 Ltr. of 6% Concentrate)
Expellant	Internal / External Gas Cartridge (300gm ( IS 4947) / 2kg)	Internal / External Gas Cartridge	Internal / External Gas Cartridge	Internal / External Gas Cartridge (300gm ( IS 4947) / 2kg)	Internal / External Gas Cartridge (300gm ( IS 4947) / 2kg)
Min. Effective Discharge (%)	85	85	85	95	90
Min. Jet Length (mtrs.)	6	8	10	10	10
Discharge Time (Sec.)	25 to 30	25 to 30	5 to 60	60 to 80	40 to 180
Hydraulic Test Pressure (kgf / cm2)	30	30	30	30	30
Operating Position	Upright	Upright	Upright	Upright	Upright

View Complete Details

Ask Latest Price & Details

Powder Portable Fire Extinguishers

Class A Fire : Wood, Textiles, Paper, Plastics, Clothes, Cotton, Mill, Jute Mill etc.
Class B Fire : Petroleum, Oil, Diesel, Paint, Varnish, Solvent, Aviation Fuel, Flammable and Volatil
Class C Fire : Flammable Gasses, Live Electrical Equipments, Industrial Gases, Electrical Installati

Technical Specification

Capacity (Kg)	1	2	4	6	9
Anti-Corrosive Inhibitor	Epoxy Polyester Powder Coating	Epoxy Polyester Powder Coating	Epoxy Polyester Powder Coating	Epoxy Polyester Powder Coating	Epoxy Polyester Powder Coating
Confirming IS Code	15683	15683	15683	15683	15683
Type of Extinguisher	Constant Pressure	Constant Pressure	Constant Pressure	Constant Pressure	Constant Pressure
Type of Extinguishing Media	Dry Powder IS 14609 / IS 4308	Dry Powder IS 14609 / IS 4308	Dry Powder IS 14609 / IS 4308	Dry Powder IS 14609 / IS 4308	Dry Powder IS 14609 / IS 4308
Expellant	Pressurized with N2 gas	Pressurized with N2 gas	Pressurized with N2 gas / 90gm / 120gm Gas Cartridge	Pressurized with N2 gas / 120gm Gas Cartridge	Pressurized with N2 gas / 200gm / 120gm Gas Cartridge
Minimum Effective Discharge (%)	85	85	85	85	85
Minimum Jet Length (mtrs.)	More than 2 mtr.	More than 2 mtr.	More than 2 mtr.	More than 2 mtr.	More than 2 mtr.
Discharge Time (Sec.)	More than 8 sec.	More than 8 sec.	More than 13 sec.	More than 13 sec.	More than 13 sec.
Hydraulic Test Pressure (kgf / cm2)	35	35	35	35	35
Operating Position	Upright	Upright	Upright	Upright	Upright
Charged Pressure (kgf / cm2)	15	15	15	15	15
Operating Temperature Range (0C)	(-) 10 to (+) 55	(-) 10 to (+) 55	(-) 10 to (+) 55	(-) 10 to (+) 55	(-) 10 to (+) 55
Opperating Valve	Squeeze Grip Type with Nozzle	Squeeze Grip Type with Nozzle	Squeeze Grip Type with Discharge hose and Nozzle	Squeeze Grip Type with Discharge hose and Nozzle	Squeeze Grip Type with Discharge hose and Nozzle
Fire Rating	1A, 8B, C	2A, 13B, C	3A, 21B, C	3A, 34B, C	4A, 55B, C

View Complete Details

Ask Latest Price & Details

Water / Foam Partable Fire Extinguishers

Class A Fire : Wood, Textiles, Paper, Plastics, Clothes, Cotton, Mill, Jute Mill etc.
Caution : Do not use on Electrical & Oil Fire

Technical Specification

WATER			FOAM
Capacity (Ltr.)	6	9	6	9
Anti-Corrosive Inhibitor	Epoxy Polyester Powder coating	Epoxy Polyester powder coating	Epoxy Polyester powder coating	Epoxy Polyester powder coating
confirming IS code	15683	15683	15683	15683
Type of Extinguisher	constant Pressure/ Gas Cartridge	Constant Pressure/Gas Cartridge	Constant Pressure/Gas Cartridge	Constant Pressure/Gas Cartridge
Type of Extinguishing Media	Soft Water	Soft Water	Water & AFFF IS4989	Water & AFFF IS4989
Wxpellant	Pressurized with N2 gas / 60gm Gas Cartidge	Pressurized with N2 gas/90gm/ 120gm Gas Cartridge	Pressurized with N2 gas/60gm Gas Cartridge	Pressurized with N2 gas/90gm/120gm Gas Cartridge
Minimum Effective Discharge ( % )	95	95	95	95
Minimum Jet Length (mtrs.)	More than 2 mtr.	More than 2 mtr.	More than 2 mtr.	More than 2 mtr.
Discharge Time (Sec.)	More than 13 Sec.	More than 13 Sec.	More than 13 Sec.	More than 13 Sec.
Hydraulic Test Pressure ( Kgf/cm2)	35	35	35	35
Operating Position	Upright	Upright	Upright	Upright
Charged Pressure (Kgf/cm2)	15	15	15	15
Operating Temperature Range (°C)	0 to (+) 55	o to (+) 55	o to (+) 55	o to (+) 55
Opperating Valve	Squeeze Grip Type with Discharge hose and Nozzle	Squeeze Grip Type with Discharge hose and Nozzle	Squeeze Grip Type with Discharge hose and Nozzle	Squeeze Grip Type with Discharge hose and Nozzle
Fire Rating	2A	3A	2A, 21B	3A, 55B

View Complete Details

Ask Latest Price & Details

Carbon Dioxide Portable Fire Extinguishers

Class B Fire Petroleum, Oil, Diesel, Paint, Varnish, Solvent, Aviation Fuel, Flammable and Volatile, Liquids etc.
Class C Fire Flammable Gasses, Live Electrical Equipments, Industrial Gases, Electrical Installati
available in 45 kgs

Technical Specification

	Portable Fire Extinguisher			Trolley Mounted Fire Extinguisher
Conforming IS Specn.	15683	15683	15683	2878	2878	2878
Capacity (Kg)	2	3	4.5	6.5	9	22.5
Falling Ratio	0.667	0.667	0.667	0.667	0.667	0.667
Type of Extinguishe	Co2 Type	Co2 Type	Co2 Type	Co2 Type	Co2 Type	Co2 Type
Type of Extinguishing Media	CO2 Gags	CO2 Gags	CO2 Gags	CO2 Gags	CO2 Gags	CO2 Gags
Expellant Min. Effective Discharge (%)	Self 95	Self 95	Self 95	Self 95	Self 95	Self 95
Min. discharge Time (Sec.)	More than 8	More than 8	More than 8	10 to 20	15 to 36	20 to 60
Min. Throw (mtr.)	1	1	2	-	-	-
Operating Position	Upright	Upright	Upright	Upright	Upright	Upright
Opperating Valve(IS 3224)	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type	Wheel / Squeeze Grip Type
Operating Temperature range (C°)	(-)30 to (+)55	(-)30 to (+)55	(-)30 to (+)55	(-)30 to (+)55	(-)30 to (+)55	(-)30 to (+)55
Fire Rating	8B, C	13B, C	21B ,C	-	-	-

View Complete Details

Ask Latest Price & Details
