Min. Order (MOQ)
1 Piece(s)
-
Brand Name
Foamlinx
-
Country of Origin
220/110
-
Condition
New
-
Total Carbohydrate
2 years for mechanical parts 1 year for electronics
-
After-Sales Service Provided
unlimited phone and email/internet support
-
Model Number
FC3920
-
Place of Origin
U.S.A

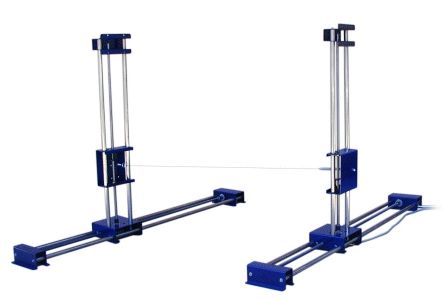

Automatic hot wire cnc foam cutters are cost effective 4 independent axis foam cutter. 39" effective cutting on the x axis (horizontal) 20" effective cutting on the y axis (vertical) - with 70" wire length. specifications:34" ground and polished steel rod assembly.accuracy: 0.01"true 4 axis - will cut tapered cuts (where one side is different than the other).Motors: 4 independent stepper motors - high torque - 220oz*inch, nema23.System power requirements: 110v single phase 300w max, cutting speed: 26"min, fully assembled and tested electronic box, cables and motors. 1000w hot wire power supply, will heat up to 8 feet of wire.Including new win8 pc + cadcam software and mach3 included 2 hour online training included (must have internet connection)
Additional Information:
Packaging Details : Sent in boxes (metal parts, electronic box, elect board, computer etc) and tube (shafts/rods, nuts, acme screws etc) with FedEx Air international or UPS Air International from Sunnyvale, USA
Delivery Time : 1 week
Sunnyvale, United States
