Hebei Zengshan Intelligent Science and technology company limited

1.FQ-1600s Paper Slitter:

FQ-1600s function is to slit paper into various sizes before reeling. It has self-locking function for upper and lower blades.Pneumatic reeling spindle, double reeling and step-less speed adjustment.

Maximum width: 1600mm

Power: 5.5kw

Slitting width: 25mm+

Machine size: 2500mm*2500mm*1500mm

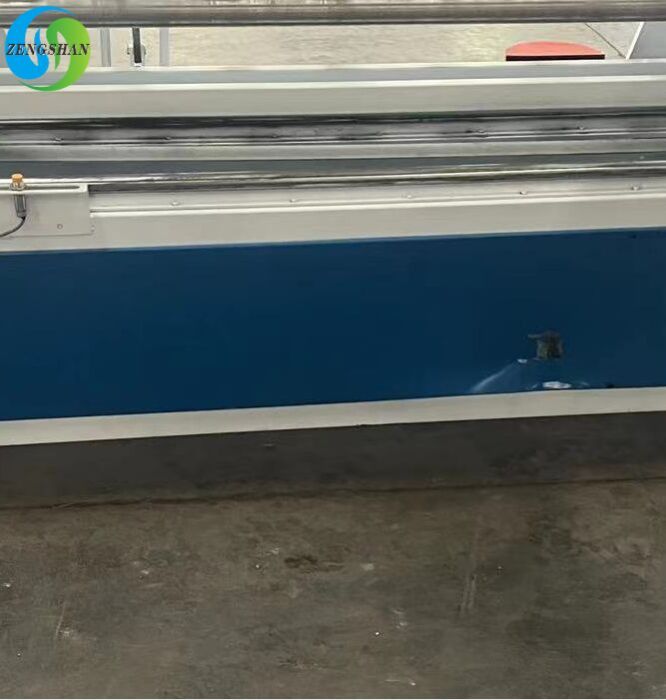

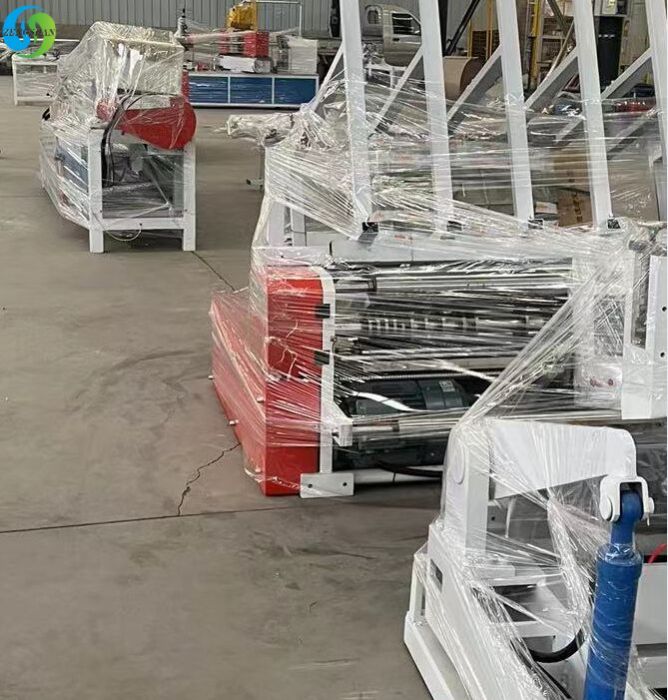

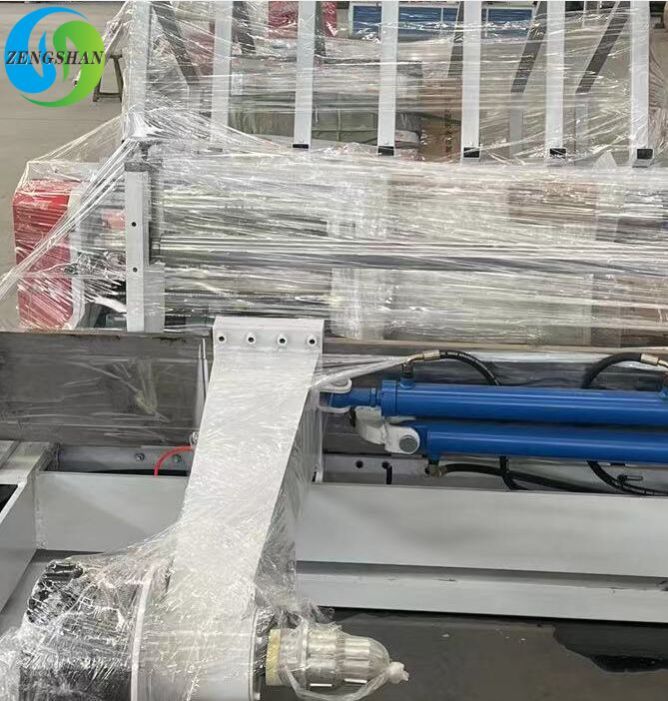

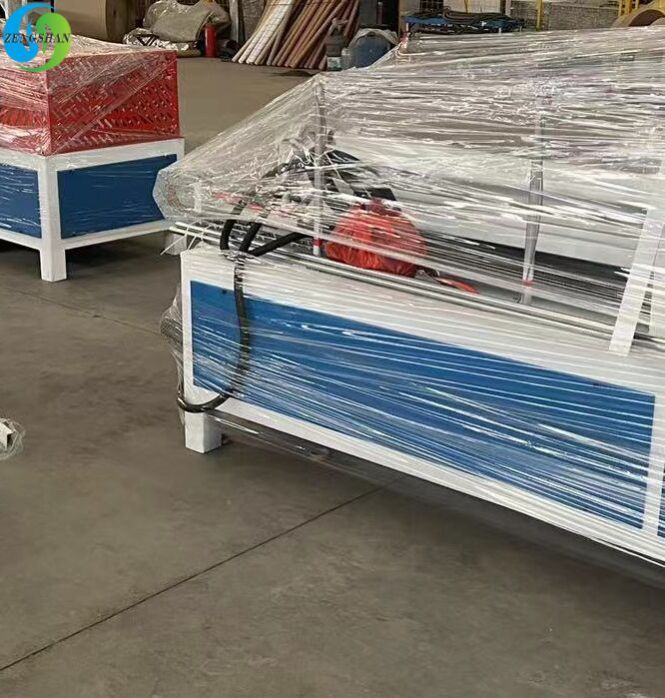

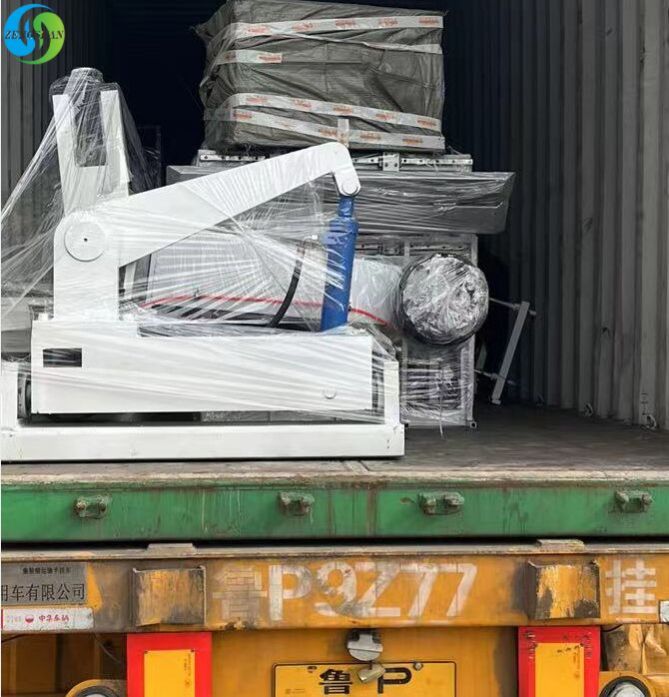

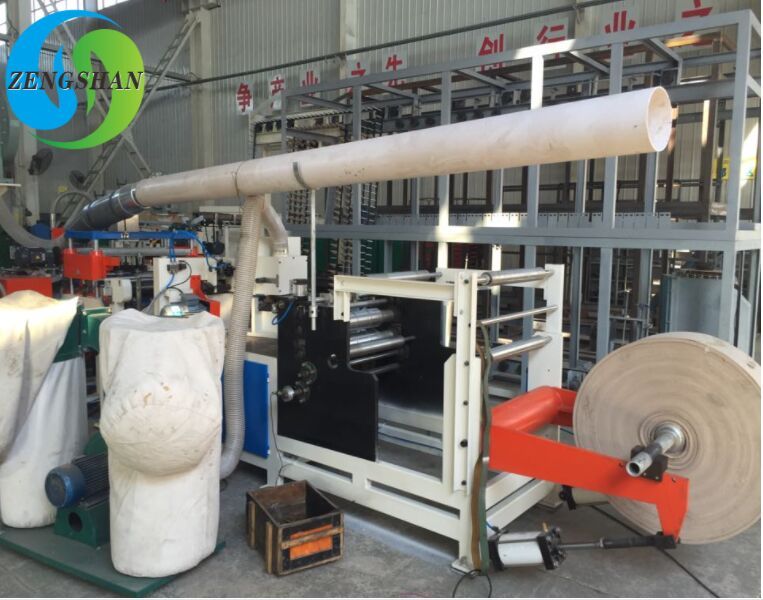

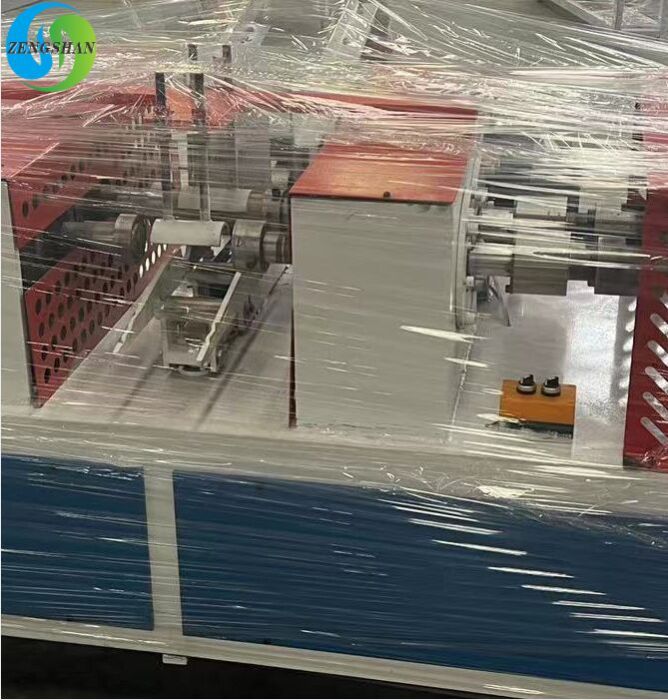

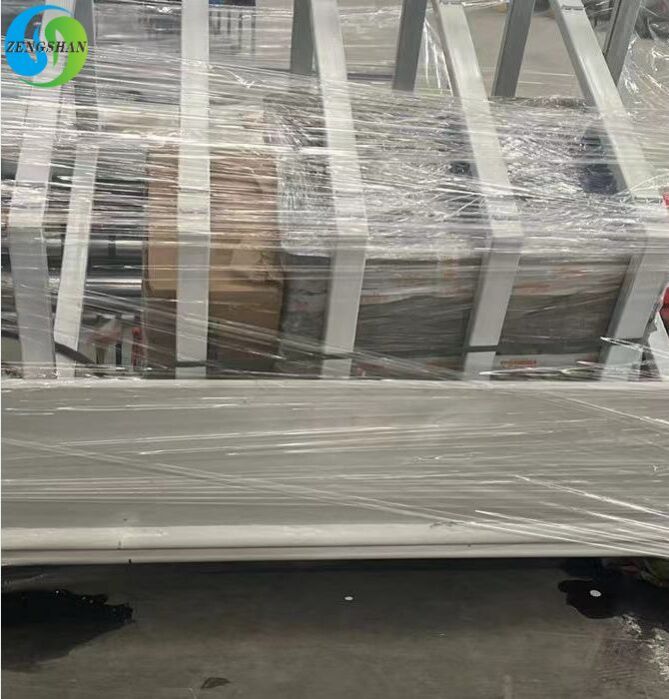

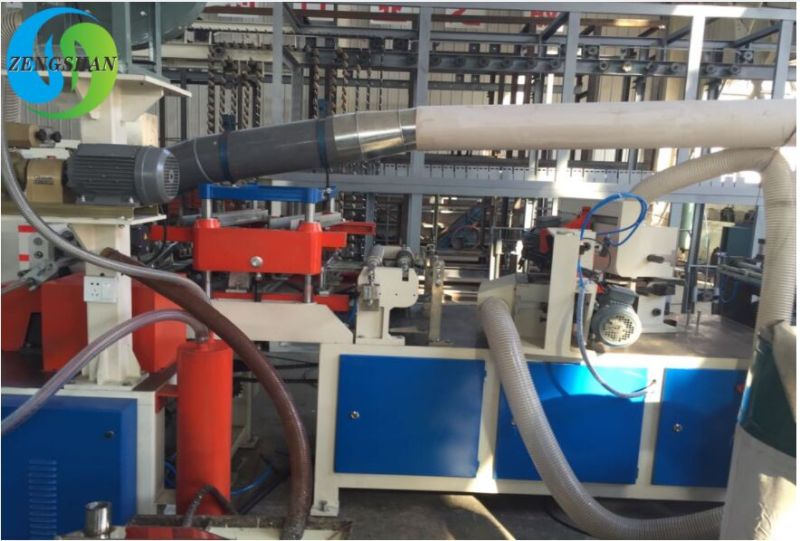

2.LQZ-2 Tracing, Cutting Spiral tube machine:

The functions to roll the tube and long tube cutting. Tolerances: +5mm, which will meet the standard for cloth tube reeling and air spinning reeling. If particular length needed, precision cutter will need be connected.

Paper tube thickness: 0.8-10mm

Paper tube diameter: 20-200mm

Speed: 3-15meters/min(step-less speed adjustment)

Gluing mode: Inclined gluing

Paper Hanger: Whole frame

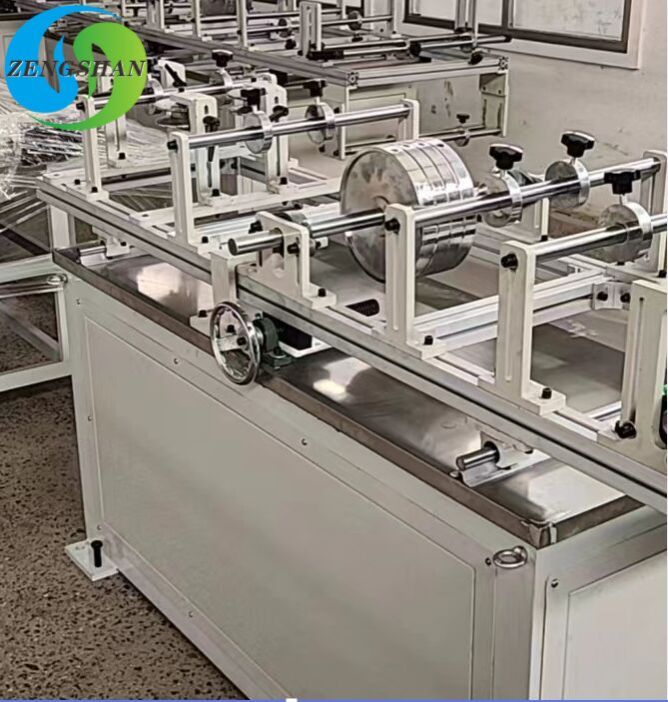

3.QGJ-98 Precise Cutter:

The function is to cut the semi-finished product into the required length of chemical fibre tube and air spinning tube.The machine has pneumatic control which makes it easy to adjust.Suitable for various specification of air-spin ning tube and short tube.

Paper tube inner diameter:30-100mm

Cutting thickness:1-8mm

Cutting length:80mm-1500mm

Blades:8 sets(standard)

Power:1.5kw

Operator:1

1.FQ-1600s Paper Slitter:

FQ-1600s function is to slit paper into various sizes before reeling. It has self-locking function for upper and lower blades.Pneumatic reeling spindle, double reeling and step-less speed adjustment.

Maximum width: 1600mm

Power: 5.5kw?

Slitting width: 25mm+Machine size: 2500mm*2500mm*1500mm

2.LQZ-2 Tracing, Cutting Spiral tube machine:

The functions to roll the tube and long tube cutting. Tolerances: +5mm, which will meet the standard for cloth tube reeling and air spinning reeling. If particular length needed, precision cutter will need be connected.

Paper tube thickness: 0.8-10mm

Paper tube diameter: 20-200mm?

Speed: 3-15meters/min(step-less speed adjustment)

Gluing mode: Inclined gluing.

Paper Hanger: Whole frame

3.QGJ-98 Precise Cutter:

The function is to cut the semi-finished product into the required length of chemical fibre tube and air spinning tube.The machine has pneumatic control which makes it easy to adjust.Suitable for various specification of air-spin ning tube and short tube.

Paper tube inner diameter:30-100mm

Cutting thickness:1-8mm.

Cutting length:80mm-1500mm

Blades:8 sets(standard)

Power:1.5kw.Operator:1

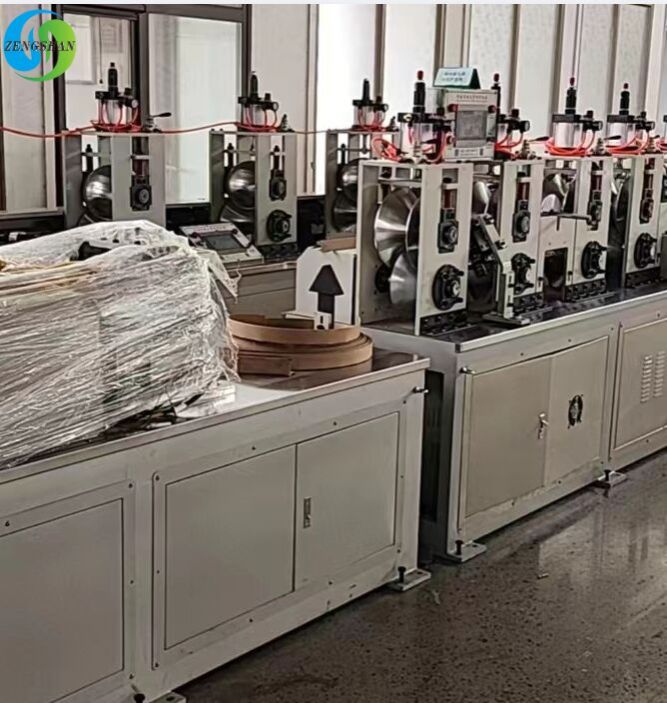

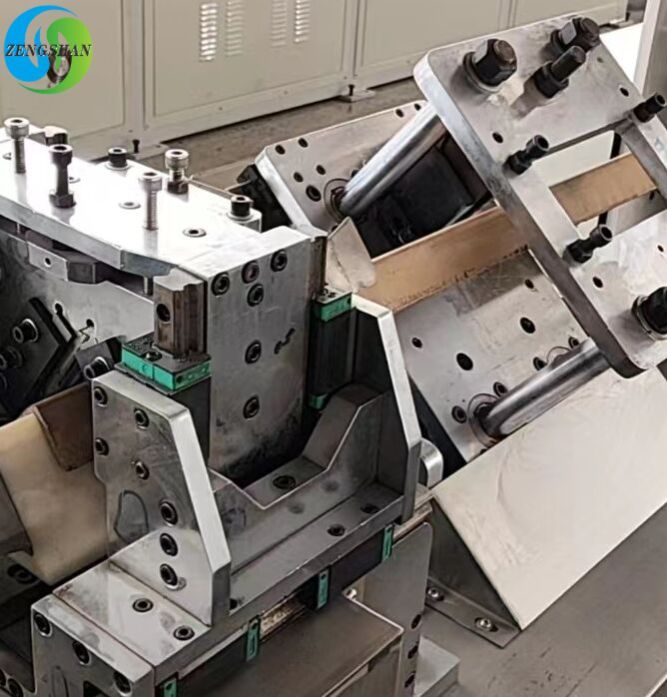

Paper angle beads, also known as edge boards, are one of the most popular packaging products internationally, used to replace woo-d packaging and other bulky packaging methods. It has the characteristics of low price, light weight, sturdiness, and compliance with environmental requirements.

Paper Angle Protection Specification Wide20-100mm

Long50-9000mm

Thick2-8mm

Production speed: 0-40m/min

Paper layers: 12layers

Forming roller: 8 groups

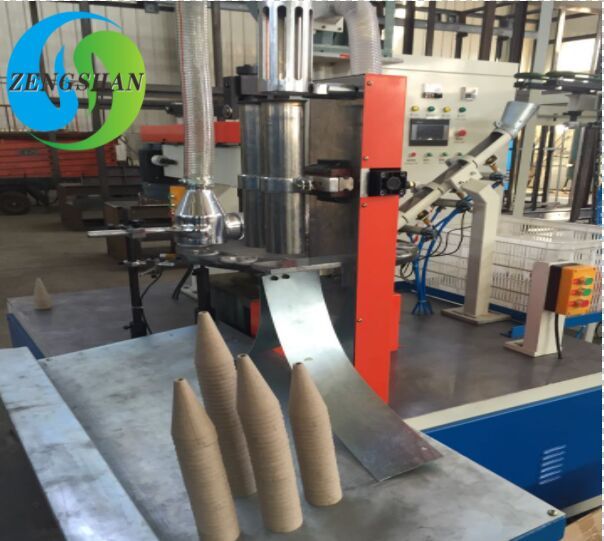

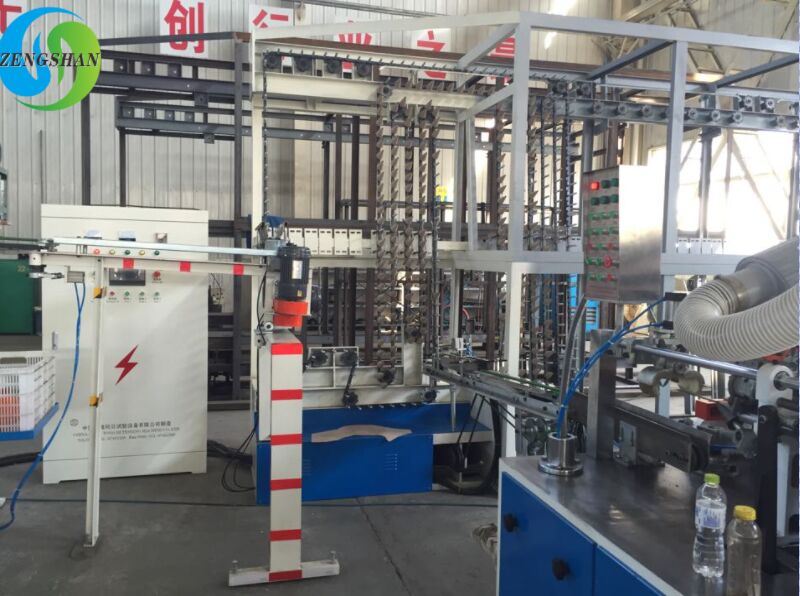

The automatic production line for fireworks paper bobbins, the main driving force transmitted through a cam mechanism for time control purposes. It uses a range of electromechanical control technologies such as post operation control, high/low two-speed inverter control, photoelectric control, approach control and pneumatic delay control to ensure less manpower, low energy consumption, high efficiency and top quality production. It consists of paper cone winding umit, drying oven, and paper cone finishing unit.

The whole firework paper cone production process is as follows,

Rolling---Internal and external printing---Paper edge grinding---paper cutting--- paper cone winding&trimming--- Paper cone drying---Head Curling---Final products collating

Main Technical parameters

Speed 50pcs/min

Applicable glue white glue/Tapioca starch glue

Power 49.2 KW/380V/50HZ/3Phases

Operator 1persons

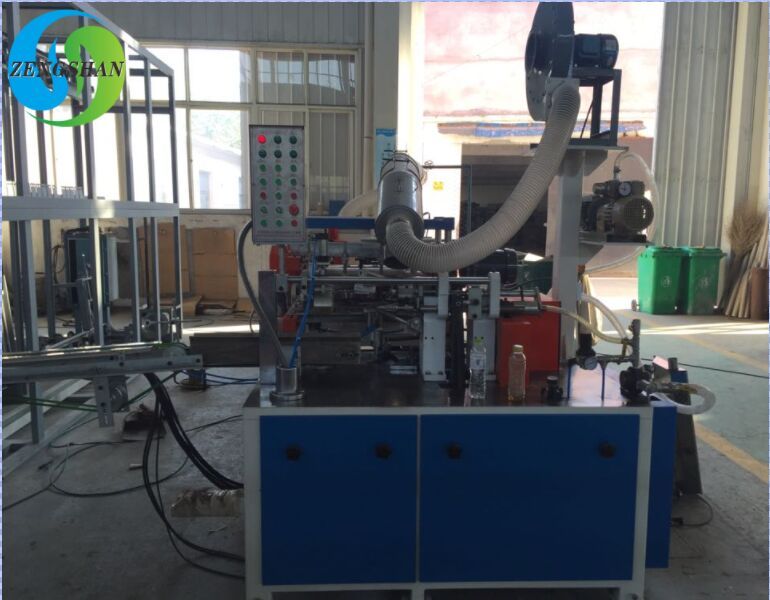

1. winding machine

This winding machine is suitable for firework paper cone of various specification. After hanging the paper roll, internal and external printing, edge grinding, cutting, winding, head cutting, the semi-finished paper cone will be sent to the dryer. It takes double speed variable frequency control technology. The winding speed will be adjusted automatically.

The whole process is easied by connecting with the dryer.

speed 50 pcs/min

Power 13.27kw

2. collating machine

The speed can be adjusted freely with over-load protector and automatic stopping equipment when the improper operation happens to guarantee the safety and stability and tower the waste rate. The after finishing machine can also be used individually.

Main parameters

Types Various firework paper cone

Speed 50PCS/min

Air Pressure 0.3-0.4mpa

3. drying machine

The auto-temperature control dryer uses chain-type circulation drying. After setting up the temperature, the heat can be controlled, maintained and adjusted freely, featured low consumption and high outcome. Firework paper cone can be feed and collected automatically after connec
