1.FQ-1600’s Paper Slitter:
FQ-1600’s function is to slit paper into various sizes before reeling. It has self-locking function for upper and lower blades.Pneumatic reeling spindle, double reeling and step-less speed adjustment.
Maximum width: 1600mm
Power: 5.5kw?
Slitting width: 25mm+Machine size: 2500mm*2500mm*1500mm

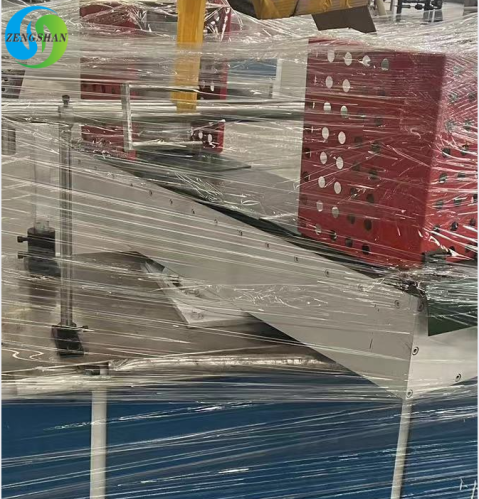

2.LQZ-2 Tracing, Cutting Spiral tube machine:
The functions to roll the tube and long tube cutting. Tolerances: +5mm, which will meet the standard for cloth tube reeling and air spinning reeling. If particular length needed, precision cutter will need be connected.
Paper tube thickness: 0.8-10mm
Paper tube diameter: 20-200mm?
Speed: 3-15meters/min(step-less speed adjustment)
Gluing mode: Inclined gluing.
Paper Hanger: Whole frame
3.QGJ-98 Precise Cutter:
The function is to cut the semi-finished product into the required length of chemical fibre tube and air spinning tube.The machine has pneumatic control which makes it easy to adjust.Suitable for various specification of air-spin ning tube and short tube.
Paper tube inner 76ndiameter:30-100mm
Cutting thickness:1-8mm.
Cutting length:80mm-1500mm
Blades:8 sets(standard)
Power:1.5kw.Operator:1
