Grease seals prevent hinge contamination from dust and dirt. Alloy pin for years of maintenance free service. Heavy duty stainless steel door hinges are designed with needle bearings to allow for easy door movement. Maximum door weight of 4, 000 lbs. Maximum radial load of 1, 630 lbs.

• Manufactured from cold and hot rolled 1018 carbon steel.
• These high capacity weld-on hinges are provided with grease seals.
• Grease seals are used to ensure a long hinge life by keeping grease in and contamination out.
• Excellent choice lead filled radiation doors.
• Alloy steel pin.

• These hinges are designed for applications involving high radial loads, closers, and other heavy doors and gates.
• Sealed for life for years of maintenance free service.
• The hinge pin is constructed using heat treated alloy steel.
• Applications include Medical, military and defense and security.

• Maximum Door Weight: 25, 000 LBS
• Maximum Radial Load: 14, 000 LBS
• Approx Width: 12 5/16 "
• Height: 14 "
• Leaf Thickness: 1 1/4 "
• Weight: 105 lbs
• Mount: Weld On
• Material Type: Carbon Steel
• Finish: Primer

• Material Type: 316L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 1, 000 LBS
• Maximum Radial Load: 400 LBS
• Approx Width: 4 1/8 "
• Height: 5 "
• Leaf Thickness: 3/8 "
• Weight: 4 lbs

ecificationAvailability:In Stock

• Material Type: 316L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 8, 000 LBS
• Maximum Radial Load: 3, 300 LBS
• Approx Width: 7 7/8 "
• Height: 8 "
• Leaf Thickness: 3/4 "
• Weight: 23 LBS

• Material Type: 316L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 13, 000 LBS
• Maximum Radial Load: 6, 820 LBS
• Approx Width: 8 1/4 "
• Height: 8 "
• Leaf Thickness: 3/4 "
• Weight: 33 lbs

• Material Type: 316L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 20, 000 LBS
• Maximum Radial Load: 8, 800 LBS
• Approx Width: 10 5/8 "
• Height: 12 "
• Leaf Thickness: 1 "
• Weight: 66 lbs

• Material Type: 304L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 1, 000 LBS
• Maximum Radial Load: 400 LBS
• Approx Width: 4 1/8 "
• Height: 5 "
• Leaf Thickness: 3/8 "
• Weight: 4 lbs

• Material Type: 304L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 1, 000 LBS
• Maximum Radial Load: 400 LBS
• Approx Width: 4 1/8 "
• Height: 5 "
• Leaf Thickness: 3/8 "
• Weight: 4 lbs

• Material Type: 304L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 13, 000 LBS
• Maximum Radial Load: 6, 820 LBS
• Approx Width: 8 1/4 "
• Height: 8 "
• Leaf Thickness: 3/4 "
• Weight: 33 lbs

• Material Type: 304L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 20, 000 LBS
• Maximum Radial Load: 8, 800 LBS
• Approx Width: 10 5/8 "
• Height: 12 "
• Leaf Thickness: 1 "
• Weight: 66 lbs

• Material Type: Carbon Steel
• Mount: Weld On
• Maximum Door Weight: 4, 000 LBS
• Maximum Radial Load: 1, 630 LBS
• Approx Width: 7 7/16 "
• Height: 6 "
• Leaf Thickness: 1/2 "
• Weight: 13 lbs
• Finish: Primer

• Material Type: 316L Stainless Steel
• Mount: Weld On
• Maximum Door Weight: 20, 000 LBS
• Maximum Radial Load: 8, 800 LBS
• Approx Width: 10 5/8 "
• Height: 12 "
• Leaf Thickness: 1 "
• Weight: 66 lbs

• Material Type: Carbon Steel
• Mount: Weld On
• Maximum Door Weight: 8, 000 LBS
• Maximum Radial Load: 3, 300 LBS
• Approx Width: 7 7/8 "
• Height: 8 "
• Leaf Thickness: 3/4 "
• Weight: 23 lbs
• Finish: Primer

• Material Type: 304L Stainless Steel
• Mount: Weld On
• Type: Non-Handed
• Application: Security
• Maximum Door Weight: 2, 000 LBS
• Maximum Radial Load: 800 LBS
• Approx Width: 6 1/2 "
• Height: 5 "
• Leaf Thickness: 1/2 "
• Weight: 7 LBS

• Material Type: 316L Stainless Steel
• Mount: Weld On
• Type: Non-Handed
• Application: Security
• Maximum Door Weight: 1, 000 LBS
• Maximum Radial Load: 400 LBS
• Approx Width: 6 1/2 "
• Height: 5 "
• Leaf Thickness: 1/2 "
• Weight: 7 1/2 "

• Material Type: 316L Stainless Steel
• Mount: Weld On
• Type: Non-Handed
• Application: Security
• Maximum Door Weight: 2, 000 LBS
• Maximum Radial Load: 800 LBS
• Approx Width: 6 1/2 "
• Height: 5 "
• Leaf Thickness: 1/2 "
• Weight: 7LBS

Material Type: 316L Stainless Steel

Mount: Weld On

Type: Non-Handed

Application: Security

Maximum Door Weight: 800 LBS

Maximum Radial Load: 320 LBS

Approx Width: 6 "

Height: 5 "

Leaf Thickness: 5/16 "

Weight: 4 LBS

Material Type: 316L Stainless Steel

Mount: Weld On

Type: Non-Handed

Application: Security

Maximum Door Weight: 800 LBS

Maximum Radial Load: 320 LBS

Approx Width: 6 "

Height: 5 "

Leaf Thickness: 5/16 "

Weight: 4 LBS

Maximum Door Weight: 3, 000 LBS

Maximum Radial Load: 1, 220 LBS

Approx Width: 6 1/2 "

Height: 5 "

Leaf Thickness: 1/2 "

Weight: 7 LBS

Mount: Weld On

Material Type: Carbon Steel

Finish: Primer

• Maximum Door Weight: 40, 000 LBS
• Maximum Radial Load: 25, 000LBS
• Approx Width: 20 1/4 "
• Height: 16 "
• Weight : 480 LBS
• Leaf Thickness: 3 "
• Mount: Weld On
• Material Type: Carbon Steel
• Finish: Primer

Maximum Door Weight: 3, 000 LBS

Maximum Radial Load: 1, 220 LBS

Approx Width: 6 1/2 "

Height: 5 "

Leaf Thickness: 1/2 "

Weight: 7 LBS

Mount: Weld On

Material Type: Carbon Steel

Finish: Primer

Maximum Door Weight: 3, 000 LBS

Maximum Radial Load: 1, 220 LBS

Approx Width: 6 1/2 "

Height: 5 "

Leaf Thickness: 1/2 "

Weight: 7 LBS

Mount: Weld On

Material Type: 316L Stainless Steel

Finish: Plain

• Maximum Door Weight: 40, 000 LBS
• Maximum Radial Load: 25, 000LBS
• Approx Width: 20 1/4 "
• Height: 16 "
• Weight : 480 LBS
• Leaf Thickness: 3 "
• Mount: Weld On
• Material Type: 304L Stainless Steel
• Finish: Plain

• Maximum Door Weight: 40, 000 LBS
• Maximum Radial Load: 25, 000LBS
• Approx Width: 20 1/4 "
• Height: 16 "
• Weight : 480 LBS
• Leaf Thickness: 3 "
• Mount: Weld On
• Material Type: 304L Stainless Steel
• Finish: Plain

rn
• Maximum Door Weight: 40, 000 LBS
rn
• Maximum Radial Load: 25, 000LBS
rn
• Approx Width: 20 1/4\"
rn
• Height: 16\"
rn
• Weight : 480 LBS
rn
• Leaf Thickness: 3\"
rn
• Mount: Weld On
rn
• Material Type: 316L Stainless Steel
rn
• Finish: Plain
rn

• Application: Mortise
• Type: Non-Handed
• Material Type: Carbon Steel
• Maximum Door Weight: 800 LBS
• Maximum Radial Load: 320 LBS
• Mount: Weld On
• Approx Width: 11 7/8 "
• Height: 5 "
• Bearing Type: Oil-Lite Bronze Bushings
• Finish: Primer
• Service: Medium Duty

Application: Mortise

Type: Non-Handed

Material Type: Carbon Steel

Maximum Door Weight: 1200 LBS

Maximum Radial Load: 400 LBS

Mount: Weld On

Approx Width: 11 7/8 "

Height: 6 "

Bearing Type: Oil-Lite Bronze Bushing

Finish: Primer

Service: Medium Duty

• Application: Mortise
• Type: Non-Handed
• Material Type: Carbon Steel
• Maximum Door Weight: 2000 LBS
• Maximum Radial Load: 800 LBS
• Mount: Weld On
• Approx Width: 6 1/4
• Height: 5 "
• Bearing Type: Needle and Thrust Bearings
• Finish: Primer
• Service: Heavy Duty

• Application: Mortise
• Type: Non-Handed
• Material Type: 304L Stainless Steel
• Maximum Door Weight: 800 LBS
• Maximum Radial Load: 320 LBS
• Mount: Weld On
• Approx Width: 11 7/8 "
• Height: 5 "
• Bearing Type: Oil-Lite Bronze Bushings
• Finish: Plain
• Service: Medium Duty

Application: Mortise

Type: Non-Handed

Material Type: 304L Stainless Steel

Maximum Door Weight: 1200 LBS

Maximum Radial Load: 400 LBS

Mount: Weld On

Approx Width: 11 7/8 "

Height: 6 "

Bearing Type: Oil-Lite Bronze Bushings

Finish: Plain

Service: Medium Duty

SpecificationAvailability : In Stock

Application: Mortise

Type: Non-Handed

Material Type: 304L Stainless Steel

Maximum Door Weight: 2000 LBS

Maximum Radial Load: 800 LBS

Mount: Weld On

Approx Width: 6 1/4 "

Height: 5 "

Finish: Plain

Service: Heavy Duty

Specification

Application: Mortise

Type: Non-Handed

Material Type: 316L Stainless Steel

Maximum Door Weight: 800 LBS

Maximum Radial Load: 320 LBS

Mount: Weld On

Approx Width: 11 7/8 "

Height: 5 "

Bearing Type: Oil-Lite Bronze Bushing

Finish: Plain

Service: Medium Duty

Specification

Application: Mortise

Type: Non-Handed

Material Type: 316L Stainless Steel

Maximum Door Weight: 2000 LBS

Maximum Radial Load: 800 LBS

Mount: Weld On

Approx Width: 6 1/4 "

Height: 5 "

Bearing Type: Needle & Thrust Bearings

Finish: Plain

Service: Heavy Duty

Specification

Application:Barrel

Type:Non-Handed

Material Type:Carbon Steel

Maximum Door Weight:600 lbs

Mount: Weld On

Approx. Width:1 1/4 "

Height: 5 "

Bearing Type: Oil-Lite Bronze Bushings and Thrust Washer

Finish: Primer

Specification

Application: Barrel

Type: Non-Handed

Material Type: 304L Stainless Steel

Maximum Door Weight: 600 lbs

Mount: Weld On

Approx. Width: 1 1/4 "

Height: 5 "

Bearing Type: Oil-Lite Bronze Bushings and thrust washer

Finish: Plain

Service: Medium Duty

Specification

Application: Barrel

Type: Non-Handed

Material Type: Carbon Steel

Maximum Door Weight: 1000 LBS

Mount: Weld-On

Approximate Width: 1 3/8 "

Height: 7 "

Weight: 5 LBS

Bearing Type: Oil-Lite Bronze Bushings and Thrust Washer

Finish: Primer

Service: Heavy Duty

Specification

Application: Barrel

Type: Non-Handed

Material Type: 304L Stainless Steel

Maximum Door Weight: 1000 LBS

Mount: Weld On

Approx Width: 1 3/8 "

Height: 7 "

Bearing Type: Oil-Lite Bronze Bushings and Thrust Washer

Finish: Plain

Service: Medium Duty

Specification

Application: Barrel

Type: Non-Handed

Material Type: 316L Stainless Steel

Maximum Door Weight: 1000 LBS

Mount: Weld On

Approximate Width: 1 3/8 "

Height: 7 "

Bearing Type: Oil-Lite Bronze Bushings and Thrust Washer

Finish: Plain

Service: Medium Duty

Specification

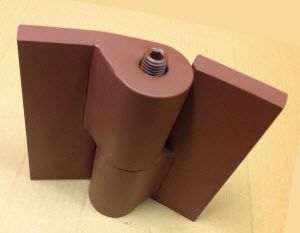

Application: Half Mortise

Type: Right-Handed

Material Type: Carbon Steel

Maximum Door Weight: 40, 000LBS

Maximum Radial Load: 25, 000LBS

Mount: Weld on or Bolt on

Approximate Width: 20 1/4 "

Height: 16 "

Weight: 480 LBS

Bearing Type: Needle bearings and a thrust bearing

Finish: Primer coated

Service: Heavy Duty

Specification

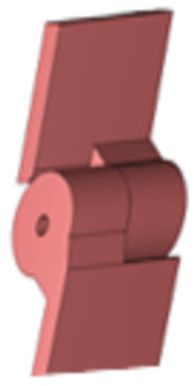

Application: Half Mortise

Type: Left-Handed

Material Type: Carbon Steel

Maximum Door Weight: 4000 LBS

Maximum Radial Load: 1630 LBS

Mount: Weld-On or Bolt-on

Approximate Width: 7 7/16 "

Weight: 13 LBS

Height: 6 "

Bearing Type: Needle Bearings and a Thrust Bearing

Finish: Primer, Galvanized or Powder Coated

Service: Heavy Duty

Specification

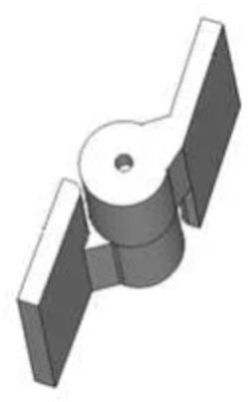

Application: Half Mortise

Type: Left-Handed

Material Type: 304L Stainless Steel

Maximum Door Weight: 4000 LBS

Maximum Radial Load: 1630 LBS

Mount: Weld On

Approximately Width: 7 7/16 "

Weight: 13 LBS

Height: 6 "

Bearing Type: Needle & Thrust Bearings

Finish: Plain

Service: Heavy Dut

Specification

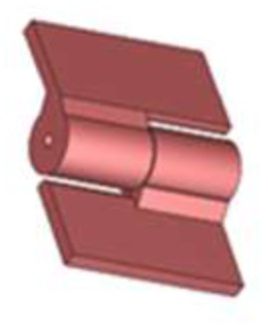

Application: Half-mortise

Type: Left Handed

Material Type: Carbon Steel

Maximum Door Weight: 8, 000 LBS

Maximum Radial Load: 3, 300 LBS

Mount: Weld-On or Bolt-On

Approximate Width: 7 7/8 "

Height: 8 "

Weight: 23 lbs.

Bearing Type: Thrust and Needle bearings

Finish: Primer, hot dipped or cold galvanized or powder coated

Service: Heavy Duty

Specification

Application: Half-mortise

Type: Left-Handed

Material Type: 316L Stainless Steel

Maximum Door Weight: 8, 000 LBS

Maximum Radial Load: 3, 300 LBS

Mount: Weld On or Bolt-On

Approximate Width: 7 7/8 "

Height: 8 "

Weight: 23 LBS

Bearing Type: Thrust and Needle Bearings

Finish: Plain

Service: Heavy Duty

Specification

Application: Half-mortise

Type: Right-Handed

Material Type: Carbon Steel

Maximum Door Weight: 8, 000 LBS

Maximum Radial Load: 3, 300 LBS

Mount: Weld-On or Bolt-On

Approximate Width: 7 7/8 "

Height: 8 "

Weight: 23 lbs

Bearing Type: Thrust and Needle Bearings

Finish: Primer coated, hot dipped or cold galvanized or powder coated.

Service: Heavy Duty

Specification

Application: Half Mortise

Type: Right Hand

Material Type: 304L Stainless Steel

Maximum Door Weight: 8, 000 LBS

Maximum Radial Load: 3, 300 LBS

Mount: Weld-On or Bolt-On

Approximate Width: 7 7/8 "

Height: 8 "

Weight: 23 LBS

Bearing Type: Needle & Thrust Bearings

Finish: Plain

Service: Heavy Duty

Specification

Application: Half-mortise

Type: Right-Hand

Material Type: 316L Stainless Steel

Maximum Door Weight: 8, 000 LBS

Maximum Radial Load: 3, 300 LBS

Mount: Weld-On or Bolt-On

Approximate Width: 7 7/8 "

Height: 8 "

Weight: 23 LBS

Bearing Type: Thrust and Needle Bearings

Finish: Plain

Service: Heavy Duty

Specification

Application: Half mortise

Type: Left-Handed

Material Type: 316L Stainless Steel

Maximum Door Weight: 40, 000LBS

Maximum Radial Load: 25, 000LBS

Mount: Weld-on or Bolt-on

Approximate Width: 20 1/4 "

Height: 16 "

Weight: 480 LBS

Bearing Type: Needle bearings and a thrust bearing

Finish: Plain

Service: Heavy Duty

Specification

Application: Half mortise

Type: Right-Handed

Material Type: 304L Stainless Steel

Maximum Door Weight: 40, 000 LBS.

Maximum Radial Load: 25, 000 LBS.

Mount: Weld-On or Bolt-On

Approximate Width: 20 1/4 "

Height: 16 "

Weight: 480 LBS

Bearing Type: Needle bearings and a thrust bearing

Finish: Plain

Service: Heavy Duty

Specification

Application: Half mortise

Type: Right-Handed

Material Type: 316L Stainless Steel

Maximum Door Weight: 40, 000 LBS.

Maximum Radial Load: 25, 000 LBS

Mount: Weld On or Bolt-On

Approximate Width :20 1/4 "

Height: 16 "

Weight: 480 LBS

Bearing Type: Needle bearings and thrust bearing

Finish: Plain

Service: Heavy Duty

Specification

Application: Half Mortise

Type: Right-Hand

Material Type: Carbon Steel

Maximum Door Weight: 4, 000 lbs.

Maximum Radial Load: 1, 630 lbs.

Mount: Weld-On or Bolt-On

Approximate Width: 7 7/16 "

Weight: 13 lbs.

Height: 6 "

Bearing Type: Thrust and Needle Bearings

Finish: Primer, hot dipped or cold galvanized or powder coated paint

Service: Heavy Duty

Specification

Application: Half Mortise

Type: Left Hand

Material Type: Carbon Steel

Maximum Door Weight: 13, 000 lbs.

Maximum Radial Load: 6, 820 lbs.

Mount: Weld-On or Bolt-On

Approximate Width: 8 1/4 "

Height: 9 "

Weight: 38 lbs.

Bearing Type: Thrust and Needle Bearings

Finish: Primer coat, hot dipped or cold galvanized or powder coat

Service: Heavy Duty

Specification

Application: Half Mortise

Type: Left Hand

Material Type: 304L Stainless Steel

Maximum Door Weight: 13, 000 lbs.

Maximum Radial Load: 6, 820 lbs.

Mount: Weld-On or Bolt-On

Approx. Width: 8 1/4 "

Height: 9 "

Weight: 38 lbs.

Bearing Type: Needle & Thrust Bearings

Finish: Plain

Service: Heavy Duty

Specification

Application: Half Mortise

Type: Left Handed

Material Type: 316L Stainless Steel

Maximum Door Weight: 13, 000 lbs.

Maximum Radial Load: 6, 820 lbs.

Mount: Weld-On or Bolt-On

Approx. Width: 8 1/4 "

Height: 9 "

Weight: 38 lbs.

Bearing Type: Thrust and Needle Bearings

Finish: Plain

Service: Heavy Duty
