his all aluminum, fully welded truck dock board is our innovative “Lightweight” alternative to the heavy duty steel dock board. The ATD is designed for lightweight duty in low to medium volume dock loading applications with a forklift or pallet jack. Both capacity ATDs are constructed of aluminum tread plates with welded aluminum extruded curbs and legs.

Aluminum ramps for cylinders (ARC) are specially designed for the safe transport and distribution of industrial, medical and specialty gases. Made of 38” aluminum diamond plate and weighing 29 pounds, the ARC is light enough to be easily placed and retrieved, yet is strong enough to accommodate 2, 313 pounds of capacity. The purpose of the aluminum ramp is to avoid damage to the gas cylinder and the dockwarehouse floor, as well as minimize the chance of personnel injury and property damage. The ramp provides a smooth transition surface over which to manually roll the gas cylinder in a fully controlled manner.

A Spring Loaded Dock Plate (SL Plate) solves a problem in some common situations. Many times a dock services the exact same truck or type of trucks several times per shift. If the loads are loaded or unloaded by handtruck, dollie or other manual methods the SL plate may be the answer. The aluminum dock plate is fitted with a pair of spring loaded attachments that fix it in place to the dock floor. These springs allow the dock plate to be quickly and safely lowered into place for use. When finished the dock plate is lifted, aided by the springs, into it’s vertical storage position ready for the next truck. It is mounted top of dock so there is no major installation process. Most customers have the personnel and tools to do the job.

Sturdy oak deck models carrying loads up to 2000 Ibs. for use in industry, hotels, warehouses and stores. Bantamweight Series platform trucks are constructed of tongue-and-grooved seasoned oak decks with underside battens for added rigidity so platform will not warp or separate. Decks have countersunk bolts providing a smooth platform. Standard wheels for trucks are rubber mold-on (RT) or full pneumatic (FPN). Optional wheels are available. Consult factory for other wheel options. Select deck size and caster wheel size, for the load capacity desired. Select optional handle from chart. Capacity to 2000 lbs. Durable Epoxy powder coated finish on casters. 1" thick kiln dried, machined tongue & groove oak decking. Reinforcing cross battens. Decks have countersunk bolts providing a smooth platform. Optional handles available.

Stacked loads move easily as this truck is tilt-style and turns in its own length. Four 1 14" x 2 34" removable wooden stakes will seat into steel corner pockets. Stakes are 30" above platform deck. Load wheels are 12" x 2 12" and swivel end caster wheels are 5" x 1 58". Two wheel options available. Capacity up to 2200 lbs. Tilt-style truck turns its own length. Four removable stakes rise 30" above deck. Two wheel options. Complete varnished oak construction.

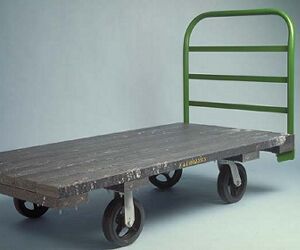

he plasticwood platform truck is a combination of modern technology with traditional design that can handle the most adverse conditions. The deck is made of solid, high-density polyethylenepolypropylene recycled plastics. The non-porous deck is 100% waterproof and will not warp, rot, splinter, chip, peel, rust or crack and never requires painting or varnishing. It is corrosion resistant to industrial solvents, oils, grease, mild acid and alkaline. The 1 12" thick deck boards are tongue-and-groove for added strength and are securely attached to the 1 12" thick cross battens. Standard casters are Rubber Mold-on (RT), Full Pneumatic (FPN) or High-Capacity Rubber Mold-on (HC). Consult factory for other wheel options. Choose among optional epoxy powder coated handles

Constructed of durable, light-weight engineered thermoplastics. Ideally suited for wet or corrosive conditions. Toe operation holds heavy loads securely. Advanced design of the brake pad holds a variety of wheel types. Only two moving parts. Virtually maintenance free operation. Temperature range: -30°F to +250°F.

Platform trucks from Magline are durable, designed to perform under tough conditions and can accommodate a variety of capacities based on caster choice. Super light aluminum - all muscle and no deadweight. Designed for tough job service, load handling virsitility and long life. One handle standard with a height of 26-12" from the base of the platform. Durable extruded corner sockets integrated with frame so handle fits tightly and securely. 960 to 3, 000 pound capacity (dependent on casters). Uni-weld deck and reinforced underside for strength and durability.

• Series2

otal lock brake locks wheel and swivel simultaneously. The brake design features durable metal construction with a thermoplastic pedal. Virtually maintenance free operation. Brake is easily operated with foot action. Works on 312", 4" and 5" 2 Series models. To order with caster specify “BRK5”. To field install, see kit numbers below.

The ends of brake spring are crimped so that they grab the wheel at four contact points. They provide extra holding power on a variety of wheel surfaces. Brake is easily operated with foot action. Available on 3", 4", and 5" wheels. 1 Series brakes cannot be used with thread guards. To order with caster specify “BRK3”. To field install, see kit numbers below.
