Brand Name
Agilent
-
Condition
Refurbished

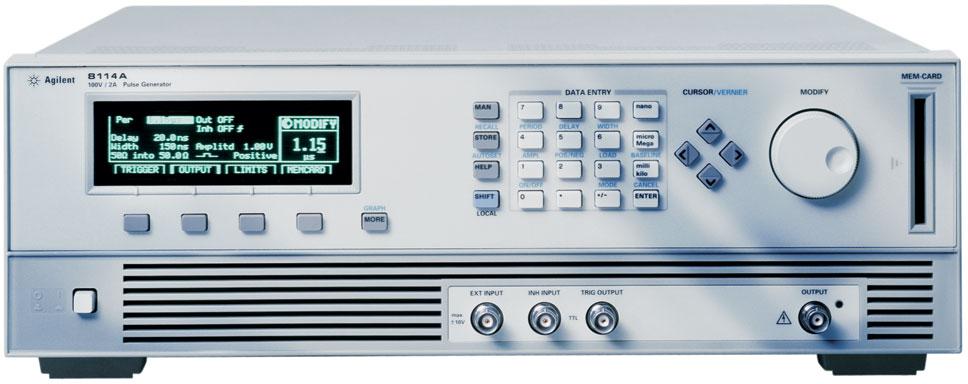

We are offering agilent / hewlett packard 8114a high power pulse generator 100 v / 2 a. today's telecommunications and computer systems increasingly take advantage of devices such as laser and ir diodes, eeproms and flash memories which operate at high voltages or currents. * fast, clean positive or negative pulses up to 100 v at frequencies up to 15 mhz* user-definable limits for voltage, current and duty cycle* tll input: allows the output to be enabled or disabled* transitions < 12 ns for high impendance source into 50 ohm load. Baseline ov. * in 50 ohm/50 ohm mode, the maximum voltage is 50 vpp with transitions < 7ns key features & specifications * single-channel high power pulse generator* 15 mhz* 50 vpp 50 ohms / 50 ohms* max. Amplitude 100 v (hi-z/50 ohms)* max. Current 2 a (hi-z/50 ohms)* voltage, current, and duty cycle protection* optional baseline shift of +/- 25 v
Florida, United States
