Our Products
Our Complete range of products are Coarse Diffuser and Fine Bubble TUBULAR Diffuser.

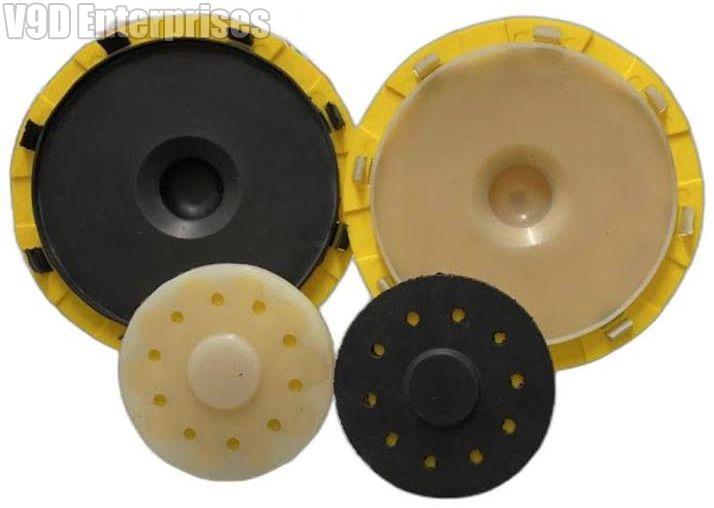

Introducing a premium variety of Coarse Bubble Disc Diffuser, that is highly appreciated for its durability. This Coarse Bubble Diffuser is made from quality raw materials that make it capable to meet the desired expectations of the clients. The Coarse Bubble Disc Diffuser manufactured, exported, and supplied by the company is offered at rock bottom prices.
Technical Specification
| Bubble Size | 4mm to 5mm | 4mm to 5mm |
|---|---|---|
| MOC of Diffuser | EPDM & Silicon | EPDM & Silicon |
| MOC of Diffuser Support | ABS | ABS |
| Sizes | 80mm | 150mm |
| Type of Bubble | Coarse Bubble | Coarse Bubble |
| Bubble Temperature Tolerance | 85 Deg C | 85 Deg C |
| End Connection | 3/4 " BSP Male Thread | 1: BSP Male Thread |
| Operating Temperature | 35 Deg C | 35 Deg C |
| Type of air discharge | Top air discharge | Peripheral Discharge |
| No of air discharge ports | 08 nos | |
| Air flow rate per diffuser | 6-8m3/hr | |
| Shape of Diffuser | Disc Type | Disc Type |
| Diffuser Support color | Black | White/Blue |
Designed under the guidance of expert professionals, the Fine Bubble Tube Diffuser offered by the company is acknowledged by its sophisticated design. Owing to its reliable diffusion technique, this Fine Bubble Tube Diffuser remits excellent performance. This Fine Bubble Tithe Diffuser is highly cost-effective in nature.
Technical Specification
| Size | 63x610mm | 63x1000mm | 90mmx1000mm |
|---|---|---|---|
| Shape of Diffuser | Tube Type | Tube Type | Tube Type |
| Type of Bubble | Fine Bubble | Fine Bubble | Fine Bubble |
| MOC of Membrane | EPDM/Silicon | EPDM/Silicon | EPDM/Silicon |
| MOC of Membrane Support | PVC Pipe | PVC Pipe | PVC Pipe |
| MOC of MembraSZne Clips | SS | SS | SS |
| MOC of Diffuser Male Adapter | ABS | ABS | ABS |
| Operating Temperature of Membrane | 85 Deg Celcius | 85 Deg Celcius | 85 Deg Celcius |
| Nipple attacted to Diffuser | 3/4"x3" | 3/4"x3" | 1"x3" |
| Dimensions of Bubble | >1mm | >1mm | >1mm |
| Air put through rate | 4 to 6m3/hr | 8 to 10m3/hr | 11 to 14m3/hr |
