  1. Products 259 Products available

Our Products

Our product range contains a wide range of PNEUMATIC CAGE CONTROL VALVE, Steel Globe Valve, CRYOGENIC LONG STEM GLOBE VALVE, CRYOGENIC EMERGENCY CUT OFF VALVE and Aluminium Bronze Globe Valve

Pneumatic Actuated Globe Type Control Valve

Pneumatic Actuated Globe Type Control Valve
  • Body Stainless Steel, Carbon Steel, Ductile Iron
  • Gasket PTFE, Graphite
  • Nominal Size DN10 to DN300
  • Nominal Pressure PN16 to PN160, Class150 to Class2500
  • End Connection Flanged, Socketweld, Butweld

Dimension

DN A B C H ФM
15 184 64 114 504 298
20 184 64 114 504 298
25 184 64 114 504 298
32 200 75 120 510 298
40 222 80 136 526 298
50 254 85 148 611 360
65 276 104 188 659 360
80 298 113 188 659 360
100 352 125 210 755 440
125 410 140 241 905 510
150 451 153 257 921 510
200 543 200 343 1198 640
View Complete Details
Ask Latest Price & Details
Electric Single Seat Control Valve

Electric Single Seat Control Valve
  • Body WCB, SS304, SS316, CF8, CF8M
  • Seat Stainless Steel
  • Packing Graphite, PTFE
  • Nominal Diameter DN20 to DN200
  • Nominal Pressure PN16 to PN64, Class150 to Class2500
  • End Connection Flanged, Buttweld, Socketweld

Dimension

DN L H1 H2 H3 A
20 194 128 373 65 225
         25 197 137 373 70 225
32 200 148 495 70 255
40 235 152 495 85 255
50 267 159 495 90 255
65 292 218 535 102.5 255
80 317 230 535 107.5 255
100 368 238 535 125 255
125 420 264 725 125 310
150 473 331 725 172.5 310
200 600 346 725 180 310
View Complete Details
Ask Latest Price & Details
Electric O-type Shut Off Control Valve

Electric O-type Shut Off Control Valve
  • Packaging Type PTFE, Graphite
  • End Connection Flanged, Buttweld, Socketweld
  • Body Carbon Steel , Stainless Steel
  • Seat Stainless Steel
  • Nominal Diameter DN15 to DN200

Dimension

DN L H H1 H2 C
25 140 330 55 160 225
40 165 350 65 160 225
50 203 360 75 160 225
65 222 435 90 160 257
80 241 445 95 160 335
100 305 480 115 160 335
125 356 480 127 160 335
150 394 595 140 160 335
200 457 615 172.5 160 335
View Complete Details
Ask Latest Price & Details
Electric Double Seat Control Valve

Electric Double Seat Control Valve
  • Body WCB, SS304, SS316, SS304L, SS316L
  • Plug Stainless Steel
  • Seat Stainless Steel
  • Gasket PTFE, Graphite
  • Nominal Diameter DN25 to DN200
  • Nominal Pressure PN16 to PN64, Class150 to Class2500
  • End Connection Flanged, Buttweld, Threaded or Welded

Dimension

DN L H H1 H2 A
25 185 117 165 373 225
32 200 120 185 495 225
40 220 139 185 495 225
50 250 144 205 495 225
65 275 188 245 700 257
80 300 208 255 700 257
100 350 220 270 700 257
125 410 268 335 725 310
150 450 278 365 725 310
200 550 320 430 725 310
View Complete Details
Ask Latest Price & Details
Electric Cage Type Control Valve

Electric Cage Type Control Valve
  • Body Carbon Steel, Stainless Steel, Alloy Steel
  • Seat Stainless Steel
  • Nominal Diameter DN25 to DN300
  • Nominal Pressure PN16 to PN64, Class150 to Class2500
  • End Connections Flanged, Buttweld, Socketweld

Dimensions

DN L H1 H D
25 185 58 614 176
32 200 68 630 176
40 220 73 635 176
50 254 80 640 176
65 275 90 712 176
80 300 98 739 176
100 350 108 761 176
125 410 123 930 225
150 451 140 940 225
200 600 168 960 225
250 670 203 1165 225
300 735 230 1185 225
View Complete Details
Ask Latest Price & Details
Electric 3 Way Control Valve

Electric 3 Way Control Valve
  • End Connection Socketweld, Buttweld, Flanged
  • Body Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel
  • Seat Stainless Steel
  • Bellows PTFE, PFA
  • Nominal Diameter DN25 to DN300
  • Nominal Pressure PN16 to PN420, Class150 to Class2500

Dimension

DN L H1 A
25 185 135 225
32 200 152 225
40 220 165 225
50 250 180 225
65 275 200 225
80 300 200 225
100 350 222 225
125 410 265 310
150 450 322 310
200 550 362 310
250 670 508 310
300 770 563 310
View Complete Details
Ask Latest Price & Details
Pneumatic Sleeve Type Control Valve

Pneumatic Sleeve Type Control Valve
  • Material Carbon Steel, SS316
  • Body WCB, CF8, CF8M, SS304, SS316
  • Seat Stainless Steel
  • Gasket Flexible Graphite+Stainless Steel
  • End Connections Flanged, Buttweld, Socketweld
  • Class 150/PN16, 300
  • Size 1", 2", 3", 4", 5", 6" 1", 2", 3", 4", 5", 6"
View Complete Details
Ask Latest Price & Details
Pneumatic Flow Control Valve

Pneumatic Flow Control Valve
  • Material Carbon Steel, SS316
  • Actuation Type Double Acting, Spring Return
  • Class 150/PN16, 300
  • Size 1", 2", 3", 4", 5", 6" 1", 2", 3", 4", 5", 6"
Pneumatic Flow Control Valve Body: WCB, SS304, SS316, CF8, CF8M, WCCBonnet: Carbon Steel, Stainless SteelStem: Stainless SteelPacking: PTFEPlug: Carbon Steel, Stainless SteelNominal Diameter: DN20 to DN200Nominal Pressure: PN16 to PN64, Class150 to Class2500Actuation Type: Double Acting, Spring ReturnEnd Connection: Flanged, Buttweld, Socketweld

PN16                                                                 Unit: mm

DN L H ФB
20 184 394 245
25 184 396 245
32 200 402 245
40 222 437 290
50 254 451 290
65 276 607 362
80 298 613 362
100 352 631 362
125 410 736 454
150 451 778 454
200 543 796 454
View Complete Details
Ask Latest Price & Details
Pneumatic Angle Control Valve

Pneumatic Angle Control Valve
  • Material SS316, Wcb
  • Size 1\", 2\", 3\", 4\", 5\", 6\"
  • Class 150/PN16, 300
  • Actuation Type Double Acting, Spring Return
View Complete Details
Ask Latest Price & Details
3 Way Converging and Diverging Control Valve

3 Way Converging And Diverging Control Valve
  • End Connection Flanged, Buttweld
  • Size 1\", 2\", 3\", 4\", 5\", 6\"
  • Material SS316, Wcb
  • Class 150, 300
  • Body CS, SS304, SS316, SS304L, SS316L
  • Bonnet Carbon Steel, Stainless Steel
  • Nominal Pressure PN16 to PN40, Class150 to Class2500
  • Actuation Type Double Acting, Spring Return

DN L H H1 Ñ„A
20 181 415 52.5 285
25 184 422 57.5 285
32 200 450 75 285
40 222 454 75 285
50 254 460 82.5 285
65 276 595 92.5 360
80 298 612 100 360
100 352 645 110 360
125 400 760 125 470
150 451 793 142.5 470
200 495 880 170 470
250 622 1180 202.5 585
300 698 1230 230 585
View Complete Details
Ask Latest Price & Details
Pneumatic Cage Control Valve

Pneumatic Cage Control Valve
  • Material SS316, Wcb
  • Size 1\", 2\", 3\", 4\", 5\"
  • Class 150, 300
  • Body WCB, WC6, CF8, CF8M
  • Stuffing PTFE, Soft Graphite
  • Lower Sleeve Stainless Steel





DN(mm)

 L



H1





H3





H4





H5

 Actuator
PN16



Class 150

 PN64,



Class 300

 PN100



Class 600

 A B C H2 H6 H7
20 184 194 206 130 254 337 44 282 260 220 258 180 465
25 184 197 210 130 254 337 48 282 260 220 258 180 465
32 222 235 251 152 320 386 56 282 260 220 258 180 465
308 260 220 280 180 465
40 222 235 251 152 320 402 65 282 260 220 258 180 465
308 260 220 280 180 465
50 254 267 286 159 320 402 76 308 260 220 280 180 465
65 276 292 311 205 365 630 100 308 220 280 180 305 260
394 270 360 236 580 305
80 298 317 337 205 365 630 100 308 220 280 180 305 260
394 270 360 236 580 305
100 352 368 394 208 373 635 110 394 270 360 236 580 305
125 400 500 500 274 484 698 126 394 270 360 236 580 305
498 320 435 310 675 330
150 451 473 508 333 529 705 149 394 270 360 236 580 305
498 320 435 310 675 330
200 543 568 610 370 561 730 198 498 320 435 310 675 330
View Complete Details
Ask Latest Price & Details
Pneumatic Single Seat Globe Control Valve

Pneumatic Single Seat Globe Control Valve
  • Material SS316, Wcb
  • Size 1\", 2\", 3\", 4\", 5\"
  • Class 150, 300, 600, 900
  • Actuation Type Double Acting, Spring Return
  • Body SS304, SS316, CF8, CF8M, F304, F316, WCB
  • Stem Stainless Steel
  • Packing Graphite, PTFE

DN A H1 H2 H5 H4
20 282 126 271 43 298
25 282 126 271 48 298
32 308 134 297 57 298
40 308 157 297 66 298
50 308 167 297 80 360
65 395 199 375 92 360
80 395 214 375 100 360
100 395 229 375 120 440
125 498 263 455 134 510
150 498 293 455 156 510
200 498 358 455 199 640
View Complete Details
Ask Latest Price & Details
Fluorine Lined Single Seat Control Valve

Fluorine Lined Single Seat Control Valve
  • Material SS316, Wcb
  • Size 1\", 2\", 3\", 4\", 5\", 6\"
  • Class 150, 300
  • Actuation Type Double Acting, Spring Return
  • Body WCB, CF8, CF8M, SS304, SS316
  • Seat Stainless Steel, Carbon Steel
  • Actuation Double Acting, Spring Return

DN L H0 H1 H2 H3 H A
20 160 53 74 215 270 340 228
25 180 57 74 215 270 340 228
32 180 70 74 215 270 340 228
40 200 75 74 215 270 340 228
50 230 83 143 295 295 390 272
65 290 93 186 335 440 440 272
80 310 100 186 335 440 440 272
100 350 110 186 335 440 440 272
125 400 136 268 420 710 710 400
150 480 143 268 420 710 710 400
200 600 181 277 430 740 740 400
250 730 203 292 445 770 770 400
300 850 230 357 510 810 810 610
View Complete Details
Ask Latest Price & Details
Pneumatic Double Seat Control Valve

Pneumatic Double Seat Control Valve
  • Size 1\", 2\", 3\", 4\", 5\"
  • Material Carbon Steel, SS316
  • Class 150/PN16, 300
  • Actuation Type Double Acting, Spring Return
  • Body Stainless Steel, Carbon Steel
  • End Connection Flanged, Socketweld, Buttweld

DN L H H1 H5 A
25 185 117 165 177 282
32 200 120 185 177 282
40 220 139 185 177 282
50 250 144 205 177 282
65 275 188 245 182 360
80 300 208 255 182 360
100 350 220 270 182 360
125 410 268 335 182 470
150 450 278 365 182 470
200 550 320 430 218 470
250 670 441 560 218 580
300 770 503 680 218 580
View Complete Details
Ask Latest Price & Details
3 Way Pneumatic Diaphragm Control Valve

3 Way Pneumatic Diaphragm Control Valve
  • Material Carbon Steel, SS316
  • Actuation Type Double Acting, Spring Return
  • Size 1\", 2\", 3\", 4\", 5\", 6\"
  • Class 150/PN16, 300
  • Body SS304, SS316, WCB, CF8, CF8M
  • Nominal Pressure PN16 to PN100, Class150 to Class2500
  • Seat: Stainless Steel Stainless Steel


DN L H D Ñ„B
20 184 394 70 245
25 184 396 79 245
32 200 402 89 245
40 222 437 98 290
50 254 451 121 290
65 276 607 140 362
80 298 613 152 362
100 352 631 190 362
125 410 736 216 454
150 451 778 241 454
200 600 796 298 454
View Complete Details
Ask Latest Price & Details
Forged Cryogenic Trunnion Ball Valve

Forged Cryogenic Trunnion Ball Valve
  • Body CF8, CF8M, SS304, SS316
  • Bonnet Stainless Steel
  • Seal Ring PTFE
  • Nominal Diameter DN15 to DN65
  • Temperature -196℃ to +80℃

Dimension

PN16                                                                                                       Unit: mm

DN D0 D1 L B H E
15 15 19 82 10 193 180
25 25 33 82 12 218 200
40 40 46 113 15 246 200
50 50 58 157 15 336 360
65 65 77 177 15 450 360
View Complete Details
Ask Latest Price & Details

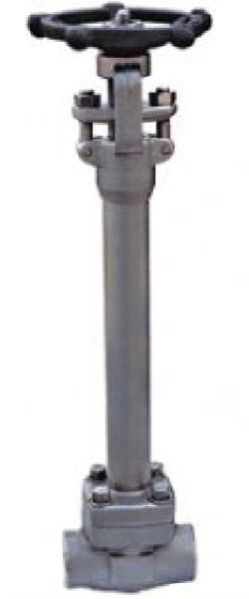

Cryogenic Gate Valve

Cryogenic Gate Valve
  • Body SS304, SS316, SS316L, F304, F316
  • Bonnet Stainless Steel
  • Nominal diameter DN15 to DN50
  • Applicable medium O2, N2, Ar, LNG
  • Nominal Pressure PN16, PN25, PN40, PN64, Class150, Class300, Class800
  • Disc face ring PTFE

Dimension

PN16                                                                     Unit: mm

DN L H W
15 79 290 125
20 92 305 125
25 111 340 160
32 120 390 160
40 120 405 180
50 140 455 200
View Complete Details
Ask Latest Price & Details
Cryogenic Steam Jacket Globe Valve

Cryogenic Steam Jacket Globe Valve
  • Material CF8
  • Class 150, 300
  • Connection Type Buttweld, Flanged, Socket weld
  • Size 1 1/2", 1 1/4", 1", 1/2", 1/4", 2 1/2", 2", 3", 3/4", 3/8", 4"
  • Connection Type Socket welding
  • Body SS304, SS316, F304, F316
  • Heat Insulating Type PU insulation

Dimension

PN16                                                                                                                                     Unit: mm

DN H(on) H(off) L L1 L2 D D1 D2 b
10 255 245 61 157 145 65 10 14.5 6
15 255 245 61 157 145 66 15 18.5 6
20 302 289 81 185 173 80 20 24.5 6
25 302 289 81 185 173 80 26 28.5 6
32 355 340 102 221 206 100 32 38.5 9
40 355 340 102 221 206 100 42 45.5 9
50 391 370 127 228 213 120 54 58 10
View Complete Details
Ask Latest Price & Details
Cryogenic Short Stem Globe Valve

Cryogenic Short Stem Globe Valve
  • Material CF8
  • Class 150, 300
  • Connection Type Buttweld, Flanged, Socket weld
  • Size 1 1/2", 1 1/4", 1", 1/2", 1/4", 10", 2 1/2", 2", 3", 3/4", 3/8", 4", 5", 6", 8"
  • Body F304, F316, SS304, SS316
  • Bonnet Stainless Steel
  • End Connection Buttweld, Threaded or welded, Socketweld

PN16                                                                                                                            Unit: mm

DN H(on) H(off) L L1 D1 D2 D3
10 134 124 61 61 12 15 22
15 134 124 61 61 15 18.5 26
20 176 163 81 81 23 24.5 32
25 176 163 81 81 26 26 39
32 232 217 102 102 35 39 46
40 232 217 102 102 42 46 52
50 230 209 127 127 54 58 66
65 252 232 150 150 68 71 85
80 310 282 182 182 84 89 100
100 358 325 325 325 104 109 121
View Complete Details
Ask Latest Price & Details
Cryogenic Check Valve

Cryogenic Check Valve
  • Material CF8
  • Class PN40
  • Connection Type Buttweld, Flanged, Socket weld
  • Bonnet Stainless Steel
  • Suitable Temperature -80℃ to +80℃
  • Connection Type Buttweld, Socketweld, Flanged
  • Size 1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3/4", 3/8"

PN16                                                                                                                        Unit: mm

DN H L B D0 D1 D2
10 64 195 6 12 15 22
15 64 195 6 15 19 26
20 81 201 6 23 26 34
25 81 201 6 26 33 39
32 102 215 9 35 39 46
40 102 215 10 42 46 52
50 127 267 10 54 58 66
65 150 267 10 68 77 85
80 182 267 10 84 89 100
View Complete Details
Ask Latest Price & Details
Cryogenic Emergency Cut Off Valve

Cryogenic Emergency Cut Off Valve
  • Material CF8
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 3/8\", 4\"
  • Class PN16, PN25, PN40, PN65
  • Connection Type Buttweld, Flanged, Socket weld
  • Temperature -196℃ to +70℃
View Complete Details
Ask Latest Price & Details
Cryogenic Pneumatic Actuated Globe Valve

Cryogenic Pneumatic Actuated Globe Valve
  • Material CF8
  • Class PN40
  • Size 1 1/2", 1 1/4", 1", 2 1/2", 2", 3", 4"
  • Bonnet: Steel Steel
  • Emergency Cut-off Temperature +75±5℃
  • Cylinder Source Pressure PN0.3 to 0.6PMa

DN H L D D1 D2 b
10 448 61 100 10 14.5 6
15 448 61 100 15 18.5 6
20 515 81 100 22 24.5 6
25 515 81 110 26 28.5 6
32 571 102 110 32 38.5 9
40 571 102 110 42 45.5 9
50 622 127 110 54 58 10
65 622 127 110 68 71 10
80 675 152 110 84 89 17
100 675 152 110 104 109 15
View Complete Details
Ask Latest Price & Details
Cryogenic Ball Valve

Cryogenic Ball Valve
  • Material SS304
  • End Connection Buttweld, Threaded or Welded
  • Class 300, 800
  • Size 1/2\", 2\", 3\", 3/4\", 4\"
  • Body SS304, SS316, CF8, CF8M

PN16                                                                     Unit: mm

DN H L B D0 D1 E
15 193 82 10 15 19 180
25 218 82 12 25 33 200
40 246 113 15 40 46 200
50 336 157 15 50 58 360
65 450 177 15 65 77 360
View Complete Details
Ask Latest Price & Details
Cryogenic Long Stem Globe Valve

Cryogenic Long Stem Globe Valve
  • Material CF8
  • Class 150, 300
  • Connection Type Buttweld, Flanged, Socket weld
  • Size 1 1/2", 1 1/4", 1", 1/2", 1/4", 2 1/2", 2", 3", 3/4", 3/8", 4"
  • Nominal Pressure PN16, PN25, PN40, PN64, Class150, Class300
  • Applicable temperature -80℃ to +80℃
  • Bonnet Stainless steel

DN (mm) H(on)mm H(off)mm L(mm) D(mm) D1(mm) D2(mm) b(mm)
10 255 245 61 65 10 14.5 6
15 255 246 61 65 15 18.5 6
20 302 289 81 80 22 24.5 6
25 302 289 81 80 26 28.5/32.5 6
32 355 340 102 100 32 38.5 9
40 356 340 102 100 42 45.5 9
50 391 370 127 137 54 58 10
65 435 413 150 205 68 71 10
80 486 516 182 202 84 89 17
100 564 531 200 213 104 109 15
View Complete Details
Ask Latest Price & Details

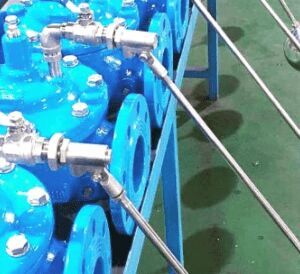

Float Control Valve

Float Control Valve
  • Body Ductile Iron, Cast Iron
  • Diaphragm EPDM, Rubber
  • Spring Stainless Steel
  • Seat Ductile Iron, Cast iron
  • End Connection Flanged

PN10                                                          Unit: mm

DN L D D1 H H1
20 180 105 75 212 179
25 180 115 85 212 179
32 180 135 100 212 179
40 203 145 110 265 210
50 203 160 125 265 210
65 235 180 145 310 215
80 285 195 160 350 245
100 360 215 180 460 305
125 400 245 210 520 365
150 455 280 240 570 415
200 585 335 295 695 510
View Complete Details
Ask Latest Price & Details
Water Pressure Reducing Valve

Water Pressure Reducing Valve
  • Material Ductile Iron
  • Class PN16
  • Size 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
  • Body WCB, CI, DI
  • Nominal Pressure PN10, PN16, PN25, PN40, PN64
  • End Connection Flanged
  • Piston Stainless Steel

PN16                                                                   Unit: mm

DN L H1 H2
20 160 90 220
25 180 95 255
32 200 100 255
40 220 115 325
50 250 120 325
65 260 125 330
80 310 135 340
100 350 148 347
125 400 190 560
150 450 205 580
200 500 220 630
View Complete Details
Ask Latest Price & Details

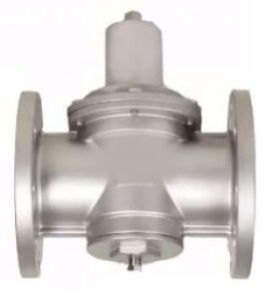

Direct Acting Pressure Reducing Valve

Direct Acting Pressure Reducing Valve
  • Material Ductile Iron
  • Class PN25
  • Size 1 1/2", 1 1/4", 1", 2 1/2", 2", 3", 4"
  • Nominal Pressure PN16 to PN40
  • Bonnet Ductile Iron, Cast iron
  • Seal: EPDM EPDM

PN16                                                     Unit: mm

DN L H H1 G
15 65 75 35 ½”
20 75 85 35 ¾”
25 90 95 46 1”
32 105 130 55 1 ¼”
40 120 155 65 1 ½”
50 140 175 75 2”
View Complete Details
Ask Latest Price & Details
Steam Pressure Reducing Valve

Steam Pressure Reducing Valve
  • Material Ductile Iron
  • Class PN25, PN40
  • Connection Type Flanged, Screwed
  • Size 1 1/2", 1 1/4", 1", 1/2", 2", 3", 3/4"
  • Nut Stainless Steel
  • Nominal Pressure PN16 to PN64
  • End Connection Flanged

PN16                                                               Unit: mm

DN L H H1
15 160 265 100
20 160 265 100
25 180 285 110
32 200 285 110
40 220 320 120
50 250 320 120



View Complete Details
Ask Latest Price & Details
Pressure Relief and Sustaining Valve

Pressure Relief And Sustaining Valve
  • Material Carbon Steel, Cast iron, Ductile Iron, SS304, SS316, Stainless steel, Wcb
  • Connection Type Buttweld, Screwed, Wafer type/Lug type
  • Size 1 1/2", 1 1/4", 1", 1/2", 10", 12", 14", 16", 18", 2 1/2", 2", 20", 24", 28", 3", 3/4", 30", 32", 36
  • Class 150, 1500, 180, 2500, 300, 400, 4500, 600, 900
View Complete Details
Ask Latest Price & Details
Pilot Operated Pressure Reducing Valve

Pilot Operated Pressure Reducing Valve
  • Body Ductile Iron, Carbon Steel, Stainless Steel
  • Bolt Stainless Steel (A2-70, A4)
  • Bushing Bronze
  • Plate Iron
  • End Connection Flanged

PN16                                                                           Unit: mm

DN L Ñ„D Ñ„K N-Ñ„D
50 230 165 125 4-Ñ„19
65 290 185 145 4-Ñ„19
80 310 200 160 8-Ñ„19
100 350 235 190 8-Ñ„19
125 400 270 220 8-Ñ„23
150 480 300 250 8-Ñ„23
200 600 360 310 12-Ñ„23
View Complete Details
Ask Latest Price & Details
Thermal Safety Valve

Thermal Safety Valve
  • Body Carbon Steel, Cast Iron, Stainless Steel
  • Nozzle Stainless Steel
  • Adjusting Ring Steel
  • Working Pressure PN1.6, PN2.5, PN4.0, Class 150 to Class 300
  • Test Standards API 598, DIN 323
  • Cap Carbon Steel

DN do Rc L L1 G H
15 10 1/2″ 37 65 3/4″ 196
20 12 3/4″ 40 70 1″ 215
25 15 1″ 45 78 1 1/4″ 234
32 20 1 1/4″ 55 90 1 1/2″ 302
40 25 1 1/2″ 67 105 2″ 326
50 32 2″ 76 115 2 1/2″ 348
65 40 2 1/2″ 110 145 3″ 370
80 50 3″ 110 145 4″ 410
View Complete Details
Ask Latest Price & Details
Steam Safety Valve

Steam Safety Valve
  • End Connection Flanged
  • Body Carbon Steel, Stainless Steel, Ductile Iron, Cast Iron
  • Cap Carbon Steel
  • Nominal Diameter DN15 to DN200
  • Nominal Pressure PN16 to PN64, Class 150 to Class2500

PN16                                                             Unit: mm

DN D D1 D2 b t Z-Ñ„d DN´ D´ D1´ D2´ b´ t Z´-Ñ„d´ L L1 H
15*20 89 60.5 35 12 5 4-Ñ„15 20 98 70 43 14 1.6 4-Ñ„15 90 90 290
20*25 98 70 43 14 5 4-Ñ„15 25 108 79.5 51 15 1.6 4-Ñ„15 96 92 310
25*32 108 79.5 51 15 5 4-Ñ„15 32 127 98.5 73 18 1.6 4-Ñ„15 115 105 320
25*50 108 79.5 51 15 5 4-Ñ„15 40 152 120.5 92 18 1.6 4-Ñ„15 115 105 320
40*50 127 98.5 73 18 5 4-Ñ„15 50 152 120.5 92 18 1.6 4-Ñ„15 121 124 350
40*65 127 98.5 73 18 5 4-Ñ„15 50 178 139.5 105 20 1.6 4-Ñ„15 121 124 360
40*80 127 98.5 73 18 5 4-Ñ„15 65 178 139.5 105 20 1.6 4-Ñ„15 124 130 360
50*65 152 120.5 92 18 5 4-Ñ„19 65 190 152.5 127 22 1.6 4-Ñ„19 124 130 380
50*80 152 120.5 92 18 5 4-Ñ„19 80 190 152.5 127 22 1.6 4-Ñ„19 124 130 380
65*100 177 139.5 105 20 5 4-Ñ„19 80 229 190.5 157 24 1.6 4-Ñ„19 143 137 380
80*100 190 152.5 127 22 5 4-Ñ„19 100 229 190.5 157 24 1.6 4-Ñ„19 162 156 480
100*150 229 190.5 157 24 10 8-Ñ„19 100 279 241.5 216 26 1.6 8-Ñ„19 210 197 540
150*200 279 241.5 216 26 10 8-Ñ„22 150 343 298.5 270 29 1.6 8-Ñ„22 241 240 760
200*250 343 298.5 270 29 10 8-Ñ„22 200 406 362 324 31 1.6 8-Ñ„22 279 279 830
View Complete Details
Ask Latest Price & Details

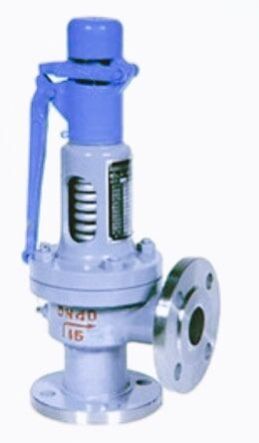

Pressure Safety Valve

Pressure Safety Valve
  • Body WCB, WCC, SS304, SS316
  • Bonnet WCB
  • Valve guide Stainless Steel
  • Nominal Pressure PN16 to PN64, Class150 to Class600
  • End Connection Flanged

Class 150

DN D D1 D2 b t Z-Φd DN’ D’ D1′ D2′ b’ t’ Z’-Φd’ L L1 H
1/2″x3/4″ 89 60.5 35 12 5 4-15 20 98 70 43 14 1.6 4-15 90 90 290
3/4″x1″ 98 70 43 14 5 4-15 25 108 79.5 51 15 1.6 4-15 96 92 310
1″x11/2″ 108 79.5 51 15 5 4-15 40 127 98.5 73 18 1.6 4-15 115 105 320
1″x2″ 108 79.5 51 15 5 4-15 50 152 120.5 92 18 1.6 4-19 115 105 320
11/2″x2″ 127 98.5 73 18 5 4-15 50 152 120.5 92 18 1.6 4-19 121 124 350
11/2″x21/2″ 127 98.5 73 18 5 4-15 65 178 139.5 105 20 1.6 4-19 121 124 360
11/2″x3″ 127 98.5 73 18 5 4-15 65 178 139.5 105 20 1.6 4-19 124 130 360
2″x21/2″ 152 120.5 92 18 5 4-19 80 190 152.5 127 22 1.6 4-19 124 130 380
2″x3″ 152 120.5 92 18 5 4-19 80 190 152.5 127 22 1.6 4-19 124 130 380
21/2″x4″ 178 139.5 105 20 5 4-19 100 229 190.5 157 24 1.6 8-19 143 137 380
3″x4″ 190 152.5 127 22 5 4-19 100 229 190.5 157 24 1.6 8-19 162 156 480
4″x6″ 229 190.5 157 24 10 8-19 150 241.5 241.5 216 26 1.6 8-22 210 197 540
6″x8″ 279 241.5 216 26 10 8-22 200 298.5 298.5 270 29 1.6 8-22 241 240 760
8″x10″ 343 298.5 270 29 10 8-22 250 362 324 324 31 1.6 12-25 279 276 830
12″x14″ 483 432 381 32 10 12-25 350 476 413 413 35 1.6 12-25 370 370 890
View Complete Details
Ask Latest Price & Details
Pilot Operated Safety Valve

Pilot Operated Safety Valve
  • Body A216 WCB, A351 CF8, A351 CF8M
  • Spring Alloy Steel, Inconel, Monel, SS304
  • Nominal Size DN25 to DN300
  • Nominal Pressure Class 150 to Class 1500

Dimension

Size L L1 C
1″×2″ 115 105 106
1 ½”×2″ 121 124 432
1 ½”×3″ 124 130 457
2″×3″ 130 130 457
3″×4″ 156 156 483
4″×6″ 229 181 559
6″×8″ 240 240 635
8″×10″ 279 276 711
View Complete Details
Ask Latest Price & Details
Dual Plate Wafer Check Valve

Dual Plate Wafer Check Valve
  • Material Cast Iron, Ductile Iron, Cast Steel, Stainless Steel, Aluminium Bronze
  • Seat EPDM, NBR, VITON, CF8, CF8M
  • Inspection and Test API 598
  • Flanged End Dimensions ASME B16.10

Class 150

DN L D D3 D2
50 60 103 51 58
65 67 122 65 73
80 73 135 80 88
100 73 173 102 108
125 86 195 127 132
150 98 220 152 160
200 127 277 203 210
250 146 337 254 265
300 181 407 305 310
350 184 448 350 355
400 191 512 400 405
450 203 547 450 455
500 219 604 500 505
600 222 715 600 605
700 305 827 685 690
750 305 878 740 740
800 305 935 785 790
900 368 1045 885 890
View Complete Details
Ask Latest Price & Details
Dual Plate Lug Check Valve

Dual Plate Lug Check Valve
  • Material Cast Iron, Ductile Iron, Cast Steel, Stainless Steel, Aluminium Bronze
  • Nominal Diameter DN50 to DN900
  • Inspection and Test API 598
  • Nominal Pressure Class 150 to Class 2500
  • Spring Stainless Steel

DN L R f D3 D2 D1 d
50 60 92 2 51 58 121 M16
65 67 105 2 65 73 140 M16
80 73 127 2 80 88 152 M16
100 73 157 2 102 108 191 M16
125 86 186 2 127 132 216 M16
150 98 216 2 152 160 241 M20
200 127 270 2 203 210 299 M20
250 146 324 2 254 265 362 M24
300 181 381 2 305 310 432 M24
350 184 413 2 350 360 476 M27
400 191 470 2 400 410 540 M27
450 203 533 2 450 460 578 M30
500 219 584 2 500 510 635 M30
600 222 692 2 600 610 749 M33
700 318 692 2 600 610 813 M33
750 305 800 2 685 690 864 M33
800 305 857 2 735 750 914 M39X3
900 305 914 2 785 790 978 M39X3
View Complete Details
Ask Latest Price & Details
Forged Steel Check Valve

Forged Steel Check Valve
  • Material ASTM A105N, ASTM-A182Gr-F304, ASTM-A182Gr-F316
  • Size 1 1/2\", 1\", 1/2\", 2\", 3/4\"
  • Class 1500, 800
View Complete Details
Ask Latest Price & Details
Single Plate Check Valve

Single Plate Check Valve
  • Material Carbon Steel, Stainless Steel
  • Class 150/PN16
  • Size 10", 12", 2 1/2", 2", 3", 4", 5", 6", 64", 8"
View Complete Details
Ask Latest Price & Details
Dual Plate Check Valve

Dual Plate Check Valve
  • Material Cast iron, CF8M, Ductile Iron, LCC, Wcb
  • Size 1 1/2", 10", 12", 14", 16", 18", 2 1/2", 2", 20", 24", 3", 4", 5", 6", 8"
  • Class 150/PN16, 300, 600
View Complete Details
Ask Latest Price & Details

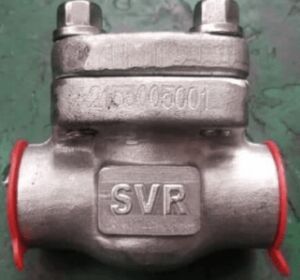

Swing Check Valve

Swing Check Valve
  • Material A182 F316L, A351 CF3M, Cast iron, Cast Steel, Ductile Iron, SS304, SS316, SS316L
  • Size 1 1/2\", 1\", 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 24\", 3\", 4\", 5\", 6\", 8\"
  • Class 150, 150/PN16, 300, 600, PN10/16, PN64
View Complete Details
Ask Latest Price & Details
Lift Check Valve

Lift Check Valve
  • Material Cast iron
  • Class 150/PN16
  • Size 10", 12", 14", 16", 18", 2", 20", 24", 3", 4", 6", 8"
View Complete Details
Ask Latest Price & Details
Rising Stem Ductile Iron Gate Valve

Rising Stem Ductile Iron Gate Valve
  • Material Ductile Iron
  • Size 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 24\", 28\", 3\", 32\", 36\", 4\", 40\", 48\", 5\", 6\", 8\"
  • Class 150/PN16
  • Connection Type Buttweld, Flanged, Socket weld

PN16                                                         Unit: mm

DN L D Dk D0 n-Ñ„d b H
50 178 165 125 178 4-Ñ„19 20 380
65 190 185 145 178 4-Ñ„19 20 430
80 203 200 160 200 8-Ñ„19 22 485
100 229 220 180 200 8-Ñ„19 24 615
125 254 250 210 250 8-Ñ„19 26 700
150 267 285 240 280 8-Ñ„22 26 835
200 292 340 295 300 12-Ñ„22 30 1010
250 330 405 355 360 12-Ñ„25 32 1220
300 356 460 410 400 12-Ñ„28 32 1435
View Complete Details
Ask Latest Price & Details
Double Disc Gate Valve

Double Disc Gate Valve
  • Material Cast iron
  • Class 150/PN16
  • Connection Type Buttweld, Flanged, Socket weld
  • Size 10", 12", 14", 16", 18", 20", 24", 3", 30", 36", 4", 6", 8"
View Complete Details
Ask Latest Price & Details
Rising Stem Stainless Steel Gate Valve

Rising Stem Stainless Steel Gate Valve
  • Material SS304, SS316
  • Size 1 1/2\", 1\", 10\", 12\", 14\", 2 1/2\", 2\", 3\", 4\", 6\", 8\"
  • End Connection Flanged, Buttweld, Socketweld
  • Class 150/PN16
  • Nominal Diameter DN50 to DN300
  • Nominal Pressure Class150 to Class2500, PN16 to PN64

PN16                                                                                  Unit: mm

DN L D D1 D2 W N-Ñ„d B H
50 178 165 125 99 178 4-Ñ„19 20 380
65 190 185 145 118 178 4-Ñ„19 20 430
80 203 200 160 132 200 8-Ñ„19 22 485
100 229 220 180 156 200 8-Ñ„19 24 615
125 254 250 210 184 250 8-Ñ„19 26 700
150 267 285 240 211 280 8-Ñ„22 26 835
200 292 340 295 266 300 12-Ñ„22 30 1010
250 330 405 355 319 360 12-Ñ„25 32 1220
300 356 460 410 370 400 12-Ñ„28 32 1435
View Complete Details
Ask Latest Price & Details
Rising Stem Carbon Steel Gate Valve

Rising Stem Carbon Steel Gate Valve
  • Material Cast Steel
  • Size 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 24\", 28\", 3\", 32\", 36\", 4\", 40\", 48\", 5\", 6\", 8\"
  • End Connection Flanged, Buttweld, Socketweld
  • Class 150/PN16
  • Connection Type Buttweld, Flanged, Socket weld
  • Nominal Diameter DN50 to DN300
  • Nominal Pressure Class150 to Class2500, PN16 to PN64

PN16                                                                                  Unit: mm

DN L D D1 D2 W N-Ñ„d B H
50 178 165 125 99 178 4-Ñ„19 20 380
65 190 185 145 118 178 4-Ñ„19 20 430
80 203 200 160 132 200 8-Ñ„19 22 485
100 229 220 180 156 200 8-Ñ„19 24 615
125 254 250 210 184 250 8-Ñ„19 26 700
150 267 285 240 211 280 8-Ñ„22 26 835
200 292 340 295 266 300 12-Ñ„22 30 1010
250 330 405 355 319 360 12-Ñ„25 32 1220
300 356 460 410 370 400 12-Ñ„28 32 1435
View Complete Details
Ask Latest Price & Details
Pressure Seal Gate Valve

Pressure Seal Gate Valve
  • Material A105
  • Class 2500
  • Size 4", 8"
  • Body WCB, WC6, WCC, CF8, CF8M, A105, F22, F304, F316
  • Seal Facing Stellite
  • Nominal Pressure Class1500 to Class2500
  • End Connection Flanged, Buttweld, Threaded or Welded

Class1500                                                                    Unit: mm

DN d D D1 L H W
50 47 216 92 368 510 280
65 57 244 105 419 560 300
80 70 267 127 470 620 350
100 92 311 157 546 728 400
125 111 375 186 673 870 450
150 136 394 216 705 1000 500
200 178 483 270 831 1130 750
250 222 585 324 991 1360 900
View Complete Details
Ask Latest Price & Details
Rising Stem Cast Iron Gate Valve

Rising Stem Cast Iron Gate Valve
  • Material Cast iron
  • End Connection Flanged, Socketweld, Buttweld
  • Size 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 24\", 28\", 3\", 32\", 36\", 4\", 40\", 48\", 5\", 6\", 8\"
  • Class 150/PN16
  • Yoke Cast Iron
  • Nominal Pressure Class150 to Class2500, PN10 to PN64
  • Connection Type Buttweld, Flanged, Socket weld
View Complete Details
Ask Latest Price & Details
Triple Eccentric Butterfly Valve

Triple Eccentric Butterfly Valve
₹ 825 - ₹ 5,999 / Piece Get Latest Price
  • Material SS316L
  • Size 1 1/2\", 10\", 12\", 14\", 2 1/2\", 2\", 3\", 4\", 5\", 6\", 8\"
  • Class PN40, PN64
  • Disc SS316L
  • Body WCB, CF8, CF8M
  • Body Surface Stainless Steel
  • Nominal Pressure PN10 to PN64
  • End Connection Flanged

PN25                                                  Unit: mm

DN L D D1 D2 b f n-d H1 H
300 178 485 430 395 34 4 16-30 480 780
400 216 620 550 505 40 4 16-36 550 910
500 229 730 660 615 48 4 20-36 680 1090
600 267 845 770 720 58 5 20-39 750 1210
700 292 960 875 820 50 5 24-42 820 1350
800 318 1085 990 930 54 5 24-48 910 1520
View Complete Details
Ask Latest Price & Details
Double Eccentric Butterfly Valve

Double Eccentric Butterfly Valve
  • Material Ductile Iron, Wcb
  • Size 10\", 12\", 14\", 16\", 18\", 20\", 24\", 28\", 32\", 36\", 40\", 48\", 8\"
  • Class 150/PN16, PN10, PN25
  • End Connections Flanged
  • Operation Gear Operated, Worm Gear Operated, Electric Actuated, Pneumatic Actuated

PN10                                                              Unit: mm

DN L D D1 d n d0 b f H1 H2 L1 L2 L3 L4 Ñ„
100 127 220 180 156 8 19 19 3 310 109 52 45 158 210 150
150 140 285 240 211 8 23 19 3 440 143 52 45 158 210 150
200 152 340 295 266 8 23 20 3 510 182 77 63 238 242 300
250 165 395 350 319 12 23 22 3 565 219 77 63 238 275 300
300 178 445 400 370 12 23 24.5 4 630 244 95 72 167 275 300
350 190 505 460 429 16 23 24.5 4 715 283 110 91 188 315 400
400 216 565 515 480 16 28 24.5 4 750 312 110 91 188 315





400
View Complete Details
Ask Latest Price & Details
Double Flanged Butterfly Valve

Double Flanged Butterfly Valve
₹ 3,136 - ₹ 6.82 Lakh / Piece Get Latest Price
  • Material A351 CF3M, Ductile Iron
  • Size 10\", 12\", 14\", 16\", 18\", 20\", 24\", 28\", 3\", 32\", 36\", 4\", 40\", 48\", 5\", 6\", 8\"
  • Class 150/PN10, 600
  • Screw SS304
  • Body Wcb, Ductile Iron, CF8, CF8M, CF3M
  • Inspection and Test API598, EN12226-2
  • Face to Face Dimension EN558, BS5155
View Complete Details
Ask Latest Price & Details
Lug Butterfly Valve

Lug Butterfly Valve
  • Material Carbon Steel, Cast Iron, Ductile Iron
  • Size 1 1/2\", 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 22\", 24\", 28\", 3\", 32\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Disc Carbon Steel, Ductile Iron, SS304, SS316
  • Body Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
  • Seat EPDM, NBR, PTFE
  • End Connection Wafer, Lug, Flanged

PN10                                                           Unit: mm

DN A B C L ФK N-M
40 70 164 32 33 110 4-M16
50 80 169 32 43 125 4-M16
65 89 176 32 46 145 4-M16
80 95 183 32 46 160 8-M16
100 114 201 32 52 180 8-M16
125 127 214 32 56 210 8-M16
150 139 229 32 56 240 8-M20
200 175 257 45 60 295 8-M20
250 203 280 45 68 350 12-M20
300 242 327 45 78 400 12-M20
View Complete Details
Ask Latest Price & Details
Wafer Butterfly Valve

Wafer Butterfly Valve
  • Material Carbon Steel, Cast Iron, Ductile Iron
  • Size 1 1/2\", 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 22\", 24\", 28\", 3\", 32\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Disc Carbon Steel, Cast Iron, Ductile Iron, SS304, SS316
  • Body CI, DI, SS304, SS316, CF8, CF8M
  • Nominal Diameter DN50 to DN400
  • Nominal Pressure Class150 to Class2500, PN10 to PN64
  • End Connection Wafer, Lug, Flanged

Class150                                                       Unit: mm

DN фDN фD L H1 H2 H3 ФD1 n- фd
50 52.9 95 43 135 63 28 120.5 4-Ñ„20
65 64.5 108 46 148 70 28 139.5 4-Ñ„20
80 78.8 125 46 160 78 28 152.5 4-Ñ„20
100 104 156 52 173 100 28 190.5 8-Ñ„20
125 123.3 182 56 197 125 28 216 8-Ñ„22
150 155.6 206 56 207 126 28 241.5 8-Ñ„22
200 202.5 262 60 240 152 35 298.5 8-Ñ„22
250 250.5 322 68 280 186 35 362 12- Ñ„25
300 301.5 372 78 338 210 35 432 12- Ñ„25
350 333.3 420 78 362 256 35 476 12- Ñ„28
400 389.6 472 102 410 294 115 540 16- Ñ„2
View Complete Details
Ask Latest Price & Details

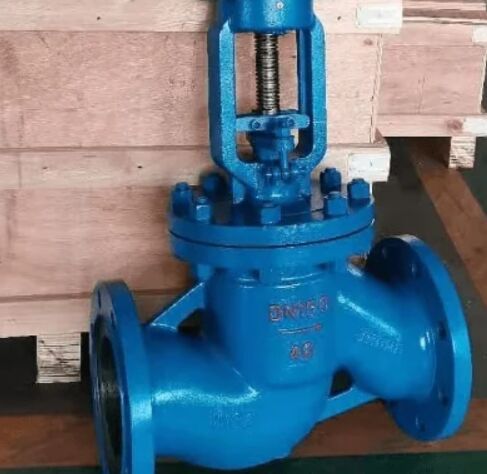

SS304 Bellow Seal Globe Valve

SS304 Bellow Seal Globe Valve
  • Body SS304
  • Sealing Member Stainless Steel
  • Flange Gland Stainless Steel
  • Nut: A194 2H A194 2H
  • Nominal Pressure Class150 to Class1500, PN10 to PN64

Class150                                                         Unit: mm

DN L D D1 D2 b n-Ñ„d
15 130 95 65 45 16 4-Ñ„14
20 150 105 75 58 18 4-Ñ„14
25 160 115 85 68 18 4-Ñ„14
32 180 140 100 78 18 4-Ñ„18
40 200 150 110 88 18 4-Ñ„18
50 230 165 125 102 20 4-Ñ„18
65 290 185 145 122 20 4-Ñ„18
80 310 200 160 138 20 8-Ñ„18
100 350 220 180 158 20 8-Ñ„18
125 400 250 210 188 22 8-Ñ„18
150 480 285 240 212 24 8-Ñ„22
200 600 340 295 268 24 12-Ñ„22
250 730 405 355 320 26 12-Ñ„26
300 850 460 410 378 28 16-Ñ„22
View Complete Details
Ask Latest Price & Details
Carbon Steel Bellow Seal Globe Valve

Carbon Steel Bellow Seal Globe Valve
  • Body Carbon Steel
  • Nominal Diameter DN15 to DN300
  • Nominal Pressure Class150 to Class1500, PN10 to PN64
  • End Connection Flanged
  • Seat Stainless Steel
  • Gasket Graphite + Stainless Steel

Class150                                                         Unit: mm

DN L D D1 D2 b n-Ñ„d
15 130 95 65 45 16 4-Ñ„14
20 150 105 75 58 18 4-Ñ„14
25 160 115 85 68 18 4-Ñ„14
32 180 140 100 78 18 4-Ñ„18
40 200 150 110 88 18 4-Ñ„18
50 230 165 125 102 20 4-Ñ„18
65 290 185 145 122 20 4-Ñ„18
80 310 200 160 138 20 8-Ñ„18
100 350 220 180 158 20 8-Ñ„18
125 400 250 210 188 22 8-Ñ„18
150 480 285 240 212 24 8-Ñ„22
200 600 340 295 268 24 12-Ñ„22
250 730 405 355 320 26 12-Ñ„26
300 850 460 410 378 28 16-Ñ„22
View Complete Details
Ask Latest Price & Details
SS316 Bellow Seal Globe Valve

SS316 Bellow Seal Globe Valve
  • Material SS304, SS316
  • Class PN16, PN25, PN40
  • Connection Type Buttweld, Flanged, Socket weld
  • Size 1 1/2", 1 1/4", 1", 1/2", 10", 12", 14", 16", 2 1/2", 2", 3", 3/4", 4", 5", 6", 8"
  • Eyebolt Stainless Steel
  • Nominal Pressure Class150 to Class1500, PN10 to PN64
  • End Connection Flanged
  • Oil Cup Copper

Class150                                                         Unit: mm

DN L D D1 D2 b n-Ñ„d
15 130 95 65 45 16 4-Ñ„14
20 150 105 75 58 18 4-Ñ„14
25 160 115 85 68 18 4-Ñ„14
32 180 140 100 78 18 4-Ñ„18
40 200 150 110 88 18 4-Ñ„18
50 230 165 125 102 20 4-Ñ„18
65 290 185 145 122 20 4-Ñ„18
80 310 200 160 138 20 8-Ñ„18
100 350 220 180 158 20 8-Ñ„18
125 400 250 210 188 22 8-Ñ„18
150 480 285 240 212 24 8-Ñ„22
200 600 340 295 268 24 12-Ñ„22
250 730 405 355 320 26 12-Ñ„26
300 850 460 410 378 28 16-Ñ„22
View Complete Details
Ask Latest Price & Details
Angle Globe Valve

Angle Globe Valve
  • Material Carbon Steel, Cast Iron
  • Connection Type Buttweld, Flanged, Socket weld
  • Class 150/PN16
  • Size 1 1/2", 1", 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
  • Gland Cast Iron, Carbon Steel
  • Nominal Diameter DN15 to DN250
  • Handwheel Cast Iron, Carbon Steel
  • End Connection flanged

PN16                                                                                                  Unit: mm

DN L D D0 D1 g n-d f H W
15 90 95 65 47 14 4-14 2 260 80
20 95 105 75 58 16 4-14 2 280 80
25 100 115 85 68 16 4-14 2 290 100
32 105 140 100 78 18 4-18 2 315 120
40 115 150 110 88 18 4-18 3 345 120
50 125 165 125 102 20 4-18 3 370 140
65 145 185 145 122 20 4-18 3 415 160
80 155 200 160 138 22 8-18 3 480 240
100 175 220 180 158 24 8-18 3 545 240
125 200 250 210 188 26 8-18 3 620 280
150 225 285 240 212 26 8-23 3 700 320
200 275 340 295 268 30 12-23 3 845 360
250 325 405 355 320 32 12-27 3 1025 400
View Complete Details
Ask Latest Price & Details
Forged Steel Globe Valve

Forged Steel Globe Valve
  • Material ASTM A105N, ASTM A182 F304, ASTM A182 F316
  • Class 1500, 2500, 800
  • Size 1 1/2", 1", 1/2", 2", 3/4"
  • Gasket Stainless Steel+Graphite
  • Handwheel Carbon Steel, Ductile Iron
  • Nominal Diameter DN8 to DN40
  • End Connection Buttweld, Threaded or Welded, Flanged

Class800                                                   Unit: mm

DN L d
8 79 6
15 79 10
20 92 12
25 111 17
40 152 28
View Complete Details
Ask Latest Price & Details
Steel Globe Valve

Steel Globe Valve
  • Material SS304, SS316, Wcb
  • Connection Type Buttweld, Flanged, Socket weld
  • size 1 1/2", 1", 10", 12", 14", 16", 18", 2 1/2", 2", 20", 24", 3", 4", 5", 6", 8"
View Complete Details
Ask Latest Price & Details
Iron Globe Valve

Iron Globe Valve
  • Material Cast Iron
  • Connection Type Buttweld, Flanged, Socket weld
  • Class 150/PN16
  • Size 1 1/2", 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
View Complete Details
Ask Latest Price & Details
Pressure Seal Globe Valve

Pressure Seal Globe Valve
  • Material F22
  • Class 2500
  • Connection Type Buttweld, Socket weld
  • Size 1", 2"
View Complete Details
Ask Latest Price & Details
2 Piece Screwed Ball Valve

2 Piece Screwed Ball Valve
  • Body CF8, CF8M, Cast Iron, Carbon Steel
  • Gasket PTFE
  • Handle Cover Plastic
  • Applicable medium water, oil, gas and some corrosive liquid
  • Butt welding standard ANSIB16·25

Dimension                                                          Unit: mm

DN SIZE(INCH) ΦB E L H W
DN15 1/2″ 15 14 61 54 105
DN20 3/4″ 20 15 71 61 110
DN25 1″ 25 18 81 67 130
DN32 1-1/4″ 32 20 96 80 140
DN40 1-1/2″ 38 21 105 87 165
DN50 2″ 49 21 120 97 175
DN65 2-1/2″ 65 28 162 122 215
DN80 3″ 80 30 170 141 250
DN100 4″ 100 32 225 163 300
View Complete Details
Ask Latest Price & Details
Double Block and Bleed Ball Valve

Double Block And Bleed Ball Valve
  • Body A105, F304, F316, F316L, F51
  • Gasket SS304+Graphite
  • Temperature Range -196°C to 650°C
  • Fire Safety API607, API6A
  • Inspection and test API 598, API6D

Class900                                                                Unit: mm

DN Φq L ΦD ΦK ΦR B f ΦP E F N-Φ
10 252 1380 545 469.9 362 69.9 7.92 323.9 7.92 11.91 16-38.1
12 303 1550 610 533.4 419 79.4 7.92 381 7.92 11.91 20-38.1
20 471 2050 855 749.3 648 108 12.7 584.2 12.7 19.84 20-54
24 570 2520 1040 901.7 772 139.7 15.88 692.1 15.88 26.97 20-66.7
View Complete Details
Ask Latest Price & Details
Forged Trunnion Ball Valve

Forged Trunnion Ball Valve
  • Material ASTM A105
  • Size 1 1/2\", 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 22\", 24\", 3\", 4\", 5\", 6\", 8\"
  • Class 150, 1500, 2500, 300, 400, 600, 900
  • Bonnet A105, LF2, F304, F316
  • Body Gasket Stainless Steel + Graphite, Carbon Steel
  • Nominal Pressure Class150 to Class2500, PN10 to PN64

Class150                                                             Unit: mm

DN d L Z-d T E D1 D2 D
50 50 178 4-19 14.5 2 120.5 92 150
80 75 203 4-19 17.5 2 152.5 127 190
100 100 229 8-19 22.5 2 190.5 157 230
150 150 394 8-22 24 2 241.5 216 280
200 201 457 8-22 27 2 298.5 270 345
250 252 533 12-25 29 2 362 324 405
300 303 610 12-25 30.5 2 432 381 485
350 334 686 12-29 33.5 2 476 413 535
400 385 762 16-29 35 2 540 470 595
View Complete Details
Ask Latest Price & Details

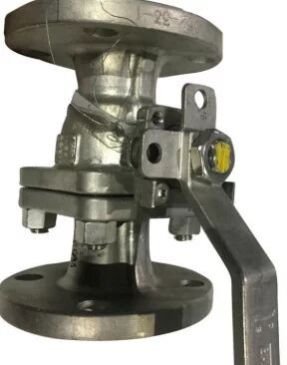

Forged Floating Ball Valve

Forged Floating Ball Valve
  • Size 1\", 1/2\", 3/4\"
  • Body Materia A105N
  • Class 600
  • Bonnet A105, F304, F316,
  • Seat RPTFE
  • Body Gasket Graphite+Stainless Steel
  • Nut A194 2H

Class150                                                          Unit: mm

DN L d D D1 D2 z-d T E
15 108 13 90 60.5 35 4-16 9 2
20 117 19 100 70 43 4-16 10 2
25 127 25 110 79.5 51 4-16 11 2
32 140 32 115 89 64 4-16 11 2
40 165 38 125 98.5 73 4-16 13 2
50 178 50 150 120.5 92 4-19 14.5 2
80 203 75 190 152.5 127 4-19 17.5 2
100 229 100 230 190.5 157 8-19 22.5 2
150 394 150 280 241.5 216 8-22 24 2
200 457 201 345 298.5 270 8-22 27 2
View Complete Details
Ask Latest Price & Details
Fully Welded Ball Valve

Fully Welded Ball Valve
₹ 778 - ₹ 2.78 Lakh / Piece Get Latest Price
  • Material Carbon Steel, CF8, LF2
  • Size 10\", 12\", 14\", 16\", 18\", 2\", 20\", 24\", 28\", 32\", 36\", 4\", 48\", 64\", 8\"
  • End Connection Welded
  • Class 150, 150/PN16, 400, 600, PN25, PN63
  • Spring A105, F304, F316, F304L, F316L
  • Body A105, F304, F316, F304L, F316L
  • Sleeve Stainless Steel+PTFE

Class150                                                                     Unit: mm

DN L D D1 H
200 521 219 201 267
250 559 273 252 309
300 635 325 303 372
350 762 377 334 402
400 838 426 385 478
450 914 480 436 505
500 991 530 487 535
600 1143 630 589 630
View Complete Details
Ask Latest Price & Details

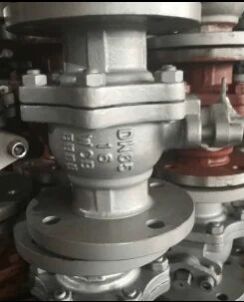

Jacketed Ball Valve

Jacketed Ball Valve
₹ 1,950 - ₹ 50,420 / piece Get Latest Price
  • Material Carbon Steel
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\", 5\", 6\"
  • Class 150/PN16
  • Connection Type Flanged, Threaded or Welded
View Complete Details
Ask Latest Price & Details
Casting Trunnion Ball Valve

Casting Trunnion Ball Valve
  • Material Wcb
  • Size 1 1/2\", 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 22\", 24\", 3\", 4\", 5\", 6\", 8\"
  • Class 150, 1500, 2500, 300, 400, 600, 900
  • Body WCB, CF8, CF8M, CF3, CF3M
  • Ball Carbon Steel, Stainless Steel
  • Nominal Pressure Class150 to Class2500, PN10 to PN64
  • End Connection Flanged

Class150                                                           Unit: mm

DN L d H H1 W
100 229 100 250 135 300
125 356 127 260 165 300
150 394 150 285 193 400
200 457 201 325 240 400
250 533 252 370 293 500
300 610 303 415 340 500
350 686 334 455 372 600
400 762 385 500 415 600
View Complete Details
Ask Latest Price & Details
3 Piece Forged Steel Ball Valve

3 Piece Forged Steel Ball Valve
  • Material ASTM A105
  • Size 1 1/2\", 1\", 2\", 3\", 3/4\"
  • Class 800
  • Body CF8, CF8M, WCB
  • Ball SS316, SS304
  • Working Temperature -20℃~150℃
View Complete Details
Ask Latest Price & Details
3 Piece Cast Steel Ball Valve

3 Piece Cast Steel Ball Valve
₹ 1,357 - ₹ 3.30 Lakh / Piece Get Latest Price
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 10\", 12\", 2 1/2\", 2\", 3\", 3/4\", 4\", 5\", 6\", 8\"
  • Connection Type Flanged
  • Material Cast Steel
  • Class 150, 300
  • Operation Lever Operated
  • 1.Body: CF8, CF8M, Cast Iron, Carbon Steel CF8, CF8M, Cast Iron, Carbon Steel
  • 5. Gland Nut SS304
  • Inspection Testing API598, EN12266
  • Working Temperature -20°C to +180°C

Dimension:                                                                                                                               Unit: mm

Size(Inch) ½” ¾” 1” 1 ¼” 1 ½” 2” 2  ½” 3” 4”
d 15 20 25 32 32 50 65 76 100
L 130 150 160 180 180 230 290 310 350
D 95 105 115 135 135 160 180 195 230
D1 65 75 85 100 100 125 145 160 190
D2 45 55 65 78 78 100 120 135 160
b 14 16 16 18 18 20 22 24 24
f 2 2 2 3 3 3 3 3 3
H 75 95 90 110 130 140 170 180 250
W 130 140 140 170 200 220 350 350 550
n-d0 4-14 4-14 4-14 4-18 4-18 4-18 8-18 8-18 8-22
View Complete Details
Ask Latest Price & Details
3 Piece Ball Valve

3 Piece Ball Valve
₹ 1,289 - ₹ 2.81 Lakh / Piece Get Latest Price
  • Material Cast iron
  • Connection Type Flanged
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 10\", 12\", 2 1/2\", 2\", 3\", 3/4\", 4\", 5\", 6\", 8\"
  • Class 150
  • Operation Lever Operated
View Complete Details
Ask Latest Price & Details
2 Piece Cast Steel Ball Valve

2 Piece Cast Steel Ball Valve
₹ 1,690 - ₹ 10,035 / Piece Get Latest Price
  • Material Cast Steel
  • Connection Type Flanged
  • Size 1 1/2\", 1\", 2 1/2\", 2\", 3\", 4\"
  • Class 150, 300
  • Operation Lever Operated
  • Design & manufacture EN12516, DIN3357
  • Gasket PTFE, RPTFE
  • Stem SS304, SS316
  • Handle Stainless Steel

Inch mm L D D1 D2 t C N-Φd
½” DN15 108 90 60.5 35 2 10 4-Φ16
¾” DN20 117 100 70 43 2 11 4-Φ16
1” DN25 127 110 79.5 51 2 12 4-Φ16
1-1/4” DN32 140 115 89 63.5 2 13 4-Φ16
1-1/2” DN40 165 125 98.5 73 2 15 4-Φ16
2” DN50 178 150 120.5 92 2 16 4-Φ19
2-1/2” DN65 190 180 140 105 2 18 4-Φ19
3” DN80 203 190 152.5 127 2 19 4-Φ19
4” DN100 229 230 190.5 157 2 24 8-Φ19
5” DN125 356 255 216 186 2 24 8-Φ22
6” DN150 394 280 241.5 216 2 26 8-Φ22
8” DN200 457 345 298.5 267 2 29 8-Φ22
10” DN250 533 405 362 324 2 31 12-Φ25
View Complete Details
Ask Latest Price & Details
1 Piece Cast Iron Screwed Ball Valve

1 Piece Cast Iron Screwed Ball Valve
₹ 347 - ₹ 6,151 / piece Get Latest Price
  • Material Cast Iron
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\"
  • Class 1000PSI
  • Operation Lever Operated
View Complete Details
Ask Latest Price & Details
1 Piece Flanged Ball Valve

1 Piece Flanged Ball Valve
₹ 2,577 - ₹ 38,669 / Piece Get Latest Price
  • Size 1 1/2\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\"
  • Material CF8, CF8M
  • Class 150
  • Design & manufacture EN12516, DIN3357
  • Stem SS304, SS316
  • Body Cast Iron, Cast Steel, CF8, CF8M
  • Handle Stainless Steel

Dimensions                                                                                                        Unit: mm

DN φd L D K D1 C f H N-φ W
15 12 90 95 65 46 14 2 60 4-14 110
20 15 105 105 75 56 14 2 65 4-14 120
25 20 110 115 85 65 15 2 75 4-14 150
32 25 125 135 100 75 16 3 83 4-18 160
40 32 136 145 110 85 18 3 90 4-18 160
50 38 155 160 125 100 18 3 100 4-18 180
65 50 170 180 145 118 20 3 110 4-18 200
80 65 200 195 160 132 20 3 130 8-18 250
100 80 230 215 180 150 22 3 150 8-18 270
View Complete Details
Ask Latest Price & Details
3 Piece Screwed Ball Valve

3 Piece Screwed Ball Valve
  • Material CF8, CF8M
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 1/4\", 2 1/2\", 2\", 3\", 3/4\", 3/8\", 4\"
  • Class 1000PSI
View Complete Details
Ask Latest Price & Details
2 Piece Flanged Ball Valve

2 Piece Flanged Ball Valve
₹ 2,960 - ₹ 42,966 / Piece Get Latest Price
  • Material CF8, CF8M
  • Size 1 1/2\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\"
  • Class 150, 300
View Complete Details
Ask Latest Price & Details
Casting Floating Ball Valve

Casting Floating Ball Valve
₹ 23 - ₹ 775 / piece Get Latest Price
  • Material 904L, Carbon Steel, CF8, SS316L
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 10\", 2 1/2\", 2\", 3\", 3/4\", 4\", 6\", 8\"
  • Class 150
  • Connection Type Buttweld, Flanged

PN16                                                                         Unit: mm

DN d L d1 d2 D b n-Ñ„d H W
50 51 178 92 120.5 152 16 4-19 110 200
65 64 190 105 139.5 178 18 4-19 130 290
80 76 203 127 152.5 190 19 4-19 150 290
100 102 229 157 190.5 229 24 8-19 180 360
125 127 356 186 216 254 24 8-22 220 600
150 152 394 216 241.5 279 26 8-22 270 800
200 203 457 270 298.5 343 29 8-22 340 1000
250 254 533 324 362 406 31 12-25 350 1200
View Complete Details
Ask Latest Price & Details
2 Piece Forged Steel Ball Valve

2 Piece Forged Steel Ball Valve
₹ 5,000 / Piece Get Latest Price
  • Material Carbon Steel, Cast iron, CF8M, Ductile Iron, SS304, SS316
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\", 5\", 6\", 8\"
View Complete Details
Ask Latest Price & Details
1 Piece Screwed Ball Valve

1 Piece Screwed Ball Valve
₹ 105 / Piece Get Latest Price
  • Material CF8, CF8M
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\"
  • Class 1000PSI
View Complete Details
Ask Latest Price & Details
3 Piece Flanged Ball Valve

3 Piece Flanged Ball Valve
₹ 818 / Piece Get Latest Price
  • Material CF8, CF8M
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\", 5\", 6\", 8\"
  • Class 150, 300
View Complete Details
Ask Latest Price & Details
Electric Actuated 2 Piece Screwed Ball Valve

Electric Actuated 2 Piece Screwed Ball Valve
  • Material Carbon Steel, CF8M
  • Country of Origin AC110-240V 380V 50/60Hz, DC 12V, DC 24V
  • Ball Material Stainless Steel
  • Nominal Diameter DN15 to DN200
  • Actuation Type Electric Actuated

DN D L H L1
8 11.6 68 100 100
10 12.7 68 100 100
15 15 72 130 130
20 20 82 130 130
25 25 90 165 165
32 32 112 165 165
40 38 120 190 190
50 50 145 190 190
65 65 185 250 250
80 80 210 250 250
100 100 268 280 280
View Complete Details
Ask Latest Price & Details
Electric Actuated Gate Valve

Electric Actuated Gate Valve
  • Size DN40 to DN700
  • Pressure PN10 to PN150, Class150 to Class900
  • Material Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated

PN16

DN L D D1 D2 b f z-d H Torque(N.m)
40 200 145 110 85 16 3 4-18 595 –
50 250 160 125 100 16 3 4-18 653 ­-
65 265 180 145 120 18 3 4-18 665 –
80 280 195 160 135 20 3 8-18 725 –
100 300 215 180 155 20 3 8-18 787 100
150 350 280 240 210 24 3 8-23 955 160
200 400 335 295 265 26 3 12-23 1105 175
250 450 405 355 320 30 3 12-25 1343 275
300 500 460 410 375 30 3 12-25 1516 335
350 550 520 470 435 34 4 16-25 1678 505
400 600 580 525 485 36 4 16-30 1849 785
450 650 640 585 545 40 4 20-30 1937 835
500 700 705 650 608 44 4 20-34 2234 1045
600 800 840 770 718 48 5 20-41 3432 1415
700 900 910 840 788 50 5 24-41 2489 2100
View Complete Details
Ask Latest Price & Details
Electric Actuated Globe Valve

Electric Actuated Globe Valve
  • Size DN10 to DN300
  • Pressure PN10 to PN150, Class150 to Class900
  • Seat, Seat Ring PTFE
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated

Class 150

DN L D   D2 b f Z-d H D0
10 130 90 60 40 14 2 4-14 198 120
20 160 105 75 55 16 2 4-14 258 140
25 160 115 85 65 16 2 4-14 275 160
32 180 135 100 78 18 2 4-18 280 180
40 200 145 110 85 18 2 4-18 330 200
50 230 160 125 100 18 3 4-18 350 240
65 290 180 145 120 18 3 4-18 400 280
80 310 195 160 135 20 3 8-18 355 280
100 350 215 180 155 22 3 8-18 415 320
125 400 245 210 185 24 3 8-18 460 360
150 480 280 240 210 24 3 8-23 510 400
200 600 335 295 265 26 3 12-23 710 400
250 650 405 355 320 30 3 12-23 768 450
300 750 460 410 375 30 3 12-23 925 500
View Complete Details
Ask Latest Price & Details
Electric Actuated 2 Piece Flanged Ball Valve

Electric Actuated 2 Piece Flanged Ball Valve
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\", 6\"
  • Material SS316
  • Class 150/PN16, 300
  • Voltage 110V AC, 230V AC, 24V AC, 24V DC
  • Seat PTFE, RTFE, PPL
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC
  • Actuation Type Electric Actuated

Dimensions                                                                                                        Unit: mm

DN D3 D2 D1 D L B n-Φd
15 15 34.9 60.3 90 108 11.5 4-Φ14
20 20 42.9 69.9 100 117 13 4-Φ14
25 25 50.8 79.4 110 127 14.5 4-Φ14
32 32 63.5 88.9 115 140 16 4-Φ18
40 40 73 98.4 125 165 17.5 4-Φ18
50 50 92.1 120.7 150 178 19.5 4-Φ18
65 65 104.8 139.7 180 190 22.5 4-Φ18
80 80 127 152.4 190 203 24 8-Φ18
100 100 157.2 190.5 230 229 24 8-Φ18
125 125 185.7 215.9 255 356 24 8-Φ18
150 150 215.9 241.3 280 394 25.5 8-Φ28
200 200 269.9 298.5 345 457 29 14-Φ23
View Complete Details
Ask Latest Price & Details
Electric Actuated Three Way Ball Valve

Electric Actuated Three Way Ball Valve
  • Material Carbon Steel, CF8M
  • Size 1 1/2\", 1 1/4\", 1\", 2 1/2\", 2\", 3\", 4\", 5\", 6\"
  • Class 150/PN16
  • Voltage 110V AC, 230V AC, 24V AC, 24V DC
  • Structure type Floating ball core 3 way T type, 3 way L type
  • Design and Manufacture API 6D
  • Flange End Dimension ASME B16.5
  • Inspection and Test API598, API6D

Dimensions                                                                          Unit: mm

DN L L0 L1 L2 H D D1 D2 C F n-φd
15 150 75 196/248 121/158 185/191 95 65 46 14 2 4-φ14
20 150 75 196/248 121/158 197/225 105 75 56 16 2 4-φ14
25 180 90 196/248 121/158 199/227 115 85 65 16 2 4-φ14
32 200 100 196/248 121/158 240/266 140 100 76 18 3 4-φ18
40 220 110 196/248 121/158 255/271 150 110 84 18 3 4-φ18
50 240 120 196/248 121/158 286/307 165 125 99 20 3 4-φ18
65 260 130 196/248 121/158 330/335 185 145 118 20 3 4-φ18
80 280 140 196/248 121/158 349/383 200 160 132 20 3 8-φ18
100 320 160 196/248 121/158 421/487 220 180 156 22 3 8-φ18
125 380 190 196/248 121/158 485/557 250 210 184 22 3 8-φ18
150 440 220 196/248 121/158 528/629 285 240 211 24 3 8-φ22
200 550 275 196/248 121/158 702/750 340 295 266 24 3 12-φ22
View Complete Details
Ask Latest Price & Details
Electric Actuated Three Piece Ball Valve

Electric Actuated Three Piece Ball Valve
  • Material Carbon Steel, CF8M
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\"
  • Class 1000PSI
  • Voltage 110V AC, 230V AC, 24V AC, 24V DC
View Complete Details
Ask Latest Price & Details
Electric Actuated Wafer Butterfly Valve

Electric Actuated Wafer Butterfly Valve
  • Material Ductile Iron, SS316
  • Size 10\", 12\", 2 1/2\", 2\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Disc SS316
  • Voltage 110V AC, 230V AC, 24V AC, 24V DC
  • Seal EPDM, PTFE, NBR, VITON
  • Input and Output Signal DC 4-30mA, DC 0-10V, DC 1-5V
  • Voltage AC110-240V 380V 50/60Hz, DC 12V, DC 24V
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC

DN H1 H2 H3 ∅A ∅B L
DN50 75 129 32 125 105 43
DN65 82 136 32 145 127 46
DN80 99 153 32 160 145 46
DN100 110 167 32 190.5 165 52
DN125 125 193 32 216 200 56
DN150 145 209 32 241.3 225 56
DN200 170 251 40 298.4 280 60
DN250 210 280 45 361.9 350 68
DN300 240 315 45 431.8 400 78
DN350 260 348 45 476.2 445 78
DN400 295.5 392.5 52 540 510 102
DN450 401.5 322.5 52 585 565 114
DN500 451.5 362.5 64 650 620 127
DN600 541.5 428.5 70 770 725 154
View Complete Details
Ask Latest Price & Details
Electric Actuated Lug Butterfly Valve

Electric Actuated Lug Butterfly Valve
  • Material Ductile Iron
  • Size 10\", 12\", 2 1/2\", 2\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Disc SS316
  • Voltage 110V AC, 230V AC, 24V AC, 24V DC
  • End Connection Lug Type
  • Voltage AC110-240V 380V 50/60Hz, DC 12V, DC 24V
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC

Dimensions                                                                     Unit: mm

DN L L1 L2 D D1 n-Φ d
50 42 178 121 52.9 120 4-Φ23
65 44.7 178 121 64.5 136.2 4-Φ26.5
80 45.2 210 131 78.8 160 8-Φ18
100 52.1 210 131 100.4 185 4-Φ24.5
125 54.4 210 131 123.3 215 4-Φ23
150 55.8 309 160 155.6 238 4-Φ25
200 60.6 309 160 202.5 295 4-Φ25
250 65.6 309 160 250.5 357 4-Φ29
300 76.5 309 177 301.6 407 4-Φ29
350 76.5 309 177 333.3 467 4-Φ30
400 86.5 309 177 389.6 515 4-Φ30
450 105.6 309 177 440.51 565 4-Φ30
500 131.8 309 177 491.5 620 4-Φ33
600 152 309 177 592.5 725 4-Φ36
700 163 309 177 695 840 4-Φ36
800 188 309 177 794.7 950 4-Φ39
View Complete Details
Ask Latest Price & Details
Pneumatic Actuated Flanged Butterfly Valve

Pneumatic Actuated Flanged Butterfly Valve
  • Body Ductile Iron, SS304, SS316, Cast Iron, WCB
  • Disc SS316, SS304, Ductile Iron
  • Nominal Size DN50 to DN1000
  • Actuation Type Pneumatic Actuated
  • Pneumatic Actuation Type Double Acting, Spring Return

DN L D H1 H2 P A
50 108 110 180 100 96 163
65 112 130 190 110 96 163
80 114 150 200 120 96 163
100 127 170 210 130 115 195
125 140 200 230 150 115 195
150 140 225 240 160 137 217
200 152 280 260 180 258 147
250 165 335 310 230 299 165
300 178 395 342 262 299 165
350 190 445 367 287 349 182
400 216 495 373 293 349 182
450 222 550 400 320 349 182
500 229 600 426 346 397 199
600 267 705 483 403 397 199
700 292 810 547 467 473 221
800 318 920 626 546 560 249
900 330 1020 626 596 560 249
1000 410 1120 726 646 601 280
View Complete Details
Ask Latest Price & Details
Pneumatic Unidirectional Knife Gate Valve

Pneumatic Unidirectional Knife Gate Valve
  • Body Cast Ductile Iron, CF8M, CF8, WCB
  • Gate SS304, SS316
  • Seat Metal Seated, EPDM
  • Actuation Type Pneumatic Actuated
  • Pneumatic Actuation Type Double Acting, Spring Return

Dimensions                                                                                                Unit: mm

DN A B C D E F G H
50 40 119 100 105 129 178 115 412
65 40 134 100 115 146 193 115 454
80 50 149 100 124 162 211 115 497
100 50 169 100 140 187 231 115 558
125 50 180 100 150 211 271 140 632
150 60 210 100 175 237 296 140 708
200 60 262 119 205 309 358 175 872
250 70 318 122 250 364 428 220 1042
300 70 372 122 300 414 478 220 1192
350 96 431 197 338 500 549 277 1387
400 100 486 197 392 550 599 277 1541
450 106 540 270 432 598 680 382 1710
500 110 602 270 485 658 730 382 1873
600 110 708 270 590 758 830 382 2178
700 110 834 380 686 875 985 444 2546
750 110 884 380 760 930 1035 444 2725
800 110 1015 320 791 974 1085 444 2850
900 110 1040 320 895 1105 1202 515 3202
1000 110 1146 320 975 1217 1296 515 3488
View Complete Details
Ask Latest Price & Details
Pneumatic Trunnion Forged Ball Valve

Pneumatic Trunnion Forged Ball Valve
  • Size 2″ to 56″
  • Material WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
  • Pressure Class 150 to Class 1500
  • Structure Type One, Two or Three-Piece Body, Reduced Bore, Full Bore
  • Operation Lever, Gear, Pneumatic, Electric Actuated

Size in 2 2 1/2 3 4 6 8 10 12 14 16
mm 50 65 80 100 150 200 250 300 350 400
L/L1(RF/BW) in 17.75 20.00 22.75 26.5 36.00 40.25 50.00 56.00 – –
mm 451 508 578 673 914 1022 1270 1422 – –
L2(RTJ) in 17.88 21.25 23.00 26.88 36.50 40.88 50.88 56.88 – –
mm 454 540 584 683 927 1038 1292 1445 – –
H in 7.50 9.00 11.00 14.12 15.75 18.88 20.50 26.38 – –
mm 190 230 280 360 400 480 520 670 – –
W in 24 32 32 32 32 40 40 40 – –
mm 600 800 800 800 800 1000 1000 1000 – –
WT(Kg) RF/RTJ 68 95 120 185 675 1100 1650 2300 – –
BW 54 74 91 122 555 918 1355 2950 – –
View Complete Details
Ask Latest Price & Details
Pneumatic Actuated 2 Piece Ball Valve

Pneumatic Actuated 2 Piece Ball Valve
  • Nominal Size DN10 to DN50
  • Body Stainless Steel, Carbon Steel
  • Ball Stainless Steel, Carbon Steel
  • Sealing Material PTFE
  • Actuation Type Spring Return, Double Acting

DN L K SW H T D B
10 55 12 16 104 65   150
15 55 12 26 104 65 40 150
20 71 16 32 107 65 40 150
25 82 19 39 120 75 40 150
32 91 19 43 142 88 40 173
40 103 20 54 147 88 40 173
50 121 23 69 167 100 40 187
View Complete Details
Ask Latest Price & Details
Pneumatic Actuated 2 Piece Flanged Ball Valve

Pneumatic Actuated 2 Piece Flanged Ball Valve
  • Body Carbon Steel, CF8M
  • Bal SS304, SS316
  • Shaft A182 F6, F304, F316
  • Seat PTFE, RPTFE
  • Nut SS304, SS316
  • Nominal Size DN15 to DN200
  • Operation Lever Operated, Gear Operated, Pneumatic Actuated, Electric Actuated

Dimensions                                                                                        Unit: mm

DN L T f D C B A H N – M
15 130 14 2 95 65 45 163 164 4-Φ14
20 140 15 2 105 75 54 163 170 4-Φ14
25 150 16 2 115 85 65 163 175 4-Φ14
32 165 16 2 135 100 78 163 184 8-Φ18
40 180 17 2 145 110 85 214 214 8-Φ18
50 200 18 2 160 125 100 252 225 8-Φ18
65 220 18 2 180 145 120 252 253 8-Φ18
80 250 18 2 195 160 135 316 296 8-Φ18
100 280 20 2 215 180 155 354 322 8-Φ18
125 320 22 3 245 210 185 418 408 8-Φ18
150 360 24 3 280 240 265 450 465 8-Φ22
200 400 26 3 335 295 265 530 552 12-Φ2
View Complete Details
Ask Latest Price & Details
Pneumatic Actuated Three Piece Flanged Ball Valve

Pneumatic Actuated Three Piece Flanged Ball Valve
  • Actuation Type Spring Return, Double Acting
  • Body CF8M, Carbon Steel
  • Ball Stainless Steel, Carbon Steel
  • Sealing Material PTFE
  • Nominal Pressure Class150, PN16
  • Operation Lever Operated. Gear Operated, Electric Actuated, Pneumatic Actuated

DN L L0 L1 L2 H D D1 D2 C f n- Φd
15 150 72 178 121 204 95 65 46 14 2 4- Φ14
20 160 80 178 121 240 105 75 56 16 2 4- Φ14
25 180 90 178 121 257 115 85 65 16 2 4- Φ14
32 200 100 178 121 277 140 100 76 18 3 4- Φ18
40 220 110 210 131 292 150 110 84 18 3 4- Φ18
50 240 120 210 131 325 165 125 99 20 3 4- Φ18
62 260 130 210 131 357 185 145 118 20 3 4- Φ18
80 280 140 309 160 368 200 160 132 20 3 8- Φ18
100 320 160 309 160 410 220 180 156 22 3 8- Φ18
125 380 190 309 160 470 250 210 184 22 3 8- Φ18
150 440 220 309 177 556 285 240 211 24 3 8- Φ22
200 550 260 309 177 648 340 295 266 24 3 8- Φ22
View Complete Details
Ask Latest Price & Details
Pneumatic Bi Directional Knife Gate Valve

Pneumatic Bi Directional Knife Gate Valve
  • Material Cast Ductile Iron, CF8M
  • Size 10\", 12\", 2\", 3\", 4\", 5\", 6\", 8\"
  • End Connection Wafer , Lugged
  • Class 150/PN16
  • Connection Type Wafer type/Lug type
  • O-Ring O-Ring: NBR
  • Actuation Type Pneumatic Actuated
  • Pneumatic Actuation Type Double Acting, Spring Return

Dimensions                                                                                             Unit: mm

DN L O D S C f M-1 B H
50 40 165 125 95 16 2 4-M16 136 430
65 40 185 145 110 16 2 4-M16 151 460
80 50 200 160 127 17 2 8-M16 170 510
100 50 220 180 148 17 2 8-M16 190 570
125 50 250 210 174 17 2 8-M16 212 660
150 60 285 240 199 21 2 8-M20 230 720
200 60 340 295 250 21 2 8-M20 286 890
250 70 395 350 308 24 2 12-M20 338 1120
300 70 445 400 360 24 2 12-M20 388 1230
350 96 505 460 416 33 2 16-M20 460 1370
400 100 565 515 466 35 2 16-M24 520 1570
450 106 615 565 525 36 2 20-M24 585 1720
500 110 670 620 584 37 2 20-M24 635 1850
600 110 780 725 664 37 2 20-M27 720 2150
View Complete Details
Ask Latest Price & Details
Pneumatic Actuated Lug Butterfly Valve

Pneumatic Actuated Lug Butterfly Valve
  • Material Ductile Iron
  • Size 10\", 12\", 2 1/2\", 2\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Disc SS316
  • Actuation Type Double Acting, Spring Return
  • End Connection Lug Type
  • Nominal Pressure PN10, PN16, PN25, Class150
  • Actuation Type Pneumatic Actuated
  • Pneumatic Actuation Type Double Acting, Spring Return

DN A B D L
40 113 68 118 33
50 126 72 123 43
65 134 82 137 46
80 157 96 180 46
100 167 114 199 52
125 180 129 226 56
150 203 142 262 56
200 228 172 315 60
250 266 213 380 68
300 291 242 429 78
350 332 258 493 78
400 363 302 556 102
450 397 333 637 114
View Complete Details
Ask Latest Price & Details
Pneumatic Actuated Wafer Butterfly Valve

Pneumatic Actuated Wafer Butterfly Valve
  • Material Cast Iron, Ductile Iron, SS316
  • Size 10\", 12\", 2 1/2\", 2\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Disc SS304, SS316
  • Actuation Type Double Acting, Spring Return

DN Φ H L Z – Φ d B   H L Z – Φ d B
50 125 483 125 4- Φ18 43 125 315 180 4- Φ18 43
65 145 453 125  4- Φ18 46 145 330 180 4- Φ18 46
80 160 478 125  4- Φ18 46 160 390 245 4- Φ18 46
100 180 519 125  4- Φ18 52 180 431 245 4- Φ18 52
125 210 713 245  4- Φ18 56 210 455 245 4- Φ18 56
150 240 749 245  4- Φ23 56 240 626 355  4- Φ23 56
200 295 843 245  4- Φ23 60 295 720 355  4- Φ23 60
250 355 947 313  4- Φ25 68 355 800 550  4- Φ25 68
300 410 1013 313  4- Φ30 78 410 860 600  4- Φ30 78
350 470 1046 313  4- Φ30 78 470 883 600  4- Φ30 78
400 515 1135 313  4- Φ31 88 515 972 600  4- Φ31 88
450 565 1226 431  4- Φ31 106 565 1043 750  4- Φ31 106
500 620 1328 439  4- Φ31 132 620 1098 750  4- Φ34 132
600 725 1394 556  4- Φ34 154 725 1236 750  4- Φ34 154
700 840 1534 556  4- Φ27 165 840 1431 750  4- Φ27 165
800 952 1159 556  4- Φ30 190 952 1488 750  4- Φ30 190
900 1050 1748 706  4- Φ30 211 1050 – –  4- Φ30 211
1000 1160 1805 706  4- Φ33 224 1160 – –  4- Φ33 224
View Complete Details
Ask Latest Price & Details
Pneumatic Actuated Gate Valve

Pneumatic Actuated Gate Valve
  • Size DN40 to DN700
  • Material Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
  • Pressure PN10 to PN150, Class150 to Class900
  • Seat, Seat Ring PTFE
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated

Class150

DN L D D1 D2 b H z-Ñ„d H1 D0
50 250 160 125 100 16 950 4-Ñ„18 570 ­180
65 270 180 145 120 18 1050 4-Ñ„18 596 180
80 280 195 160 135 20 1080 8-Ñ„18 635 200
100 300 215 180 155 20 1145 8-Ñ„18 645 250
125 325 245 210 185 22   1210 8-Ñ„18 685 250
150 350 280 240 210 24 1300 8-Ñ„23 720 320
200 400 335 295 265 26 1660 12-Ñ„23 940 400
250 450 405 355 320 30 1790 12-Ñ„25 1020 400
300 500 460 410 375 30 1990 12-Ñ„25 1150 450
350 550 520 470 435 34 2090 16-Ñ„25 1170 450
400 600 580 525 485 36 2290 16-Ñ„30 1325 500
450 650 640 585 545 40 2485 20-Ñ„30 1465 500
500 700 705 650 608 44 2640 20-Ñ„34 1590 550
600 800 840 770 718 48 2940 20-Ñ„41 1720 550
700 900 910 840 788 50 3450 24-Ñ„41 1960 600
View Complete Details
Ask Latest Price & Details
Plunger Valve

Plunger Valve
  • Material Ductile Iron, Stainless Steel
  • Front Body Ductile Iron
  • Seat Stainless Steel
  • Piston Stainless Steel
  • Back Body Ductile Iron
  • Pin Steel
  • Lever Stainless Steel
  • Clip Stainless Steel
  • Shaft Stainless Steel
  • Bottom Cover Ductile Iron
  • Bushing Bronze
  • Gland Ductile Iron
  • Side Cover Ductile Iron
  • Operating Gear Operated, Electric, Pneumatic Actuated

Unit: mm

Size A B   C   D
    PN10 PN16 PN10 PN16
DN100 325 22 22 180 180 140
DN125 325 22 22 210 210 160
DN150 350 24 24 240 240 195
DN200 400 24 24 295 295 220
DN250 500 26 26 350 355 220
DN300 600 26 28 400 410 280
DN350 700 26 30 460 470 340
DN400 800 26 32 515 525 440
DN450 900 28 40 565 585 500
DN500 1050 28 44 620 650 550
DN600 1175 34 54 725 770 645
DN700 1320 34 40 840 840 700
DN800 1480 36 42 950 950 805
DN900 1700 38 44 1050 1050 895
DN1000 1900 38 46 1160 1170 1030
DN1200 2100 44 52 1380 1390 1155
DN1400 2420 48 58 1590 1590 1390
View Complete Details
Ask Latest Price & Details
Duplex Basket Strainer

Duplex Basket Strainer
₹ 330 - ₹ 10,784 / Piece Get Latest Price
  • Material Carbon Steel, Cast iron, Stainless Steel
  • Class 125, 150, 300
  • Connection Type Flanged
  • Size 1 1/2\", 1 1/4\", 1\", 10\", 12\", 14\", 16\", 2 1/2\", 2\", 3\", 4\", 5\", 6\", 8\"
  • Gasket Graphite+Stainless Steel
  • Design and Manufacture Standard ASME B16.34
  • Face to Face Dimension ANSI B16.10, DIN 3202, EN558-1, EN12982
  • Inspection and Test API598

Dimensions                                                                                       Unit: mm

DN L D H H1 H2
25 360 76 520 240 220
32 400 76 550 240 250
40 480 108 700 300 300
50 500 108 720 300 320
65 590 133 838 358 350
80 620 159 995 395 450
100 720 219 1075 435 460
125 860 273 1260 520 520
150 940 273 1355 535 570
200 1110 325 1585 605 680
View Complete Details
Ask Latest Price & Details
Y Strainer

Y Strainer
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 10\", 12\", 14\", 2 1/2\", 2\", 3\", 3/4\", 4\", 5\", 6\", 8\"
  • Material Cast Iron, Cast Steel, CF8, CF8M
  • Application industrial
  • ClasS 150/PN16
  • Connection Type Buttweld, Flanged, Socket weld
  • Screen SS304, SS304L, SS316, SS316L
  • Design and ManufacturE API 6D, ANSI B16.34
  • Face to Face Dimension ASME B16.25
  • Inspection and Test API 598

Dimensions                                                                                              Unit: mm

DN L H H1
15 140 73 103
20 150 88 127
25 160 93 137
32 180 100 148
40 220 115 168
50 230 155 195
65 250 198 270
80 280 210 295
100 350 250 344
125 400 305 422
150 440 358 485
200 500 450 602
250 580 503 710
300 670 578 815
350 780 598 844
400 850 618 872
450 850 693 978
500 1000 765 1080
View Complete Details
Ask Latest Price & Details
Simplex Basket Strainer

Simplex Basket Strainer
  • Material SS304, SS316
  • Size 1 1/2\", 1\", 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Face to Face Dimension ASME B16.25
  • Inspection and Test API 598
  • Cover Ball A193 B7, A193 B8, A193 B8M
  • Drain Plug A193 B7, A193 B8, A193 B8M

Dimensions                                                                                              Unit: mm

DN L O W R Z-Ñ„d T f
25 250 110 79.4 50.8 4-Ñ„16 9.6 2.0
40 275 125 98.4 73 4-Ñ„16 12.7 2.0
50 275 150 120.7 92.1 4-Ñ„19 14.3 2.0
65 310 180 139.7 104.8 4-Ñ„19 15.9 2.0
80 318 190 152.4 127 4-Ñ„19 17.5 2.0
100 430 230 190.5 157.2 4-Ñ„19 22.3 2.0
125 480 255 215.9 185.7 8-Ñ„22.5 22.3 2.0
150 500 280 241.3 215.9 8-Ñ„22.5 23.9 2.0
200 625 345 298.5 269.9 8-Ñ„22.5 27 2.0
250 660 405 362 323.8 12-Ñ„25.5 28.6 2.0
300 750 485 431.8 381 12-Ñ„25.5 30.2 2.0
350 800 535 476 413 12-Ñ„28.5 33 2.0
400 900 595 539.8 469.9 16-Ñ„28.5 35 2.0
View Complete Details
Ask Latest Price & Details
Inverted Bucket Steam Trap

Inverted Bucket Steam Trap
  • Application industrial
  • Body Carbon Steel, Stainless Steel, Ductile Iron
  • Float ball SS304
  • Bolt SS304
  • Seat 2Cr13, SS304
  • Nominal Diameter DN20 to DN32
  • Inspection and Test EN26948

DN L B C
20 210 94 137
25 210 94 137
32 210 94 137
View Complete Details
Ask Latest Price & Details
Bimetallic Steam Trap

Bimetallic Steam Trap
  • Body Carbon Steel, Stainless Steel
  • Cover Stainless Steel
  • Cap Stainless Steel
  • Nominal Diameter DN15 to DN50
  • Design and Manufacture EN26704, ISO6552
  • Face to Face Dimension EN26554
  • Inspection and Test EN26948

DN L H1 H2
15 150 111 23
20 150 111 23
25 160 111 26
32 210 118 27
40 230 123 30
50 230 123 30
View Complete Details
Ask Latest Price & Details
Thermostatic Steam Trap

Thermostatic Steam Trap
  • Material Carbon Steel, Stainless Steel
  • Size 1\", 1/2\", 3/4\"
  • Class PN40
  • Connection Type Flanged, Threaded or Welded
  • Nominal Pressure class150 to Class300, PN16 to PN40
  • Design and Manufacture EN26704, ISO6552
  • Face to Face Dimension EN26554 Inspection and Test: EN26948
  • Inspection and Test EN26948

DN L H1 H2
15 100 58 55
20 100 58 55
25 120 58 55
32 150 68 68
40 150 68 68
50 160 68 68
View Complete Details
Ask Latest Price & Details
thermodynamic steam trap

Thermodynamic Steam Trap
  • Material Carbon Steel, Stainless steel
  • Size 1\", 1/2\", 3/4\"
  • Class PN40
  • Connection Type Flanged, Threaded or Welded
  • Nominal Diameter DN15 to DN100
  • Nominal Pressure Class 150 to Class300, PN10 to PN64
  • Bonnet Stainless steel
  • Seat Stainless steel
  • Valve Stainless steel
  • Filter Stainless steel
  • Cap Stainless steel

DN L H1 H2 W
15 150 55 50 61
20 150 55 58 61
25 160 58 62 61
32 210 71 80 79
40 230 75 90 79
50 230 85 105 79
65 280 100 82 85
80 310 118 92 110
100 310 128 102 110
View Complete Details
Ask Latest Price & Details
Ball Float Steam Trap

Ball Float Steam Trap
  • Material Carbon Steel, Ductile Iron, Stainless Steel
  • Size 1\", 1/2\", 3/4\"
  • Class PN16, PN25
  • Connection Type Flanged, Threaded or Welded
View Complete Details
Ask Latest Price & Details
Slurry Knife Gate Valve

Slurry Knife Gate Valve
  • Body Ductile Iron, Carbon Steel
  • Stem F304, F316
  • Gate F304, F316
  • Stem Packing PTFE, Graphite
  • Flanged Dimension ANSI B16.5, DIN2533, HG20592
  • Inspection and Test API 598, T 9092

Dimensions                                         Unit: mm

DN L O D M-1
50 54 165 125 4-M16
65 54 185 145 4-M16
80 57 200 160 4-M16
100 57.5 220 180 4-M16
125 59 250 210 4-M16
150 65 285 240 4-M20
200 77 340 295 4-M20
250 78 395 350 8-M20
300 83 445 400 8-M20
350 84 505 460 12-M20
400 92 565 515 12-M24
450 103 615 565 16-M24
500 121 670 625 16-M24
600 121 780 725 12-M27
View Complete Details
Ask Latest Price & Details
Flanged Knife Gate Valve

Flanged Knife Gate Valve
  • Material Ductile Iron, SS316
  • Size 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 24\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Design and Manufacture Standard MSS SP-81
  • Flanged End Dimension DIN, JIS
  • Inspection and Test API 598

Dimensions                                                         Unit: mm

DN L H K
50 178 400 200
65 191 490 200
80 203 510 250
100 229 585 300
125 267 795 350
150 292 1015 350
200 330 1230 400
250 356 1465 450
300 381 1755 500
350 406 2030 500
400 432 2210 600
450 457 2510 750
500 508 2880 750
View Complete Details
Ask Latest Price & Details
Through Conduit Knife Gate Valve

Through Conduit Knife Gate Valve
₹ 3,199 / piece Get Latest Price
  • Material Ductile Iron
  • Size 10\", 12\", 2 1/2\", 2\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Seat EPDM, Metal, Viton, PTFE, NBR
  • Nominal Diameter DN50 to DN500
  • Operation Manual, Electric Actuated, Pneumatic Actuated

DN NPS F-F
50 2” 48
65 2 1/2″ 48
80 3″ 51
100 4″ 51
125 5″ 54
150 6″ 54
200 8″ 70
250 10″ 70
300 12″ 76
350 14″ 76
400 16″ 89
450 18″ 89
500 20″ 114
View Complete Details
Ask Latest Price & Details
Bi Directional Knife Gate Valve

Bi Directional Knife Gate Valve
  • Material Carbon Steel, Ductile Iron, SS316
  • Size 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 24\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Connection Type Lug type, Wafer type
  • Wedge SS304, SS316, SS316L
  • Face to Face Dimension MSS SP-81
  • Flanged End Dimension DIN, JIS
  • Inspection and Test API 598

Dimensions                                                                                       Unit: mm

DN A B C D E F G H
50 48 130 106 105 129 85 180 400
65 48 145 106 125 147 85 180 446
80 51 160 106 140 168 85 200 497
100 51 180 106 155 192 85 200 565
125 57 215 120 185 215 87 250 655
150 57 215 130 200 245 87 280 720
200 70 280 130 225 302 105 300 880
250 70 330 140 275 355 105 350 1045
300 76 380 160 325 401 105 400 1175
350 76 440 180 370 465 117 450 1345
400 89 490 180 435 511 117 450 1505
View Complete Details
Ask Latest Price & Details
Unidirectional Knife Gate Valve

Unidirectional Knife Gate Valve
  • Material Carbon Steel, Ductile Iron, SS316
  • Size 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 24\", 3\", 4\", 5\", 6\", 8\"
  • Class 150/PN16
  • Connection Type Flanged, Lug type, Wafer type
  • End Type Wafer Type, Lug Type
  • Face to Face Dimension MSS SP-81
  • Flanged End Dimension DIN, JIS
  • Inspection and Test API 598

PN10

DN L D D1 D2 DO N-Th d H1
50 48 165 125 99 180 4-M16 Φ18 260
65 48 185 145 118 200 4-M16 Φ18 292
80 51 200 160 132 240 8-M16 Φ18 320
100 51 220 180 156 260 8-M16 Φ18 358
125 57 250 210 184 280 8-M16 Φ18 395
150 57 285 240 211 280 8-M20 Φ23 450
175 57 305 265 237 280 12-M20 Φ23 504
200 70 340 295 266 300 8-M20 Φ23 532
250 70 395 350 319 320 12-M20 Φ23 670
300 76 445 400 370 350 12-M20 Φ23 758
350 76 505 460 429 400 16-M20 Φ23 857
400 89 565 515 480 450 16-M24 Φ27 946
450 89 615 565 530 500 20-M24 Φ27 1023
View Complete Details
Ask Latest Price & Details
Triple Duty Valve

Triple Duty Valve
₹ 1,995 / Piece Get Latest Price
  • Material Cast Iron
  • Size 10\", 12\", 14\", 16\", 18\", 2 1/2\", 2\", 20\", 3\", 4\", 5\", 6\", 8\"
  • Class 125
  • Stem SS410
  • Flange Gland Cast Iron
  • Stem Guide Ductile Iron
  • Seat Ring A536 Nickle Plated Ductile Iron
  • Disc Seat EPDM O-Ring

Dimensions                                                                                                  Unit: mm

DN D1 D2 D3 n-ΦD L T f H(Min) H(max) A B
65 118 145 185 4-Φ19 304 19 3 243 272 187 117
80 132 160 200 8-Φ19 305 19 3 273 307 208 98
100 156 180 220 8-Φ19 355 19 3 273 307 244 111
125 184 210 250 8-Φ19 445 19 3 349 400 305 140
150 211 240 285 8-Φ23 525 19 3 362 419 359 168
200 266 295 310 12-Φ23 716 20 3 520 579 481 233
250 319 355 105 12-Φ28 762 22 3 585 653 516 248
300 370 410 460 12-Φ28 967 24.5 4 677 762 611 356
View Complete Details
Ask Latest Price & Details
Suction Diffuser

Suction Diffuser
  • Material Body Material Cast iron
  • Size 10\"x10\", 10\"x8\", 12\"x10\", 12\"x12\", 12\"x8\", 14\"x10\", 14\"x12\", 14\"x14\", 16\"x12\", 16\"x14\", 16\"x16\", 18\"
  • Class 125
  • Screw Copper Alloy, Stainless Steel
  • Filter SS304
  • Ball Valve alloy, Stainless Steel
  • Nominal Diameter: DN50*DN40 to DN500*DN500 DN50*DN40 to DN500*DN500
  • End Connection: Flanged Flanged

NPS DN L1 L2 L3 H NPT Kv Cv
2″*1 1/2″ 50*40 114.3 114.3 253 125 3/4” 18 21
2″*2″ 50*50 114.3 114.3 253 125 3/4” 64.5 75.2
2 1/2″*2″ 65*50 127 127 270 125 3/4” 64.5 75.2
2 1/2″*2 1/2″ 65*65 127 127 270 138 3/4” 64.5 75.2
3″*2″ 80*50 139.7 139.7 270 138 3/4” 109 127.2
3″*2 1/2″ 80*65 139.7 139.7 284 143 3/4” 109 127.2
3″*3″ 80*80 139.7 139.7 284 143 3/4” 143 166.9
4″*3″ 100*80 165 165 328 166 1” 143 166.9
4″*4″ 100*100 165 165 334 172 1” 252 294.1
5″*4″ 125*100 190.5 190.5 345 172 1” 252 294.1
5″*5″ 125*125 190.5 190.5 394 223 1” 252 294.1
6″*4″ 150*100 192 192 394 223 1” 498 581.2
6″*5″ 150*125 203 203 423 250 1” 498 581.2
6″*6″ 150*150 203 203 423 250 1” 498 581.2
8″*5″ 200*125 203 203.2 455 250 1” 585 682.7
8″*6″ 200*150 228.6 228.6 487 312 1” 585 682.7
8″*8″ 200*200 228.6 228.6 539 315 1 1/4” 910 1062
10″*8″ 250*200 279.4 228.6 542 355 1 1/4” 910 1062
10″*10″ 250*250 279.4 279.4 551 355 1 1/4” 910 1062
12″*8″ 300*200 280 279.4 678 454 1 1/4” 1480 1727.2
12″*10″ 300*250 304.8 280 678 458 1 1/4” 1480 1727.2
12″*12″ 300*300 304.8 304.8 678 458 1 1/4” 1480 1727.2
14″*10″ 350*250 318 328 678 460 1 1/4” 2150 2509.2
View Complete Details
Ask Latest Price & Details
Ductile Iron Diaphragm Valve

Ductile Iron Diaphragm Valve
₹ 558 / Piece Get Latest Price
  • Material Ductile Iron
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\", 6\"
  • End Connection Flanged
  • Class PN16
  • Connection Type Flanged, Screwed
  • Diaphragm NBR, EPDM
  • Suitable Medium Graphite, PTFE
  • Design Standard BS 5156, BS 6755, ASME B16.5, BS 4505, EN 1092
  • Operation Manual, Electric Actuated, Pneumatic Actuated

Dimensions                                                                                        Unit: mm

DN L D D1 D2 f b Z-Φd DO H
15 125 95 65 45 3 15 4-14 120 120
20 135 105 75 55 3 17 4-14 120 120
25 145 115 85 65 3 17 4-14 160 130
32 160 140 100 75 3 19 4-18 160 135
40 180 150 110 85 3 19 4-18 180 160
50 210 165 125 100 3 21 4-18 200 165
65 250 185 145 120 33 21 4-18 250 200
80 300 200 160 135 3 21 4-18 280 220
100 350 220 180 155 3 23 8-18 300 275
125 400 250 210 185 4 24 8-18 320 335
150 460 285 240 210 4 26 8-22 350 380
200 570 340 295 265 4 26 12-22 450 500
250 680 395 350 320 4 28 12-26 500 57
View Complete Details
Ask Latest Price & Details
Cast Iron Diaphragm Valve

Cast Iron Diaphragm Valve
₹ 388 / piece Get Latest Price
  • End Connection Flanged
  • Size 1 1/2\", 1 1/4\", 1\", 1/2\", 2 1/2\", 2\", 3\", 3/4\", 4\", 5\", 6\"
  • Material Cast iron
  • Usage Water Fitting
  • Class PN16
  • Connection Type Flanged, Screwed
  • Design Standard BS 5156, BS 6755, ASME B16.5, BS 4505, EN 1092
  • Operation Manual, Electric Actuated, Pneumatic Actuated

Dimensions                                                                                Unit: mm

DN L D D1 D2 f b Z-Φd DO H
15 125 95 65 45 3 15 4-14 120 120
20 135 105 75 55 3 17 4-14 120 120
25 145 115 85 65 3 17 4-14 160 130
32 160 140 100 75 3 19 4-18 160 135
40 180 150 110 85 3 19 4-18 180 160
50 210 165 125 100 3 21 4-18 200 165
65 250 185 145 120 33 21 4-18 250 200
80 300 200 160 135 3 21 4-18 280 220
100 350 220 180 155 3 23 8-18 300 275
125 400 250 210 185 4 24 8-18 320 335
150 460 285 240 210 4 26 8-22 350 380
200 570 340 295 265 4 26 12-22 450 500
250 680 395 350 320 4 28 12-26 500 575
View Complete Details
Ask Latest Price & Details
Non Lubricated Plug Valve

Non Lubricated Plug Valve
  • Packaging Type Graphite, PTFE, PPL
  • Body WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Plug A105+ENP, SS304, SS304L, SS316, SS316L
  • Nominal Pressure Class150 to Class900, PN16 to PN63
  • Inspection and Test API 598, API 6D

Pressure 150 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″ 5″ 6″ 8″ 10″ 12″ 14″
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 8.5 9.5 10.0 12 14 22 22 26 40 60 70 130 219 381 570
Pressure 300 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″ 5″ 6″ 8″ 10″ 12″ 14″
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 8.5 9.5 10.0 12 14 22 22 26 40 60 70 130 219 381 570



Pressure 600 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″ 5″ 6″ 8″ 10″ 12″ 14″
L-RF, BW 165 190 216 229 214 292 330 356 432 508 559 660 787 838 889
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 11 13 17 20 23 27 31 36 72 98 141 245 330 515 710
Pressure 900 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″ 5″ 6″ 8″ 10″ 12″ 14″
L-RF, BW 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 13 16 21 24 28 32 40 47 91 117 165 285 420 610 860



View Complete Details
Ask Latest Price & Details
3 Way Plug Valve

3 Way Plug Valve
  • Body WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Bonnet WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Packing Graphite, PTFE, PPL
  • Nominal Pressure Class150 to Class2500, PN10 to PN420
  • Flanged End Dimension ASME B16.5, ASME B16.47
  • Butt welded End Dimension ASME B16.25
  • Inspection and Test API 598
  • Seat Ring PTFE, PPL

PN(Mpa) DN(mm) L D D1 D2 Z-Φ φd S h H
1.0 15 145 95 65 45 4-Φ φ14 14 26 99
20 145 105 75 55 4-Φ φ14 14 34 124
25 145 115 85 56 4-Φ φ14 17 38 133
32 165 135 100 78 4-Φ φ18 19 45 152
40 190 145 110 85 4-Φ φ18 22 55 212
50 200 160 125 100 4-Φ φ18 27 74 260
65 230 180 145 120 4-Φ φ18 32 82 295
80 260 195 160 135 4-Φ 18 36 95 327
100 300 215 180 155 8-Φ φ23 46 135 425
125 350 245 210 185 8-Φ φ23 50 154 482
150 400 280 240 210 8-Φ φ23 55 172 512
200 480 335 295 265 8-Φ φ23 75 195 605
250 530 390 350 320 8-Φ φ23 85 230 660
300 610 440 400 368 8-Φ φ23 100 263 760
View Complete Details
Ask Latest Price & Details
Orbit Plug Valve

Orbit Plug Valve
  • Body WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Bonnet WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Nominal Size DN15 to DN350
  • Design and Manufacture Standard API 599, API 6D, ASME B16.34, BS 5353
  • Screwed End Dimension ANSI B1.20.1, BS21, JIS BO20
  • Inspection and Test API598, API6D, DIN3230, EN12266, ISO 5208

Class150

DN L-RF L-BW H W
15 108 152 230 120
20 117 178 260 140
25 127 203 300 140
32 140 216 340 180
40 165 229 380 200
50 178 267 435 220
65 190 305 460 260
80 203 330 490 280
100 229 356 525 300
125 254 381 570 340
150 267 394 625 400
200 292 457 700 450
250 330 533 780 450
300 305 610 870 500
350 381 686 980 500
View Complete Details
Ask Latest Price & Details
Connection Lift Plug Valve

Connection Lift Plug Valve
  • Body WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Bonnet WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Packaging Type Graphite, PTFE, PPL
  • Flanged Ends to ASME B16.5
  • Gasket Gasket: SS304+Graphite
  • Plug A105+ENP, SS304, SS304L, SS316, SS316L

DN L-RF L-BW H W
15 108 152 190 120
20 117 178 195 140
25 127 203 225 140
32 140 216 260 180
40 165 229 280 200
50 178 267 310 220
65 190 305 340 260
80 203 330 395 280
100 220 356 435 300
125 254 381 470 340
150 267 394 535 400
200 292 457 590 450
250 330 533 630 450
300 356 610 680 500
350 381 686 720 500
View Complete Details
Ask Latest Price & Details
Lubricated Plug Valve

Lubricated Plug Valve
  • Material Carbon Steel
  • Packaging Type Graphite, PTFE
  • Class 150/PN16
  • Size 10", 4", 6", 8"
  • Seat Ring PTFE
  • Gasket Stainless Steel+Graphite
  • Bolts/Nut B7/2H

Class 150
mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 190 178 190 203 229 254 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
View Complete Details
Ask Latest Price & Details
Twin Seal Plug Valve

Twin Seal Plug Valve
₹ 5,670 / Piece Get Latest Price
  • Material Carbon Steel
  • Class 150
  • Sizes 10\", 16\", 6\", 8\"
  • Plug A105+ENP, Stainless Steel
  • Seat Ring PTFE
  • Gasket Stainless Steel+Graphite
  • Bolts/Nut B7/2H

Size(inch) L D1 D2 D3 B f n-Φd
6 394 280 241.3 215.9 239 2 8-Φ22
8 457 345 298.5 269.9 27 2 8-Φ22
10 533 405 362 323.8 28.6 2 12-Φ25
12 670 485 431.8 381 30.2 2 12-Φ25
16 762 595 539.8 469.9 35 2 16-Φ29
20 914 700 635 584.7 413 2 20-Φ32
View Complete Details
Ask Latest Price & Details
Eccentric Plug Valve

Eccentric Plug Valve
₹ 1,930 / Piece Get Latest Price
  • Material Ductile Iron
  • Class 150
  • Size 10", 12", 3", 4", 6", 8"
  • Seat NBR, EPDM
  • Nominal Size DN15 to DN350
  • Nominal Pressure Class150 to Class300, PN10 to PN64



Pressure 150LB
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 59 63 75 95 107 142 152 178 252 272 342 398 495 580 625
W 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
(kg) Weight 10 12 14 17 19 21 29 33 48 75 98 125 171 230 370
View Complete Details
Ask Latest Price & Details
Jacketed Plug Valve

Jacketed Plug Valve
  • Material Wcb
  • Size 1"x2", 2"X3", 3"x4"
  • Class 150/PN16
  • Seat PTFE, PPL
  • Nominal Size 1/2″ to 14″
  • Nominal Pressure Class150 to Class900, PN16 to PN63
  • Packaging Type Graphite, PTFE, PPL

Class 150
Size Inch 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14
L-RF mm 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
H mm 180 180 185 200 210 215 250 270 300 340 365 400 510 510 590
W mm 400 400 500 500 600 600 820 820 300 300 320 320 380 380 380
View Complete Details
Ask Latest Price & Details
Foot Valve

Foot Valve
  • Nominal pressure PN16, Class150
  • Material Cast iron, Ductile Iron, SS304, SS316
  • Usage Water Fitting
  • Class 150/PN16
  • Size 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
  • Seat F304, F316
  • Nominal Size DN50 to DN300

Dimensions                                                                                                                Unit: mm

DN D D1 D2 b-f z-*d hO H
50 140 110 90 16-3 4-14 17 142
65 160 130 110 16-3 4-14 25 180
80 185 150 125 18-3 4-18 32 197
100 205 170 145 18-3 4-18 40 230
125 235 250 175 20-3 8-18 43 270
150 260 225 200 20-3 8-18 38 297
200 315 280 255 22-3 8-18 65 382
250 370 335 310 24-3 12-18 84 460
300 435 395 262 24-4 12-23 90 530
View Complete Details
Ask Latest Price & Details
Double Orifice Air Release Valve

Double Orifice Air Release Valve
  • Material Cast iron, Ductile Iron
  • Size 1 1/2\", 2\", 3\", 4\", 6\", 8\"
  • Class 150/PN16, PN10
  • Connection Type Flanged, Screwed
  • Washer SS304, Carbon Steel
  • Flanged End Dimension DIN2501

DN L H
50 418 351
80 454 375
100 492 419
150 595 440
200 698 475
View Complete Details
Ask Latest Price & Details
Double Orifice Kinetic Air Valve

Double Orifice Kinetic Air Valve
  • Material Cast iron, Ductile Iron
  • Class 150/PN16, PN10
  • Size 1 1/2", 2", 3", 4", 6", 8"
  • Connection Type Flanged, Screwed Flanged, Screwed
  • Design and Manufacture Standard DIN3352
  • Inspection and Test BS6755

PN16

DN L H
25 147 185
40 224 187
50 273 214
65 273 214
80 283 244
100 302 270
125 353 323
150 353 323
200 433 401
250 491 450
View Complete Details
Ask Latest Price & Details
Surge Anticipator Valve

Surge Anticipator Valve
  • Material Ductile Iron
  • Class PN10/16
  • Size 10", 12", 4", 5", 6", 8"
  • Test Standard ISO5208, EN12266-1
  • Connection EN558-1, ISO5752

DN L D H1* K S
50 230 139 85 173 3/8”
65 290 159 95 198 3/8”
80 310 179 102 226 3/8”
100 350 214 112 265 ½”
125 350 214 127 265 ½”
150 480 333 145 351 1½”
200 600 407 172 436 3/4”
250 730 476 205 524 1”
300 850 526 232 606 1”
350 850 526 262 606 1”
400 1100 624 292 741 11/2”
450 1100 624 325 741 11/2”
500 1250 720 360 1002 2”
600 1450 835 425 1308 2”
View Complete Details
Ask Latest Price & Details
Needle Valve

Needle Valve
  • Material A182 F304, SS304
  • Size 1 1/2", 1", 1/2", 1/4", 2", 3/4"
  • Class 1500, 6000PSI
  • Pressure Ratings 6000PSI, Class 1500

Size A B C±3 D
¼” 25 55 92 50
3/8” 25 60 92 55
½” 32 75 98 55
¾” 36 75 114 65
View Complete Details
Ask Latest Price & Details
Balancing Valve

Balancing Valve
  • Body Cast Iron, Ductile Iron
  • Disc Ductile Iron, SS304, SS316, Bronze
  • Seat Ring EPDM, NBR
  • Flanged End Dimensions EN1092-1 PN25
  • Face to face Dimensions EN558-1
  • Inspection and Test EN 12266-1
  • O-Ring EPDM, NBR

Dimensions                                        Unit: mm

DN L H
50 230 260
65 290 290
80 310 310
100 350 325
125 400 355
150 480 390
View Complete Details
Ask Latest Price & Details
Alloy 20 Gate Valve

Alloy 20 Gate Valve
  • Body Alloy 20, WC6, WC9
  • Gate Alloy 20, 13Cr
  • Seat Ring A105/Nylon, Stellite
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Butt welded end ANSI B16.5
  • Inspection and Test API 598, API 6D

Dimensions                                                    Unit: mm

DN L H D D1
15 130 175 95 65
20 150 180 105 75
25 160 210 115 85
32 180 280 140 100
40 200 350 150 110
50 250 358 165 125
65 270 375 185 145
80 280 433 200 160
100 300 502 220 180
125 325 612 250 210
150 350 676 285 240
200 400 820 340 295
250 450 969 405 355
300 500 1142 460 410
350 550 1280 520 470
400 600 1452 580 525
View Complete Details
Ask Latest Price & Details
Alloy 20 Globe Valve

Alloy 20 Globe Valve
  • Body Alloy 20
  • Disc Alloy 20
  • Stem Alloy 20
  • Bolt Stainless Steel
  • Gland Stainless Steel
  • Gland Flange A105
  • Nut A194 8
  • Nominal Pressure Class150 to Class2500

Dimension                                                               Unit: mm

DN L H W
15 130 218 120
20 150 260 140
25 160 275 160
32 180 282 180
40 200 332 200
50 230 350 240
65 290 405 280
80 310 360 280
100 350 412 320
125 400 462 360
150 480 510 400
View Complete Details
Ask Latest Price & Details
Alloy 20 Wafer Butterfly Valve

Alloy 20 Wafer Butterfly Valve
  • Material Alloy 20
  • Disc Alloy 20
  • Gland Alloy 20
  • Packing PTFE
  • Nominal Size 2″ to 12″
  • Face to Face Dimensions API609
  • Flange Dimensions ASME B16.5

DN A B C E L H a D1 D2 D3 D4 N-D5 D6 D7 D8 D9 D10
mm inch
50 2″ 280 161 42.04 52.9 32 9.52 45° 83 11  52.6 120 4-23 70 10 102 100 12.6
65 21/2″ 303 175 44.68 64.5 32 9.52 45° 83 11  64.3 136.13 4-26.6 70  10 102 120 12。6
80 3″ 315 181 45.21 78.8 32 9.52 45°/22.5° 83 11  78.8 152.4/160.0 4-24/4-18 70  10 102 127 12.6
100 4″ 353 200 52.07 104 32 11.11 45°/22.5°  83 11 104  177.8/185.16 4.17.5/4-25.8 70  10 102 156 15.77
125 5″ 379 213 54.36 123.3 32 12.7 22.5° 83 11  123.3 215.01 4-23 70 10 102 190 18.92
150 6″ 404 226 55.75 155.6 32 12.7 22.5° 83 11  155.7  238.12 4-25 70  10 102 212 18.92
200 8″ 487 260 60.58 202.5 45  15.87 15°/22.5°  127 14 202.4 296.07 4-23/4-26 102  12 152 268 22.1
250 10″ 547 292 65.63 250.5 51 – 22.5°/15° 127 14 250.4 357 4-22/4-29 102  12 152 325 28.45
300 12″ 631 337 76.9 301.6 51 – 15°  127 14 301.5 406.4/431.8  4-30.2/4-25.4 102  12 152 403 28.45
View Complete Details
Ask Latest Price & Details
Alloy 20 Dual Plate Check Valve

Alloy 20 Dual Plate Check Valve
  • Body Alloy Steel, Duplex Stainless Steel, Super Duplex, Inconel, Incoloy, Titanium
  • Disc Alloy Steel, Duplex Stainless Steel, Super Duplex, Inconel, Incoloy, Titanium
  • Nominal Size 2″ to 24″
  • Seat Metal Seated, BUNA, EPDM, VITON
  • Face to Face Dimension EN558-1, API 594, ISO 5752, ANSI B16.10

NPS in 2 21/2 3 4 5 6 8 10 12 14 16 18 20 24
150Lb L mm 60 67 73 73 86 98 127 146 181 184 191 203 219 222
D mm 103 122 135 173 196 222 279 339 409 450 514 549 606 717
D1 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432 476 540 578 635 749.5
D2 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
300Lb L mm 60 67 73 73 86 98 127 146 181 222 232
D mm 110 128 148 180 215 250 307 361 422 485 539
D1 mm 127 149 168.5 200 235 270 330 387.5 451 514.5 571.5
D2 mm 92 105 127 157 186 216 270 324 381 413 470
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35
600Lb L mm 60 67 73 79 105 137 165 213 229 273 305
D mm 110 129 148 192 240 265 319 399 456 489 562
D1 mm 127 149 168.5 216 267 292 349 432 489 527 603
D2 mm 92 105 127 157 186 216 270 324 381 413 470
n-Фd mm 8-19 8-22 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41


View Complete Details
Ask Latest Price & Details
Alloy 20 Lug Butterfly Valve

Alloy 20 Lug Butterfly Valve
₹ 2,072 / Piece Get Latest Price
  • Material Alloy 20
  • Size 1 1/2\", 1\", 1/2\", 2\", 3/4\", 4\"
  • Class 1000PSI
  • Stem Stainless Steel
  • Nominal Diameter DN40 to DN600
  • Nominal Pressure PN10 to PN40, Class150, Class300, Class900, Class1500, Class2500

Class150

DN B A C L Ñ„K F N-Ñ„d
40 67 141 32 33 110 50 4-ø18
50 67 141 32 43 125 50 4-ø18
65 75 151 32 46 145 50 4-ø18
80 95 160 32 46 160 70 8-ø18
100 111 180 32 52 180 70 8-ø18
125 129 193 32 56 210 70 8-ø18
150 142 207 32 56 240 102 8-ø22
200 170 240 45 60 295 102 8-ø22
250 206 270 45 68 350 102 12-ø22
300 238 316 45 78 400 125 12-ø22
350 267 368 45 78 460 125 16-ø22
400 298 400 51 86 515 140 12-ø26
450 318 422 51 105 565 140 20-ø26
500 349 479 57 130 620 165 20-ø26
600 410 562 70 152 725 254 20-ø30
View Complete Details
Ask Latest Price & Details
Alloy 20 Trunnion Ball Valve

Alloy 20 Trunnion Ball Valve
  • Body Alloy Steel, Duplex Stainless Steel, Titanium
  • Disc Alloy Steel, Stainless Steel, Duplex Stainless Steel
  • Seat PTFE, RTFE, Nylon, Metal to Metal
  • Nominal Pressure Class150 to Class1500, PN16 to PN250

Class150                                                                           Unit: mm

DN d L H1 H2 W
50 51 178 155 85 230
80 76 203 191 110 400
100 102 229 211 130 400
150 152 394 231 160 650
200 203 457 282 235 1050
250 254 533 336 290 1050
300 305 610 373 315 1050
View Complete Details
Ask Latest Price & Details
Alloy 20 Floating Ball Valve

Alloy 20 Floating Ball Valve
  • Body Alloy 20, Duplex Stainless Steel, Super Duplex, Hastelloy C276/B3, Inconel, F347, F44, F317L, F321,
  • Ball SS304, SS316
  • End Cap CF8, CF8M
  • Bolting A193-B8
  • Ball Seat PTFE
  • Packing PTFE
  • Stem SS304, SS316
  • Gland SS304
  • Handle SS304
  • Nut A193-B8
  • Design and Manufacture API 6D
  • Pressure Test API598

Dimensions                                                                                                                 Unit: mm

DN d L(RF) d1 d2 D b n-Фd H W
50 51 216 92 127 165 23 8-Ф19 140 200
65 64 241 105 149 190 26 8-Ф19 160 290
80 76 283 127 168.5 210 29 8-Ф22 180 290
100 102 305 157 200 254 32 8-Ф22 208 360
125 127 381 186 235 279 35 8-Ф22 220 600
150 152 403 216 270 318 37 12-Ф22 290 800
200 203 502 270 330 381 42 12-Ф22 300 1000
View Complete Details
Ask Latest Price & Details
Alloy 20 Swing Check Valve

Alloy 20 Swing Check Valve
  • End Connections Flanged, Socketweld, Buttweld
  • Design and Manufacture ANSI B16.34, API 6D, DIN 3840, BS EN 1868
  • Face to Face Dimensions ANSI B16.10, API 6D, DIN3202, BS EN558-1
  • Buttweld End Dimensions ANSI B16.25
  • Nominal Size DN40 to DN600
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated

Dimensions                                                                                                                          Unit: mm

Class150

DN d L d1 d2 D b n-?d H
50 51 203 92 120 152 16 4-?19 132
65 64 216 105 139 178 18 4-?19 147
80 76 241 127 152 190 19 4-?19 176
100 102 292 157 190 229 24 8-?19 198
125 127 330 186 216 254 24 8-?22 255
150 152 356 216 241 279 26 8-?22 320
200 203 495 270 298 343 29 8-?22 380
250 254 622 324 362 406 31 12-?25 440
300 305 699 381 432 483 32 12-?25 480
350 337 787 413 476 533 35 12-?29 530
400 387 864 470 540 597 37 16-?29 580
450 438 978 533 578 635 40 16-?32 618
500 489 978 584 635 699 43 20-?32 657
600 591 1295 692 749 813 48 20-?35 760
View Complete Details
Ask Latest Price & Details
Duplex Lug Butterfly Valve

Duplex Lug Butterfly Valve
  • Body Duplex Stainless Steel (A995 1B, A995 2A, A995 3A, A995 4A, A890 1C, A995 5A)
  • Disc Duplex Stainless Steel ( A995 1B, A995 2A, A995 3A, A995 4A, A890 1C, A995 5A)
  • Stem Stainless Steel
  • Seat EPDM
  • Nominal Size DN50 to DN300

Dimensions

PN10                                                               Unit: mm

DN L H1 H2 H3 b n-M Ñ„C
50 43 161 80 32 3 4-M16 50
65 46 175 89 32 3 4-M16 50
80 46 181 95 32 3 8-M16 50
100 52 200 114 32 5 8-M16 70
125 56 213 127 32 5 8-M16 70
150 56 226 139 32 5 8-M20 70
200 60 260 175 40 5 12-M20 102
250 68 292 203 40 8 12-M24 102
300 78 337 242 40 8 12-M24 102
View Complete Details
Ask Latest Price & Details
Duplex Dual Plate Check Valve

Duplex Dual Plate Check Valve
  • Body Duplex Stainless Steel, Alloy Steel, Super Duplex, Inconel, Incoloy, Titanium
  • Disc Duplex Stainless Steel, Alloy Steel, Super Duplex, Inconel, Incoloy, Titanium
  • Nominal Size 2″ to 24″
  • End Dimension ASME B16.5, ANSI B16.10, JIS B2220
  • Face to Face Dimension EN558-1, API 594, ISO 5752, ANSI B16.10

Dimensions

NPS in 2 21/2 3 4 5 6 8 10 12 14 16 18 20 24
150Lb L mm 60 67 73 73 86 98 127 146 181 184 191 203 219 222
D mm 103 122 135 173 196 222 279 339 409 450 514 549 606 717
D1 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432 476 540 578 635 749.5
D2 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
300Lb L mm 60 67 73 73 86 98 127 146 181 222 232 – – –
D mm 110 128 148 180 215 250 307 361 422 485 539 – – –
D1 mm 127 149 168.5 200 235 270 330 387.5 451 514.5 571.5 – – –
D2 mm 92 105 127 157 186 216 270 324 381 413 470 – – –
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 – – –
600Lb L mm 60 67 73 79 105 137 165 213 229 273 305 – – –
D mm 110 129 148 192 240 265 319 399 456 489 562 – – –
D1 mm 127 149 168.5 216 267 292 349 432 489 527 603 – – –
D2 mm 92 105 127 157 186 216 270 324 381 413 470 – – –
n-Фd mm 8-19 8-22 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 – – –
View Complete Details
Ask Latest Price & Details
Duplex Swing Check Valve

Duplex Swing Check Valve
  • Body Duplex Stainless Steel (A890/A995 1B CD4MCuN, A890/A995 2A CE8MN, A890 1A/A995 3A CD6MN, A890/A995 4A CD3MN, A890 1C CD3MCuN, A890/A995 5A CE3MN)
  • Trim Stainless Steel
  • End Connection Flanged, Socketweld, Buttweld
  • Nominal Pressure PN10 to PN63, Class150 to Class300

PN16

DN L H
40 180 129
50 200 147
65 240 161
80 260 178
100 300 190
125 350 265
150 400 285
200 500 345
250 600 394
300 700 420
350 800 455
400 900 520
450 1000 565
500 1100 610
600 1300 740
View Complete Details
Ask Latest Price & Details
Duplex Globe Valve

Duplex Globe Valve
  • Material 4A, F51
  • End Connection Flanged, Socketweld, Buttweld
  • Body Duplex Stainless Steel (A890/A995 1B CD4MCuN, A890/A995 2A CE8MN, A890 1A/A995 3A CD6MN, A890/A995 4A CD3MN, A890 1C CD3MCuN, A890/A995 5A CE3MN)
  • Trim Stainless Steel
  • Class 150, 300, 600, 900
  • Size 1", 2", 4", 6", 8"
  • Nominal Diameter DN40 to DN400
  • Nominal Pressure PN10 to PN63, Class150 to Class300

Class150

DN L D C g T H W n-Ñ„
40 165 127 98.5 73 15 214 138 4- Ñ„ 15
50 203 152 120.5 92 16 235 160 4- Ñ„19
65 216 178 139.5 105 18 285 200 4- Ñ„19
80 241 190 152.5 127 19 336 200 4- Ñ„19
100 292 229 190.5 157 24 357 224 8- Ñ„19
125 356 254 216 186 24 421 280 8- Ñ„22
150 406 279 241.5 216 26 491 300 8- Ñ„22
200 495 343 298.5 270 29 650 375 8- Ñ„22
250 622 406 362 324 31 762 450 12- Ñ„25
300 698 483 432 381 32 990 500 12- Ñ„25
400 914 597 540 470 37 1104 600 16- Ñ„29
View Complete Details
Ask Latest Price & Details
Duplex Trunnion Ball Valve

Duplex Trunnion Ball Valve
  • Trunnion Duplex Stainless Steel ( A890/A995 1B CD4MCuN, A890/A995 2A CE8MN, A890 1A/A995 3A CD6MN, A890/A995 4A CD3MN, A890 1C CD3MCuN, A890/A995 5A CE3MN)
  • O Ring: VITON O Ring: VITON
  • Body Duplex Stainless Steel ( A890/A995 1B CD4MCuN, A890/A995 2A CE8MN, A890 1A/A995 3A CD6MN, A890
  • Support Ring Carbon Steel
  • Nominal Size DN50 to DN400
  • Nominal Pressure Class150 to Class900, PN10 to PN64

DN L d g c o b f n-d
50 178 51 92 120.5 152 16 1.6 4-19
65 190 64 105 139.5 178 17.5 1.6 4-19
80 203 76 127 152.5 190 19.5 1.6 4-19
100 229 102 157 190.5 229 24 1.6 8-19
125 356 127 186 216 254 24 1.6 8-22
150 394 152 216 241.5 279 25.5 1.6 8-22
200 457 203 270 298.5 343 29 1.6 8-22
250 533 254 324 362 406 31 1.6 12-25
300 610 305 381 432 483 32 1.6 12-25
350 686 337 413 476 533 35 1.6 12-29
400 762 387 470 540 597 37 1.6 16-29
View Complete Details
Ask Latest Price & Details
Duplex Floating Ball Valve

Duplex Floating Ball Valve
  • Body Duplex Stainless Steel ( A890/A995 1B CD4MCuN, A890/A995 2A CE8MN, A890 1A/A995 3A CD6MN, A890/A995 4A CD3MN, A890 1C CD3MCuN, A890/A995 5A CE3MN)
  • Ball Duplex Stainless Steel ( A890/A995 1B CD4MCuN, A890/A995 2A CE8MN, A890 1A/A995 3A CD6MN, A890
  • End Cap Stainless Steel
  • Nominal Pressure Class150 to Class900, PN10 to PN64
  • Nominal Size DN25 to DN200
  • Gland SS304

DN d L O E H
25 25 127 110 150 100
32 32 140 115 180 103
40 40 165 125 200 123
50 50 178 150 250 130
60 60 190 180 300 163
80 80 203 190 350 181
100 100 229 230 500 232
150 150 394 280 800 307
200 200 457 345 1000 350
View Complete Details
Ask Latest Price & Details
Duplex Wafer Butterfly Valve

Duplex Wafer Butterfly Valve
  • Body Duplex Stainless Steel (A995 1B, A995 2A, A995 3A, A995 4A, A890 1C, A995 5A)
  • Disc Duplex Stainless Steel (A995 1B, A995 2A, A995 3A, A995 4A, A890 1C, A995 5A)
  • Seat EPDM
  • Shaft Stainless Steel
  • Nominal Size DN50 to DN200
  • Nominal Pressure PN10 to PN64, Class150 to Class1500

PN16                                                                                Unit: mm

DN A B Ñ„D n- Ñ„d
40 131 65 98.5 4-Ñ„16
50 161 67 120.6 4-Ñ„19
65 175 75 139.7 4-Ñ„19
80 181 96 152.4 4-Ñ„19
100 200 114 190.5 8-Ñ„19
125 213 129 215.9 8-Ñ„22.4
150 225 144 241.3 8-Ñ„22.4
200 260 167 298.4 8-Ñ„22.4
View Complete Details
Ask Latest Price & Details
Duplex Gate Valve

Duplex Gate Valve
  • Packaging Type Graphite, PTFE
  • Body Duplex Stainless Steel 4A, 5A, 6A, Super Duplex Stainless Steel, Alloy 20, Hastelloy, Titanium, Stainless Steel
  • Disc A182 F51, F53, F55
  • Gasket Stainless Steel+Graphite
  • Backseat A182 F51, F53, F55
  • Stem Nut Copper Alloy
  • Flange end Dimension ANSI B16.5, ASME B16.5
  • Design and Manufacture BS1873, ASME B16.34
  • Operations Handwheel, Electric Actuated, Pneumatic Actuated

PN16

DN L D D1 D2 b Z-d f H H1 D0
15 130 95 65 45 14 4-14 2 220 240 120
20 150 105 75 55 14 4-14 2 255 284 140
25 160 115 85 65 14 4-14 2 275 303 160
32 180 135 100 78 16 4-18 2 280 321 180
40 200 145 110 85 16 4-18 3 300 352 200
50 250 160 125 100 16 4-18 3 358 438 240
65 265 180 145 120 18 4-18 3 375 450 240
80 280 195 160 135 20 8-18 3 438 528 280
100 300 215 180 155 20 8-18 3 502 620 320
125 325 245 210 185 22 8-18 3 612 753 360
150 350 280 240 210 24 8-23 3 676 847 360
200 400 335 295 265 26 12-23 3 820 1039 400
250 450 405 355 320 30 12-25 3 969 1245 450
300 500 460 410 375 30 12-25 3 1142 1472 560
350 550 520 470 435 34 16-25 4 1280 1450 640
400 600 580 525 485 36 16-30 4 1452 1887 640
450 650 640 585 545 40 20-30 4 1541 2011 720
500 700 705 650 608 44 20-34 4 1676 2181 720
View Complete Details
Ask Latest Price & Details
Super Duplex Trunnion Ball Valve

Super Duplex Trunnion Ball Valve
  • Body Super Duplex Stainless Steel
  • Ball Super Duplex Stainless Steel
  • Seats PTFE, HDPE, RPTFE, PPL
  • Butt Welded Dimensions ANSI B16.25
  • Inspection and Test API598

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
Super Duplex Globe Valve

Super Duplex Globe Valve
  • Body Super Duplex Stainless Steel 4A, 5A, 6A, F53, F55, Duplex Stainless Steel, Alloy 20, Hastelloy, Titanium,
  • Disc A182 F51, F53, F55
  • Backseat A182 F51, F53, F55
  • Butt Welded Dimensions ANSI B16.25, ASME B16.25
  • Inspection and Test API598
  • Nominal Size 1/4″ to 2″

Class800

Size d L H(Open) W
1/4″ 8 79 176 100
3/8″ 10 79 176 100
1/2″ 13 92 176 100
3/4″ 17 111 212 125
1″ 23 130 230 160
1 1/4″ 30 152 254 160
1 1/2″ 37 172 294 180
2″ 46 200 327 200
View Complete Details
Ask Latest Price & Details
Super Duplex Knife Gate Valve

Super Duplex Knife Gate Valve
  • Body SAF2507, SS2507
  • Knife SS304, SS316
  • Wedge SS304, SS316, SS316L
  • Seal Ring Polyurethane, EPDM, NBR, VITON
  • Yoke SS304, SS316
  • End Type Wafer Type, Lug Type
  • Actuation Handwheel, Electric Actuated, Pneumatic Actuated

PN10

DN L D D1 D2 D0 N-Th d h1
50 48 165 125 99 180 4-M16 Φ18 290
65 48 185 145 118 200 4-M16 Φ18 330
80 51 200 160 132 200 8-M16 Φ18 358
100 51 220 180 156 240 8-M16 Φ18 378
125 57 250 210 184 260 8-M16 Φ18 428
150 57 285 240 211 280 8-M20 Φ23 490
200 70 340 295 266 300 8-M20 Φ23 588
250 70 395 350 319 320 12-M20 Φ23 690
300 76 445 400 370 350 12-M20 Φ23 815
350 76 505 460 429 400 16-M20 Φ23 890
400 89 565 515 480 450 16-M24 Φ27 980
View Complete Details
Ask Latest Price & Details
Super Duplex Swing Check Valve

Super Duplex Swing Check Valve
  • Body Super Duplex Stainless Steel 4A, 5A, 6A, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel,
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Ste
  • Gland Packing Graphite, PTFE
  • Actuation Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN40 to DN400
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500

PN16
DN L H
40 180 129
50 200 147
65 240 161
80 260 178
100 300 190
View Complete Details
Ask Latest Price & Details
Super Duplex Wafer Butterfly Valve

Super Duplex Wafer Butterfly Valve
  • Body Super Duplex S2507, UNS S32750, UNS S32760, UNS S32950
  • Disc Stainless Steel
  • Stem SS304, SS316
  • Bushing PTFE
  • Nominal Size DN40 to DN300
  • Nominal Pressure PN10 to PN64, Class150 to Class2500

Dimensions                                                  Unit: mm

PN10

DN L A B Ñ„D n-Ñ„d
40 33 131 65 110 4-Ñ„18
50 43 161 67 125 4-Ñ„18
65 46 175 75 145 4-Ñ„18
80 46 181 96 160 8-Ñ„18
100 52 200 114 180 8-Ñ„18
125 56 213 129 210 8-Ñ„18
150 56 225 144 240 8-Ñ„22
200 60 260 167 295 8-Ñ„22
250 68 292 207 350 12-Ñ„22
300 78 337 237 400 12-Ñ„22
View Complete Details
Ask Latest Price & Details
Super Duplex Dual Plate Check Valve

Super Duplex Dual Plate Check Valve
  • Body Super Duplex Stainless Steel 4A, 5A, 6A, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel,
  • Disc Super Duplex Stainless Steel, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel,
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25
  • Gland Packing Graphite, PTFE
  • Inspection and Test API598, API6D, DIN3230, BS EN 12569

Class 150

DN L D D1 D2 n-Ñ„d
50 60 103 120.5 92 4-19
65 67 122 139.5 105 4-19
80 73 135 152.5 127 4-19
100 73 173 190.5 157 8-19
125 86 196 216 186 8-22
150 98 222 241.5 216 8-22
200 127 279 298.5 270 8-22
250 146 339 362 324 12-25
300 181 409 432 381 12-25
350 184 450 476 413 12-29
400 191 514 540 470 16-29
450 203 549 578 533 16-32
500 219 606 635 584 20-32
600 222 717 749.5 692 20-35
View Complete Details
Ask Latest Price & Details
Super Duplex Lug Butterfly Valve

Super Duplex Lug Butterfly Valve
  • Body Super Duplex S2507, UNS S32750, UNS S32760, UNS S32950
  • O Ring NBR
  • Rivel Aluminium
  • Swing Bolt Alloy Steel
  • Nut Steel
  • Lever Iron
  • Nominal Size DN50 to DN300
  • Nominal Pressure PN10 to PN64, Class150 to Class2500

Class150

DN L Ñ„K N-Ñ„D
50 43 125 4-Ñ„18
65 46 145 4-Ñ„18
80 46 160 8-Ñ„18
100 52 180 8-Ñ„18
125 56 210 8-Ñ„18
150 56 240 8-Ñ„22
200 60 295 8-Ñ„22
250 68 350 12-Ñ„22
300 78 400 12-Ñ„22
View Complete Details
Ask Latest Price & Details
Super Duplex Floating Ball Valve

Super Duplex Floating Ball Valve
  • Body Super Duplex Stainless Steel
  • Seats PTFE, HDPE, RPTFE, PPL
  • Seals EPDM
  • Nominal Size 2″ to 8″
  • Flange End Dimensions ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25
  • Inspection and Test API598

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-?d mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
View Complete Details
Ask Latest Price & Details
Super Duplex Gate Valve

Super Duplex Gate Valve
  • Body Super Duplex 5A Stainless Steel, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6,
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Ste
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • End Connections Flanged, Socketweld, Buttweld
  • Actuation Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Gland Packing Graphite, PTFE
  • Nominal Size DN15 to DN500

PN16

DN L D D1 D2 b Z-d f H H1 D0
15 130 95 65 45 14 4-14 2 220 240 120
20 150 105 75 55 14 4-14 2 255 284 140
25 160 115 85 65 14 4-14 2 275 303 160
32 180 135 100 78 16 4-18 2 280 321 180
40 200 145 110 85 16 4-18 3 300 352 200
50 250 160 125 100 16 4-18 3 358 438 240
65 265 180 145 120 18 4-18 3 375 450 240
80 280 195 160 135 20 8-18 3 438 528 280
100 300 215 180 155 20 8-18 3 502 620 320
125 325 245 210 185 22 8-18 3 612 753 360
150 350 280 240 210 24 8-23 3 676 847 360
200 400 335 295 265 26 12-23 3 820 1039 400
250 450 405 355 320 30 12-25 3 969 1245 450
300 500 460 410 375 30 12-25 3 1142 1472 560
350 550 520 470 435 34 16-25 4 1280 1450 640
400 600 580 525 485 36 16-30 4 1452 1887 640
View Complete Details
Ask Latest Price & Details
Hastelloy C276/B3 Wafer Butterfly Valve

Hastelloy C276/B3 Wafer Butterfly Valve
  • Body Hastelloy, Ductile Iron, Cast Iron, Stainless Steel, Aluminium Bronze, Monel, Alloy Steel, Duplex Stainless
  • Disc Hastelloy, Ductile Iron, Cast Iron, Stainless Steel, Aluminium Bronze, Monel, Alloy Steel, Dup
  • Stem Stainless Steel( SS304, SS316, SS416), Monel
  • Seat NBR, EPDM, PTFE
  • Nominal Size DN40 to DN300
  • Nominal Pressure PN1.6 to PN4.0, Class 150 to Class 300
  • Face to Face Dimensions ANSI B16.1, JIS 10K, DIN3202, EN558, API 609
  • End Dimensions ANSI B16.1, ASTM B 16.47, AS 2129

PN16

DN A B D1 n-Ñ„
40 110 70 110 4-19
50 161 80 125 4-19
65 175 89 145 4-19
80 181 95 160 8-19
100 200 114 180 8-19
125 213 127 210 8-19
150 226 139 240 8-23
200 260 175 295 8-23
250 292 203 350 12-23
300 337 242 400 12-23
View Complete Details
Ask Latest Price & Details
Hastelloy C276/B3 Dual Plate Check Valve

Hastelloy C276/B3 Dual Plate Check Valve
  • Body F347, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Disc F347, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20
  • Gland Packing Graphite, PTFE
  • Nominal Size DN15 to DN500
  • Face to Face Dimensions ANSI B16.10, API 6D
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Inspection and Test API 598, API 6D

 Class150

NPS in 2 2 1/2 3 4 5 6 8 10 12
d mm 51 64 76 102 127 152 203 254 305
L(RF) mm 203 216 241 292 356 406 495 622 698
L(BW) mm 203 216 241 292 356 406 495 622 698
L(RTJ) mm 216 229 254 305 369 419 508 635 711
d1 mm 92 105 127 157 186 216 270 324 381
d2 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432
D mm 152 178 190 229 254 279 343 406 483
b mm 16 18 19 24 24 26 29 31 32
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25
H mm 330 360 390 445 480 520 600 773 880
H1 mm – – – – – 556 658 805 955
W mm 200 200 250 300 350 350 500 500 550
W1 mm – – – – – 310 310 460 460
View Complete Details
Ask Latest Price & Details
Hastelloy C276/B3 Lug Butterfly Valve

Hastelloy C276/B3 Lug Butterfly Valve
  • Size DN40 to DN300
  • Pressure PN1.6 to PN4.0, Class 150 to Class 300
  • Body Hastelloy, Ductile Iron, Cast Iron, Stainless Steel, Aluminium Bronze, Monel, Alloy Steel, Duplex Stainless
  • Disc Hastelloy, Ductile Iron, Cast Iron, Stainless Steel, Aluminium Bronze, Monel, Alloy Steel, Dup
  • Stem Stainless Steel( SS304, SS316, SS416), Monel
  • Seat NBR, EPDM, PTFE

Dimensions                                                                         Unit: mm

PN10

DN Ñ„B C D F
50 102 140 98 16
65 122 152 106 16
80 133 165 113 16
100 156 185 130 20
125 188 205 147 20
150 216 223 161 22
200 268 268 203 25
250 323 323 235 28
300 336 336 268 32
350 415 415 312 38
View Complete Details
Ask Latest Price & Details
Hastelloy C276/B3 Swing Check Valve

Hastelloy C276/B3 Swing Check Valve
  • Body Hastelloy c276/B3
  • Disc Hastelloy, 13Cr
  • Stem Hastelloy, 13Cr
  • Face to face Dimensions ANSI B16.10, API 6D, DIN3202, BS EN558-1
  • Flanged connection ANSI B16.5, DIN 2543, BS EN 1092-1
  • Test and inspection API598, API6D, DIN3230, BS EN 12569
  • Butt welded end: ANSI B16.25 Butt welded end: ANSI B16.25

Dimensions                                                                                                          Unit: mm

Class150

DN d L d1 d2 D b n-Ñ„d H
50 51 203 92 120 152 16 4-Ñ„19 132
65 64 216 105 139 178 18 4-Ñ„19 147
80 76 241 127 152 190 19 4-Ñ„19 176
100 102 292 157 190 229 24 8-Ñ„19 198
125 127 330 186 216 254 24 8-Ñ„22 255
150 152 356 216 241 279 26 8-Ñ„22 320
200 203 495 270 298 343 29 8-Ñ„22 380
250 254 622 324 362 406 31 12-Ñ„25 440
300 305 699 381 432 483 32 12-Ñ„25 480
350 337 787 413 476 533 35 12-Ñ„29 530
400 387 864 470 540 597 37 16-Ñ„29 580
450 438 978 533 578 635 40 16-Ñ„32 618
500 489 978 584 635 699 43 20-Ñ„32 657
600 591 1295 692 749 813 48 20-Ñ„35 760
View Complete Details
Ask Latest Price & Details
Hastelloy C276/B3 Globe Valve

Hastelloy C276/B3 Globe Valve
  • Body Hastelloy c276/B3
  • Gate Hastelloy, 13Cr
  • Disc Hastelloy, 13Cr
  • Seat Ring SS304/Nylon, Stellite, SS304, SS316
  • Nominal Size DN15 to DN400
  • Nominal Pressure PN10 to PN64, Class150 to Class2500

Class150

DN L H W
15 130 218 120
20 150 260 140
25 160 275 160
32 180 282 180
40 200 332 200
50 230 350 240
65 290 405 280
80 310 360 280
100 350 412 320
125 400 462 360
150 480 510 400
200 600 715 400
250 650 789 450
300 750 925 500
350 850 980 650
400 950 1030 700
View Complete Details
Ask Latest Price & Details
Hastelloy C276/B3 Gate Valve

Hastelloy C276/B3 Gate Valve
  • Material Hastelloy C276/B3
  • Pressure Rating PN 1.0 to 25Mpa, Class 150 to 600
  • Class 150, 300
  • Size 1", 2", 3"
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Size DN 6 to 500 mm, NPS 1/4″ to 20″
  • Temperature -198°c to 450°c
  • Stem Hastelloy, 13Cr
  • Seat Ring SS304/Nylon, Stellite, SS304, SS316

Dimensions                                                    Unit: mm

DN L H D D1
15 130 175 95 65
20 150 180 105 75
25 160 210 115 85
32 180 280 140 100
40 200 350 150 110
50 250 358 165 125
65 270 375 185 145
80 280 433 200 160
100 300 502 220 180
125 325 612 250 210
150 350 676 285 240
200 400 820 340 295
250 450 969 405 355
300 500 1142 460 410
350 550 1280 520 470
400 600 1452 580 525
View Complete Details
Ask Latest Price & Details
Hastelloy C276/B3 Trunnion Mounted Ball Valve

Hastelloy C276/B3 Trunnion Mounted Ball Valve
  • Body Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
  • Seat PTFE, RPTFE, PPL
  • Nominal Size 2″ to 8″
  • Seal PTFE, RPTFE, PPL
  • Design and Manufacture Standard API 6D, API 600
  • Face to Face Dimension ANSI B16.10, ASME B16.10
  • Flange End Dimension ANSI B16.5, ASME B16.5, DIN, JIS
  • Inspection and Test API 598, API 6D

Dimensions

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
Aluminium Bronze Globe Valve

Aluminium Bronze Globe Valve
  • Body Aluminium Bronze ASTM B148 C95800 , Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy
  • Bonnet Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex
  • Disc Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex
  • Trim Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, H
  • Gland Packing Graphite, PTFE
  • Nominal Size DN15 to DN200
  • Nominal Pressure PN10 to PN64, Class150 to Class2500
  • End Connections Flanged, Socketweld, Buttweld
  • Actuation Handwheel Operated, Electric Actuated, Pneumatic Actuated

Class150

DN L H D D1 D2 b n-Ñ„d W
15 108 169 90 60 35 12 4-15 125
20 117 180 98 70 43 12 4-15 125
25 127 190 108 79 51 12 4-15 125
40 165 347 127 98 73 14 4-16 180
50 203 356 152 120 92 15 4-19 180
65 216 381 178 139 105 17 4-19 240
80 241 413 190 152 127 19 4-19 280
100 292 500 229 190 157 24 8-19 280
150 406 656 279 241 216 25 8-22 360
200 495 660 343 298 270 29 8-22 450
View Complete Details
Ask Latest Price & Details
Aluminium Bronze Gate Valve

Aluminium Bronze Gate Valve
  • Body Aluminium Bronze ASTM B148 C95800 , Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy
  • Bonnet Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex
  • Disc Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex
  • Trim Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastell
  • Gland Packing Graphite, PTFE
  • End Connections Flanged, Socketweld, Buttweld

Class150

DN L H D D1 D2 b Z-Ñ„d D0
50 178 409 152 120 92 19 4-19 200
80 203 570 190 152 127 23 4-19 250
100 229 590 229 190 157 23 8-19 250
150 267 630 279 241 216 25 8-22 300
200 292 960 343 298 270 28 8-22 350
250 330 1158 406 362 324 30 12-25 400
300 356 1378 483 432 381 31 12-25 450
350 381 1543 533 476 413 35 12-29 500
400 406 1738 597 539 470 36 16-29 600
View Complete Details
Ask Latest Price & Details
Aluminium Bronze Floating Ball Valve

Aluminium Bronze Floating Ball Valve
  • Body Aluminium Bronze C95800
  • Bonnet Bronze, Aluminium Bronze
  • Stem Bronze, Stainless Steel
  • Gasket PTFE
  • Nominal Size DN15 to DN200
  • Nominal Pressure Class150 to Class300, PN10 to PN40
  • Actuation Handle Operated, Gear Operated

PN10

DN d D D1 D2 L H W b f n-Ñ„d
15 13 90 60.3 34.9 108 82 120 10 2 4- Ñ„16
20 19 100 69.9 42.9 117 90 120 11 2 4- Ñ„16
25 25 110 79.4 50.8 127 98 140 11.6 2 4- Ñ„16
32 32 115 88.9 63.5 140 110 180 13.2 2 4- Ñ„16
40 38 125 98.4 73 165 125 200 14.7 2 4- Ñ„16
50 49 150 120.7 92.1 178 137 230 16.3 2 4- Ñ„19
65 62 180 139.7 104.8 191 155 260 18 2 4- Ñ„19
80 74 190 152.4 127 203 167 280 19.5 2 4- Ñ„19
100 100 230 190.5 157.2 229 205 320 24.3 2 4- Ñ„19
150 150 280 241.3 215.9 394 295 600 26 2 8- Ñ„22
200 201 345 298.5 269.9 457 330 800 29 2 8- Ñ„22
View Complete Details
Ask Latest Price & Details
Aluminium Bronze Trunnion Ball Valve

Aluminium Bronze Trunnion Ball Valve
  • Body Aluminium Bronze
  • Bonnet Bronze, Aluminium Bronze
  • Design and Manufacture Standard API 6D, MSS SP-110
  • Face to Face Dimension ASME B16.10
  • Flanged End Dimension ASME B16.5
  • Inspection and Test API 598, MSS SP-110

NPS L D1 D2 D3 B f n-?d
6 394 280 241.3 215.9 23.9 2 8-?22
8 657 365 298.5 269.9 27 2 8-?22
10 533 405 362 323.8 28.6 2 12-?25
12 670 485 431.8 381 30.2 2 12-?25
16 762 595 539.8 469.9 35 2 16-?29
20 914 700 635 584.7 41.3 2 20-?32
View Complete Details
Ask Latest Price & Details
Aluminium Bronze Wafer Butterfly Valve

Aluminium Bronze Wafer Butterfly Valve
  • Body Aluminium Bronze( C95800, C83600, C84400, B62)
  • Seat NBR, EPDM
  • Stem SS304, SS316, SS416
  • Packing PTFE
  • Nominal Size DN40 to DN300
  • Nominal Pressure PN16 to PN40, Class 150 to Class 300

PN16

DN A B C D1 n-Ñ„
40 110 70 33 110 4-19
50 161 80 42 125 4-19
65 175 89 44.7 145 4-19
80 181 95 45.2 160 8-19
100 200 114 52.1 180 8-19
125 213 127 54.4 210 8-19
150 226 139 55.8 240 8-23
200 260 175 60.6 295 8-23
250 292 203 65.6 350 12-23
300 337 242 76.9 400 12-23

Nominal Pressure: PN16 to PN40, Class 150 to Class 300
View Complete Details
Ask Latest Price & Details
Aluminium Bronze Lug Butterfly Valve

Aluminium Bronze Lug Butterfly Valve
  • Body Aluminium Bronze( C95800, C83600, C84400, B62)
  • Seat NBR, EPDM
  • Nominal Size DN40 to DN300
  • End Type Lugged
  • Face to Face Dimension API 609, DIN3202, EN558-1, ISO5752
  • Flanged End Dimension ANSI B16.5, ASME B16.47, EN1092, DIN2543
  • Inspection and Test API 598, DIN3230, EN12266

DN ?A ?B C D L F ?L H ?M ?N N- ?P
50 47 102 140 98 43 16 46 11 70 90 4- ?9
65 64 122 152 106 46 16 59 11 70 90 4- ?9
80 76 133 165 113 46 16 76 11 70 90 4- ?9
100 98 156 185 130 52 20 93 14 70 92 4- ?9
125 119 188 205 147 56 20 118 14 70 95 4- ?9
150 140 216 223 161 56 22 139 17 70 125 4- ?11
200 190 268 268 203 60 25 190 19 102 125 4- ?11
250 237 323 323 235 68 28 238 22 102 150 4- ?14
300 280 336 336 268 78 32 281 27 125 150 4- ?14
350 318 415 415 312 92 38 312 27 125 145 4- ?18
View Complete Details
Ask Latest Price & Details
Aluminium Bronze Dual Plate Check Valve

Aluminium Bronze Dual Plate Check Valve
  • Body Aluminium Bronze( C95800, C83600, C84400, B62)
  • Disc Aluminium Bronze, SS304, SS316
  • Trim Aluminium Bronze, SS304, SS316
  • Gland Packing Graphite, PTFE
  • Nominal Size DN50 to DN200
  • Nominal Pressure PN10 to PN40, Class 150 to Class 2500

Class150

DN A B D
50 102 65 54
65 121 78 60
80 134 94 67
100 171 117 67
125 193 145 83
150 219 171 95
200 276 222 127
View Complete Details
Ask Latest Price & Details
Aluminium Bronze Swing Check Valve

Aluminium Bronze Swing Check Valve
  • Body Aluminium Bronze( C95800, C83600, C84400, B62)
  • Disc Aluminium Bronze, SS304, SS316
  • Trim Aluminium Bronze, SS304, SS316
  • Nominal Size DN40 to DN600
  • Flanged connection 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
  • Butt welded end ANSI B16.5
  • Nominal Pressure PN10 to PN25 Mpa, Class 150 to Class 2500

PN16

DN L H
40 180 129
50 200 147
65 240 161
80 260 178
100 300 190
125 350 265
150 400 285
200 500 345
250 600 394
300 700 420
350 800 455
400 900 520
450 1000 565
500 1100 610
600 1300 740
View Complete Details
Ask Latest Price & Details
Titanium Lug Butterfly Valve

Titanium Lug Butterfly Valve
  • Size DN40 to DN300
  • Pressure PN16 to PN40, Class150 to Class300
  • Body Titanium, Hastelloy, Ductile Iron, Cast Iron, Stainless Steel, Aluminium Bronze, Monel, Alloy Steel, Duplex Stainless Steel
  • Disc Titanium, Hastelloy, Ductile Iron, Cast Iron, Stainless Steel, Aluminium Bronze, Monel, Alloy
  • Stem Stainless Steel( SS304, SS316, SS416), Monel

PN16

DN L Ñ„B C D F
50 43 102 140 98 16
65 46 122 152 106 16
80 46 133 165 113 16
100 52 156 185 130 20
125 56 188 205 147 20
150 56 216 223 161 22
200 60 268 268 203 25
250 68 323 323 235 28
300 78 336 336 268 32
350 92 415 415 312 3
View Complete Details
Ask Latest Price & Details
Titanium Swing Check Valve

Titanium Swing Check Valve
  • Body Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5, Duplex Stainless Steel, Super Duplex Stainless Steel
  • Disc Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5, Duplex Stainless Steel, Super Duplex Stainless St
  • Trim Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, Stellite, Hastelloy
  • Gland Packing Graphite, PTFE
  • Nominal Size DN50 to DN400
  • Nominal Pressure PN10 to PN64, Class150 to Class1500

Dimensions                                       Unit: mm

PN16

DN L H
50 230 305
65 290 354
80 310 402
100 350 437
125 400 496
150 480 541
200 550 699
250 650 815
300 750 914
350 850 1189
400 950 1350
View Complete Details
Ask Latest Price & Details
Titanium Globe Valve

Titanium Globe Valve
  • Body Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5
  • Bonnet Duplex Stainless Steel, Super Duplex Stainless Steel
  • Trim Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L
  • Nominal Size DN15 to DN200
  • Nominal Pressure PN10 to PN40, Class150 to Class1500

Class150

DN L H D D1 D2 b n-Ñ„d W
15 108 169 90 60 35 12 4-15 125
20 117 180 98 70 43 12 4-15 125
25 127 190 108 79 51 12 4-15 125
40 165 347 127 98 73 14 4-16 180
50 203 356 152 120 92 15 4-19 180
65 216 381 178 139 105 17 4-19 240
80 241 413 190 152 127 19 4-19 280
100 292 500 229 190 157 24 8-19 280
150 406 656 279 241 216 25 8-22 360
200 495 660 343 298 270 29 8-22 450
View Complete Details
Ask Latest Price & Details
Titanium Gate Valve

Titanium Gate Valve
  • Body Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5, Duplex Stainless Steel, Super Duplex Stainless Steel
  • Disc Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5, Duplex Stainless Steel, Super Duplex Stainless Steel
  • Trim Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, Stellite, Hastelloy
  • Nominal Size DN50 to DN400
  • Nominal Pressure PN10 to PN64, Class150 to Class1500

Class150

DN L H   D1 D2 b Z-Ñ„d D0
50 178 409 152 120 92 19 4-19 200
80 203 570 190 152 127 23 4-19 250
100 229 590 229 190 157 23 8-19 250
150 267 630 279 241 216 25 8-22 300
200 292 960 343 298 270 28 8-22 350
250 330 1158 406 362 324 30 12-25 400
300 356 1378 483 432 381 31 12-25 450
350 381 1543 533 476 413 35 12-29 500
400 406 1738 597 539 470 36 16-29 600
450 432 1959 635 578 533 39 16-32 600
500 457 2214 698 635 584 42 20-32 680
600 508 2599 813 749 692 47 20-35 760
View Complete Details
Ask Latest Price & Details
Titanium Trunnion Mounted Ball Valve

Titanium Trunnion Mounted Ball Valve
  • Face to Face Dimensions ANSI B16.10
  • Flange end Dimension ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25
  • Design and Manufacture API 6D
  • Pressure Test API598

API Trim NO. Table

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500



No of internal parts Seat ring or body Gate,disc,ball or body Stem No of internal parts Seat ring or body Gate,disc,ball or body Stem
01 13Cr 13Cr 13Cr 31 STELLITE 321SS 321SS
02 304SS 304SS 304SS 32 STELLITE STELLITE 321SS
03 310SS 310SS 310SS 33 347SS 347SS 347SS
04 HARD 13Cr HARD 13Cr 13Cr 34 STELLITE 347SS 347SS
05 STELLITE STELLITE 13Cr 35 NICKEL ALLOY 13Cr 13Cr
06 Cu-Ni 13Cr 13Cr 36 A105/PTFE A105+ENP A105+ENP
07 13Cr HARD 13Cr 13Cr 37 A105/PTFE WCB+ENP A105+ENP
08 STELLITE 13Cr 13Cr 38 13Cr/PTFE 13Cr 13Cr
09 Cu-Ni Cu-Ni Cu-Ni 39 304SS/PTFE 304SS 304SS
10 316SS 316SS 316SS 40 316SS/PTFE 316SS 316SS
11 Cu-Ni STELLITE Cu-Ni 41 A105/RPTFE A105+ENP A105+ENP
12 STELLITE 316SS 316SS 42 A105/RPTFE WCB+ENP A105+ENP
13 ALLOY 20 ALLOY 20 ALLOY 20 43 13Cr/RPTFE 13Cr 13Cr
14 STELLITE ALLOY 20 ALLOY 20 44 304SS/RPTFE 304SS 304SS
15 STELLITE STELLITE 304SS 45 316SS/RPTFE 316SS 316SS
16 STELLITE STELLITE 316SS 46 A105/NYLON A105+ENP A105+ENP
17 STELLITE STELLITE 347SS 47 A105/NYLON WCB+ENP A105+ENP
18 STELLITE STELLITE ALLOY 20 48 A105/NYLON 304SS 304SS
19 MONEL MONEL MONEL 49 A105/NYLON 316SS 316SS
20 BRONZE BRONZE 13Cr 50 13Cr/NYLON 13Cr 13Cr
21 HASTELLOY B HASTELLOY B HASTELLOY B 51 304SS/NYLON 304SS 304SS
22 HASTELLOY C HASTELLOY C HASTELLOY C 52 316SS/NYLON 316SS 316SS
23 STELLITE 304SS 304SS 53 A105/PEEK A105+ENP A105+ENP
24 304LSS 304LSS 304LSS 54 A105/PEEK WCB+ENP A105+ENP
25 STELLITE 304LSS 304LSS 55 13Cr/PEEK 13Cr 13Cr
26 STELLITE STELLITE 304LSS 56 304SS/PEEK 304SS 304SS
27 316LSS 316LSS 316LSS 57 316SS/PEEK 316SS 316SS
28 STELLITE 316LSS 316LSS
29 STELLITE STELLITE 316LSS
30 321SS 321SS 321SS
View Complete Details
Ask Latest Price & Details
Titanium Floating Ball Valve

Titanium Floating Ball Valve
  • Size 1\", 2\", 3\", 4\"
  • Material Titanium
  • Class 150/PN16
  • Connection Type Flanged
  • Stem SS304, SS316
  • Nominal Size 2 to 8
  • Inspection and Testing API 598

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-?d mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
View Complete Details
Ask Latest Price & Details
Bronze Wafer Butterfly Valve

Bronze Wafer Butterfly Valve
  • Body Bronze
  • Disc Bronze, Aluminium Bronze
  • Seat NBR, EPDM
  • End Connection Wafer
  • Operation Lever Operated, Electric Actuated, Pneumatic Actuated
  • Design and Manufacture Standard API 609, MSS SP-67
  • Flanged End Dimension ANSI B16.1, BS4504, DIN2501

Dimensions                                                                                    Unit: mm

DN A B C D1 n-Ñ„
40 110 70 33 110 4-19
50 161 80 42 125 4-19
65 175 89 44.7 145 4-19
80 181 95 45.2 160 8-19
100 200 114 52.1 180 8-19
125 213 127 54.4 210 8-19
150 226 139 55.8 240 8-23
200 260 175 60.6 295 8-23
250 292 203 65.6 350 12-23
300 337 242 76.9 400 12-23
View Complete Details
Ask Latest Price & Details
Bronze Swing Check Valve

Bronze Swing Check Valve
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Disc Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Face to Face Dimension ANSI B16.10, API 6D
  • Buttweld End ANSI B16.25
  • Nominal Pressure Class150 to Class300
  • Inspection and Test API 598, API 6D

DN L L1 L2 H
50 203 203 216 152
65 216 216 229 165
80 241 241 254 175
100 292 292 305 204
150 356 356 368 293
200 495 495 508 353
250 622 622 635 390
300 699 699 711 432
350 787 787 800 475
400 864 864 876 525
450 978 978 991 582
500 978 978 991 62
View Complete Details
Ask Latest Price & Details
Bronze Globe Valve

Bronze Globe Valve
  • Packaging Type Graphite
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Disc Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Stem Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Buttweld End ANSI B16.25
  • Flanged End Connection ANSI B16.5
  • Inspection and Test API 598, API 6D

Class150

DN L L1 L2 H D0
50 203 203 203 380 180
65 216 216 216 445 240
80 241 241 241 515 280
100 292 292 292 535 280
150 406 406 406 560 320
200 495 495 495 615 320
250 622 622 622 815 400
300 698 698 698 910 450
350 787 787 787 1230 500
400 914 914 914 1450 600
View Complete Details
Ask Latest Price & Details
Bronze Gate Valve

Bronze Gate Valve
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Bonnet Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Packing Graphite
  • Flanged End Connection ANSI B16.5
  • Buttweld End ANSI B16.25
  • Inspection and Test API 598, API 6D

Dimensions                                                           Unit: mm

DN L H D0
50 178 386 200
65 191 434 200
80 203 480 250
100 229 584 300
150 267 765 300
200 292 956 350
250 330 1149 400
300 356 1350 450
350 381 1508 500
400 406 1703 550
450 432 1892 600
500 457 2119 640
View Complete Details
Ask Latest Price & Details
Bronze Floating Ball Valve

Bronze Floating Ball Valve
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Ball Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Handle Carbon Steel
  • Bonnet SS316+Graphite
  • Buttweld End ANSI B16.25
  • Inspection and Test API 598, API 6D

Class150

DN L L1 H W
15 108 140 55 130
20 117 152 55 130
25 127 165 70 160
40 165 190 90 200
50 178 216 105 350
65 190 241 155 400
80 203 283 185 500
100 229 305 205 500
150 394 457 255 600
200 457 521 280 800
250 533 559 345 800
300 610 635 420 800
View Complete Details
Ask Latest Price & Details
Bronze Flanged Globe Valve

Bronze Flanged Globe Valve
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Disc Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Packaging Type Graphite
  • Nominal Pressure Class150 to Class2500
  • Buttweld End ANSI B16.25
  • Inspection and Test API 598, API 6D

Class150

DN L L1 L2 H D0
50 203 203 203 380 180
65 216 216 216 445 240
80 241 241 241 515 280
100 292 292 292 535 280
150 406 406 406 560 320
200 495 495 495 615 320
250 622 622 622 815 400
300 698 698 698 910 450
350 787 787 787 1230 500
400 914 914 914 1450 600
View Complete Details
Ask Latest Price & Details
Bronze Flanged Gate Valve

Bronze Flanged Gate Valve
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Disc Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Packing Graphite
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Buttweld End ANSI B16.25
  • Inspection and Test API 598, API 6D

Class150

DN L L1 L2 H D0
50 203 203 203 380 180
65 216 216 216 445 240
80 241 241 241 515 280
100 292 292 292 535 280
150 406 406 406 560 320
200 495 495 495 615 320
250 622 622 622 815 400
300 698 698 698 910 450
350 787 787 787 1230 500
400 914 914 914 1450 600
View Complete Details
Ask Latest Price & Details
Bronze Dual Plate Check Valve

Bronze Dual Plate Check Valve
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Plate Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Back Spring Inconel
  • Flanged End Connection ANSI B16.5
  • Buttweld End ANSI B16.25
  • Inspection and Test API 598, API 6D

Class150

DN L D d D1
50 60 103 51 56
65 67 122 65 73
80 73 135 80 88
100 73 173 102 108
150 98 220 152 160
200 127 277 203 210
250 146 337 254 266
300 181 407 305 310
350 184 448 350 355
400 191 512 400 405
450 203 547 450 455
500 219 604 500 505
600 222 715 600 605
View Complete Details
Ask Latest Price & Details
Monel Wafer Butterfly Valve

Monel Wafer Butterfly Valve
  • Body Monel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Hastelloy, Alloy
  • Disc Stainless Steel, Duplex Stainless Steel, Hastelloy, Titanium
  • Seat EPDM, NBR, Viton
  • Nominal Pressure PN10 to PN64, Class150 to Class300
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752
  • End Dimensions ASME B16.5, JIS B2210, DIN

DN L L1 D D1 D2 D3 D4     ø H1 H2 H3 Z-Фd
1.0 1.6 1.0 1.6
50 42 220 52.9 125 125 92 77 57 12.6 70 147 32 4-Ф23 4-Ф23
65 44.7 220 64.5 145 145 110 77 57 12.6 76 155 32 4-Ф23 4-Ф23
80 45.2 255 78.8 160 160 121 77 57 12.6 92 164 32 8-Ф20 4-Ф20
100 52.1 255 104 180 180 153 92 70 15.78 106 175 32 4-Ф23 4-Ф23
125 54.4 290 123.3 210 210 176 92 70 18.92 119 194 32 4-Ф23 4-Ф23
150 55.8 290 155.6 240 240 207 92 70 18.92 132 206 32 4-Ф25 4-Ф25
200 60.6 340 202.5 295 295 259 115 89 22.1 162 273 45 4-Ф25 4-Ф295
View Complete Details
Ask Latest Price & Details
Monel Lug Butterfly Valve

Monel Lug Butterfly Valve
  • Body Monel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Hastelloy, Alloy
  • Disc Stainless Steel, Duplex Stainless Steel, Hastelloy, Titanium
  • Operation Manual, Lever Operated, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752
  • Flanged End Dimension ASME B16.5, JIS, DIN

Size A B C D E F d G H J L Wt(kg)
DN Inch
50 2″ 126 78 14 117 9 50 8 70 31 34 43 2.8
65 2 1/2″ 134 84 14 131 9 50 8 70 45 36 46 3.7
80 3″ 138 92 14 176 9 50 8 70 64 36 46 5.1
100 4″ 167 114 14 206 11 70 10 90 91 40 52 6.9
125 5″ 180 129 18 236 14 70 10 90 110 44 56 9.3
150 6″ 203 144 18 258 14 70 10 90 146 44 56 10.5
200 8″ 228 179 25 321 17 102 12 125 193 50 60 17.4
250 10″ 266 216 25 395 22 102 12 125 241 57 68 28.1
300 12″ 291 247 25 461 22 102 12 125 292 66 78 40
350 14″ 332 273 30 511 27 125 14 150 329 62 78 55
400 16″ 363 317 30 580 27 125 14 150 376 84 102 85
450 18″ 397 348 39 630 36 140 18 175 425 94 114 114
500 20″ 425 393 39 700 36 140 18 175 475 110 127 144
600 24″ 498 453 49 823 46 165 22 210 573 120 154 227
700 28″ 626 531 90 928 63 254 18 300 674 54 165 342
750 30″ 660 564 90 984 63 254 18 300 727 54 165 400
800 32″ 666 601 90 1061 63 254 18 300 771 60 190 485
900 36″ 722 660 110 1170 75 254 18 300 839 60 203 605
1000 40″ 806 728 120 1290 84 298 22 350 939 60 216 776
1100 44″ 826 771 140 1404 95 298 22 350 1036 50 255 985
1200 48″ 941 874 150 1511 105 298 22 350 1137 62 276 1190
1400 56″ 1000 940 175 1685 140 356 32 415 1351 62 279 1380
1600 64″ 1155 1085 195 1930 160 356 32 415 1548 65 318 2054
1800 72″ 1200 1170 195 2170 175 406 39 475 1703 70 356 3075
2000 80″ 1363 1360 245 2345 199 406 39 475 1938 75 406 4500
View Complete Details
Ask Latest Price & Details
Monel Dual Plate Check Valve

Monel Dual Plate Check Valve
  • Body Monel 400, Monel K500, Monel 600, Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20
  • Disc Monel 400, Monel K500, Monel 600, Inconel, Duplex Stainless Steel, Super Duplex Stainless Stee
  • Gland Packing Graphite, PTFE
  • Design and Manufacture ANSI B16.34, API 6D, DIN 3840, BS EN 1868
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25
  • Test and Inspection API598, API6D, DIN3230, BS EN 12569

DN D D1 D2 L R T
2″ 102 65 32 54 29 25
2.5″ 121 78 42.1 60 36 29.3
3″ 134 94 82 67 43.4 27.7
4″ 171 117 97.5 67 55.6 26.7
5″ 193 145 111.8 83 67.6 38.6
6″ 219 171 127 95 78.6 46.3
8″ 276 222 161.7 127 104.4 66
10″ 336 276 213.4 140 128 70.7
12″ 406 327 237.9 181 156.7 102
14″ 448 375 312.2 184 179.8 89.2
16″ 511 416 351 191 198.4 92.5
18″ 546 467 409 203 226.2 96.2
20″ 603 514 451.9 213 248.2 102.7
24″ 714 616 554.7 222 297.4 107.3
View Complete Details
Ask Latest Price & Details
Monel Swing Check Valve

Monel Swing Check Valve
  • Body Monel 400, Monel K500, Monel 600, Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20
  • Disc Monel 400, Monel K500, Monel 600, Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, All
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite
  • Gland Packing Graphite, PTFE
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Test and Inspection API598, API6D, DIN3230, BS EN 12569

DN L H
50 203 150
65 216 168
80 241 180
100 292 210
125 330 230
150 356 275
200 495 340
250 622 355
300 698 410
350 787 475
400 864 552
450 978 600
500 978 660
600 1295 740
View Complete Details
Ask Latest Price & Details
Monel Globe Valve

Monel Globe Valve
  • Material Monel
  • Class 150, 300
  • Size 1", 2", 3"
  • Body Monel 400, Monel K500, Monel 600, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy
  • Butt welded End ANSI B16.5
  • Inspection and Test InspectioAPI 598, API 6D

DN L L1 L2 H W
50 203 216 203 350 220
65 216 229 216 362 250
80 241 254 241 385 280
100 292 305 292 400 320
125 356 369 356 455 320
150 406 419 406 537 400
200 495 508 495 707 450
250 622 635 622 788 560
300 698 711 698 820 580
View Complete Details
Ask Latest Price & Details
Monel Trunnion Mounted Ball Valve

Monel Trunnion Mounted Ball Valve
  • Body Monel
  • Ball Monel
  • End Cap Monel
  • Seat PTFE, RPTFE, PPL
  • Stem Packing PTFE, RPTFE, PPL
  • Gland Bush SS304
  • Face to Face Dimensions ANSI B16.10
  • Inspection and Test: API598 API598

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
Monel Floating Ball Valve

Monel Floating Ball Valve
  • Body Monel
  • Thrust Washer PTFE, RPTFE, PPL
  • Gland Bush SS304
  • End Type Flanged
  • Flange end Dimension ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25
  • Inspection and Test PI598

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-?d mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
View Complete Details
Ask Latest Price & Details
Monel Gate Valve

Monel Gate Valve
  • Body Monel 400, Monel K500, Monel 600, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M,
  • End Connections Flanged, Socketweld, Buttweld
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Ste
  • Nominal Size DN50 to DN600
  • Gland Packing Graphite, PTFE
  • Butt welded End ANSI B16.5
  • Inspection and Test API 598, API 6D

Class 150

DN L L1 L2 H W
50 178 191 216 341 200
65 190 203 241 371 200
80 203 216 283 402 250
100 229 241 305 472 280
125 254 267 381 530 300
150 267 279 403 587 300
200 292 305 419 743 350
250 330 343 457 904 400
300 356 368 502 1047 450
350 381 394 572 1172 500
400 406 419 610 1297 600
450 432 445 660 1433 680
500 457 470 711 1590 750
600 508 521 813 1898 800
View Complete Details
Ask Latest Price & Details
Zirconium Gate Valve

Zirconium Gate Valve
  • Body Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless Steel
  • Disc Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite
  • Butt welded End Dimension ANSI B16.5
  • Inspection and Test API 598, API 6D
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500

Dimensions                                                                Unit: mm

Class 150

DN L L1 L2 H W
50 178 191 216 341 200
65 190 203 241 371 200
80 203 216 283 402 250
100 229 241 305 472 280
125 254 267 381 530 300
150 267 279 403 587 300
200 292 305 419 743 350
250 330 343 457 904 400
300 356 368 502 1047 450
350 381 394 572 1172 500
400 406 419 610 1297 600
450 432 445 660 1433 680
500 457 470 711 1590 750
600 508 521 813 1898 800
View Complete Details
Ask Latest Price & Details
Zirconium Globe Valve

Zirconium Globe Valve
  • Body Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless Steel
  • Disc Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Butt welded End Dimension ANSI B16.5
  • Inspection and Test API 598, API 6D

DN L L1 L2 H W
50 203 216 203 350 220
65 216 229 216 362 250
80 241 254 241 385 280
100 292 305 292 400 320
125 356 369 356 455 320
150 406 419 406 537 400
200 495 508 495 707 450
250 622 635 622 788 560
300 698 711 698 820 580
350 787 800 787 898 –
400 914 927 914 930 –
450 978 991 978 980 –
500 978 991 978 1028 –
600 1295 1308 1295 1134 –
View Complete Details
Ask Latest Price & Details
Zirconium Floating Ball Valve

Zirconium Floating Ball Valve
  • Body Zirconium 702, Zirconium 705, Zirconium 703
  • Disc Zirconium 702, Zirconium 705
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Butt welded End Dimension ANSI B16.5
  • Inspection and Test API 598, API 6D

Dimensions                                                                                                           Unit: mm

DN 15 20 25 32 40 50 65 80 100 125 150 200 250
d 15 20 25 32 40 50 65 80 100 125 150 200 250
L 108 117 127 140 165 178 190 203 229 256 394 457 533
D 89 98 108 117 127 152 178 190 229 254 279 343 406
C 60.5 70 79.5 89 98.5 120.5 139.5 152.5 190.5 215.9 241.5 298.5 362
g 35 43 51 64 73 92 105 127 157 186 261 270 324
T 12.7 12.7 13 14.5 15 16 18 19 24 24 26 29 30
t 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
H 87.5 87.5 91.5 107 136 136 158 196 212 252 272 342 345
W 142 142 142 190 200 200 300 350 700 1100 1100 1500 1500
n-? 4-15 4-15 4-15 4-15 4-19 4-19 4-19 4-19 4-19 8-22 8-22 8-22 12-25
View Complete Details
Ask Latest Price & Details
F347 3 Piece Ball Valve

F347 3 Piece Ball Valve
  • Body F347, Alloy Steel, CF8, CF8M, Cast Iron, Carbon Steel
  • Ball SS304, SS316
  • End Cap CF8, CF8M
  • Design Standard ASME B16.34
  • Face to Face Dimension DIN3202, EN1266
  • Inspection and Testing API 598

SIZE NPS 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
DN 6 10 15 20 25 32 40 50 65 80 100
L 65 65 75 85 95 115 125 150 175 210 260
D 11.6 13 15 20 25 32 38 50 65 80 100
H 44 44 46 52 57 80 88 94 130 140 165
W 100 100 100 124 124 154 154 154 260 260 284
View Complete Details
Ask Latest Price & Details
F347 Wafer Butterfly Valve

F347 Wafer Butterfly Valve
  • Body F347, Alloy Steel, Duplex Stainless Steel, Super Duplex
  • Disc F347, SS316, Duplex Stainless Steel, Hastelloy, Titanium, Aluminium Bronze
  • Stem: SS316 SS316
  • Shaft: SS316 SS316
  • Connection Wafer
  • Flanged End Dimensions ASME B16.5, JIS B2210, DIN
  • Inspection and Test API 598

Dimensions

DN A B C E L H a D1 D2 D3 D4 N-D5 D6 D7 D8 D9 D10
mm inch
50 2″ 280 161 42.04 52.9 32 9.52 45° 83 11  52.6 120 4-23 70 10 102 100 12.6
65 21/2″ 303 175 44.68 64.5 32 9.52 45° 83 11  64.3 136.13 4-26.6 70  10 102 120 12。6
80 3″ 315 181 45.21 78.8 32 9.52 45°/22.5° 83 11  78.8 152.4/160.0 4-24/4-18 70  10 102 127 12.6
100 4″ 353 200 52.07 104 32 11.11 45°/22.5°  83 11 104  177.8/185.16 4.17.5/4-25.8 70  10 102 156 15.77
125 5″ 379 213 54.36 123.3 32 12.7 22.5° 83 11  123.3 215.01 4-23 70 10 102 190 18.92
150 6″ 404 226 55.75 155.6 32 12.7 22.5° 83 11  155.7  238.12 4-25 70  10 102 212 18.92
200 8″ 487 260 60.58 202.5 45  15.87 15°/22.5°  127 14 202.4 296.07 4-23/4-26 102  12 152 268 22.1
250 10″ 547 292 65.63 250.5 51 – 22.5°/15° 127 14 250.4 357 4-22/4-29 102  12 152 325 28.45
300 12″ 631 337 76.9 301.6 51 – 15°  127 14 301.5 406.4/431.8  4-30.2/4-25.4 102  12 152 403 28.45
View Complete Details
Ask Latest Price & Details
F347 Lug Type Butterfly Valve

F347 Lug Type Butterfly Valve
  • Body F347, Alloy Steel, Duplex Stainless Steel, Super Duplex
  • Disc F347, SS316, Duplex Stainless Steel, Hastelloy, Titanium, Aluminium Bronze
  • Stem SS316
  • Packing Seal PTFE, Graphite
  • Nominal Size DN50 to DN300
  • Flanged End Dimensions ASME B16.5, JIS B2210, DIN
  • Inspection and Test API 598

Size A B C D E F d G H J L Wt(kg)
DN Inch
50 2″ 126 78 14 117 9 50 8 70 31 34 43 2.8
65 2 1/2″ 134 84 14 131 9 50 8 70 45 36 46 3.7
80 3″ 138 92 14 176 9 50 8 70 64 36 46 5.1
100 4″ 167 114 14 206 11 70 10 90 91 40 52 6.9
125 5″ 180 129 18 236 14 70 10 90 110 44 56 9.3
150 6″ 203 144 18 258 14 70 10 90 146 44 56 10.5
200 8″ 228 179 25 321 17 102 12 125 193 50 60 17.4
250 10″ 266 216 25 395 22 102 12 125 241 57 68 28.1
300 12″ 291 247 25 461 22 102 12 125 292 66 78 40
350 14″ 332 273 30 511 27 125 14 150 329 62 78 55
400 16″ 363 317 30 580 27 125 14 150 376 84 102 85
450 18″ 397 348 39 630 36 140 18 175 425 94 114 114
500 20″ 425 393 39 700 36 140 18 175 475 110 127 144
600 24″ 498 453 49 823 46 165 22 210 573 120 154 227
700 28″ 626 531 90 928 63 254 18 300 674 54 165 342
750 30″ 660 564 90 984 63 254 18 300 727 54 165 400
800 32″ 666 601 90 1061 63 254 18 300 771 60 190 485
900 36″ 722 660 110 1170 75 254 18 300 839 60 203 605
1000 40″ 806 728 120 1290 84 298 22 350 939 60 216 776
1100 44″ 826 771 140 1404 95 298 22 350 1036 50 255 985
1200 48″ 941 874 150 1511 105 298 22 350 1137 62 276 1190
1400 56″ 1000 940 175 1685 140 356 32 415 1351 62 279 1380
1600 64″ 1155 1085 195 1930 160 356 32 415 1548 65 318 2054
1800 72″ 1200 1170 195 2170 175 406 39 475 1703 70 356 3075
2000 80″ 1363 1360 245 2345 199 406 39 475 1938 75 406 4500
View Complete Details
Ask Latest Price & Details
F347 Dual Plate Check Valve

F347 Dual Plate Check Valve
  • Body F347, Alloy 20, Monel, Duplex, Super Duplex, Inconel, Hastelloy C276/B3, Titanium, Carbon Steel
  • Disc F347, Alloy20, ss304, ss316
  • Nominal Size 2″ to 24″
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25
  • Test and Inspection API598, API6D, DIN3230, BS EN 12569

NPS in 2 21/2 3 4 5 6 8 10 12 14 16 18 20 24
150Lb L mm 60 67 73 73 86 98 127 146 181 184 191 203 219 222
D mm 103 122 135 173 196 222 279 339 409 450 514 549 606 717
D1 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432 476 540 578 635 749.5
D2 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
300Lb L mm 60 67 73 73 86 98 127 146 181 222 232 – – –
D mm 110 128 148 180 215 250 307 361 422 485 539 – – –
D1 mm 127 149 168.5 200 235 270 330 387.5 451 514.5 571.5 – – –
D2 mm 92 105 127 157 186 216 270 324 381 413 470 – – –
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 – – –
600Lb L mm 60 67 73 79 105 137 165 213 229 273 305 – – –
D mm 110 129 148 192 240 265 319 399 456 489 562 – – –
D1 mm 127 149 168.5 216 267 292 349 432 489 527 603 – – –
D2 mm 92 105 127 157 186 216 270 324 381 413 470 – – –
n-Фd mm 8-19 8-22 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 – – –
View Complete Details
Ask Latest Price & Details
F347 Swing Check Valve

F347 Swing Check Valve
  • Body F347, Alloy 20, Monel, Duplex, Super Duplex, Inconel, Hastelloy C276/B3, Titanium, Carbon Steel
  • Disc F347, Alloy20, ss304, ss316
  • Seal PTFE, RPTFE, PPL
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25
  • Test and Inspection API598, API6D, DIN3230, BS EN 12569

Pressure (Mpa) PN1.6Mpa
Size   mm 50 65 80 100 125 150 200 250 300 350 400
L 230 290 310 350 400 480 550 650 750 850 950
H 305 354 402 437 496 541 699 815 914 1189 1350
Wt(kg) 21 28 38 58 92 130 210 295 365 410 460
Pressure (Mpa) PN2.5Mpa
Size   mm 50 65 80 100 125 150 200 250 300 350 400
L 230 290 310 350 400 480 550 650 750 850 950
H 305 363 415 453 505 556 744 864 948 1269 1450
Wt(kg) 21 29 38 61 96 132 213 297 375 415 460
View Complete Details
Ask Latest Price & Details
F347 Gate Valve

F347 Gate Valve
  • Body F347, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Gate F347, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Inspection and Test API 598, API 6D
  • Nominal Size DN15 to DN500
  • Gland Packing Graphite, PTFE

DN L d H H1 W W1
15 140 14 198 – 120 –
20 152 19 215 – 140 –
25 165 25 245 – 160 –
32 178 32 306 – 180 –
40 190 38 400 – 200 –
50 216 51 420 – 200 –
65 241 64 446 – 200 –
80 283 76 537 – 250 –
100 305 102 619 650 280 310
125 381 127 722 750 300 310
150 403 152 806 835 350 310
200 419 203 1000 1030 400 310
250 457 254 1240 1280 450 310
300 502 305 1425 1460 500 310
350 762 337 1585 1620 500 460
400 838 387 1790 1830 600 460
450 914 438 1960 2000 650 460
500 991 489 2158 2220 750 460
View Complete Details
Ask Latest Price & Details
F347 Trunnion Mounted Ball Valve

F347 Trunnion Mounted Ball Valve
  • Body F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel
  • Nominal Pressure Class 150 to Class 2500, PN16 to PN63
  • Flanged End Dimension ANSI B16.5
  • Buttweld Dimension ANSI B16.25
  • Inspection and Testing API 598
  • Nominal Size 2″ to 24″

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
F347 Floating Ball Valve

F347 Floating Ball Valve
  • Body F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel
  • Ball F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel
  • Stem SS304, SS316
  • Design and Manufacture Standard ASME B16.34, API 6D
  • Buttweld Dimension ANSI B16.25
  • Inspection and Testing API 598

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-?d mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
View Complete Details
Ask Latest Price & Details
F317L Globe Valve

F317L Globe Valve
  • Body F317L, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Disc F317L, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Nominal Size 2″ to 12″
  • End Connections Flanged, Socketweld, Buttweld
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Inspection and Test API 598, API 6D

NPS in 2 2 1/2 3 4 5 6 8 10 12
d mm 51 64 76 102 127 152 203 254 305
L(RF) mm 203 216 241 292 356 406 495 622 698
L(BW) mm 203 216 241 292 356 406 495 622 698
L(RTJ) mm 216 229 254 305 369 419 508 635 711
d1 mm 92 105 127 157 186 216 270 324 381
d2 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432
D mm 152 178 190 229 254 279 343 406 483
b mm 16 18 19 24 24 26 29 31 32
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25
H mm 330 360 390 445 480 520 600 773 880
H1 mm     – – – – – 556 658 805 955
W mm 200 200 250 300 350 350 500 500 550
W1 mm – – – – – 310 310 460 460
View Complete Details
Ask Latest Price & Details
F317L Gate Valve

F317L Gate Valve
  • Body F317L, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Gate F317L, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20
  • Face to Face Dimensions ANSI B16.10, API 6D
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Inspection and Test API 598, API 6D

Dimensions                                                               Unit: mm

DN L d H H1 W W1
15 140 14 198 – 120 –
20 152 19 215 – 140 –
25 165 25 245 – 160 –
32 178 32 306 – 180 –
40 190 38 400 – 200 –
50 216 51 420 – 200 –
65 241 64 446 – 200 –
80 283 76 537 – 250 –
100 305 102 619 650 280 310
125 381 127 722 750 300 310
150 403 152 806 835 350 310
200 419 203 1000 1030 400 310
250 457 254 1240 1280 450 310
300 502 305 1425 1460 500 310
350 762 337 1585 1620 500 460
400 838 387 1790 1830 600 460
450 914 438 1960 2000 650 460
500 991 489 2158 2220 750 460
View Complete Details
Ask Latest Price & Details
F321 Globe Valve

F321 Globe Valve
  • Body F321, F91, Super Duplex Stainless Steel, Alloy 20
  • Bonnet, Gate F321, F91, Super Duplex Stainless Steel, Alloy 20
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel
  • Design and Manufacture ANSI B16.34, API 600, API 6D, API 603, BS1414
  • Face to Face Dimensions ANSI B16.10, API 6D
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Inspection and Test API 598, API 6D

NPS in 2 2 1/2 3 4 5 6 8 10 12
d mm 51 64 76 102 127 152 203 254 305
L(RF) mm 203 216 241 292 356 406 495 622 698
L(BW) mm 203 216 241 292 356 406 495 622 698
L(RTJ) mm 216 229 254 305 369 419 508 635 711
d1 mm 92 105 127 157 186 216 270 324 381
d2 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432
D mm 152 178 190 229 254 279 343 406 483
b mm 16 18 19 24 24 26 29 31 32
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25
H mm 330 360 390 445 480 520 600 773 880
H1 mm – – – – – 556 658 805 955
W mm 200 200 250 300 350 350 500 500 550
W1 mm – – – – – 310 310 460 460
View Complete Details
Ask Latest Price & Details
F321 Gate Valve

F321 Gate Valve
  • Body F321, F91, Super Duplex Stainless Steel, Alloy 20
  • Bonnet, Gate F321, F91, Super Duplex Stainless Steel, Alloy 20
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel
  • Nominal Size 2″ to 48″
  • Gland Packing Graphite, PTFE
  • Design and Manufacture ANSI B16.34, API 600, API 6D, API 603, BS1414
  • Face to Face Dimensions ANSI B16.10, API 6D
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Inspection and Test API 598, API 6D

SIZE L(RF/BW) L(RTJ) H W WEIGHT(RF) WEIGHT(BW)
IN mm mm mm mm kg kg
2” 216 232 400 200 30 26
2 ½” 241 257 477 250 39 34
3” 283 298 543 250 55 47
4” 305 321 650 300 83 68
5” 381 397 770 300 92 77
6” 403 419 880 350 137 118
8” 419 435 1037 450 240 195
10” 457 473 1275 500 333 271
12” 502 518 1438 560 536 432
14” 762 778 1650 460 699 595
16” 838 854 1840 460 1010 848
18” 914 930 2030 610 1205 1025
20” 991 1010 2240 610 1720 1460
24” 1143 1165 2900 610 2800 2294
28” 1346 1371 3100 610 3150 2870
30” 1397 1422 3540 610 3786 3220
32” 1524 1522 3860 610 4210 3675
36” 1727 1756 4312 610 6850 4990
40” 1930 – 4791 760 8460 6160
42” 1981 – 5032 760 9500 6800
48” 2235 – 5522 760 12400 9000
View Complete Details
Ask Latest Price & Details
F44 Globe Valve

F44 Globe Valve
  • Body F44, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9,
  • Bonnet, Disc F44, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6,
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Ste
  • Gland Packing Graphite, PTFE
  • End Connections Flanged, Socketweld, Buttweld
  • Face to Face Dimensions ANSI B16.10, API 6D
  • Flanged End Dimension 2″ to 24″ , ANSI B16.5, 26″ to 36″, ? MSS-SP-44 to API605
  • Inspection and Test API 598, API 6D

NPS in 2 2 1/2 3 4 5 6 8 10 12
d mm 51 64 76 102 127 152 203 254 305
L(RF) mm 203 216 241 292 356 406 495 622 698
L(BW) mm 203 216 241 292 356 406 495 622 698
L(RTJ) mm 216 229 254 305 369 419 508 635 711
d1 mm 92 105 127 157 186 216 270 324 381
d2 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432
D mm 152 178 190 229 254 279 343 406 483
b mm 16 18 19 24 24 26 29 31 32
n-?d mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25
H mm 330 360 390 445 480 520 600 773 880
H1 mm – – – – – 556 658 805 955
W mm 200 200 250 300 350 350 500 500 550
W1 mm – – – – – 310 310 460 460
View Complete Details
Ask Latest Price & Details
F44 Gate Valve

F44 Gate Valve
  • Body F44, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Bonnet, Gate F44, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel
  • Nominal Size: 2″ to 48″ Nominal Size: 2″ to 48″
  • Face to Face Dimensions: ANSI B16.10, API 6D Face to Face Dimensions: ANSI B16.10, API 6D
  • Flanged End Dimension: 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605 Flanged End Dimension: 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605

Dimensions

SIZE L(RF/BW) L(RTJ) H W WEIGHT(RF) WEIGHT(BW)
IN mm mm mm mm kg kg
2” 216 232 400 200 30 26
2 ½” 241 257 477 250 39 34
3” 283 298 543 250 55 47
4” 305 321 650 300 83 68
5” 381 397 770 300 92 77
6” 403 419 880 350 137 118
8” 419 435 1037 450 240 195
10” 457 473 1275 500 333 271
12” 502 518 1438 560 536 432
14” 762 778 1650 460 699 595
16” 838 854 1840 460 1010 848
18” 914 930 2030 610 1205 1025
20” 991 1010 2240 610 1720 1460
24” 1143 1165 2900 610 2800 2294
28” 1346 1371 3100 610 3150 2870
30” 1397 1422 3540 610 3786 3220
32” 1524 1522 3860 610 4210 3675
36” 1727 1756 4312 610 6850 4990
40” 1930 – 4791 760 8460 6160
42” 1981 – 5032 760 9500 6800
48” 2235 – 5522 760 12400 9000
View Complete Details
Ask Latest Price & Details
Inconel 3 Piece Ball Valve

Inconel 3 Piece Ball Valve
  • Body Inconel 600, Inconel 625
  • Ball SS304, SS316
  • Nominal Size 2″ to 24″
  • Design and Manufacture Standard API 6D, API 600
  • Flange End Dimension ANSI B16.5, ASME B16.5, DIN, JIS
  • Inspection and Test API 598, API 6D

Size L D D1 D2 H b-f z x Φd
15 130 95 65 45 99.2 16-2 4-Φ14
20 140 105 75 55 100 16-2 4-Φ14
25 150 115 85 65 115 16-2 4-Φ14
32 165 135 100 78 1169 18-2 4-Φ18
40 180 145 110 85 133 18-3 4-Φ18
50 200 160 125 100 140 20-2 4-Φ18
65 220 180 145 120 155 22-2 4-Φ18
80 241 195 160 135 182 22-2 8-Φ18
100 280 215 180 155 208 20-2 8-Φ18
125 320 245 210 185 249 22-2 8-Φ18
150 360 280 240 210 277 24-2 8-Φ23
200 400 335 295 265 328 26-2 12-Φ23
250 533 405 355 320 350 30-2 12-Φ25
View Complete Details
Ask Latest Price & Details
Inconel Wafer Butterfly Valve

Inconel Wafer Butterfly Valve
  • Body Inconel, Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Hastelloy, Monel, Titanium, Aluminium Bronze
  • Disc Duplex Stainless Steel, Hastelloy, SS316, Titanium, Aluminium Bronze
  • Seat PTFE, VITON, EPDM
  • Working Pressure Class 150 to Class 2500, PN 10 to PN40
  • End Dimensions ASME B16.5, JIS B2210, DIN
  • Operation Manual, Lever Operated, Gear Operated, Electric Actuated, Pneumatic Actuated

DN A B C E L H a D1 D2 D3 D4 N-D5 D6 D7 D8 D9 D10
mm inch
50 2″ 280 161 42.04 52.9 32 9.52 45° 83 11  52.6 120 4-23 70 10 102 100 12.6
65 21/2″ 303 175 44.68 64.5 32 9.52 45° 83 11  64.3 136.13 4-26.6 70  10 102 120 12。6
80 3″ 315 181 45.21 78.8 32 9.52 45°/22.5° 83 11  78.8 152.4/160.0 4-24/4-18 70  10 102 127 12.6
100 4″ 353 200 52.07 104 32 11.11 45°/22.5°  83 11 104  177.8/185.16 4.17.5/4-25.8 70  10 102 156 15.77
125 5″ 379 213 54.36 123.3 32 12.7 22.5° 83 11  123.3 215.01 4-23 70 10 102 190 18.92
150 6″ 404 226 55.75 155.6 32 12.7 22.5° 83 11  155.7  238.12 4-25 70  10 102 212 18.92
200 8″ 487 260 60.58 202.5 45  15.87 15°/22.5°  127 14 202.4 296.07 4-23/4-26 102  12 152 268 22.1
250 10″ 547 292 65.63 250.5 51 – 22.5°/15° 127 14 250.4 357 4-22/4-29 102  12 152 325 28.45
300 12″ 631 337 76.9 301.6 51 – 15°  127 14 301.5 406.4/431.8  4-30.2/4-25.4 102  12 152 403 28.45
View Complete Details
Ask Latest Price & Details
Inconel Dual Plate Check Valve

Inconel Dual Plate Check Valve
  • Body Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Disc Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Ste
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Su
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25
  • Test and Inspection API598, API6D, DIN3230, BS EN 12569



NPS in 2 21/2 3 4 5 6 8 10 12 14 16 18 20 24
150Lb L mm 60 67 73 73 86 98 127 146 181 184 191 203 219 222
D mm 103 122 135 173 196 222 279 339 409 450 514 549 606 717
D1 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432 476 540 578 635 749.5
D2 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
300Lb L mm 60 67 73 73 86 98 127 146 181 222 232
D mm 110 128 148 180 215 250 307 361 422 485 539
D1 mm 127 149 168.5 200 235 270 330 387.5 451 514.5 571.5
D2 mm 92 105 127 157 186 216 270 324 381 413 470
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35
600Lb L mm 60 67 73 79 105 137 165 213 229 273 305
D mm 110 129 148 192 240 265 319 399 456 489 562
D1 mm 127 149 168.5 216 267 292 349 432 489 527 603
D2 mm 92 105 127 157 186 216 270 324 381 413 470
n-Фd mm 8-19 8-22 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41
View Complete Details
Ask Latest Price & Details
Inconel Lug Butterfly Valve

Inconel Lug Butterfly Valve
  • Body Inconel, Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Hastelloy, Monel, Titanium, Aluminium Bronze
  • Disc Duplex Stainless Steel, Hastelloy, SS316, Titanium, Aluminium Bronze
  • Seat PTFE, VITON, EPDM
  • End Dimensions ASME B16.5, JIS B2210, DIN
  • Operation Manual, Lever Operated, Gear Operated, Electric Actuated, Pneumatic Actuated

DN Ñ„A Ñ„B C D L F Ñ„L H Ñ„M Ñ„N N- Ñ„P
50 47 102 140 98 43 16 46 11 70 90 4- Ñ„9
65 64 122 152 106 46 16 59 11 70 90 4- Ñ„9
80 76 133 165 113 46 16 76 11 70 90 4- Ñ„9
100 98 156 185 130 52 20 93 14 70 92 4- Ñ„9
125 119 188 205 147 56 20 118 14 70 95 4- Ñ„9
150 140 216 223 161 56 22 139 17 70 125 4- Ñ„11
200 190 268 268 203 60 25 190 19 102 125 4- Ñ„11
250 237 323 323 235 68 28 238 22 102 150 4- Ñ„14
300 280 336 336 268 78 32 281 27 125 150 4- Ñ„14
350 318 415 415 312 92 38 312 27 125 145 4- Ñ„18
View Complete Details
Ask Latest Price & Details
Inconel Swing Check Valve

Inconel Swing Check Valve
  • Body Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Disc Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Ste
  • Trim SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Su
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25
  • Test and Inspection API598, API6D, DIN3230, BS EN 12569

Class150

DN L H
50 203 150
65 216 168
80 241 180
100 292 210
125 330 230
150 356 275
200 495 340
250 622 355
300 698 410
350 787 475
400 864 552
450 978 600
500 978 660
600 1295 740
View Complete Details
Ask Latest Price & Details
Inconel Globe Valve

Inconel Globe Valve
  • Material Inconel
  • Class 150, 300
  • Size 1", 2", 3"
  • Temperature -198°c to +450°c
  • Butt welded end ANSI B16.5
  • Body Inconel 600, Inconel 625, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hast
  • Trim Inconel 600, Inconel 625, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20,
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated

Class 150

DN L d H H1 W W1
RF RTJ BW
50 203 216 203 51 330 – 200 –
65 216 229 216 64 360 – 250 –
80 241 254 241 76 390 – 280 –
100 292 305 292 102 445 – 300 –
125 356 369 356 127 480 – 350 –
150 406 419 406 152 520 556 350 310
200 495 508 495 203 600 658 400 310
250 622 635 622 254 773 805 450 460
300 698 711 698 305 880 955 500 460
350 787 800 787 337 950 1100 600 460
400 914 927 914 387 996 1175 600 460
500 978 991 978 488 – 1450 – 600
600 1295 1308 1295 590 – 1690 – 600
View Complete Details
Ask Latest Price & Details
Inconel Gate Valve

Inconel Gate Valve
  • body Inconel 600, Inconel 625, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • trim Inconel 600, Inconel 625, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20,
  • Bonnet, Gate Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6,
  • Gland Packing Graphite, PTFE
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated

Class 150

DN L d H H1 W W1
RF RTJ BW
50 178 191 216 51 400 – 200 –
65 190 203 241 64 435 – 200 –
80 203 216 283 76 515 – 250 –
100 229 241 305 102 595 – 280 –
125 254 267 381 127 725 – 280 –
150 262 279 403 152 780 820 300 310
200 292 305 419 203 975 1020 350 310
250 330 343 457 254 1150 1200 400 310
300 356 368 502 305 1380 1430 450 310
350 381 394 572 337 1545 1580 500 310
400 406 419 610 387 1733 1780 500 460
450 432 445 660 438 1915 1990 500 460
500 457 470 711 489 2122 2220 600 460
View Complete Details
Ask Latest Price & Details
Inconel Trunnion Mounted Ball Valve

Inconel Trunnion Mounted Ball Valve
  • Body Inconel 600, Inconel 625
  • Ball SS304, SS316
  • End Cap: CF8, CF8M
  • Nominal Size 2″ to 24″
  • Flange End Dimension ANSI B16.5, ASME B16.5, DIN, JIS
  • Inspection and Test: API 598, API 6D Inspection and Test: API 598, API 6DFlange End Dimension: ANSI B16.5, ASME B16.5, DIN, JIS

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
Incoloy Globe Valve

Incoloy Globe Valve
  • Material Incoloy
  • Class 150, 300
  • Size 1", 2", 3"
  • Operation Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN600
  • Butt welded End Dimension ANSI B16.5
  • Inspection and Test API 598, API 6D, DIN 3230

Class 150

DN



L

 d H H1 W W1
RF RTJ BW
50 203 216 203 51 330 – 200 –
65 216 229 216 64 360 – 250 –
80 241 254 241 76 390 – 280 –
100 292 305 292 102 445 – 300 –
125 356 369 356 127 480 – 350 –
150 406 419 406 152 520 556 350 310
200 495 508 495 203 600 658 400 310
250 622 635 622 254 773 805 450 460
300 698 711 698 305 880 955 500 460
350 787 800 787 337 950 1100 600 460
400 914 927 914 387 996 1175 600 460
500 978 991 978 488 – 1450 – 600
600 1295 1308 1295 590 – 1690 – 600
View Complete Details
Ask Latest Price & Details
Incoloy Gate Valve

Incoloy Gate Valve
  • Material Incoloy
  • Class 150, 300
  • Size 1", 2", 3"
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN500
  • Butt welded End Dimension ANSI B16.5
  • Inspection and Test API 598, API 6D, DIN 3230

Class 150

DN L d H H1 W W1
RF RTJ BW
50 178 191 216 51 400 – 200 –
65 190 203 241 64 435 – 200 –
80 203 216 283 76 515 – 250 –
100 229 241 305 102 595 – 280 –
125 254 267 381 127 725 – 280 –
150 262 279 403 152 780 820 300 310
200 292 305 419 203 975 1020 350 310
250 330 343 457 254 1150 1200 400 310
300 356 368 502 305 1380 1430 450 310
350 381 394 572 337 1545 1580 500 310
400 406 419 610 387 1733 1780 500 460
450 432 445 660 438 1915 1990 500 460
500 457 470 711 489 2122 2220 600 460
View Complete Details
Ask Latest Price & Details
brass valve

Brass Valve
  • Number Of Flower Brass Ball Valve Brass Gate Valve Brass Check Valve Brass Globe Valve Brass Y Strainer Brass Safety Valve
  • Usage Water Fitting
  • Advantages Corrosion-resistant Durable and Reliable They are easy to machine and manufacture They operate smoot
  • Industry Water treatment and distribution Oil and gas Chemical processing Petrochemical Power generation Pulp
Specialityvalve is a trusted Brass Valve Manufacturer in India. We supply to South Africa, Canada and Argentina. A brass valve is mainly made of brass, which is a metal alloy generally composed of copper and zinc. The exact composition differs with different types of brass valves having varying proportions of these metals as well as small amounts of other elements like lead or aluminum. The alloy used can have an effect on the valves qualities, such as its strength, resistance to corrosion, and compatibility for certain applications. A brass valve may also have additional parts such as a valve stem, handle or actuator for manual operation, seals or gaskets to prevent leaks, and internal mechanisms that control the flow of fluid through the valve in addition to the brass body. These extra components can differ depending on the type and design of the valve, as there are a variety of brass valves each built for unique roles and applications.
View Complete Details
Ask Latest Price & Details

Tell Us What are you looking for? Will call you back

Contact Us

View Contact No.
