Hydraulic Press

Our product range contains a wide range of C Frame Hydraulic Press, H Frame Hydraulic Press, Pillar Type Hydraulic Press, Hydraulic Clicker Press and Blank Holder Type Hydraulic Deep Drawing Press

C Frame Hydraulic Press

C Frame Hydraulic Press
  • Min. Order (MOQ) 1 Piece
  • Material Mild Steel
  • Packaging Type Green & Red
  • Printing Type Text Printing
  • Type Triple Action
  • Size Standard
  • Surface Polished
  • Capacity 100 Kg Per Hour

Specifications

Model Unit VI 25 VI 50 VI 70 VI 100 VI 150 VI- 200
Nominal Force Tons 25 40 63 100 160 200
Working table height mm 710 710 810 800 830 900
Max.hydraulic pressure Bar 200 200 200 200 200 200
Throat depth mm 350 350 320 400 420 450
Stroke of slide mm 350 350 350 400 500 500
Daylight mm 550 550 600 600 700 800
Speed of slide idle mm/s 50 50 60 60 80 80
pressing mm/s 10 10 15 15 15 10
return mm/s 75 75 90 90 70 70
Effective area of work table L-R mm 500 500 700 700 900 900
F-B mm 560 570 600 600 800 800
Motor Power HP 5 5 7.5 7.5 10 15
View Complete Details
Ask Latest Price & Details
H Frame Hydraulic Press

H Frame Hydraulic Press
  • Min. Order (MOQ) 1 Piece
  • Size Standard
  • Pattern Plain
  • Surface Polished
  • Capacity 100 Kg Per Hour
  • Motor Power 6 HP
  • Voltage 240 V
  • Weight 6 Ton

Specifications

MODEL VI100 VI-200 VI- 300 VI- 400 VI- 500 VI- 600
Capacity TON 100 200 300 200 5000 600
Hydraulic cushion capacity TON 40 120 150 150 150 200
Slide Stroke mm 500 800 1000 1000 1000 1500
Hydraulic cushion Stroke mm 150 260 300 350 300 400
Max. Shut Height mm 700 1200 1600 1500 1400 2000
Slide Speed Idle
Stroke		 mm/s   220 200 200 220 200
Pressing mm/s 15-25 15-25 44849 44819 44793 44727
Return mm/s 160 160 150 150 160 150
Ejecting Speed Eject mm/s 60 60 60 60 80 80
Return mm/s 100 100 100 100 120 100
Bolster Size LR mm 600 1000 2500 2700 2000 4500
FB mm 600 1000 1600 1500 1400 2500
Main Motor Power HP 15 20 30 50 50 75

View Complete Details
Ask Latest Price & Details
Pillar Type Hydraulic Press

Pillar Type Hydraulic Press
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Reverse Rotation Yes
  • Is It Variable Speed Yes
  • Material Cast Iron
  • Country of Origin 110V
  • Total Carbohydrate 1 Year

Specifications

MODEL VI50 VI100 VI150 VI200 VI300
Capacity TON 50 100 150 200 300
Return Force TON 15 20 30 40 70
Slide Stroke mm 250 400 400 500 600
Max. Shut Height mm 600 900 1000 1100 1300
Slide Speed Idle Stroke mm/s 50 50 50 60 60
Pressing mm/s 5 5 5 5 5
Return mm/s 70 70 70 70 70
Bolster Size LR mm 650 720 720 720 1260
FB mm 500 580 580 580 1200
Main Motor Power kW 5 7.5 11 15 22
MODEL   VI 400 VI500 VI600 VI 800
Capacity TON   400 500 600 80
Return Force TON   80 100 100 150
Slide Stroke mm   600 700 700 700
Max. Shut Height mm   150 1200 1200 1200
Slide Speed Idle Stroke mm/s   60 60 60 60
Pressing mm/s   5 8 6 6
Return mm/s   60 100 150 120
Bolster Size LR mm   200 2800 2800 300
FB mm   150 1800 1800 220
Main Motor Power kW   25 30 40 50
View Complete Details
Ask Latest Price & Details

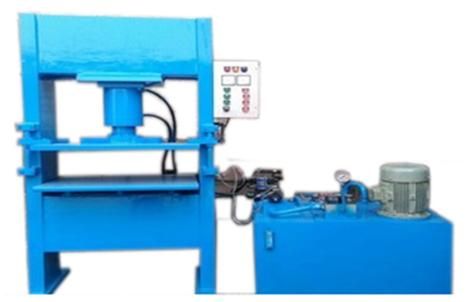

Hydraulic Clicker Press

Hydraulic Clicker Press
  • Min. Order (MOQ) 1 Piece
  • Usage Cutting of Foam/rubber/leather
  • Stroke 5 mm – 95 mm
  • Brand Name Veenus
  • Control Type CNC, Non-CNC, Hydraulic
  • Max Force or Load 100 ton
  • Country of Origin 220 V – 440 V
  • Capacity 40-100 Ton
  • Automatic Grade Automatic
  • Type of Press H-Frame Press
  • Number of Cylinders 1, 2
  • Power Source Hydraulic
View Complete Details
Ask Latest Price & Details
Blank Holder Type Hydraulic Deep Drawing Press

Blank Holder Type Hydraulic Deep Drawing Press
  • Min. Order (MOQ) 1 Piece
  • Material Cast Iron
  • Packaging Type Green
  • Country of Origin 220V
  • Phase Double Phase
  • Total Carbohydrate 1 Year
  • Operating Mode Automatic
  • Machine Structure Horizontal
  • Packaging Type Wooden Box

Specifications

Model VI 100 VI  150 VI 200 VI300 VI 500
CAPACITY TONS 100 150 200 300 500
Draw length MM 250 250 300 500 500
DRAW FORCE TONS 100 150 300 300 500
STROKEMM 600 600 650 1200 1200
BLANK HOLDER FORCE TON 50 80 100 150 250
STROKE 350MM 350 400 600 700
SHUT HIGHT MM 800 900 900 1200 1350
IDEAL SPEED MM/S 100 100 100 100 100
EJECTOR SPEED MM/S 150 150 150 150 150
DRAW SPEED MM 20 20 20 20 20
RETURN MM/S 150 150 150 150 150
BOLSTER PLATE MM 700X700 800X800 1000X1000 1200X1200 1500X1500
ELECTRIC MOTOR HP 20 25 40 60 120
View Complete Details
Ask Latest Price & Details
Hydraulic Punching Press

Hydraulic Punching Press
  • Min. Order (MOQ) 1 Piece
  • Certification CE Certified
  • Application For Punching Metal Sheets
  • Availability 100-1000kg
  • Country of Origin 110V
  • Automatic Grade Automatic
  • Power 1-3kw
View Complete Details
Ask Latest Price & Details
Cushion Type Hydraulic Deep Drawing Press

Cushion Type Hydraulic Deep Drawing Press
  • Min. Order (MOQ) 1 Piece
  • Material Cast Iron
  • Operating Mode Automatic
  • Width 50mm
  • Pressure Medium Pressure
  • Overall Length 35mm, 45mm
  • Power 1-3kw
  • Specialities Rust Proof, Long Life, High Performance, Easy To Operate

Specifications

MODEL VI100 VI-200 VI- 315 VI- 400 VI- 500 VI- 600
Capacity TON 100 200 300 200 5000 600
Hydraulic cushion capacity TON 40 120 150 150 150 200
Slide Stroke mm 500 800 1000 1000 1000 1500
Hydraulic cushion Stroke mm 150 260 300 350 300 400
Max. Shut Height mm 700 1200 1600 1500 1400 2000

Slide Speed		 Idle
Stroke		 mm/s   220 200 200 220 200
Pressing mm/s 15-25 15-25 44849 44819 44793 44727
Return mm/s 160 160 150 150 160 150
Ejecting Speed Eject mm/s 60 60 60 60 80 80
Return mm/s 100 100 100 100 120 100
Bolster Size LR mm 600 1000 2500 2700 2000 4500
FB mm 600 1000 1600 1500 1400 2500
Main Motor Power HP 15 20 30 50 50 75


View Complete Details
Ask Latest Price & Details
