Basant Industries

Basant Industries
location Industrial Area B, Ludhiana, Punjab

Write a Review
Call Now Call Now

Our Products

  1. Crusher, Shredder & Presses 3 Products available
  2. Others Products 15 Products available

Our Products

We are leaders in the market for providing best range of C Frame Hydraulic Press Machine, Special Purpose Two RAM Press Machine, Two Point H Frame Power Press Machine, Bandsaw Machines and Hydraulic 300 Ton Power Press Machine

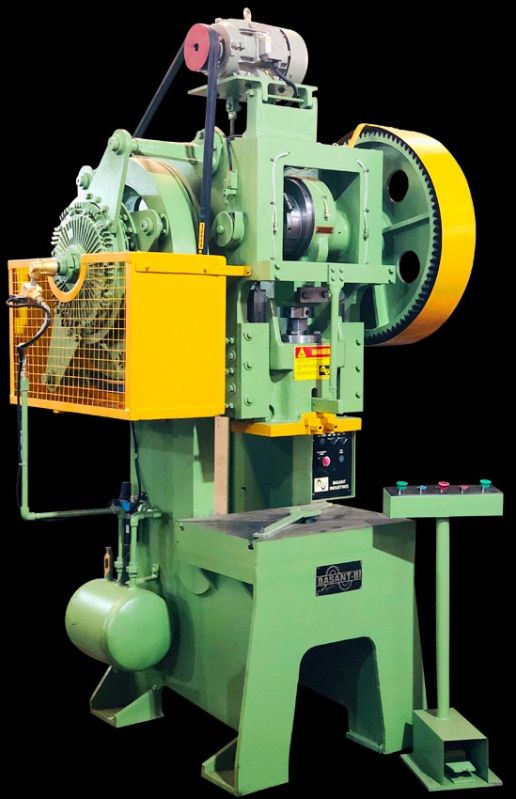

C Frame Mechanical Power Press Machine

C Frame Mechanical Power Press Machine
  • Speed High Speed
  • Features Utmost Quality, High Strength, Corrosion Resistance
  • Category Power Presses
  • Frame Type C Frame
  • Press Purpose Forging
  • Press Capacity 300 Ton
Possible means of operation are : Two hand single stroke Foot single stroke Foot continuous stroke Two hand single stroke Two hand setup Lubrication pump is provided for central lubrication at extra cost Lubrication visible through plastic tubes Features : Utmost quality High strength Corrosion resistance OUR PRESSESS Power Presses H Frame Power Press C Frame Power Press C Frame Cross Shaft Press C Frame Hydraulic Press H Frame Forging Purpose Power Press H Frame Small Machine For Forging Purpose High Speed Mechanical C Frame Power Press Hydraulic 300 Ton Power Press Special Purpose Two Ram Press Knuckle Joint Power Press Two Point H Frame Power Press H Frame (Cross Shaft) Power Press Ring Frame (Cross Shaft) Power Press Imported Machines New Machines Used Machines

TYPE SERIES MCF-10 MCF-20 MCF-30 PUCF-30 MCF-50 PUCF-50 MCF-75 PUCF-75 MCF-100 PUCF-100 MCF-150 PUCF-150 MCF-200 PUCF-200 MCF-300 PUCF-250
CAPACITY TON 10 20 30 50 75 100 150 200 250
BED SIZE LR X FB MM 330×508 355×558 405×610 508×711 560×813 550×600 711×965 750×1000 800×1100
STROKE ADJUSTABLE MM 0-50 0-63 0-75 0-90 0-100 0-110 0-125 0-150 0-175
DEPTH OF THROAT MM 165 178 203 254 280   355 375 400
SHUT HEIGHT MM 205 267 290 305 355 380 405 485 500
SLIDE ADJUSTMENT MM 40 40 40 50 50 63 63 70 70
SLIDE FACE OPENING MM 28×60 32×75 35×75 38×80 45×85 45×90 50×100 57×125 62×125
BORD IN BED MM 102 115 127 150 178 205 229 280 300
BOLSTER THICKNESS MM 63 76 83 89 95 80 102 120 125

HEIGHT OF TABLE
SURFACE FROM FLOOR

 MM 635 648 724 737 749 660 765 765 765
STROKES PER MINUTE SPM 70 70 65 60 55 50 45 35 35
POWER REQUIRED HP/RPM 1/1400 2/1400 3/1400 5/1400 7.5/1400 10/1400 15/1400 20/1400 25/1400
APPROX. WEIGHT KG.MCF/PUCF 950 1350 1700/2300 2300/3500 4050/5200 5050/6500 6500/8000 8000/98500 9500/1200

View Complete Details
Ask Latest Price & Details

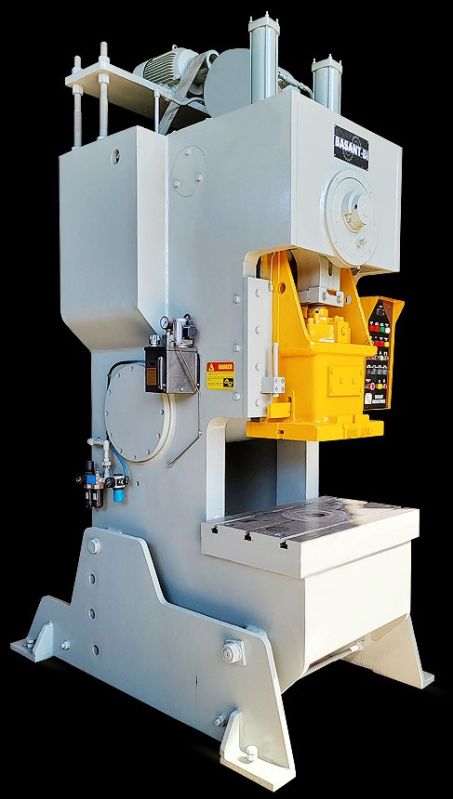

C Frame Cross Shaft Press Machine

C Frame Cross Shaft Press Machine
  • Indicators Die Height Indicator, Crank Angle Indicator, Electrical Stroke Counter
  • Switch Rotary Cam Switch
  • Additional Features Slide Balancer
  • Material Quality Steel Plates
Features: Hydraulic Overload Safety System Manual Slide Adjustment Device Motorized Slide Adjustment Device above 60 Tons Presses Die Height Indicator Rotary Cam Switch Crank Angle Indicator Electrical Stroke Counter Against Over Run Safety Device Slide Balancer The machine body is welded of quality steel plates

TYPE SERIES CS 25 CS 35

CS 45

CS 60

CS 80

CS 110

CS 125

CS 160

 CS 200 CS 260

CS 315
CAPACITY TON 25 35 45 60 80 110 125 125 200 200 310
BED SIZE MM 680×300
x70		 800×400
x70		 850×440
x80		 900×500
x80		 1000×600
x110		 1150×600
x110		 1150×600
x110		 1250×760
x160		 1250×860
x160		 1500×860
x160		 1600×900
x180
STROKE FIXED MM 70 30 70 40   80 50   120 60   150 70   180 80   180 80   200 90   200 100   200 100   250 150
SHUT HEIGHT MM 195 215   220 235   250 265   310 340   340 380   360 410   360 410   400 450   450 500   460 510   500 550
SLIDE MM 50 55 60 75 80 80 80 100 100 110 120
SLIDE FACE OPNG MM ø38.10 ø38.10 ø38.10 ø50 ø50 ø50 ø50 ø65 ø65 ø65 ø65
BED OPENING MM 240×120 240×140 300×150 320×160 360×180 400×200 440×220 440×220 440×220 480×240 520×260
TABLE HEIGHT FROM FLOOR MM 800 790 800 795 840 840 840 910 910 1030 1030

STROKES PER MINUTE

 SPM 110 85 75 65 65 50 50 35 35 35 30
MOTOR HP 5 5 7.5 7.5 10 10 15 20 25 30 40











View Complete Details
Ask Latest Price & Details

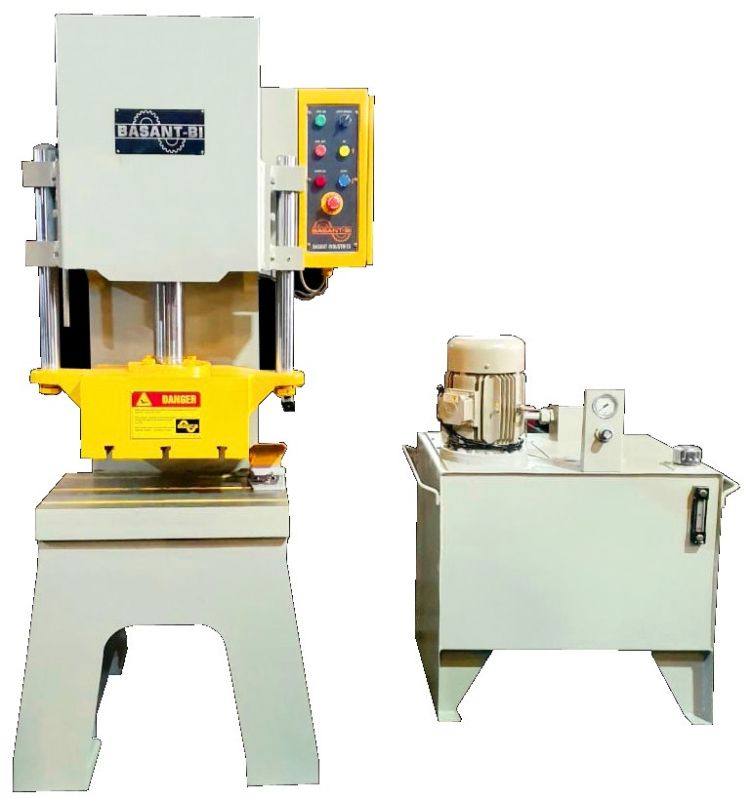

C Frame Hydraulic Press Machine

C Frame Hydraulic Press Machine
  • Power Source Electric
  • Availability Heavy
  • Total Carbohydrate 1 Year Limited
  • Capacity 50 Tons
  • Dimensions Standard
View Complete Details
Ask Latest Price & Details

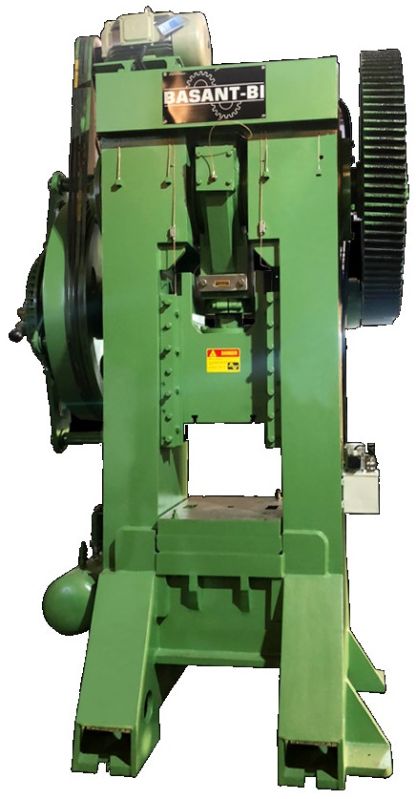

H Frame Forging Purpose Power Press Machine

H Frame Forging Purpose Power Press Machine
  • Number Of Flower H Frame Forging Purpose Power Press Machine
  • Usage Forging
  • Material Steel
View Complete Details
Ask Latest Price & Details

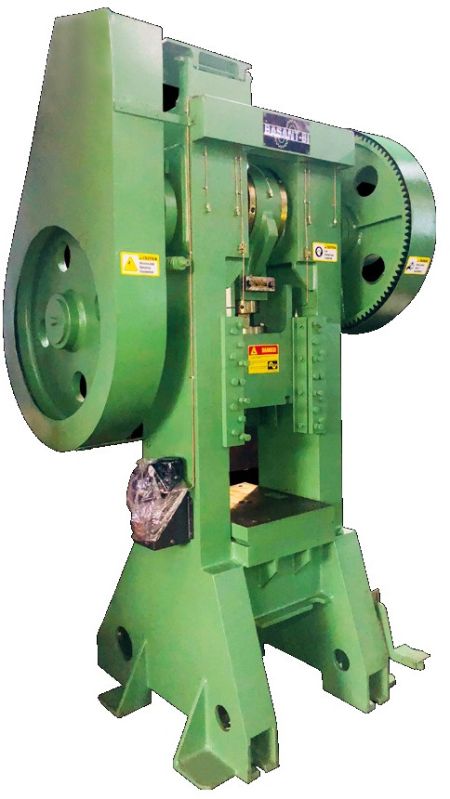

H Frame Small Machine FOR Forging Purpose

H Frame Small Machine FOR Forging Purpose
  • Number Of Flower Forging Machine
  • Material Steel
  • Usage Forging
  • Name H Frame Small Machine FOR Forging Purpose
  • Size Small
View Complete Details
Ask Latest Price & Details

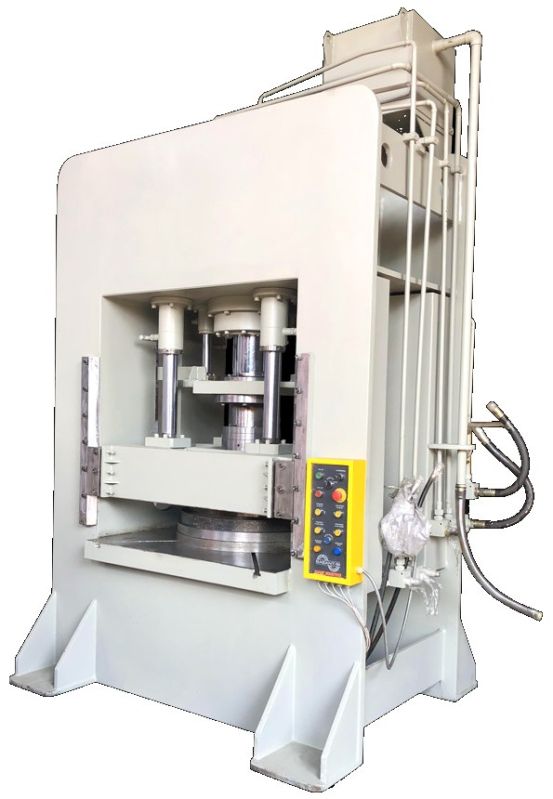

Hydraulic 300 Ton Power Press Machine

Hydraulic 300 Ton Power Press Machine
  • Capacity 300 Ton
  • Material Steel
  • Packaging Type Usually Shipped Assembled
  • Usage Metalworking Operations
  • Total Carbohydrate Typically 1 Year
  • Power Source Hydraulic
  • Speed Variable Speed
  • Safety Features Emergency Stop Button
View Complete Details
Ask Latest Price & Details

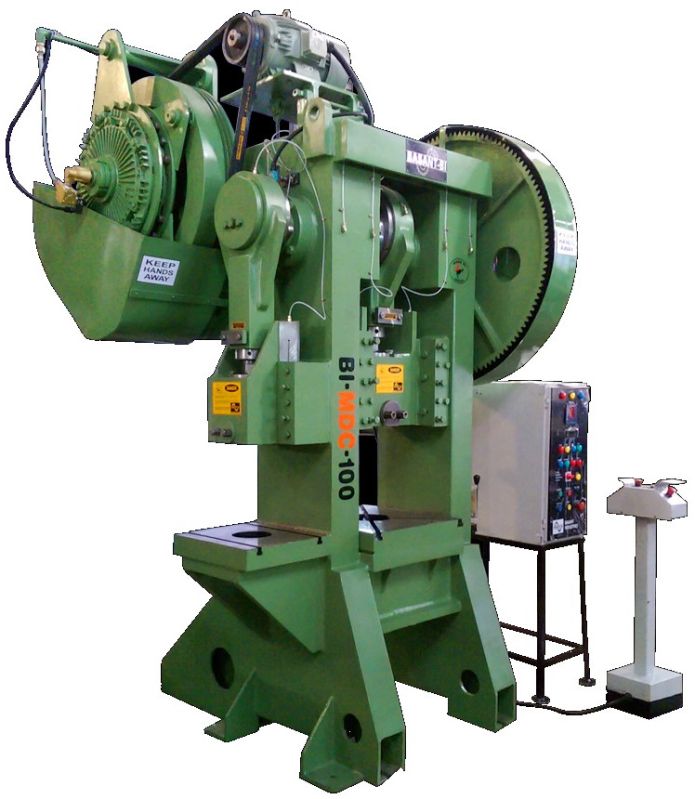

Special Purpose Two RAM Press Machine

Special Purpose Two RAM Press Machine
  • Number Of Flower Press Machine
  • Usage Industrial
  • Name Special Purpose Two RAM Press Machine
  • Special Feature Two RAM
  • Power Source Electric
  • Dimensions Standard Industrial Size
View Complete Details
Ask Latest Price & Details

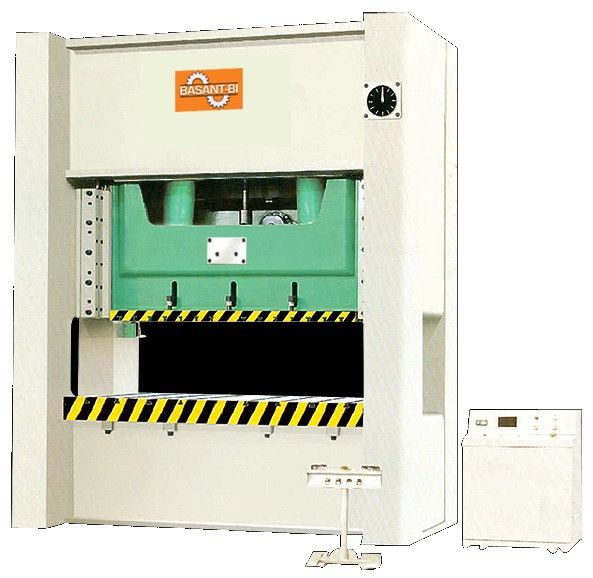

Two Point H Frame Power Press Machine

Two Point H Frame Power Press Machine
  • Number Of Flower Power Press Machine
  • Usage Automobile Industry And Railways
  • Material Metal
  • Customizable Yes
  • Specifications Different Specifications Available
We are remarkable entity, engaged in offering high quality Imported Two Point H Frame Power Press that is used in automobile industry and railways. It is manufactured by our experienced professional in compliance with international quality standard from supreme grade metal and other related raw material. In order to ensure quality, this machine is thoroughly tested on various parameters. Our offered machine can be custom designed as per the demands of the clients. We offer this machine in different specifications at rock-bottom price.
View Complete Details
Ask Latest Price & Details

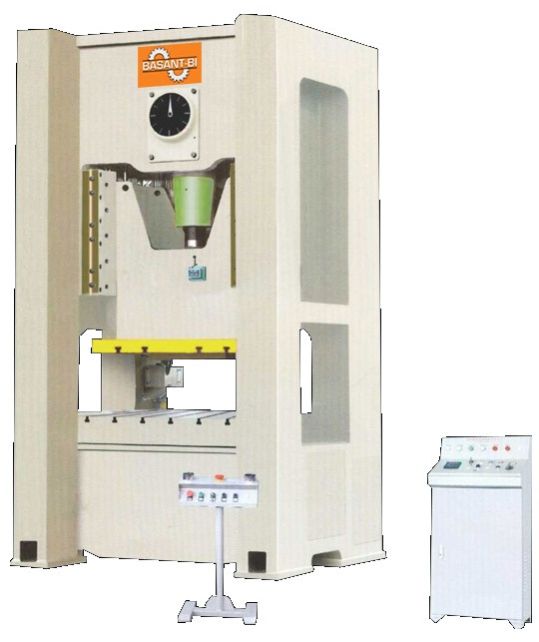

H Frame (Cross Shaft) Power Press Machine

H Frame (Cross Shaft) Power Press Machine
  • Number Of Flower Power Press Machine
  • Usage Metal Forming
  • Capacity 50 Tons
  • Material Steel
  • Packaging Wooden Crate
  • Speed 60 Strokes Per Minute
  • Control System Manual
View Complete Details
Ask Latest Price & Details

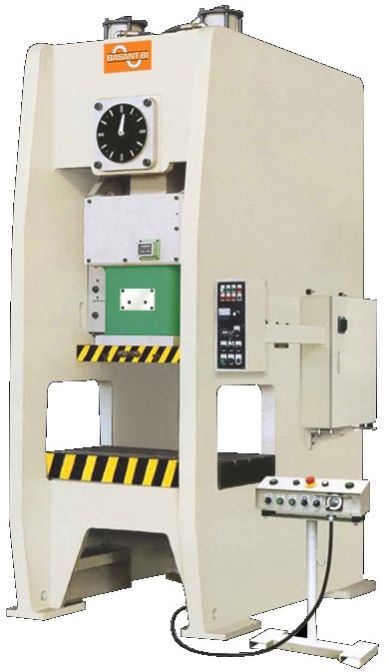

Ring Frame Cross Shaft Power Press Machine

Ring Frame Cross Shaft Power Press Machine
  • Number Of Flower Power Press Machine
  • Material Supreme Grade Raw Material
  • Type Of Press Cross Shaft
  • Shapes Available Variety
  • Sizes Available Variety
  • Usage Industrial
Ring Frame ranging 80-160 Tons Capacity in Cross Shaft Type. As a flourishing industry, we are instrumental in offering a high quality range of Ring Frame Cross Shaft Power Press. Our offered machine is manufactured at our state-of-the-art manufacturing unit using supreme grade raw material and cutting edge technology. In order to meet the varied needs of clients, this machine is offered in a variety of shapes and sizes. Further, our clients can avail this machine at pocket friendly prices
View Complete Details
Ask Latest Price & Details
Rolling Mills Machine

Rolling Mills Machine
  • Number Of Flower Industrial Machinery
  • Usage Metalworking Processes
  • Power Source Electric
  • Dimensions Varies Based On Capacity
  • Weight Varies Based On Capacity
View Complete Details
Ask Latest Price & Details

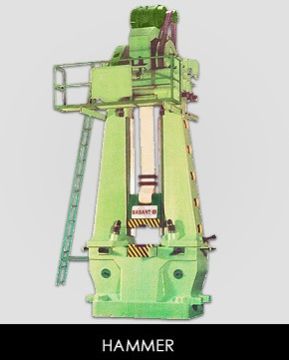

Forging Machines

Forging Machines
  • Material Steel
  • Application Industrial Forging Operations
  • Power Source Electric
  • Capacity Varies Based On Model
  • Automation Level Semi-automatic
  • Safety Features Emergency Stop Button
View Complete Details
Ask Latest Price & Details

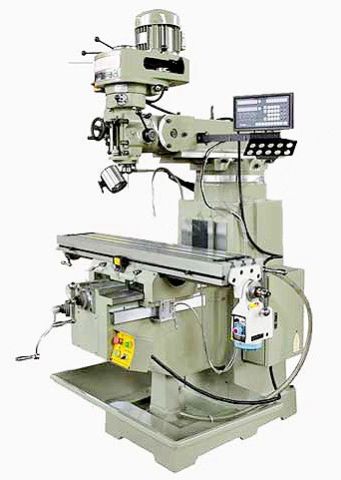

RAM Turret Machines

RAM Turret Machines
  • Material Steel
  • Usage Metal Fabrication
  • Power Source Electric
  • Dimensions Varies Based On Model
  • Type Industrial Machinery

SPECIFICATIONS NO:3 NO:4
Table size(mm) 254×1270 (10″x50″) 254×1370 (10″x50″)
Longitudinal Travel (mm) 850 980
Cross Travel (mm) 385 400
Vertical Travel(mm) 3 numbers 16x3x63

16x3x63
Table T-slots(mm) 3 numbers 3 3
Spindle Motor (H.P.) 16 Steps / 50-3500 16 Steps / 50-3500
Spindle Speed (RPM) R8 R8
Spindle Taper 0-428 0-428
Spindle Nose to table Top (mm.) 200-680 200-680
Spindle Centre to Column Surface (mm). 127 127
Quill Travel (mm) 0.40/0.08/0.15 0.40/0.08/0.15
Auto Quill Feeds (per revolution)mm (RxL)90 degree / (FxB) 45 degree (RxL)90 degree / (FxB) 45 degree
Head Swivel 480 480
Ram Travel (mm) 1280/1380kgs 1280/1380kgs
Net Weight (kgs.) Dovetail Guide Way Dovetail Guide Way
Y – Axis 55dg. Swallow tail or Square 55dg. Swallow tail or Square
Z – Axis Guideway Guideway
View Complete Details
Ask Latest Price & Details

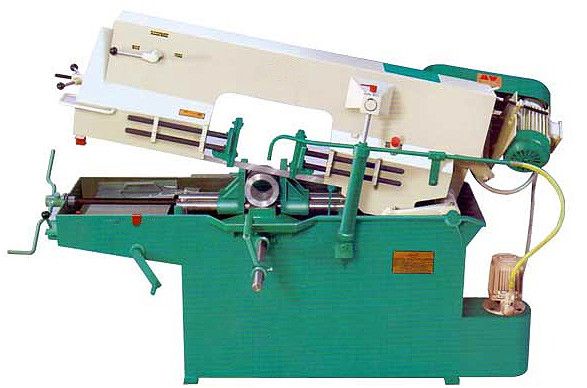

Bandsaw Machines

Bandsaw Machines
  • Number Of Flower Bandsaw Machine
  • Application Cutting Various Materials
  • Packaging Cardboard Box
  • Power Source Electric
  • Blade Type Carbon Steel
  • Blade Length Varies Based On Model
View Complete Details
Ask Latest Price & Details

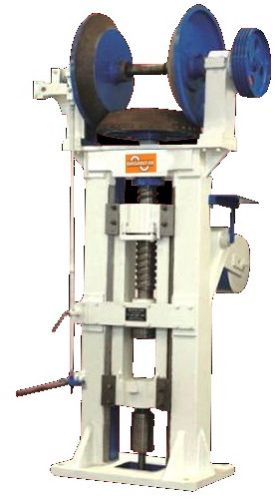

Forging Screw Presses Machines

Forging Screw Presses Machines
  • Number Of Flower Forging Machine
  • Material Steel
  • Application Metal Forging
  • Power Source Electric
  • Packaging Wooden Crate

Type Nominal Capacity Dia of Screw Stroke Slide Table Pieces/Hour Max.Dia of Bolt Capable
Forging		 Max.length of bolt Capable Forging Foundaton Pulley size Power Required/H.P.
(Approx.) Motor R.P.M.
  Tons mm/inch mm/inch mm/inch   mm/inch mm/inch mm/inch mm/inch H.P./R.P.M
VFP 50 85/3¼ 300/12 200/8 800-1200 12/½ 250/10 840-585 100/4B 3/1440
VFP 100 110/4¼ 400/16 225/9 600-1000 20/¾ 300/12 930×610 100/4B 7.5/1440
VFP 125 115/4½ 450/18 225/9 500-900 22/⅞ 400/16 940×710 100/4B 10/1440
VFP 150 130/5⅛ 500/20 250/10 400-700 32/1¼ 450/18 1080×750 125/5C 15/1440
VFP 200 135/5⅜ 550/22 275/11 300-600 38/1½ 500/20 1115×790 125/5C 20/1440
VFP 300 155/6⅛ 600/24 275/11 200-500 50/2 600/24 1200×860 200/8C 25/960
VFP 400 175/7 650/26 300/12 150-300 63/2½ 650/26 1320×1000 200/8C 30/960
VFP 500 200/8 700/28 335/13 80-250 75/3 700/28 1470×1050 200/8C 40/960
VFP 630 225/9 760/30 355/14 70-225 90/3½ 760/30 1525×1100 200/8C 50/960
VFP 800 250/10 810/32 380/15 60-200 100/4 810/32 1600×1150 200/8C 60/960
VFP 1000 275/11 865/34 405/16 50-150 115/4½ 860/34 1750×1250 200/8C 70/960


View Complete Details
Ask Latest Price & Details
