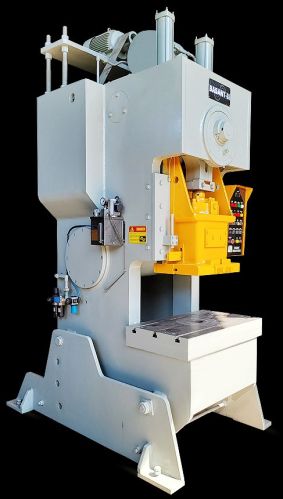

Quality Steel Plates C Frame Cross Shaft Press Machine

IndicatorsDie Height Indicator, Crank Angle Indicator, Electrical Stroke Counter
MaterialQuality Steel Plates
SwitchRotary Cam Switch
Additional FeaturesSlide Balancer
Supply TypeManufacturer
Preferred Buyer Location All over the world

Features: ☼ Hydraulic Overload Safety System ☼ Manual Slide Adjustment Device ☼ Motorized Slide Adjustment Device above 60 Tons Presses ☼ Die Height Indicator ☼ Rotary Cam Switch ☼ Crank Angle Indicator ☼ Electrical Stroke Counter ☼ Against Over Run Safety Device ☼ Slide Balancer ☼ The machine body is welded of quality steel plates

View More Details

Send Enquiry

Company Information

Basant Industries

Industrial Area B, Ludhiana, Punjab

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

TYPE	SERIES	CS 25	CS 35	CS 45	CS 60	CS 80	CS 110	CS 125	CS 160	CS 200	CS 260	CS 315
CAPACITY	TON	25	35	45	60	80	110	125	125	200	200	310
BED SIZE	MM	680×300 x70	800×400 x70	850×440 x80	900×500 x80	1000×600 x110	1150×600 x110	1150×600 x110	1250×760 x160	1250×860 x160	1500×860 x160	1600×900 x180
STROKE FIXED	MM	70 30	70 40	80 50	120 60	150 70	180 80	180 80	200 90	200 100	200 100	250 150
SHUT HEIGHT	MM	195 215	220 235	250 265	310 340	340 380	360 410	360 410	400 450	450 500	460 510	500 550
SLIDE	MM	50	55	60	75	80	80	80	100	100	110	120
SLIDE FACE OPNG	MM	ø38.10	ø38.10	ø38.10	ø50	ø50	ø50	ø50	ø65	ø65	ø65	ø65
BED OPENING	MM	240×120	240×140	300×150	320×160	360×180	400×200	440×220	440×220	440×220	480×240	520×260
TABLE HEIGHT FROM FLOOR	MM	800	790	800	795	840	840	840	910	910	1030	1030
STROKES PER MINUTE	SPM	110	85	75	65	65	50	50	35	35	35	30
MOTOR	HP	5	5	7.5	7.5	10	10	15	20	25	30	40
