Modulbox-Dualmount12T-22.5 - a versatile, compact enclosure is ideal for housing small devises like I/O circuits, relays, timers etc. Enclosure is having wall as well as DIN rail mounting facility. It is designed as per DIN 43880 has cover face of 45mm high enables it to mount within large international style enclosures / distribution system with 45 mm cutouts like MCB.

Features

• Dimensional size per DIN 43 880 - Can be mounted with Distribution system along with MCB
• Snap-together design speeds up assembly.
• Two PCBs, Base PCB fixed on Base Plate, Vertical PCB for which cover has integral molded guides.
• Innovative Clips design facilitates Wall / Rail Mount to Enclosures by changing its position in Base plate.
• Max. 12 Terminal (3+3+3+3) – standard 5mm pitch
• Protection - IP20 (finger protected) Protection against accidental contact
• Terminals are optional – Enclosure supplied with / without terminals - customer can use standard
• commercial terminal available of their choice.

Modulbox-Dualmount- MD6.35T-22.5 - a versatile, compact enclosure is ideal for housing small devises like I/O circuits, relays, timers etc. Enclosure is having wall as well as DIN rail mounting facility. It is designed as per DIN 43880 has cover face of 45mm high enables it to mount within large international style enclosures / distribution system with 45 mm cutouts like MCB.

Features:

• Dimensional size per DIN 43 880 - Can be mounted with Distribution system along with MCB
• Snap-together design speeds up assembly.
• Two PCBs, Base PCB fixed on Base Plate, Vertical PCB for which cover has integral
• molded guides.
• Innovative Clips design facilitates Wall / Rail Mount to Enclosures by changing its position in Base plate.
• Max. 6 Terminal (3+3) – standard 6.35mm pitch
• Air ventilation – having slots for ventilation.
• Protection - IP20 (finger protected) Protection against accidental contact
• Terminals are optional – Enclosure supplied with / without terminals - customer can use standard commercial terminal available of their choice.

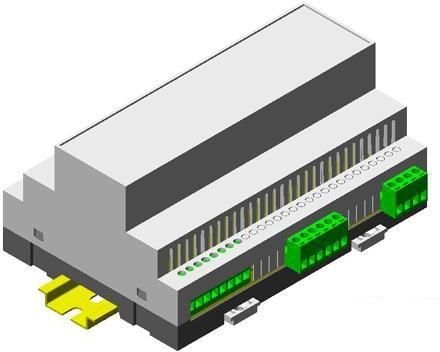

Modulbox-Dualmount-157 - a versatile, compact enclosure is ideal for housing medium to large size control devises. Modulbox offers wide designing option with three ways in PCB mounting and with customer specific solution in termination / connectors. Enclosure is having wall as well as DIN rail mounting facility. It is designed as per DIN 43880 has cover face of 45mm high enables it to mount within large international style enclosures / distribution system with 45 mm cutouts like MCB. Modular enclosure offers packaging to wide range of applications from Instrumentation, automotive industry to home/building automation. Typical applications are PLC, Multiple Relays, Multiple Timers, Transducers, Transmitters, Thermostat, Sensing and Monitoring Devices.

DIN Panel Cases are suitable for Panel Flush mounting Analog - Digital Instruments / Man-machine interface equipment / process indicators and controllers like Temp indicator, controller, Timers, Counters etc Case is available with front loading cassette which offers space for mounting electronic inside and provides display facility in front and connectors at back. Cassette is versatile assembly of plastic Front and Back panel plate which are joined together by metal plate / metal angles or PCBs. The plastic Front Plates and Back plate available in plain.

Modulbox-Dualmount-70 - a versatile, compact enclosure is ideal for housing medium size control devises. Modulbox offers wide designing option with three ways in PCB mounting and with customer specific solution in termination / connectors. Enclosure is having wall as well as DIN rail mounting facility. It is designed as per DIN 43880 has cover face of 45mm high enables it to mount within large international style enclosures / distribution system with 45 mm cutouts like MCB. Modular enclosure offers packaging to wide range of applications from Instrumentation, automotive industry to home/building automation. Typical applications are Relays, Timers, Transducers, Transmitters, Thermostat, Sensing and Monitoring Devices.
