Construction Machinery & Equipment #3463491

We are offering hot mix plant capacity:6 to 12 tonnes per hourpower : 4 cylinder diesel enginemixing : pugmill type loading&discharge : manualweight:7000kg(approx).

Details

• Batch Capacity - 20m. cub per hour
• Machine Output - 0.4m. cub per batch
• Weighing System - Digital load Indicator
• Water System - Automatic water system
• Cement - Automatic Feed Type
• Power - 33.75 HP
• Dimensions (Center Length xTota Length x Dia )mm - 1520 x 2520 x 1425
• Overall Dimensions (L xw x H)mm - 7257 x 2362 x 3643
• Weight - 7000 Kgs. (Approx.)

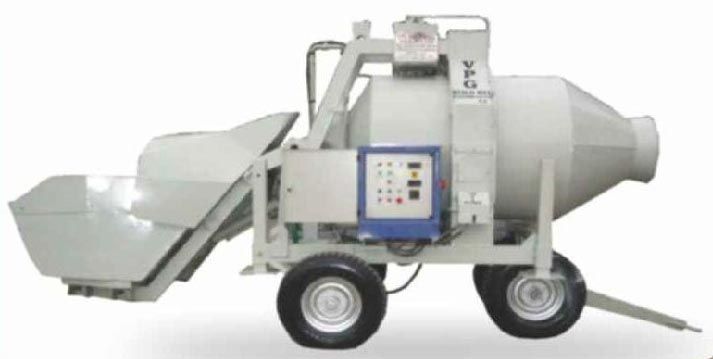

Details

• Batch Capacity - 1050 Kg (or) 0.4 cub. mtr  & 1500 Kg (or) 0.6 cub. mtr
• Machine Output - 8-13 cub. mtr per hr & 12-18 cub. mtrper hr
• Weighing System - Digital load Indicator
• Water System - Automatic water system
• Power - 12 HP Electric Motor & 14.5 HP Electric Motor
• Dimensions (Center Length xT ota Length x Dia )mm - 1520 X 2520 X 1300 mm & 1520 X 2520 X 1425 mm
• Overall Dimensions (L xW x H) mm - 4850 x 2180 x 2650 & 4850 x 2180 x 2800
• Weight - 3000 Kg & 3250 Kg

10 To 15 Ton Per Hr Mini Mobile Hot Mix Plant

• Capacity - 10 to 15 tons per hour
• Power - Four Cylinder Diesel Engine
• Chassis - Heavy Duty, Robust Steel Chassis
• Drum Mixing type - Pugmill or Drum mix type
• Conveyor - Load out Conveyor, Bucket Conveyor
• Mixing - Drum Mix Mobile Type
• Dimensions (LxWxH) mm - 6715 x1S00x 3450
• Weight - 7000 Kg (Approx.)

Details

• Batch Capacity - 1500 Kg (or) 0.6 cub. mtr & 1850 Kg (or) 0.8 cub. mtr
• Machine Output - 12-18 cub. mtr per hr & 15-20 cub. mtr per hr
• Weighing System - Digital load Indicator
• Water System - Automatic water system
• Power · 17 HP Electric Motor & 22 HP Electric Motor
• Dimensions (Center Length x Total Length x Dia )mm - 1250 X 2250 X1 550 mm & 1250 X 2520 X 1550 mm
• Overall Dimensions (LxWxH) mm - 4850 X 2180 x 2950 & 5150 x 2180 x 2950
• Weight  — 3650 Kg & 4200 Kg

We are offering high density hydraulic operated paving block making machine.Capacity: 4nosstrokepower : 7.5 hp, 3 phase 1440 rpmproduction :40-50 strokeshrweight : 2500kgs(approx.

Mini Dumper (4 Wheel Drive)

• Capacity - 2000 Kg
• Power - 2 ( or ) 4 Cylinder Engine
• Transmission - 4 x 4 Hydrostatic
• Chassis - Articulated Model
• Suspension - Leaf Spring Mounted
• Brakes - Power Brake with tandem master cylinder
• Steering - Effortless, Mechanically Operated Steering
• Weight - 3000 Kg (Approx.)

We are offering pan mixer.Batch capacity : 1503006001000kgtotal power : 7.51015hp heavy duty available in all sizes and colour.

Details

• Batch Capacity - 800 Kg (or) 0.3 cub. mtr
• Machine Output - 6-9 cub. mtr per hr
• Weighing System - Digital load indicator
• Water System - Automatic water system
• Power - 12 HP Electric Motor &  16 HP Air Cooled diesel engine
• Drum Dimensions (Center Length x Total Length x Dia) mm - 1260 x 2260 x 1300
• Overall Dimensions (L x w x H)mm - 4650 x 2180 x 2650
• Weight - 3000 Kg & 3400 kg

Details

• Cylinder · Cylinder manufactured specially alloyed steel
• Pressing Capacity - 75 to 100 Tons
• Motor · 7.5 HR 3 Phase, 1440 RPM
• Hydraulic Oil · System 68-Grade, 160 Ltrs.
• Production Capacity · 40 - S0 nos / hr. (4 nos / stroke)
• Over all Dimension (L x W x H) mm - 1500 X 860 X 2030
• Weight · 2500 Kgs (Approx)

We are offering mini mobile hot mix plant 5 to 8 tones per hour capacity rotary drum with chain drive, s4 simpson new engine, loading hopper rope type(mechanical) , exhaust fan, blower, retread wheels with used disc hub and bearing. The whole system is mounted over a rigid chassis with toeing arrangement, burner system, with pug mill system.
