Ultrasonic spray nozzles system supersede pressure nozzles on various accounts, precisely in application areas where wastages of costly solvents due to over spray is not permissible. This system reduces overspray by 80 percent and control air pollution. The atomization of solvents produces spray of low velocity droplets.The velocity of the spray is in the range of 21cm/sec to 36cm/ sec. and is function of applied power.  The size of droplet is controllable in the range of 10 to 100 micron. The orifice of ultrasonic nozzle is above 0.8 mm. This avoids clogging of nozzle.  The nozzles are made up of titanium and stainless steel. This avoids rusting of nozzles.  Ultrasonic nozzle gives better service for longer time.These nozzles operate with low flow rates. It gives controllable continuous or intermittent, reliable, soft, low velocity spray.The applications demand droplet size in the range of 10 micron to 100 micron. The droplet size is decided by nozzle operating frequency, property of liquid:typically surface tension and viscosity.The solvents flow rate is governed by orifice size, atomization surface area, operating frequency and liquid characteristics.



Applications Spary Dryer

Spary Pyrolysis and TCO

Spary coating

Spin Coating

Protective Films for Dicing

Syringe Coating

Think film coting

Thick Film coating

PCB Spray fluxing

EMI Shielding Spray Coatings

Polyimide & Photoresist Coating

Solar cell

Fuel Cell

CNTs and Nano wires

Nano Materials

Hydrogen Electrolyser

Blood Collection tube coating

Stents

Balloons

Diagnostic Devices

Medical Textiles / Bandages / Mesh

Bio-aerosol / Cell Culture / Bio-mist

Variations

Conical Head

Flat Head

Torch Head

Extended horn

High Flow

High Viscocity

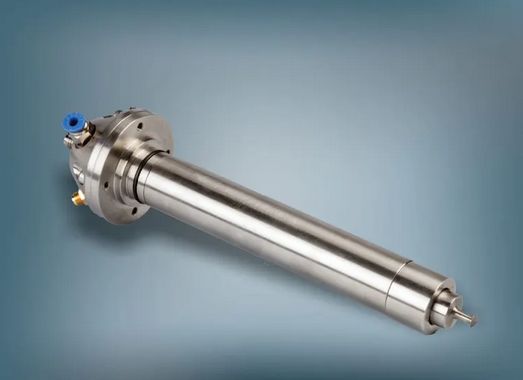

We offer an advanced Ultrasonic Spray Nozzle with a 120 KHz operating frequency, ideal for precise liquid atomization. Operating temperature range of 15 to 70 degrees Celsius ensures versatile usage. Constructed with SS316 transducer enclosure and titanium transducer material for durability. Features a median drop diameter of 25 m and a maximum flow rate of 3 ml/minute for efficient performance. With a weight of 1000gms and a liquid inlet made of titanium, this nozzle is designed for reliability. Normal power consumption ranges from 2 to 7 watts, making it energy-efficient. Perfect for manufacturers and suppliers seeking high-quality spray solutions.

We offer an advanced Ultrasonic Spray Nozzle 160KHz with Drive System, weighing 1000gms. Operating at a frequency of 160KHz ±10%, it produces a median drop diameter of 14 µm. With a maximum power consumption of 20 watts, this nozzle operates efficiently in a temperature range of 15 to 55 degrees Celsius. Crafted with Titanium transducer material and SS316 transducer enclosure, it ensures durability. Achieve a maximum water flow rate of 3 ml/minute with a normal power consumption ranging from 2 to 7 watts. The RF Input via BNC connector enhances connectivity for optimal performance. Ideal for manufacturers and suppliers seeking precision and reliability.
