Measuring Instruments

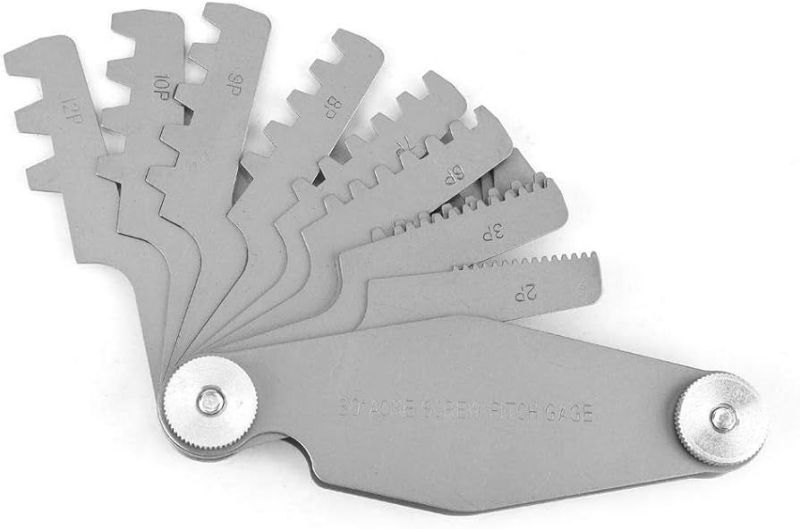

Trapezoidal Metric Screw Pitch Gauge
Brand: Kristeel
Model: TSPG

Measuring Range:
Metric 30 Degree & Range 4 to 12 mm

No of Leaves:
8

Digital Height Gauge with Calibration Certificate
Model 2919

\n

Range: 0 to 600mm

Brand: Kristeel Shinwa


Other Ranges available:

\n

0 to 150mm

\n

0 to 300mm

\n



\n

Features:-

\n

Large LCD screen
Least Count - 0.01mm/0.0005"

\n

Inch / Metric Conversion table

\n

Large base for rigidity

\n

Carbide tipped scriber for marking

\n

Supplied with Calibration Certification

\n



\n

Packed in moulded thermacol box to avoid damages

Universal Bevel Protractor (Vernier Bevel Protractor)



Bevel Protractors are the Angular measuring devices. Universal Bevel Protractor (Vernier Bevel Protractor) is the simplest angular measuring device which is having a Vernier Scale(Similar principle as the Vernier Calliper) along with the acute angle attachment

A bevel protractor is a graduated circular protractor with one pivoted arm; used for measuring or marking off angles. Sometimes Vernier scales are attached to give more precise readings.

Explanation: Bevel protractor is the simplest instrument for measuring angles. It measures the angle between the two faces of a component. It is used to test angle for very close tolerances. The range of bevel protractor is 0-360⁰

If we use a metre scale for measurement of length, it may have graduations at 1 mm division scale spacing or interval. A Vernier scale on caliper may have a least count of 0.1 mm while a micrometer may have a least count of 0.01 mm. The least count error occurs with both systematic and random errors.

High Precision angle gauge for accurate angle measurement of machines moulds & jigs. can be attached to Height gauge. Comes with Blade Length of 150/300mm & with acute attachment.

Tyre Tread Depth Gauge

Brand: Kristeel Shinwa
Model: TDG-S
Measurement Range: 0-50mm


Other Models Available:
TDG-B: 0-100mm
TDG-L: 0-150mm

Product Description

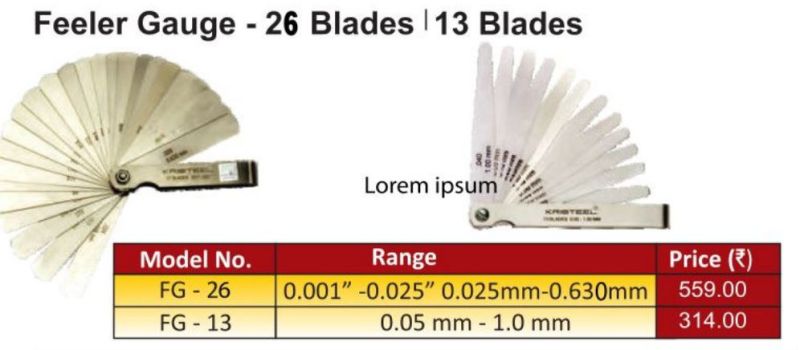

Feeler gauge

Model: FG-13
Brand: Kristeel
Range: 0.05mm to 1.0mm(Metric)
No of Blades: 13
Blade Length: 3" & 4"

(0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0mm)

Product Description



Circumference Gauge

Brand: Kristeel

Model: 1515A

Size: 20-300mm Diameter

60-950mm Circumference

Also Available in Different Circumference / Diameter Sizes



Range of Diameters available

20-300



300-700



700-1100



1100-1500



1500-1900



1900-2300



2300-2700



2700-3100



3100-3500



3500-3900



3900-4300



4300-4700



4700-5100



5100-5500



5500-5900



5900-6300

Product Description

n

Wire Gauge Round

n

Kristeel Shinwa SWG Round Wire Gauge 1-36

Model: 1505
Round

Other Models Available

Model: 1506
Rectangular

Model: RMWG
Rectangular MetricAuthorized Dealer

Kristeel Shinwa Measuring Instruments

Product Description

Angle Gauge

5 Degree to 90 Degree

Brand: Kristeel Shinwa

This gauge is made of hardened and tempered Stainless Steel material having a range of 5 Degree to 90 Degree incremental of 5 Degree (total 18 Leaves).

Product Description

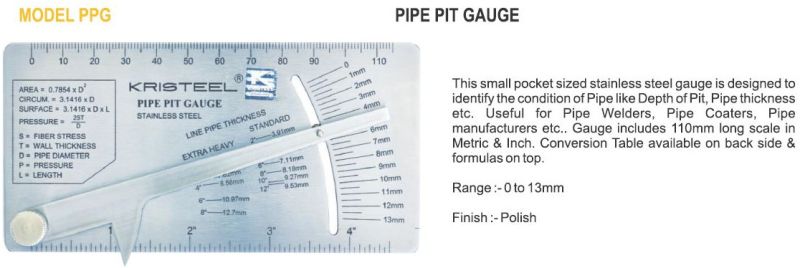

This small pocket sized stainless steel gauge is designed to identify the condition of Pipe like Depth of Pit, Pipe thickness, etc, . Useful for Pipe Welders, Pipe Coaters, Pipe manufacturers etc, . Gauge included 110 mm long scale in Metric & Inch. Conversion Table available on back side & formulas on top.

Range: 0-13 mm

Finish: Polish

Screw Pitch Gauge

Model: SPG
Brand: Kristeel Shinwa
Range: Metric 60 Degree -0.25 to 6 mm & whitworth 55 Degree - 4 to 62 TPI
Number of Leaves: 52

Product Description



Digital Welding Gauge - Model 3458

Brand: Kristeel Shinwa

This rugged gauge, fabricated in stainless steel, will measure the important dimensions of weld preparations and of completed butt and fillet welds. It is intended for general fabrication work in the shop or on-site and rapidly measures the following weld features : angle of preparations 60, 70, 80 & 90 degree. Fillet weld leg throat size, Butt weld reinforcement.
Range: Throat upto 20mm and Butt reinforcement upto 4.0 mm

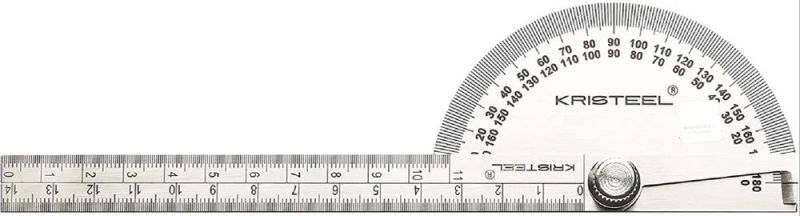

We offer the Kristeel-Shinwa Stainless Steel 180 Degree Protractor, crafted from high-quality stainless steel with a polished finish. Its D shape design, 6-inch arm length, and 0-180 degree range make it a versatile tool for precise measurements. Packaged in a sleek silver casing, this protractor is a product of India, proudly bearing the Kristeel Shinwa brand. Ideal for exporters, suppliers, distributors, and traders seeking reliable measuring instruments.

Product Description

rn

Radius Gauge - 1512 ABC (Set of 1512 A, B & C)

rn

Concave and convex blades. With nickel plated case and locking screw, For the checking of sectors of circle.
Model 1512 ABCNo of Blades: 53Radius 1-25 mmLead, mm :1-25 =0.5

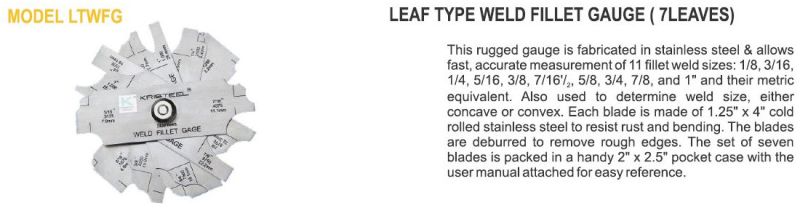

Leaf Type Weld Fillet Gauge

rn

rn

This rugged gauge is fabricated in stainless steel & allows fast, accurate measurement of 11 fillet weld sizes: 1/8, 3/16, 1/4, 5/16, 7/16, 5/8, 3/4, 7/8 and 1\" and their metric equivalent. Also used to determine weld size, either concave or convex. Each blade is made of 1.25\" x 4\" cold rolled stainless steel to resist rust and bending. The set of seven blades is packed in a handy 2\" x 2.5\" pocket case with the user manual attached for easy reference.

rn

Product Description

Weld Fillet Gauge - Multi Purpose Weld Gauge - MODEL WG A
Brand: Kristeel Shinwa

A versatile tool for the use of welding operator. The tool can be used with ease for weld joint preparatory functions as well as for checking of the weld joint. The tool combines a bore gauge, angle gauge, depth

Product Description

rn

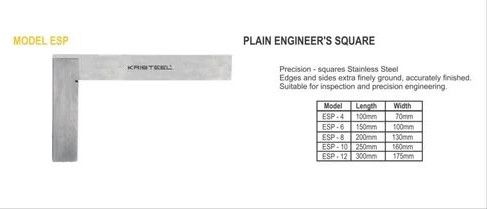

Engineering Try Square Plain

Model: ESP 6
Brand: Kristeel Shinwa
Size: 150mm & 100mm
Thickness: 1.0mm

Other Sizes Available:

4 Inch
8 Inch
10 Inch
12 Inch

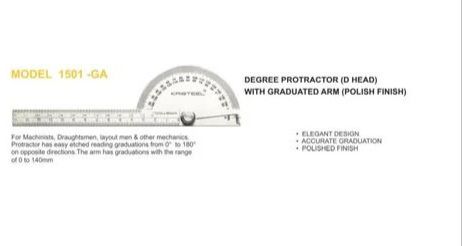

We are a leading exporter, supplier, distributor, and trader offering the Stainless Steel Kristeel DP HD8 Degree Protractor. This high-quality measuring tool, with its country of origin in India, is crafted from durable stainless steel. The protractor comes in a sleek silver packaging and is ideal for measuring angles accurately. The Kristeel brand ensures reliability and precision in every use. Enhance your measuring experience with the Kristeel DP-HD8 protractor, a must-have tool for professionals and enthusiasts alike.
