Leading Manufacturer, Supplier & Retailer of Three Side Sealing Bag Making Machine, Bottom Sealing and Cutting Machine and Bottom Sealing Machine.

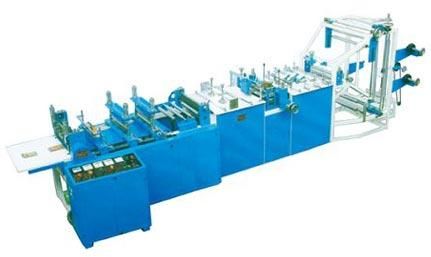

The company is enlisted amongst the topmost Manufacturers, Exporter and Supplier of Three Side Sealing Bag Making Machine in New Delhi. We deal in providing superior quality Bag Making Machine to ensure efficient working. The machine, we offer, can be modified in various technical specifications according to the requirement of client. We are one of the most reliable manufacturers who provide durability with low prices.
Technical Specifications
| Style | Three/ side sealing / stand up pouch |
|---|---|
| Electronic control | Industrial Computer (Hangzhou Xinda) |
| Main transmission structure | Eccentric Axis |
| Power of main motor | 5 KW / Set (Germany SEW) |
| Power of main feeding motor | 370 W |
| Traction servo | 1.0 KW 1 Set (Japan Panasonic) |
| Feeding servo | 1.5 KW 1 Set (Japan Panasonic) |
| Tension control | Magnetic powder brake and revolving encoder |
| Feeding correction | Double road photoelectric (Made in Taiwan) |
| Feeding control | Hangzhou Xinda |
| Pneumatic components | Taiwan AIRTAC |
| Punching cross beam | 3 Sets (Two in front one behind) |
| Punching device | 3 Sets (Two in front one behind) |
| Temperature control | 20 Pieces |
| Crosswise heat sealing | 4 Sets (effective length 640 mm) |
| Longitudinal heat sealing | 4 Sets (effective length 740 mm) |
| Crosswise cooling | 2 Sets (effective length 640 mm) |
| Longitudinal cooling | 4 Sets (effective length 510 mm) |
| Max width of main releasing roller | 1200 mm |
| Max diameter of main releasing roller | 800 mm |
| Size of finished product | Width : 600 mm Length : 400 mm to 400 mm*6 |
| Bag-making speed | 120 Piece/min |
| Gross power | 15 KW |
As a premium Manufacturer, Exporter and Supplier, we bring forth the best quality Bottom Sealing and Cutting Machine. Sealing and Cutting Machine is fabricated using high-grade metal components to make it durable efficient. These machines are manufactured by experienced technicians to provide flawless working. We offer Bottom Sealing and Cutting Machine in with different specification to meet the requirement of every client. Our sealing and Cutting Machine is available at affordable prices in the market.
Technical Specifications
| Max. Web Width | 500mm |
|---|---|
| Max. Draw Length | 600mm |
| Minimum Draw Length | 75mm |
| Maximum Speed (approx) | 200 Strokes / min. |
| Total Connected Load | 4 KW |
| Dimensions (LxWxH) | 3000x1200x1600mm |
| Weight (Kgs Approx) | 800 kg |
