ZEN Microsystems

Bavdhan, Pune, Maharashtra

Product Discription:

• The system consists of dual 1080p cameras, allowing for a main view with embedded picture-in-picture. The lenses are wide angle, ensuring that every moment of track action is captured in stunning high definition – so analysis in Circuit Tools is now even more precise. Video is recorded at 30 frames per second, to SD card or USB flash drive.
• Graphics are overlaid in real time – also in high definition. With the high resolution afforded by the 1080p output, this gives the user great scope for fantastic dashboard and gauge layouts. The graphics are fully customisable but several default scenes are available.
• An app for Android and iOS devices connects via the VBOX Video’s inbuilt WiFi to allow fine-tuning of camera orientation, with real time camera output being displayed on the mobile device’s screen.
• By default, the system will start and stop logging according to GPS speed. With the addition of the video pre-buffer, this allows every moment of track action – including race starts - to be captured automatically. Optional remote start/stop logging is taken care of via a Bluetooth unit that can be conveniently mounted next to the driver.
• An internal battery allows the current file to be correctly closed should power be lost during recording, ensuring that no data loss or corruption occurs.
• VBOX Video HD2 represents the very latest in cutting edge technology within the VBOX Motorsport range, giving you a competitive advantage no matter what level of motorsport you compete in.

Product Discription:

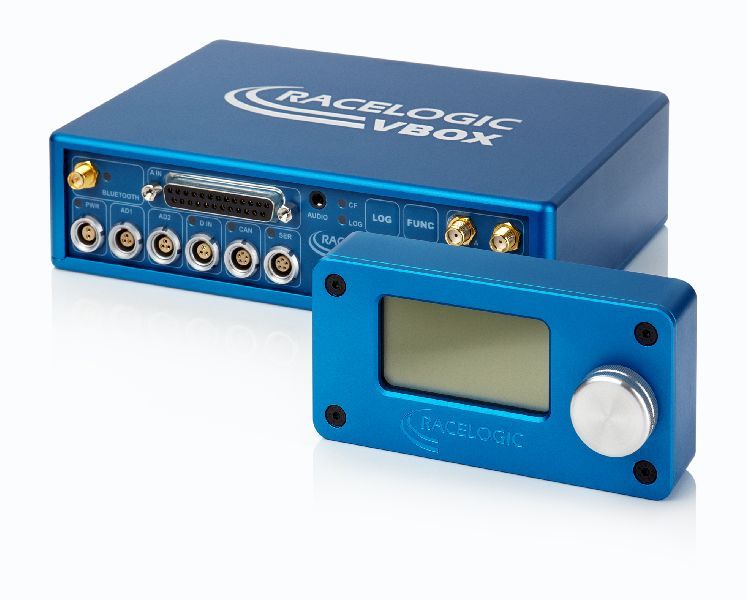

The VB3iSL is Racelogic’s most advanced GPS data logging system, featuring a dual-antenna RTK setup for precise measurement of slip angle, pitch/roll, yaw rate, and velocity at 100 Hz. Designed for high-dynamic vehicle testing such as braking, acceleration, handling, ABS/ESP, and more.

Key Features:

• 100 Hz GPS + GLONASS speed & distance measurement
• Slip, pitch/roll, yaw rate, heading, and velocity measurement
• Ultra-low latency: 6.75 ms
• 4 x 24-bit analog inputs (±50 V)
• Brake/event trigger (10 ns resolution)
• CAN, RS-232, USB, and Bluetooth interfaces
• Compact Flash logging, audio tagging
• Compatible with all VBOX peripherals
• Wide 7V–30V operating range

Product Discription:

VBOX II SX (RLVB2SX) is a powerful instrument used for measuring the speed and position of a moving vehicle. It is based on a new generation of high performance satellite receivers, and will measure acceleration, braking distances, lap times, cornering forces and more. Due to its small size and simple installation, VBOX II SX is ideally suited for use in cars, bikes, off road vehicles and boats. With 5Hz, 10Hz, and 20Hz GPS update rate options available, the range suits a variety of requirements and budgets. All units are compatible with the DGPS Basestation for positional accuracy to

Product Discription:

The DLX-MUXDIAG-II is a compact data logger which is particularly well suited to "on road" applications It is used to log the data flowing simultaneously on 1 CAN High Speed or Low Speed link, 1 CAN HS link, 2 ISO9141 links, 2 LIN links and on 2 ANA/binary inputs. Supplied with a memory capacity of 16GB (expandable), a wired remote control and the Exxotest Data Logger Control app for Windows OS, used to configure the data logging and restoral sequences.

The range of pinout options on the 16-channel, "OBD" SAE J1962 connector, controlled by the allocation of the non-standardized channels, is covered by several versions of the USB-MUXDIAG-II product, each of which is tailored to the various manufacturers: PEUGEOT, CITROEN, RENAULT and FORD.

Product Discription:

VBOX Sport is a waterproof, battery powered 25Hz GPS data logger designed primarily to measure performance or lap times. It can be used as a stand alone logger or connected to an iOS device via Bluetooth to see results in real-time using free apps supplied byRacelogic.
