Product Discription:

High-Precision, Non-Contact GPS Measurement

Based on high-accuracy GPS engines, VBOX Speed Sensors deliver reliable, non-contact speed and position measurement—ideal for automotive testing, motorsport, marine, telematics, and more.

Available in 5 Hz, 10 Hz, 20 Hz, and 100 Hz variants, the sensors suit various budgets and test needs. The 10 Hz, 20 Hz, and 100 Hz models support DGPS Base Station connectivity for enhanced accuracy.

The 100 Hz version also uses GLONASS + GPS, providing nearly double satellite coverage for improved reliability, even in challenging environments.

Key Features:

• High-performance GPS (5–20 Hz) / GPS+GLONASS (100 Hz)
• CAN Bus output: speed, position, heading, acceleration & more
• RS232 (NMEA) output for position, velocity, and time
• User-configurable analog and digital outputs
• Digital pulse or virtual lap beacon output
• Compatible with DGPS Base Station*
• Rugged IP66-rated aluminium housing (water & dustproof)
• Deutsch Autosport connector
• Wide 6.5V–30V operating range with low power consumption

Product Discription:

The brake pedal force sensor is designed to measure load applied to the brake, accelerator, and clutch pedals during acceleration, deceleration, and transmission shift events. The units are compact and lightweight, making them easy to install and remove. these sensors also have high overload protection (150% of fs) which prevents damage to the sensor in the event of a vehicle emergency stop.

An anti-slip spherical loading surface minimizes the effects of off-axis loading.

Features

• compact, with a 24.5 mm overall height (27.5 mm when mounted on the pedal mounting bracket)
• easy to install and remove
• measurement range 0.5 – 150 kg (1470.99 n)

Product Discription:

• Racelogic’s Performance Box Touch measures Speed, Lap & Split Times, Delta-T, acceleration, deceleration as well as distance and more.
• All these parameters are logged to an SD card ten times per second and can be viewed on screen and analysed in detail using the VBOX Test Suite or Circuit Tools software provided.

Product Discription:

The RLACS272 Tyre Temperature Sensors have been specifically designed to measure the highly transient surface temperature of a tyre, providing invaluable information for chassis tuning and driver development.

Each sensor can measure up to 16 temperature points on an object with surface temperatures ranging from -20 to 300° C.

Features:

• Log tyre temperatures throughout track sessions
• Up to 16 temperature points per sensor
• 120° and 60° field of view options
• Pre-configured tyre temperature VBOX Video HD2 scene to get you up and running
• CAN Bus data output

Product Discirption:

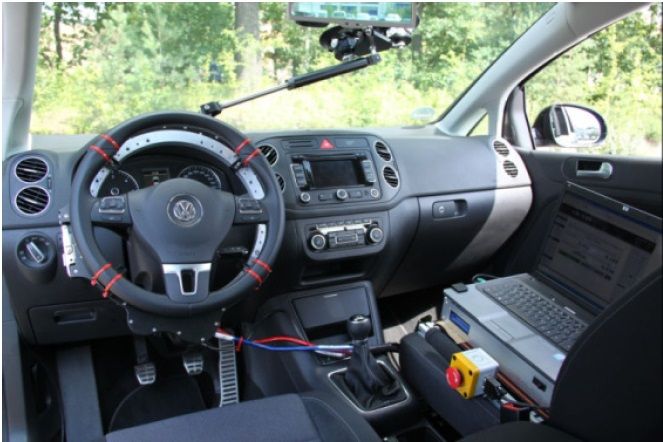

With over 10 years of global deployment, Vehico Steering Robots are trusted for their precision, safety, and ease of use across a wide range of automotive testing applications One of their most appreciated features is that no replacement of the vehicle’s original steering wheel is required—ensuring uninterrupted ECU function, airbag safety, and minimal installation time. The system is designed to maintain driver safety, with no obstructive or safety-critical components between the driver and the wheel. Vehico robots perform highly dynamic, accurate, and repeatable steering in any test vehicle, making them ideal for:

• ESC testing (FMVSS 126 / ECE R13-H)
• Fishhook and rollover tests
• Autonomous driving projects
• Lane change, AEB, and tire testing

Key Features

• Retains OEM steering wheel
• No safety interference with the driver
• Accurate steering torque measurement
• Fast installation and setup
• Intuitive scripting interface
• GPS-based automatic path tracking
• Record & replay, online control
• OBD2 interface
• Compatible with all Vehico robot systems
• Excellent price/performance ratio

Product Discription:

inertial navigation system - vbox3i s technical specifications gyroscopes (angular rate sensors)*

• dynamic range: ±450°/s
• nonlinearity: 0.01% fs
• resolution: 16 bit adc (0.014°/s)
• bandwidth: 50 hz
• noise density: 0.01 °/s/√hz
• bias stability: ±0.003 °/s
• bias repeatability (1 year): 0.2 °/s

accelerometers

• dynamic range: ±20 g
• nonlinearity: 0.1 % fs
• resolution: 16 bit adc (0.15 mg)
• bandwidth: 50 hz
• noise density: 60 µg/√hz
• bias stability: 15 µg
• bias repeatability (1 year): 0.005 g

Product Discription:

The RACELOGIC Steering Wheel Sensor is designed to accurately measure a vehicle’s steering angle or torque in tests such as ECE R79, ISO 4138 and ISO 7401. It has a CAN interface, which means you can connect the sensor directly to the VBOX 3i Data logger.

The sensor is light and compact, with high dynamic response and a fine resolution of steer angle (0.1°). Easy access push buttons make it quick and simple to zero the steer angle and torque, once mounting is complete.

Existing steering wheel functions, such as vehicle control elements, will not be affected when using the Steering Wheel Sensor. A universal steering wheel adapter is also included, making it quick and easy to mount to any vehicle, without having to remove the actual steering wheel.

Features:

• CAN Bus output – connects directly to your DAQ (such as the VBOX 3i)
• Ideal for tests such as ECE R79, ISO 4138 and ISO 7401
• Steering torque range ±20200 Nm
• Steering angle resolution 0.1°
• Can be calibrated to ISO 17025 standard
• Quick and easy to install - supplied with a universal mount
• Does not interfere with the vehicle’s steering wheel controls

Product Discription:

The RACELOGIC Brake Temperature Monitoring System measures, logs and displays the surface temperature of the brake disc, providing invaluable information to the test driver whilst on track

Technical Specifications

• Temperature Measurement Range: -20 °C to 950 °C
• Accuracy: ±2.0% FS for -20° C < Tp < 85° C
• Field of View (FOV): 60° x 8°
• Number of Channels: 16
• Thermal Time Constant: 2 ms
• Effective Emissivity: 0.01 – 1.00 (default = 0.55)
• Spectral Range: 8 to 14 μm
• Recommended Supply Voltage: 5 to 8 V
• Supply Current: 30 mA

Product Discription:

The USB-MUXDIAG-2 (Evo) is a compact communication interface which is particularly well suited to the vehicle environment. It has 1 CAN High Speed or Low Speed link, 1 CAN High Speed link, 2 ISO9141 links, 2 LIN links and 2 ANA/DIG inputs. The range of pinout options on the 16-channel, "OBD" SAE J1962 connector, controlled by the allocation of the non-standardized channels, is covered by several versions of the AMUX-AEE adapters, each of which is tailored to the various manufacturers: PEUGEOT, CITROEN, RENAULT and FORD.

Product Discription:

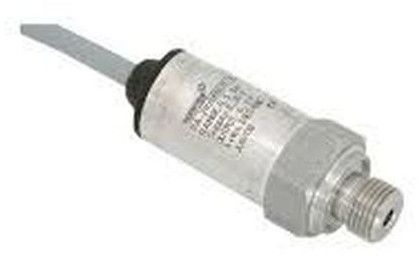

The Miniature Pressure Sensor is a compact, high-precision sensor designed for accurate pressure measurement in confined spaces. Ideal for medical, aerospace, automotive, and industrial applications, it offers fast response times, high sensitivity, and durable performance under harsh conditions. Perfect for integration into complex and space-constrained systems.

Product Discription:

Ellipse inertial sensors provide outstanding orientation and position data in a small, light-weight, and rugged enclosure. incredibly versatile, you can connect your own gps or use the internal one, connect an odometer, receive differential gps corrections, etc. a little larger, the amazing ellipse-d completes this state-ofthe- art product line. it integrates a survey-grade l1/l2 gnss receiver with two antennas for unmatched heading and position accuracy.

Ellipse 2 Micro Series

• Highest Accuracy, Smallest Sensor The Ellipse 2 Micro Series is a compact, high-performance Inertial Measurement Unit (IMU) designed for precision in motion sensing. It features 3 gyroscopes, 3 accelerometers, 3 magnetometers, and a temperature sensor within an ultra-small form factor.
• Ellipse 2 Micro IMU: Delivers raw inertial data for accurate motion tracking.
• Ellipse 2 Micro AHRS: Integrates an Extended Kalman Filter to provide reliable Roll, Pitch, Heading, and Heave data.
• Ellipse 2 Micro INS: Combines with GNSS and an odometer to offer full navigation capabilities in dynamic environments.
• Ideal for applications requiring high accuracy, low weight, and compact size—such as robotics, UAVs, autonomous vehicles, and defense systems.

Product Discription:

• The VBOX Touch features a 10 Hz GPS receiver, responsive colour touchscreen and the ability to run multiple applications on the same hardware. Built on a platform that allows functionality to be expanded through future software and firmware upgrades, the VBOX Touch is an extremely versatile data logger.
• Applications are written in Python script enabling users to create their own, including custom CAN Based applications to solve specific testing needs. New applications can be loaded by inserting an SD card containing the new script and it is just as quick to revert to the standard functionality of the VBOX Touch, by inserting the SD card containing the original data.
• Other features include the ability to connect to a vehicle’s CAN Bus, capture screenshots and see live test results.

Product Discription:

The Infrared Temperature Sensor is a non-contact device designed to accurately measure surface temperatures from a distance. Ideal for monitoring moving or inaccessible objects, it offers fast response time, high precision, and reliable performance in industrial, HVAC, automotive, and medical applications. Suitable for harsh or high-temperature environments.

Product Discription:

Picking up alignment and inflation issues as it goes, the easy to use software lets you print a report from the scanner itself or take the captured data back to the office via a memory stick. From there it is your choice how to use data on an individual vehicle or an entire fleet.USB Bar Code Scanner or Magnetic Card Reader for quick vehicle ID entry, PC Based Diagnostic Software Package provides customised report that includes tyre tread profile, tread depths, inflation pressure, customervehicle information and recommended actions.
