Zicom Electronic Security Systems Limited

Goregaon East, Mumbai, Maharashtra

2 megapixel high performance CMOS Analog HD output, up to 1080p resolution Day/Night switch Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS IP66

1/2.75MP Progressive Scan Digital Image Sensor Long distance real-time transmission IR LED Range 10-20m Supports ultra low illumination True Day /Night T3.6mm. 5 Mega Pixel Lens UTC Control 4 IN 1 output (AHD-TVI-CVI-CV13S) Signal system: Pal @25FPS Image sensor: 1/2.7 5MP Progressive Scan Digital Image Sensor Effective pixel: 25601920, 5 MP Horizontal resolution: 1080P @25FPS Ir: SMT Smart IR 12 LED , 850nm, IR Distance 10-20 Mtr Lens furnished: 3.6mm, 5 Mega Pixel Lens; Lens interface: M12 Signal/noise ratio: More than 60db Shutter control: 1/50 sec to 1/10, 000 sec Min illumination: 0.001Lux @ (F1.2, AGC ON), 0 Lux (IR LED On) Synchronisation: Internal White balance: Auto Back light compensation: Auto Gain control: Auto Video output signal: Hd Analog Output Transmission distance: Up to 500m over coaxial cable Operating conditions: -10C +60C, Humidity 90% or less (non-condensing) Power supply: DC 12V 10% Current, power consumption: 250mA , Max 3.5W DIMENSION (lxwxh), WEIGHT: 145mm*140mm*120mm, 460g

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. UTC function supported VGA, HDMI 1080P real-time Display High Definition Recording Long transmission distance over coax cable Supports various mobile monitoring Supports multiple web browsers 3G/4G /Wi-Fi Support Two-way audio Pentaplex operation Categories: DVR, High Definition Cameras & DVRs

16 CH DVR 1 SATA port (Max.8TB per one), H.265 Video Compression, 6-IN-1, Support HDAVI (AHD), HDTVI, HDCVI, CVBS & ONVIF IP Camera Input

32CH DVR 2 SATA port (Max.8TB per one), H.265 Video Compression, 6-IN-1, Support HDAVI(AHD), HDTVI, HDCVI, CVBS & ONVIF IP Camera Input

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. UTC function supported VGA, HDMI 1080P real-time Display High Definition Recording Long transmission distance over coax cable Supports various mobile monitoring Supports multiple web browsers 3G/4G /Wi-Fi Support Two-way audio Pentaplex operation System Main Processor Embedded Processor Operating System Embedded LINUX Video and Audio Analog Camera Input 4 Channel, BNC HDCVI Camera 1080N, 960H, 720P, D1@25/30fps AHD Camera 1080N, 960H, 720P, D1@25/30fps TVI Camera 1080N, 960H, 720P, D1@25/30fps CVBS Camera PAL/NTSC IP Camera Input Analog: 4*1080N (Analog) IP: 4* 2MP, 1.3MP, 1MP Audio In/Out 1 Channel input, 1 Channel output, RCA Two-way Talk Reuse audio in/out, RCA Recording Compression H.264 Resolution 1080N, 720P, 960H, D1, CIF Record Rate Mainstream: 1080N@25/30fps;720P@25/30fps; 960H@25/30fps;D1@25/30fps Sub stream: D1@25fps/30fps;CIF@25/30fps Bit Rate 32Kbps 4096Kbps Per Channel Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Record Interval 1 60 min (default: 60 min), Pre-record: 1 30 sec, Post-record: 10 300 sec Audio Compression G.711A, G.711U Audio Sample Rate 8KHz, 16 bit Per Channel Audio Bit Rate 64Kbps Per Channel Display Interface 1 HDMI , 1 VGA Resolution 19201080, 12801024, 1440900 Multi-screen Display When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Network Interface 1 RJ-45 10/100/1000Mbps Self-adaptive Ethernet Interfaces Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, P2P, IP Search , Dropbox Max. User Access 128 users Smart Phone iPhone, iPad, Android

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. UTC function supported VGA, HDMI 1080P real-time Display High Definition Recording Long transmission distance over coax cable Supports various mobile monitoring Supports multiple web browsers 3G/4G /Wi-Fi Support Two-way audio Pentaplex operation

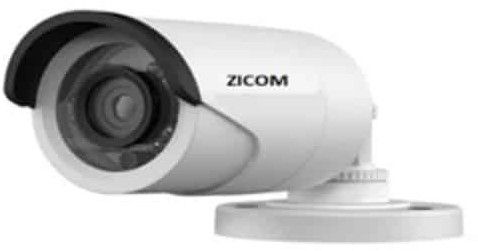

2MP HI-Resolution Image sensor 1080P resolution with HDTVI technology 18 IR smart LED & distance up to 10-25mtr 3.6mm lens True Day Night with IR cut filter ( ICR) Long-distance real-time transmission with coaxial cable up to 500mtr IP66 compliance Signal system: PAL @25FPS Image sensor: 1/2.9 2 MP Hi-Resolution Image Sensor Effective pixel: 1920(H)x1080(V) Horizontal resolution: 1080P @25FPS Ir : SMT Smart IR 18 LED , 850nm, IR Distance 10-25Mtr. Lens furnished: 3.6mm, 2 Mega Pixel Lens, Angle of view:70.9 Lens interface: M12 Signal/noise ratio: More than 80db Shutter control: 1/25 sec to 1/1, 00, 000 sec Min illumination: 0.001Lux @ (F1.2, AGC ON), 0 Lux (IR LED ON) Synchronisation: Internal White balance: Auto Back light compensation: Auto Gain control: Auto Video output signal: Hd Analog Output Transmission distance: Up to 500m over coaxial cable Operating conditions: -10C +60C, Humidity 90% or less (non-condensing) Power supply: DC 12V 10% Current, power consumption: 250ma , Max 3.5W DIMENSION (lxwxh), WEIGHT: 185mm*88mm*88mm, 340g

5MP HI-Resolution Image sensor 1080P resolution with HDTVI technology 18 IR smart LED & distance up to 10-25mtr 3.6mm lens True Day Night with IR cut filter ( ICR) Long-distance real-time transmission with coaxial cable up to 500mtr IP66 compliance Signal system: PAL @25FPS Image sensor: 1/2.7 5MP Progressive Scan Digital Image Sensor Effective pixel: 25601920, 5 MP Horizontal resolution: 5MP@25FPS, 1080P@25 FPS, 720P@25FPS Ir : SMT Smart IR 12 LED, 850nm, IR Distance 20-30Mtr Lens furnished: 6mm, 5 Mega Pixel Lens Lens interface: M12 Signal/noise ratio: More than 60db Shutter control: 1/50 sec to 1/10, 000 sec Min illumination: 0.001Lux @ (F1.2, AGC ON), 0 Lux (IR LED On) Synchronisation: Internal White balance: Auto Back light compensation: Auto Gain control: Auto Video output signal: Hd Analog Output Transmission distance: Up to 500m over coaxial cable Operating conditions: -10C +60C, Humidity 90% or less (non-condensing) Power supply: DC 12V 10% Current, power consumption: 250ma , Max 3.5W DIMENSION (lxwxh), WEIGHT: 157mm*107mm*77mm, 270g

2MP HI-Resolution Image sensor 1080P resolution with HDTVI technology 18 IR smart LED & distance up to 20-30mtr 6mm lens, Angel of view: 70.9 True Day Night with IR cut filter ( ICR) Long-distance real-time transmission with coaxial cable up to 500mtr IP66 compliance

1/2.7 2 MP Progressive CMOS Sensor H.265+ & H.265 Dual-Stream Encoding 3.6mm Lens, 2 MP 10 to 25m IR range IP 66 Compliant PoE Enabled Image Sensor: 1/2.7 2MP Progressive CMOS Sensor Effective Pixels: 1920(H)*1080(V) Minimum Illumination: Color: 0.01 Lux @Fl.2, B/W: 0.001 Lux@Fl .2, O Lux at IR ON S/N Ratio: >60dB IR Distance: IR Distance 10-25Mtr Shutter Speed: Auto, Manual Mode: 1/50 sec 1/10000 sec WDR: 80db IR On/Off Control: Auto/ Manual IR LEDs Lens: 18 Smart LED Lens Type: Fixed Mount Type: M12 Max. Aperture 3.6mm Lens Frame Rate: I 25/30fps Bit Rate Control: CBR/VBR Bit Rate: Primary 1024-8192Kb/s, Secondary Stream: 341-1706Kb/s Day/Night: Automatic/Color/Black and white Exposure Mode: Automatic/Manual-( 1/50-1 / 10000) BLC Mode: On/Off Profiles: Auto, Low Light Priority, High Light Priority White Balance: Indoor/Outdoor/Automatic

5 megapixel high performance CMOS Up to 4.0 megapixel 4 mm Up to 30 m IR range Dual stream 120 dB WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction) IP67 Mobile monitoring

32 CH Embedded 5-in-1 DVR 2 MP DVR 4 SATA port (Max.8TB per one) H.265+ Video Compression, 5-in-1 Support HDAVI(AHD), HDTVI, HDCVI, CVBS & ONVIF IP Camera Input

32 CH Embedded 5-in-1 DVR 5 MP DVR 4 SATA port (Max.8TB per one), H.265+ Video Compression, 5-in-1, Support HDAVI(AHD), HDTVI, HDCVI, CVBS & ONVIF IP Camera Input

1 megapixel high performance CMOS Analog HD output, up to 720p resolution Day/Night switch Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS IP66

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. UTC function supported VGA, HDMI 1080P real-time Display High Definition Recording Long transmission distance over coax cable Supports various mobile monitoring Supports multiple web browsers 3G/4G /Wi-Fi Support Two-way audio Pentaplex operation

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. UTC function supported VGA, HDMI 1080P real-time Display High Definition Recording Long transmission distance over coax cable Supports various mobile monitoring Supports multiple web browsers 3G/4G /Wi-Fi Support Two-way audio Pentaplex operation

2MP HI-Resolution Image sensor 1080P resolution with HDTVI technology 2Array & distance upto 40-50mtr 8mm lens, Angel of view: 70.9 True Day Night with IR cut filter ( ICR) Long distance real time trasmision withcoaxial cable up to 500mtr IP66 compliance

5 megapixel high performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 20 m IR distance OSD menu, 2D DNR, DWDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67

5 megapixel high performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 20 m IR distance OSD menu, 2D DNR, DWDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67

2 megapixel high performance CMOS Analog HD output, up to 1080p resolution Day/Night switch DNR Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS

2 megapixel high performance CMOS Analog HD output, up to 1080p resolution Day/Night switch Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS 3D DNR (Digital Noise Reduction) IP66

1 megapixel high performance CMOS Analog HD output, up to 720p resolution Day/Night switch DNR Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS IP66

1/2.9 2 MP Hi-Resolution Image Sensor Progressive Scanning 1080P Resolution with HDAVI Technology Long distance real-time transmission 3.6 mm Lens 2 MegaPixel Lens IR LED Range 10-25m Supports ultra-low illumination True Day Night with IR Cut Filter (ICR) IP66 Compliant UTC Control Signal system: Pal Image sensor: 1/2.9 2MP Digital Image Sensor Effective pixel: 1920(H)x1080(V) Horizontal resolution: 1080P @25FPS Ir : SMT Smart IR 12 LED , 850nm, IR Distance 10-25 Mtr Lens furnished: 3.6mm, 2 Mega Pixel Lens; Angle of View: 70.9 Lens interface: M12 Signal/noise ratio: More than 60db Shutter control: 1/50 sec to 1/10, 000 sec Min illumination: 0.001Lux @ (F1.2, AGC ON), 0 Lux (IR LED On) Synchronisation: Internal White balance: Auto Back light compensation: Auto Gain control: Auto Video output signal: Hd Analog Output Transmission distance: Up to 500m over coaxial cable Operating conditions: -10C +60C, Humidity 90% or less (non-condensing) Power supply: DC 12V 10% Current, power consumption: 250ma , Max 3.5W DIMENSION (lxwxh), WEIGHT: 110mm*110mm*88mm, 270g

1/3 Progressive Scan CMOS Up to 2.0 megapixel resolution 4mm 10 to 30m IR range Dual stream 120 db WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction) IP67 Mobile Monitoring Image Sensor: 1/2.8 Progressive Scan CMOS Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR Shutter time: 1/3 s to 1/100, 000 s Lens: 4mm @F2.0, horizontal field of view 88 Lens Mount: M12 Adjustment Range: Pan: 0 to 360, tilt: 0 to 75, rotation: 0 to 360 Wide Dynamic Range: 120dB Day& Night: IR cut filter with auto switch Wide Dynamic Range: Digital WDR Digital noise reduction: 3D DNR Max. Image Resolution: 1920 1080 Frame Rate: 50Hz:Mainstream:25fps(19201080), 25fps(1280960), 25fps(1280720) Sub stream:25fps(352288), 25fps(640360) 60Hz: Main stream:30fps (19201080), 30fps(1280960), 30fps(1280720) Sub stream: 30fps(352240), 30fps(640360) SUb Stream: 50Hz: 25fps @(640 360, 352 288) 60Hz: 30fps @(640 360, 352 240) Image Setting: Brightness, Saturation, Contrast, Sharpness adjustable by client software BLC: Yes, Zone Configured ROI: Yes, support 1 fixed region Day/Night Switch: Support auto, scheduled General function: SAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Network Storage: NAS (Support NFS, SMB/CIFS) Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour System Compatibility: ONVIF (Profile S, Profile G), ISAPI

1/3 Progressive Scan CMOS Up to 4.0 megapixel resolution 4mm Up to 30m IR range Dual stream 120 db WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction) IP67 Mobile Monitoring

5 megapixel high-performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 20 m IR distance OSD menu, 2D DNR, DWDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67
