Metal Wire

Our product range contains a wide range of Copper Wire

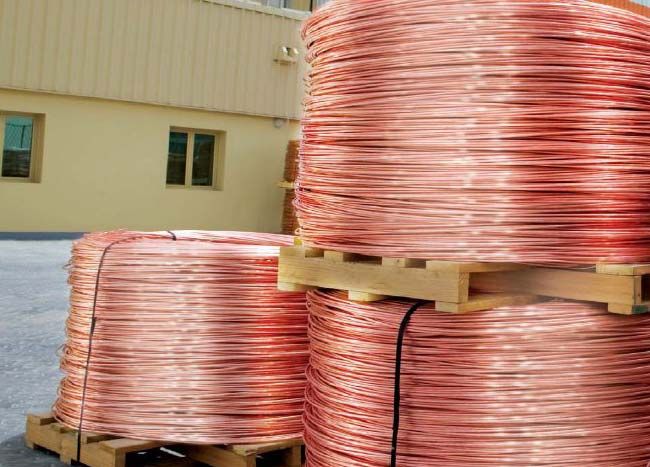

Copper Wire

You can procure high quality Copper Wire from us at market lead rates. As an established exporter and wholesale supplier from Busan in the Republic of Korea, the copper wire we offer is made using contirod technology. The coils are rolled orbitally to avoid wastage due to entangling. The copper wire we offer has wide applications in manufacture of telephone cables, power cables, automobile wire harness, communication cables, conductors, electrical wiring, transformers and motors and magnetic wires.

Physical Dimensions and Properties :

Size (mm) : 8
Outer Diameter of Coil (mm) : 1650• Inner Diameter of Coil (mm) : 900
Weight of each coil (kgs) : Maximum 4500, Weld free
Coil Laying : Orbital
Standard/Specification : ASTM B49-08 / BSEN 1977:1998

Application

Jelly Filled Telephone Cables
Power Cables
Automobile Wire Harness
Communication Cables
Conductor (Round and Sector)
House Wiring Electrical Machineries – Transformers and Motors
Magnet Wires

Specifications

Parameters	Specification
Parameters	ASTM B49-08	Our Product
Oxygen (ppm)	100~650	200~325
Surface Oxide (Angstrom)	Maximum 750A	Maximum 300 A
Diameter Variance	±0.38	±0.38
Conductivity IACS %	Maximum 100	>101
Elongation (%)	Minimum 30	>40
Tensile Strength (N/)	-	>220~240
Visual Inspection	Smooth Surface	Smooth Surface
