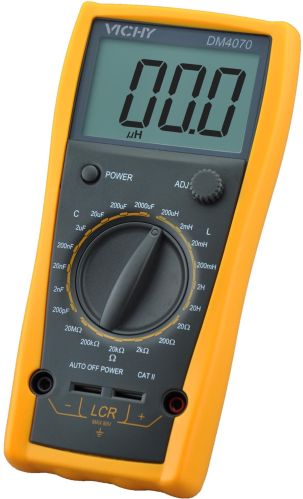

Dm4070 3 1/2 Digital Lcr Meter

We are offering dm4070 3 1/2 digital lcr meter.
features:
1. New type holster, streamline design;
2.large lcd makes the reading clear;
3.strong antimagnetic and anti-jamming performance;
4.full protection function, capacitor with the function of self discharge;
5. Unit symbol display, easy to operate.
technical data:
basic function range accuracy
capacitance 200pf/2nf/20nf/200nf/2uf/20uf/200uf/2000uf ±(2.0%+5)
inductance 200uh/2mh/20mh/200mh/2h/20h ±(2.0%+5)
resistance 20ω/200ω/2kω/20kω/200kω/20mω ±(0.8%+2)
special function dm4070
low battery indication approx. Less than 7.5v
capacitor discharge protection √
auto power off it will power off in 30 minutes if there is no measurement.
function protection √
anti-shock protection √
sampling rate 3 times/s
operation method manual range
max. Display 1999
lcd size 65×41mm
battery 9v (6f22)
power dissipation quiescent current approx. 6ma
general characteristic:
color body: dark grey, holster: orange (pantone no.: 1495u)
weight 290g（including battery）
meter size 185×93×35 mm
standard accessory test leads, battery, manual
packing gift box
standard packing per carton 30 pcs
carton size 43.5×29.5×40.5cm
standard g.w per carton 16.5 kg
