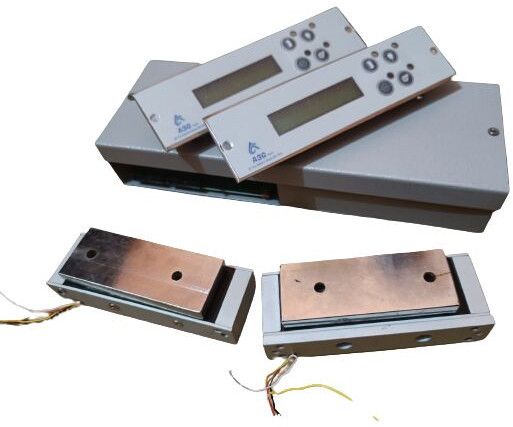

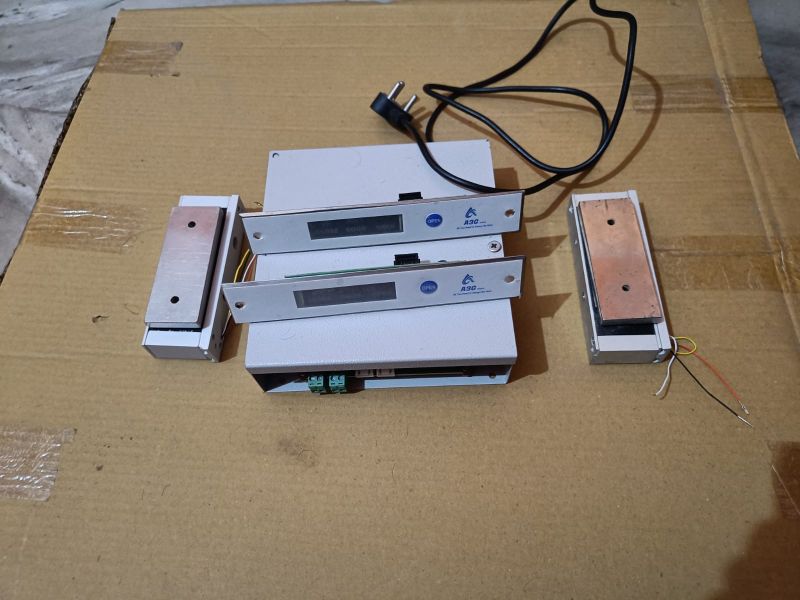

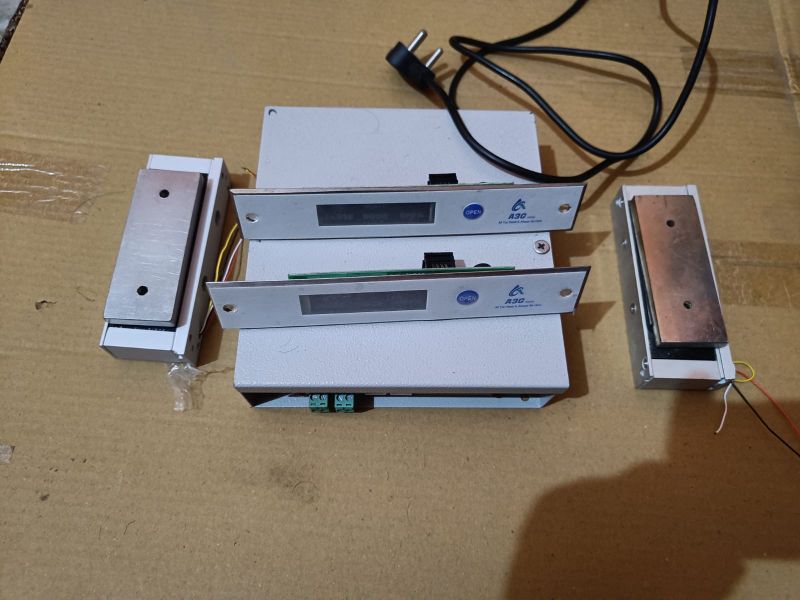

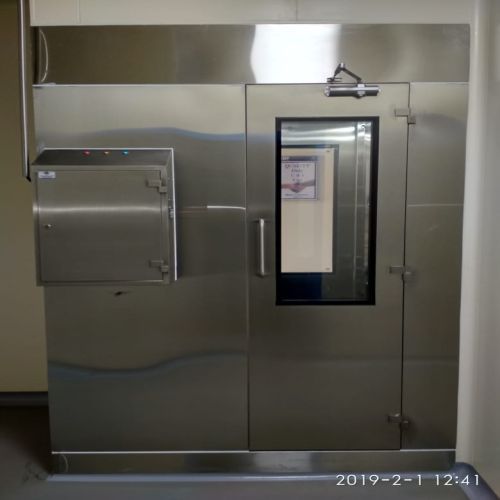

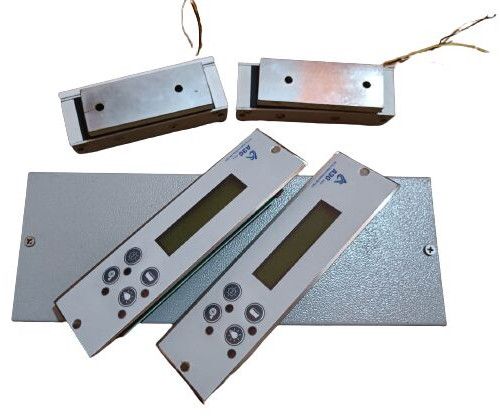

In the process of material transfer from unclassified area to classified area pass box used. Pass box is rectangular box with two or three doors. The doors are interlocked such a way that doors cannot be open at the same time, due to which pressure losses and bacterial contamination doesn’t take place throughout the material transferring process. The prevention of simultaneous access of doors has been achieved by our Pass Boxcontroller by ensuring that when one door for a Pass box is open then other doors closed

MOC SS 304 1 MM thick sheet, matt finished outer

construction along with SS 304 1.2 MM thick sheet, matt

finished inner construction

S.S. 304 1.5 MM thick sheet, for bottom platform, where

person has to stand

SS 304 adjustable air nozzles covering the working space

from 3 sides

Microprocessor based control system with adjustable timer

provision & Push buttons to access both side doors

Electromagnetic interlocking 600 lbs. (2 nos.), ensuring

only one side door can be accessed at a time

Emergency push button at exit side of the air shower &

inside the working chamber

99.997% down to 0.3 Micron box type Minipleat HEPA

filter, H-13 grade

90% down to 10 Micron prefilter, EU-4 grade

Statically & dynamically balanced, centrifugal DIDW

motor blower, to ensure the high velocity air jet cycle (only

when entering into the system from Door 1 & exit through Door 2)

SS 304 single leaf, double walled, sandwiched type swing doors with view window at entry

& exit junction

LED light

SS 304 door handles

Door closer (01 No.) to be installed at each door

SS 304 door hinges

Air Velocity: Approx. 25000 - 3500 FPM at nozzles discharge point

Air Flow: 100% Recirculatory type

Noise Level: Less than 69db A when ambient is not more than 55db A

Light Intensity: 400-500 lux inside the working chamber

Standard followed: ISO 14644-1

Documentation;

Design Qualification

Installation Qualification

Operational Qualification

Validation guide

Test Certificates;

M.O.C. for S.S. 304 material

Motor blower

All filters

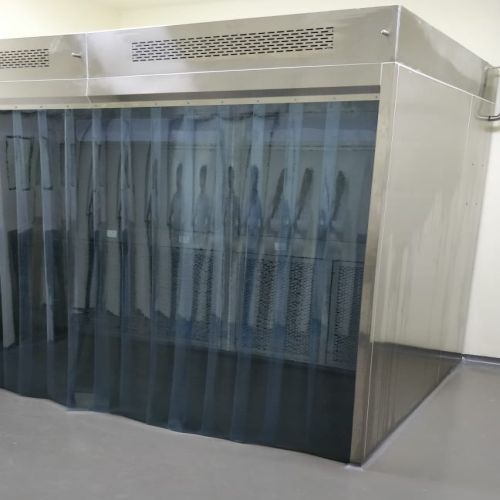

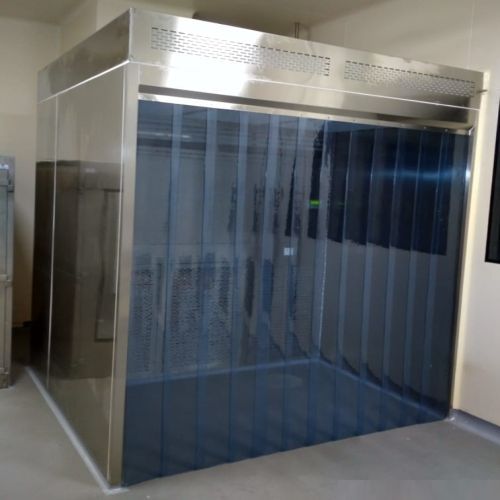

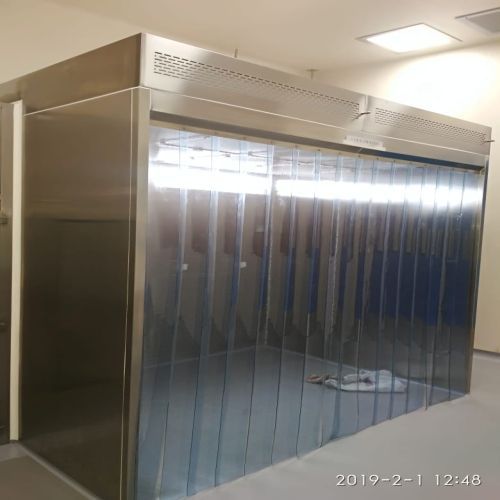

Sampling/Dispensing Booth

Assembled dispensing booth, also called sampling or weighing booth, down flow booth or powder containment booth, is dedicated purification equipment for sampling, weighing and analysis. It can contain powders and particles within work area and prevent operator from inhaling them

\n
• Negative pressure design contains powder and particles inside booth, not overflowing booth
\n
• Stainless steel construction make booth clean and hygienic
\n
• Assembly design makes it possible to enter completed clean room
\n
• Complete with user’s manual, assembly drawing, quality certificate, test report, etc.
\n
• One set of pre-filter and medium efficiency filters as spare parts
\n

Technical specification

\n
• Cabinet fabricated in SS 304/316
\n
• Air flow direction:    Down
\n
• Design according to GMP-guideline easy to clean and to disinfect.
\n
• Specially design centrifugal or back-ward curved type air blower
\n
• Magnehelic differential pressure gauge
\n

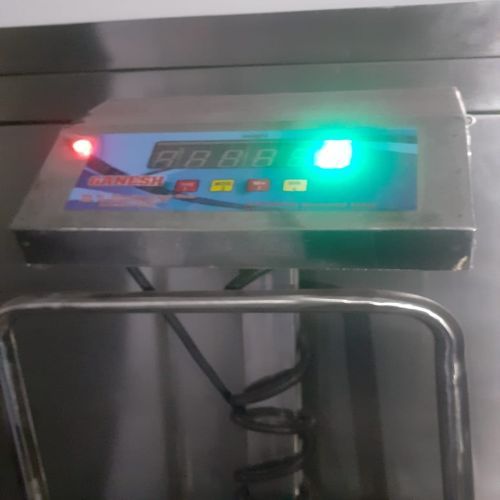

• Soft touch LED controller for blower/light/pressure display
\n
• Sensitive oxygen sensor with safety hooter
\n
• Mini-plate HEPA filters H-14, 99.997% down to 0.3µ.
\n
• Pre-filter non-woven, HDPE mesh EU-04 95% efficiency 5 µ
\n
• Florescent light
\n
• PAO port/atmospheric nozzles
\n
• Sound level minimum 65db on scale
\n
• Power supply single phase 220v 50 HZ
\n

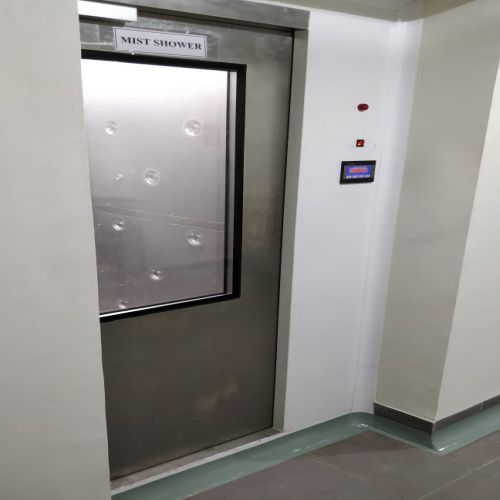

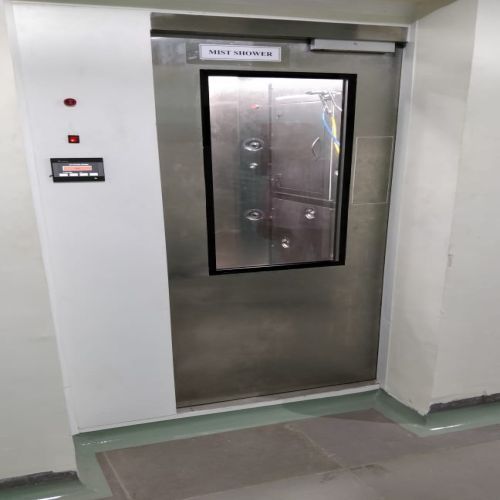

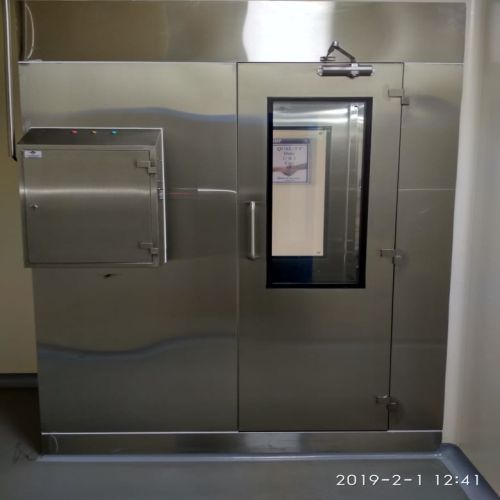

Introducing the Stainless Steel Mist Shower, a sleek rectangular shower head crafted from high-quality stainless steel. Made in India, this shower head features a polished silver finish, offering a luxurious and modern look to your bathroom. With a standard size for shower heads, experience a refreshing mist shower like never before.

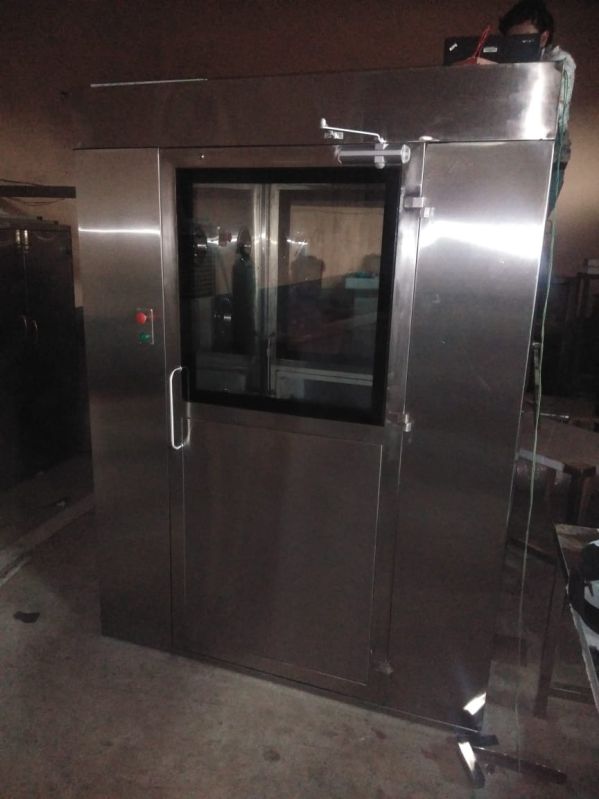

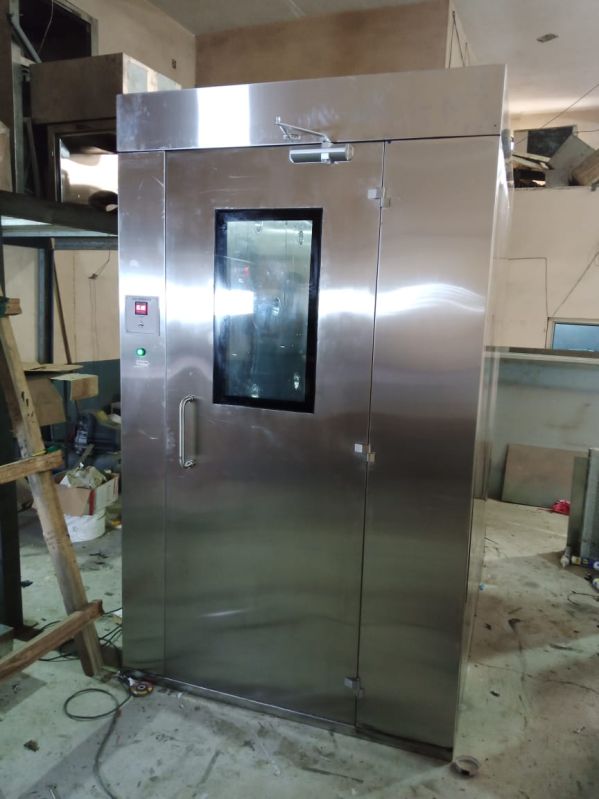

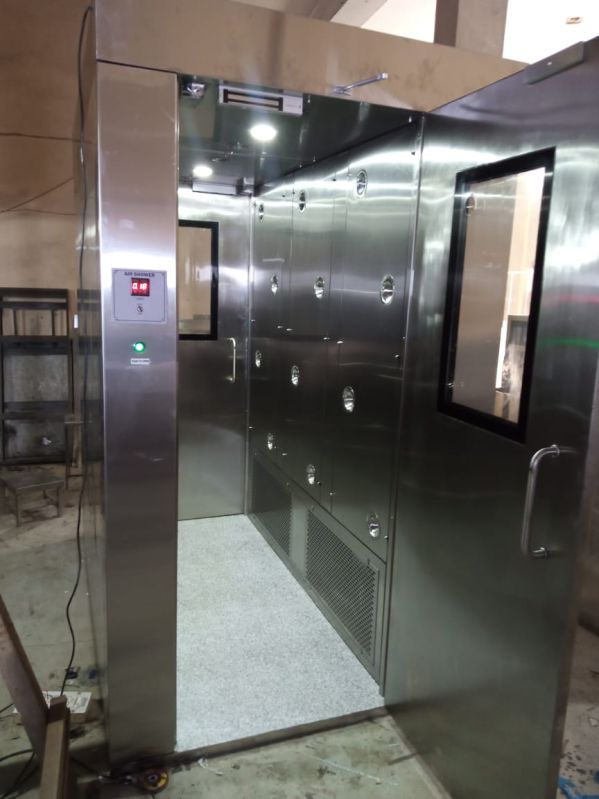

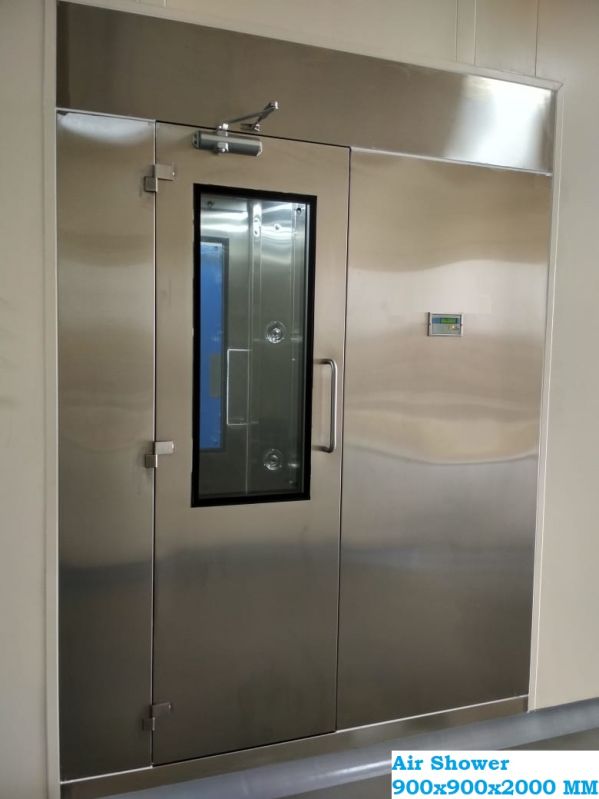

Air Showers

Air Showers are self-contained chambers installed strategically at entrances to cleanrooms and other controlled environments. They minimize particulate matter entering or exiting the clean space to mitigate the risk for cross-contamination.

How an Air Shower Works

1. Completely self-contained, pre-wired, fully equipped Air Shower/Tunnel systems help solve decontamination problems
2. Modular design lets you order a system to suit your cleanroom
3. HEPA filter/blower modules (rated 99.97% efficient @ 0.3-micron particles) wash personnel with Class 100 air to dislodge and remove particles
4. Solid-state microprocessor panel provides programmable control over access door operation
5. Interlocking doors minimize contamination, release automatically in the event of power failure
6. Fluorescent lighting is housed in the ceiling for minimal turbulence
7. Available in white epoxy-finished CR steel, stainless steel, or plastic laminate to meet various cleanroom requirements
8. Variety of sizes and door configurations
9. Economical to operate, easy to maintain
10. System options include HEPA-filtered ceiling, ionized grid, and safety glazing
11. These Air Showers and Tunnels offer an effective way to remove surface-deposited particles from personnel—before they get to the cleanroom.

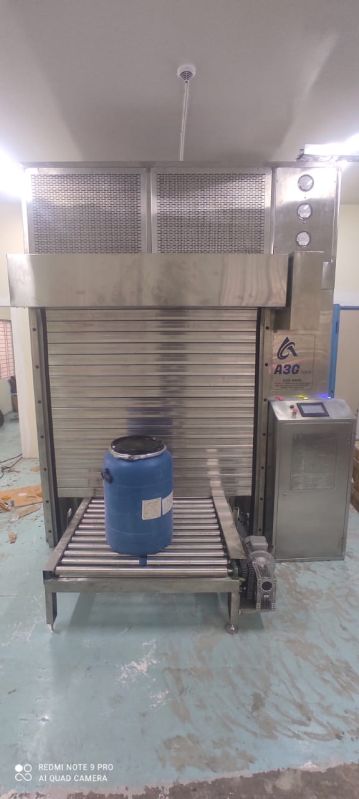

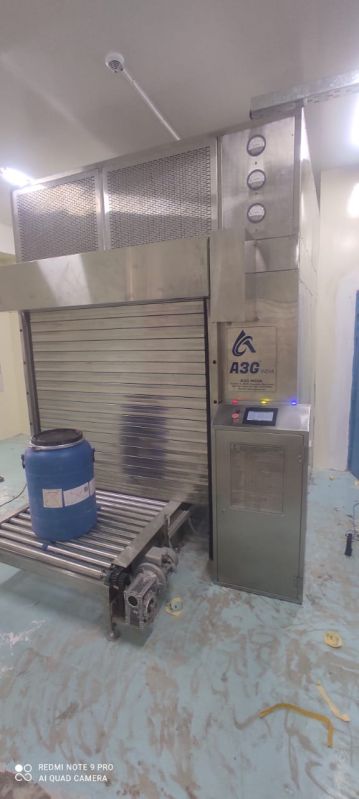

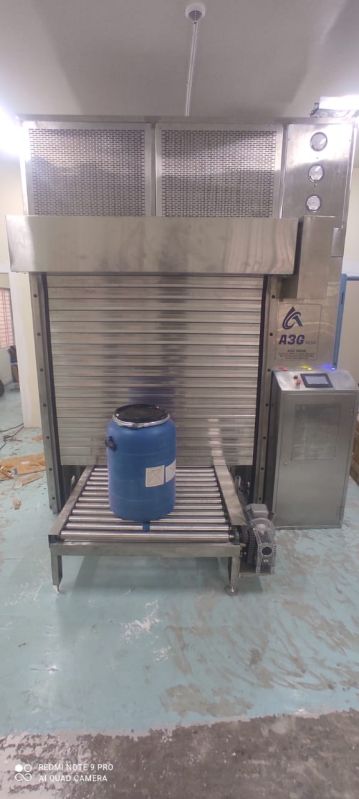

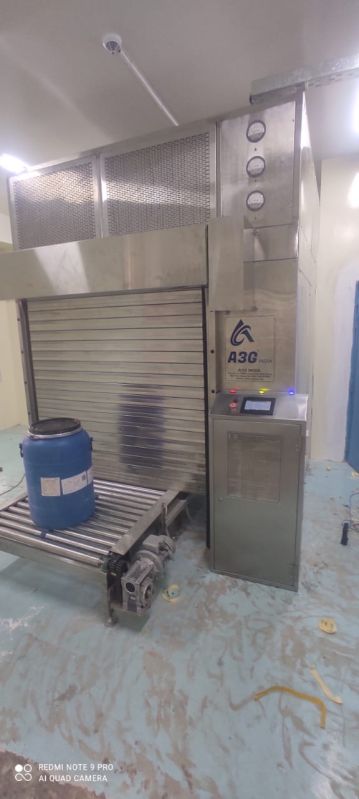

The de-dusting tunnel is standalone contamination control system. It is used to reduce non-viable particles from incoming raw material containers including drums, cartoon, sacks, and bags prior to sampling. It utilizes high pressure air stream and suck back system to ensure particles are dislodged and arrested in 2 stage filtration system. It can be installed at receiving bay of incoming raw materials.Standard Features:MOC: GI powder coated, SS304, SS316 or customizedexecutionDoors: SS rolling shutter, high speed non-metallic shutteror antistatic PVC curtains.Motorized conveyor (S.S. 304 Roller conveyor / PVC foodgrade belt conveyor) by means of Gearbox & motorS.S. 304 adjustable type, air nozzlesShutter doors interlockPre-filter: EU-5Intermediate air filter: EU-5Final Filter: EU-7Magnehelic differential gauge across filter.Statically & dynamically balanced motor blower for supplyand exhaustLED LightPLC / HMI based pre-programmable control system1 No. Horizontal brush to clean the front, top & back faceof the drum/cartoon box (Nylon bristles / Soft Siliconbristles)2 Nos. vertical brushes to clean both side faces ofdrum/cartoon box (Nylon bristles / Soft Silicon bristles)1 No. Horizontal brush, integrated in conveyor, for bottomcleaning (Nylon bristles / Soft Silicon bristles)Emergency stopVFD for speed controlling of conveyor, Dust collection trayOptional features:Flame proof executionIntegration with online weight checkOnline Integration with sampling system / boothAutomatic adjustment to cater multiple sizes ofdrums/cartoon boxesAny customized process requirementPerformance:Air Velocity: 4000 fpmAir Flow: Unidirectional (single pass)
