Aatomize Manufacturing Pvt. Ltd.

Veraval, Rajkot, Gujarat

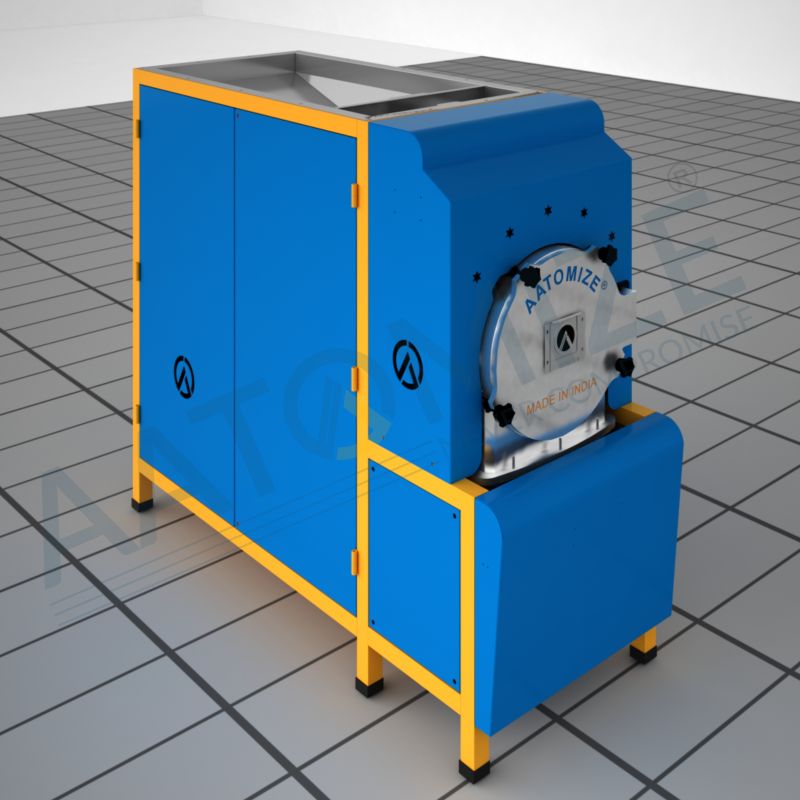

The Aatomize AZ751A is a powerful 7.5HP Heavy Duty 2-in-1 Pulverizer Machine designed for medium to large-scale commercial grinding operations. With its robust construction and dual functionality, this machine is perfect for grinding grains as well as spices, offering versatility and high productivity in a compact setup.

Key Features:

• Motor Power: 7.5 Horsepower (HP)

• 2-in-1 Functionality: Efficiently handles both dry grain milling and spice grinding in a single unit.

• Double Chamber System: Allows continuous grinding with improved output and less wear on individual chambers.

• 2 Hopper + 2 Beater Setup: Dual input and high-speed beater mechanism ensures faster and uniform grinding.

• MS Body Structure: Made from heavy-duty mild steel for enhanced durability and industrial-grade performance.

• User-Friendly Design: Easy to operate, clean, and maintain with a compact footprint suitable for commercial units.

Technical Specifications:

• Model: AZ751A

• Motor: 7.5 HP, 3 Phase

• RPM: 2880

• Capacity: 100 to 150 kg/hr (varies by material)

• Voltage: 415V

• Chambers: Double

• Hopper Count: 2

• Beater Count: 2

• Body Material: Mild Steel

• Operation Type: Continuous

• Automation Grade: Semi-Automatic

Applications:

• Flour Milling (Wheat, Rice, Maize, Bajra, Ragi)

• Masala Grinding (Chili, Turmeric, Coriander, Cumin)

• Herbal and Ayurvedic Product Grinding

• Food Processing Units

• Agro-industrial Startups

Benefits:

• Dual-use saves cost and space

• Sturdy for continuous and heavy-duty operations

• High-speed pulverizing with precision

• Easy to maintain and clean

• Reduces operational downtime

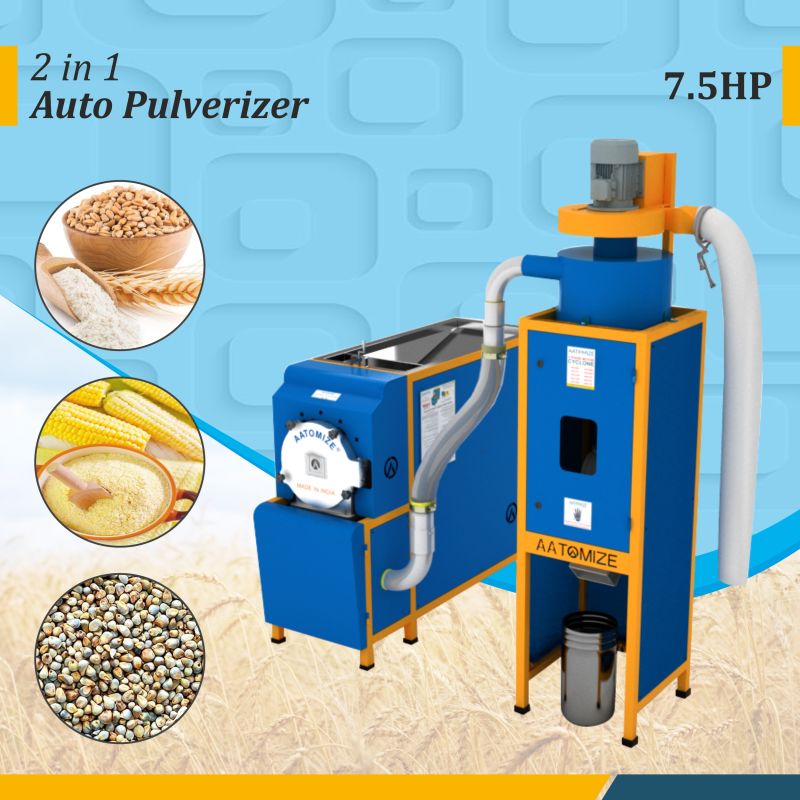

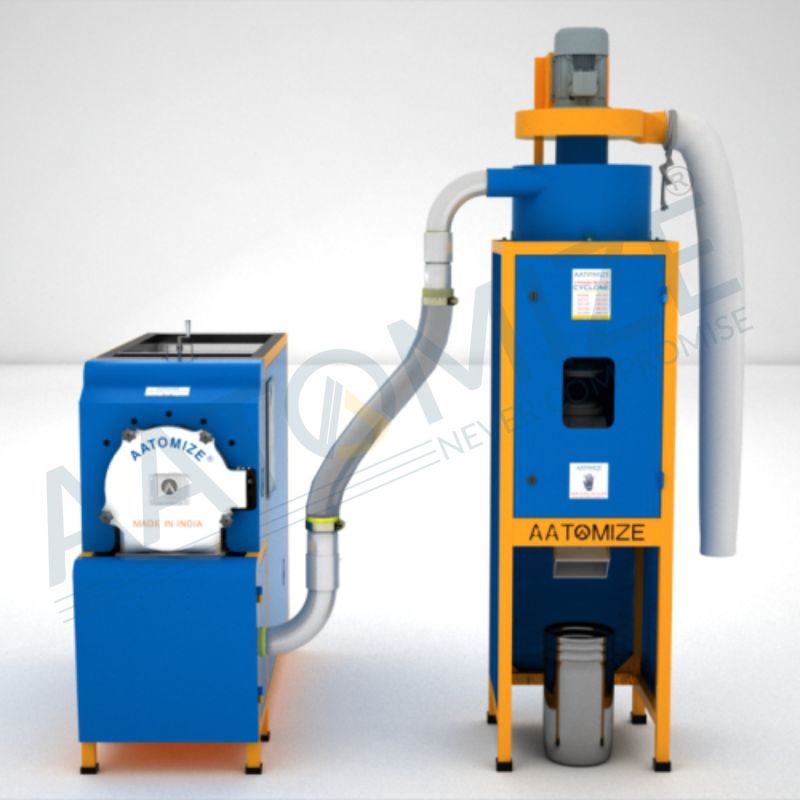

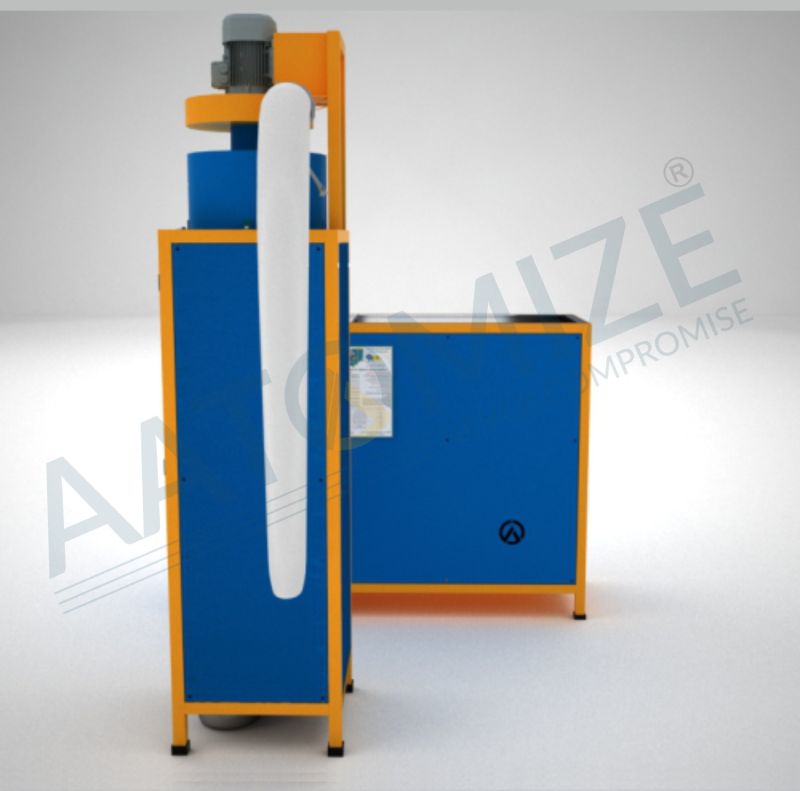

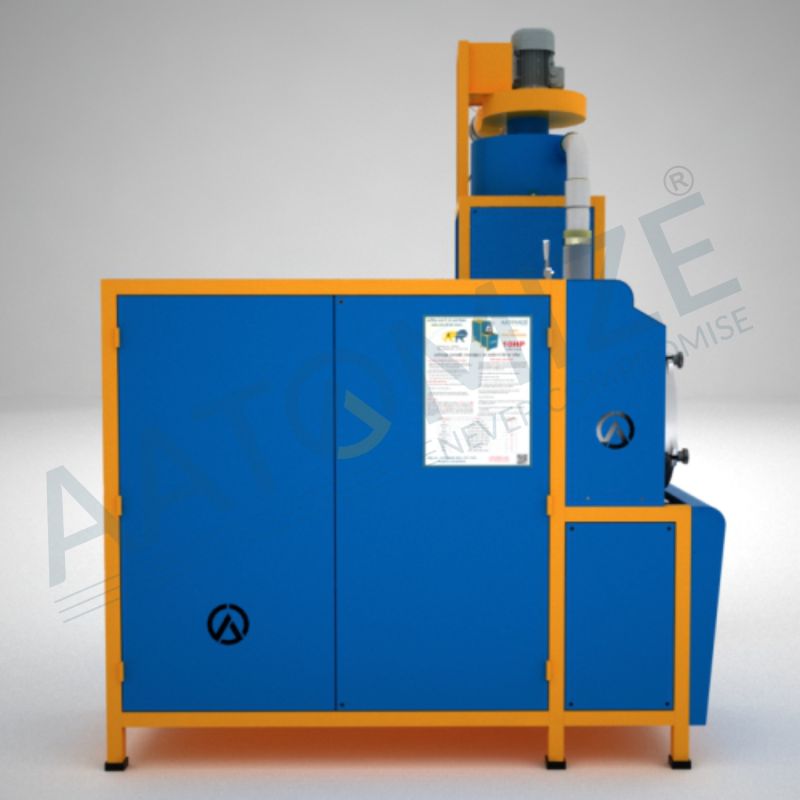

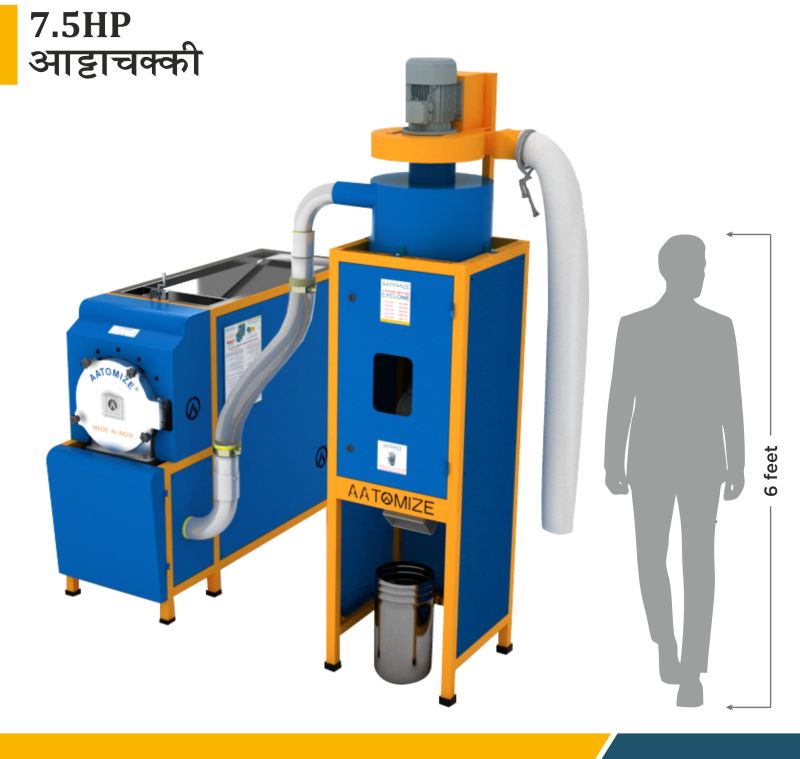

The Aatomize AZC751A is a premium-grade 7.5HP Heavy Duty Pulverizer Machine built for high-performance grinding in commercial and semi-industrial applications. Engineered with advanced cyclone technology, this model ensures dust-free operation, continuous grinding, and excellent particle separation, making it ideal for a wide range of grains and spices.

• Motor Power: 7.5 HP, 3 Phase

• Double Chamber System: Enhances grinding efficiency and minimizes motor load, ensuring long-term durability.

• 2 Hopper + 2 Beater Configuration: Offers smooth feeding and higher output with reduced clogging or spillage.

• Cyclone Attachment: Collects fine particles and reduces dust during operation, keeping your workspace clean.

• MS Heavy Body: Built with industrial-grade mild steel for vibration-free, heavy-duty performance.

• Energy-Efficient: High RPM motor ensures optimal energy usage and consistent grinding quality.

• Model: AZC751A

• Motor: 7.5 HP

• RPM: 2880

• Voltage: 415V

• Grinding Capacity: 90 to 150 kg/hr (depending on material)

• Beater: 2

• Hopper: 2

• Chambers: Double

• Body Material: Mild Steel

• Automation: Semi-Automatic

• Cyclone System: Included

• Cooling Mechanism: Air Cooled

• Flour Mill Businesses

• Spice Grinding Units

• Agricultural Produce Processing

• Food Processing Industries

• Ayurvedic and Herbal Product Manufacturing

• Efficient cyclone separator for dust-free grinding

• Multi-purpose usage for grains, pulses, and spices

• Heavy-duty design for long operational life

• Compact, easy to install, and operate

• Designed for high throughput with minimal maintenance

The Aatomize AZ1001A is a high-performance 10HP 2-in-1 Pulverizer Machine, designed for commercial grinding of grains, spices, and other food materials. With its double chamber system, dual hopper, and powerful 10HP motor, this model delivers unmatched grinding efficiency and durability for high-output processing units.

• Motor Power: 10 HP, 3 Phase

• Double Chamber Construction: Reduces load on motor and increases machine life with smooth and uniform grinding.

• 2 Hopper + 2 Beater System: Allows faster feeding and grinding of multiple materials with minimal downtime.

• High-Speed Operation: With 2880 RPM, ensures fine quality output and better particle distribution.

• Robust Body: Made with industrial-grade mild steel for long-lasting and vibration-free performance.

• User-Friendly Design: Easy to clean, operate, and maintain with high safety standards.

• Model: AZ1001A

• Motor: 10 HP

• RPM: 2880

• Voltage: 415V

• Capacity: 110 to 180 kg/hr (depending on material)

• Chambers: Double

• Beaters: 2

• Hoppers: 2

• Body: MS Fabricated

• Automation: Semi-Automatic

• Weight: Approx. 250280 kg

• Application: Dry grinding of wheat, maize, coriander, turmeric, chilly, besan, and more

• Commercial Flour Mills

• Spice Grinding Units

• Agro-Processing Industries

• Herbal/Ayurvedic Product Units

• Food Manufacturing Plants

• Efficient grinding with minimal wastage

• Suitable for a wide variety of dry materials

• Low maintenance and operational cost

• Heavy-duty performance for continuous use

• Compact design suitable for space-saving installations

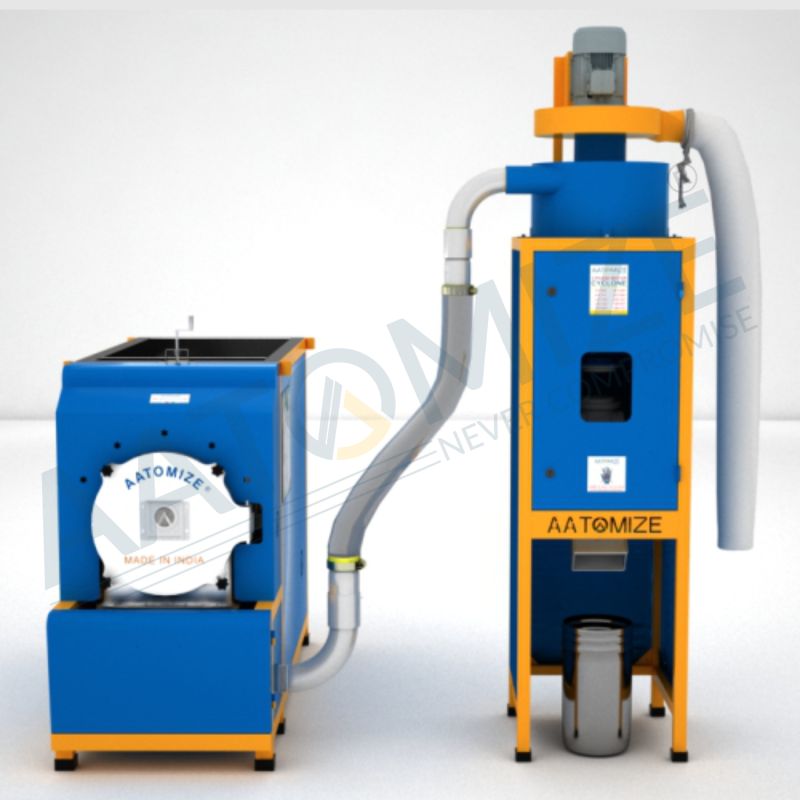

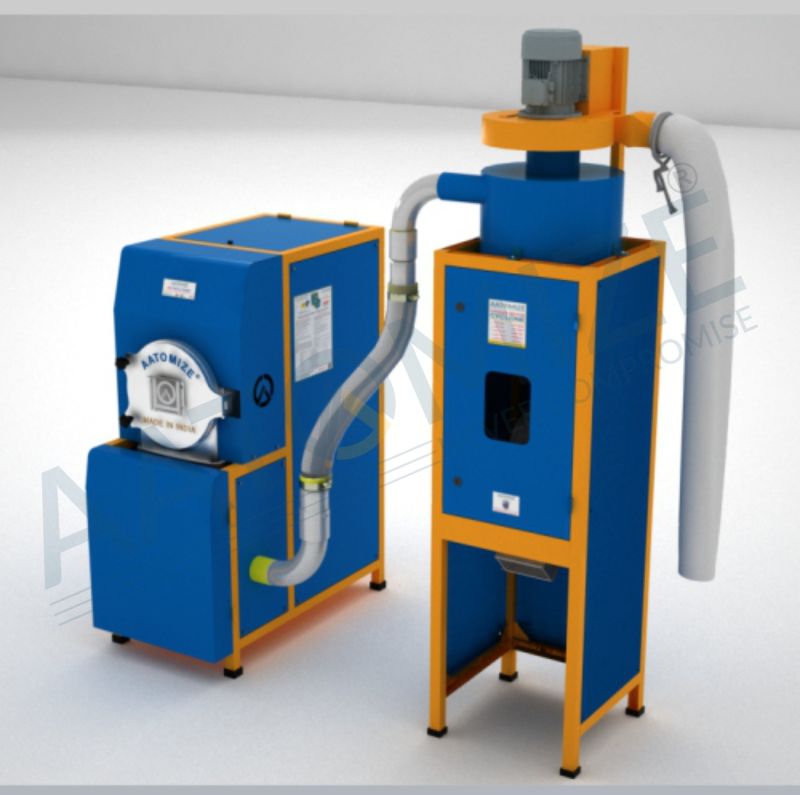

The Aatomize AZC1001A is a powerful 10HP Heavy Duty Pulverizer Machine with Cyclone, engineered for industrial-grade grinding of a wide range of materials including grains, spices, herbs, and pulses. Designed with double chambers, dual hopper and beater system, and an integrated cyclone separator, this machine ensures high efficiency, superior output quality, and longer machine life.

• Motor Power: 10 HP, 3 Phase

• Cyclone System: Enhances output collection, minimizes wastage, and reduces dust for cleaner operations

• Double Chamber Design: Lowers the load on motor and increases efficiency with consistent fine grinding

• 2 Hopper + 2 Beater System: Simultaneous dual feed for higher productivity

• High-Speed Performance: Operates at 2880 RPM to process materials quickly and evenly

• Sturdy Construction: Made from industrial-grade MS (mild steel) for durability and long service life

• Model: AZC1001A

• Motor: 10 HP, 3 Phase

• RPM: 2880

• Voltage: 415V

• Grinding Capacity: 110 180 kg/hr (depending on material)

• Chambers: Double

• Beaters: 2

• Hoppers: 2

• Cyclone: Yes (Heavy-duty steel cyclone)

• Body Type: MS Fabricated

• Operation: Semi-Automatic

• Weight: Approx. 270 300 kg

• Commercial Atta Mills

• Spice Grinding Units

• Food Processing Units

• Ayurvedic and Herbal Grinding

• Besan, Dal, and Chilly Powder Processing

• Dust-free grinding and cleaner working area

• High output with low power consumption

• Longer machine life with reduced maintenance

• Multipurpose use across food and spice industries

• Compact and efficient design for continuous use

The AATOMIZE AZ1501A is a powerful 15HP 2-in-1 heavy duty pulverizer machine designed for continuous grinding of grains and spices in commercial and industrial environments. Built with a double chamber configuration, dual hopper, and dual beater system, this machine allows simultaneous processing of different materialsmaking it perfect for flour mills, masala plants, food processors, and agro-industrial units.

Engineered to handle materials such as wheat, rice, maize, pulses, turmeric, chili, coriander, and more, the AZ1501A delivers consistent, fine powder output, minimal heat generation, and high productivity. With a durable powder-coated mild steel body and low-maintenance design, it 's ideal for heavy-duty use and high-volume requirements.

• Model: AZ1501A

• Motor Power: 15HP (Three Phase 415V)

• Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 120150 kg/hr

  • Spices: 110130 kg/hr

• Chamber Design: Double Chamber (2 Hopper + 2 Beater)

• Material: Powder-Coated Mild Steel

• Power Consumption: 11.512.5 kWh

• Output Type: Fine Powder (Mesh customizable)

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

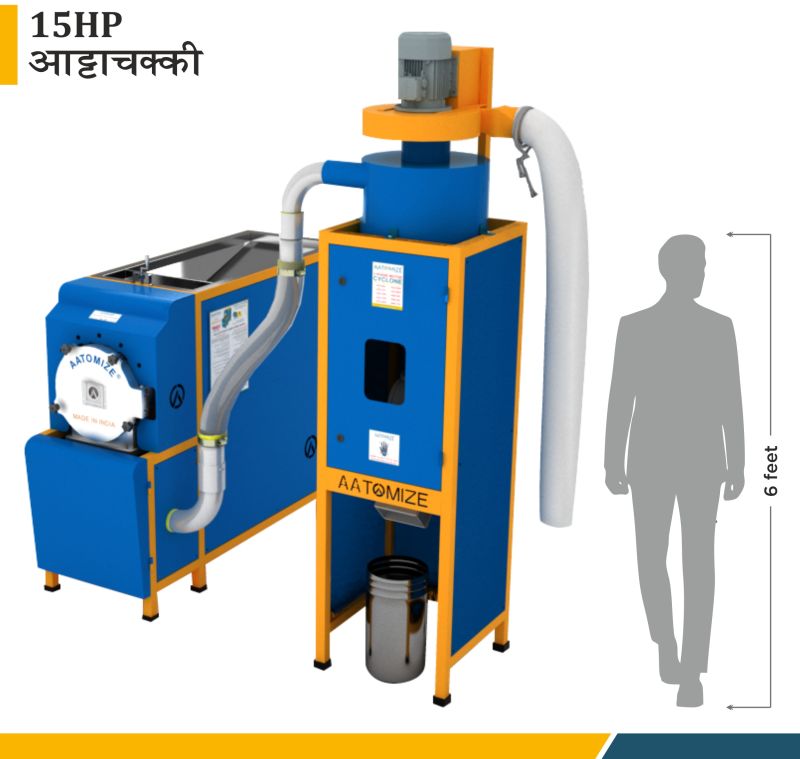

The AATOMIZE AZC1501A is a 15HP heavy duty pulverizer machine with an integrated cyclone separator, designed for industrial-scale, dust-free grinding of grains, pulses, and spices. Engineered with a double chamber, dual hopper, and dual beater system, this machine ensures continuous high-capacity grinding with minimal heat and fine powder output.

Ideal for processing materials like wheat, rice, maize, turmeric, chili, coriander, and herbal ingredients, the AZC1501A is suited for flour mills, spice plants, agro-processing units, and contract manufacturing facilities. The cyclone separator ensures clean and efficient powder collection, reducing airborne dust and improving product recovery.

Its durable powder-coated mild steel body, energy-efficient operation, and long-term durability make it a smart investment for serious commercial use.

• Model: AZC1501A

• Motor Power: 15HP (Three Phase 415V)

• Cyclone Motor: 1HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 130160 kg/hr

  • Spices: 120150 kg/hr

• Chamber Type: Double Chamber (2 Hopper + 2 Beater)

• Material: Powder-Coated Mild Steel

• Output: Fine Powder with Dust-Free Collection

• Power Consumption: 12.513.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

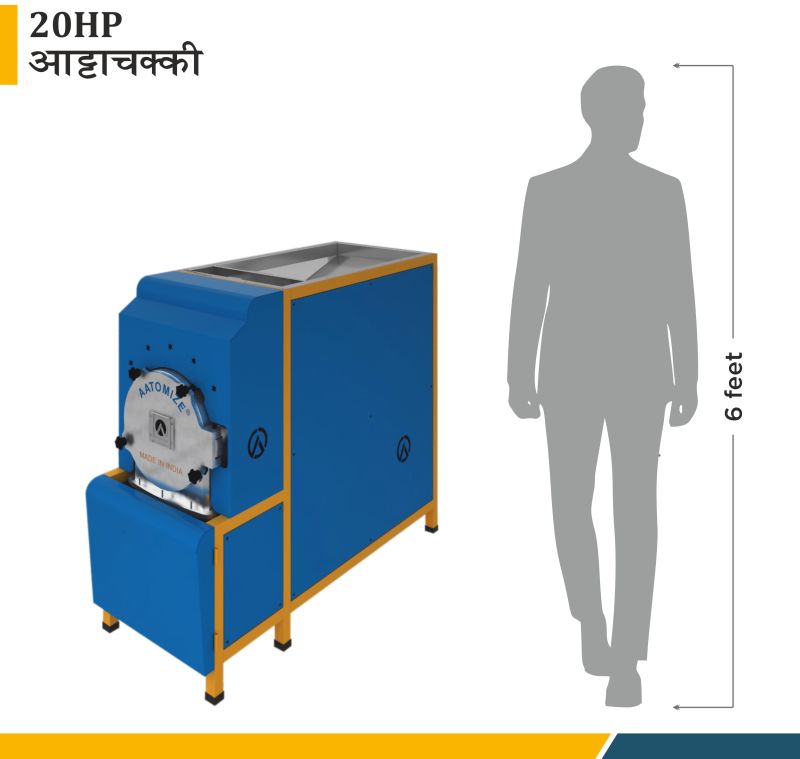

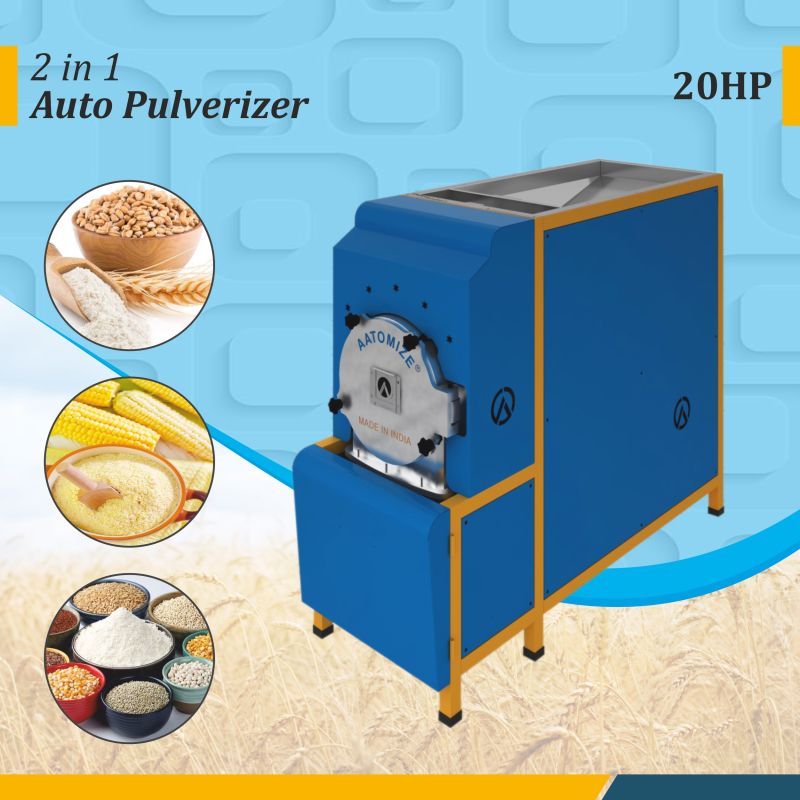

The AATOMIZE AZ2001A is a 20HP heavy-duty 2-in-1 pulverizer machine designed for high-capacity grinding of both grains and spices, delivering unmatched performance for commercial food processing units. Built with a double chamber structure, dual hopper, and dual beater system, the AZ2001A supports continuous, dual-material input while ensuring fine powder output with minimal heat buildup.

This machine is ideal for processing wheat, rice, maize, pulses, turmeric, chili, coriander, and other dry materials. Its rugged powder-coated mild steel body, high-speed beater system, and vibration-free design make it the go-to solution for flour mills, spice grinding units, government contract suppliers, and bulk agro-food producers.

With an average output of up to 220250 kg/hr, the AZ2001A combines efficiency, durability, and low maintenance to offer the ultimate industrial grinding solution.

Key Features:

• Model: AZ2001A

• Motor Power: 20HP (Three Phase 415V)

• Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 200250 kg/hr

  • Spices: 180220 kg/hr

• Chamber Design: Double Chamber (2 Hopper + 2 Beater)

• Body Material: Powder-Coated Mild Steel

• Output Type: Fine Powder (Customizable Mesh)

• Power Consumption: 13.514.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

The AATOMIZE AZ3001A is a 30HP industrial-grade 2-in-1 pulverizer machine designed for high-throughput, continuous grinding of grains and spices in commercial food processing units. With its double chamber design, dual hopper, and dual beater configuration, this machine allows simultaneous multi-material processing with superior output quality and speed.

Capable of handling wheat, rice, maize, pulses, turmeric, chili, coriander, and other dry food materials, the AZ3001A ensures fine powder output, minimal downtime, and reduced operational heat. Its powder-coated mild steel body, robust motor system, and energy-efficient performance make it ideal for flour mills, spice factories, herbal units, and bulk agro-processors.

• Model: AZ3001A

• Motor Power: 30HP (Three Phase 415V)

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Spices: 250300 kg/hr

  • Grains: 280350 kg/hr

• Chamber Type: Double Chamber (2 Hopper + 2 Beater)

• Material: Powder-Coated Mild Steel

• Power Consumption: 18.019.0 kWh

• Automation Grade: Semi-Automatic

• Output: Fine Powder (Mesh Customizable)

• Warranty: 1 Year (Motor & Machine)

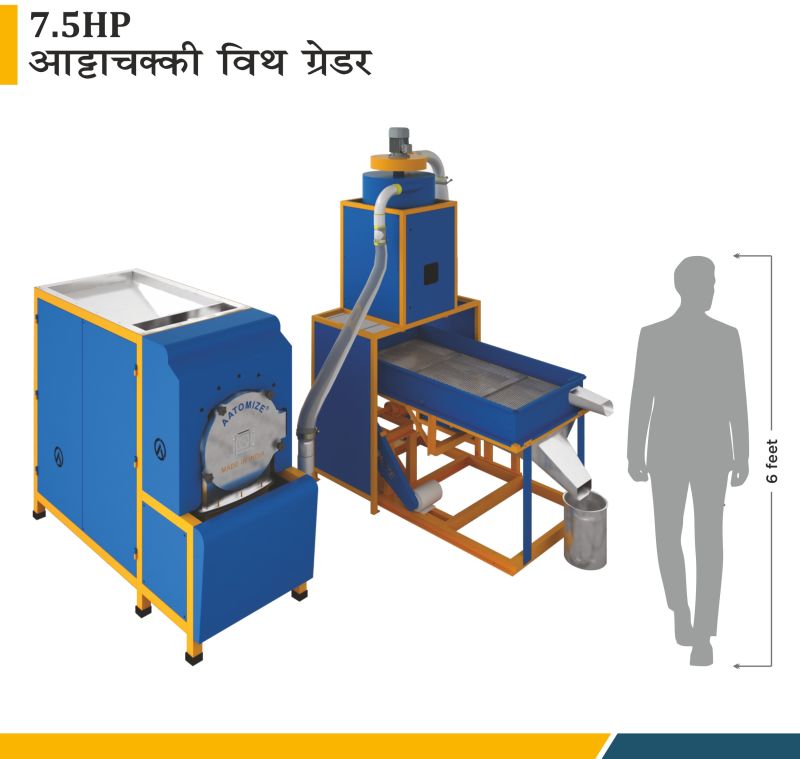

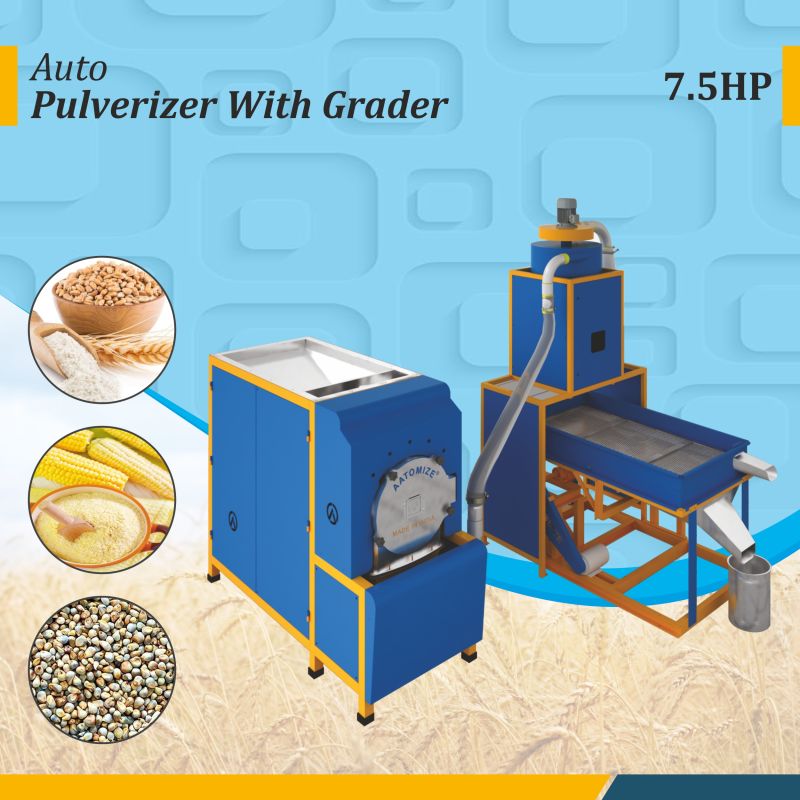

The AATOMIZE AZAGC751A is a 7.5HP multifunctional pulverizer machine integrated with a cyclone separator and a vibro atta grader, offering a three-in-one solution for dust-free grinding, fine powder collection, and mesh-wise flour separation. Built with a double chamber structure, dual hopper, and dual beater mechanism, this machine is designed for efficient and continuous grinding of wheat, maize, pulses, turmeric, chili, coriander, and other dry grains and spices.

The cyclone ensures a clean and dust-free working environment, while the attached grader allows precise sorting of atta/flour by mesh sizeenhancing value for retail flour packers, herbal processors, and FMCG suppliers.

• Model: AZAGC751A

• Main Motor Power: 7.5HP (Three Phase 415V)

• Cyclone Motor: 1HP

• Grader Motor: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 6080 kg/hr

  • Spices: 5570 kg/hr

• System Design: Double Chamber + Cyclone Separator + Atta Grader

• Body Construction: Powder-Coated Mild Steel

• Output Type: Fine Powder with Multi-Mesh Sorting

• Power Consumption: 7.88.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

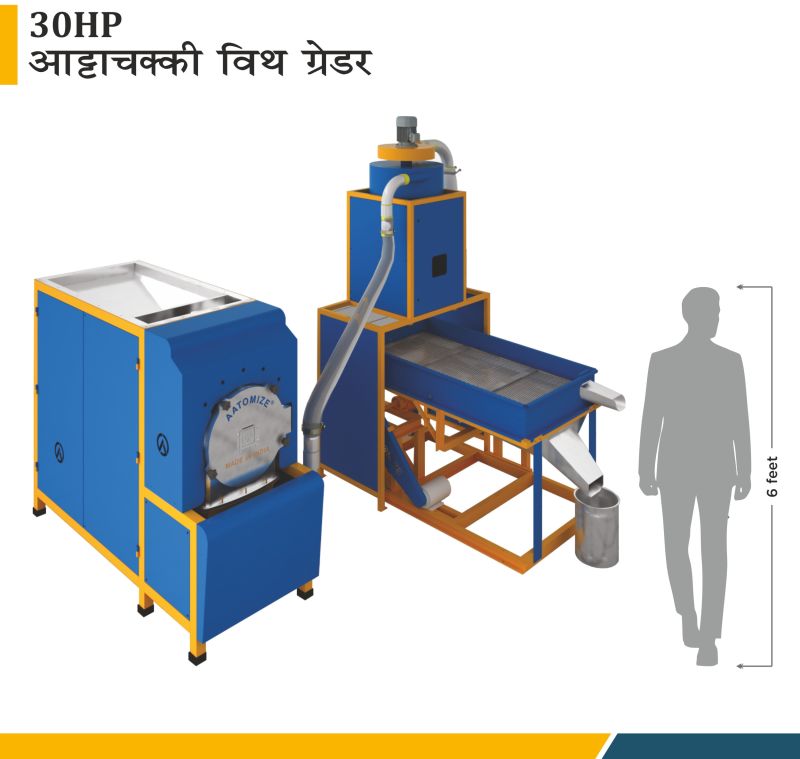

The AATOMIZE AZAGC3001A is a 30HP fully integrated industrial pulverizer machine equipped with a cyclone dust separator and vibro atta grader, purpose-built for high-capacity, dust-free grinding and flour mesh sorting. Featuring a double chamber construction, dual hopper and dual beater system, this powerhouse is ideal for processing wheat, maize, pulses, turmeric, chili, coriander, and herbal materials in large-scale food processing environments.

Its cyclone unit ensures clean powder collection and minimizes product loss, while the atta grader enables accurate flour separation by mesh, making it ideal for retail packaging, FMCG supply, and export-ready flour or spice production.

This model is suited for companies requiring industrial output, multi-mesh flexibility, and round-the-clock operation with minimal maintenance.

• Model: AZAGC3001A

• Main Motor Power: 30HP (Three Phase 415V)

• Cyclone Motor: 1HP

• Grader Motor: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 250300 kg/hr

  • Spices: 220260 kg/hr

• System Design: Double Chamber + Cyclone + Vibro Atta Grader

• Body Material: Powder-Coated Mild Steel

• Output Quality: Ultra-Fine Powder with Multi-Mesh Grading

• Power Consumption: 18.019.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

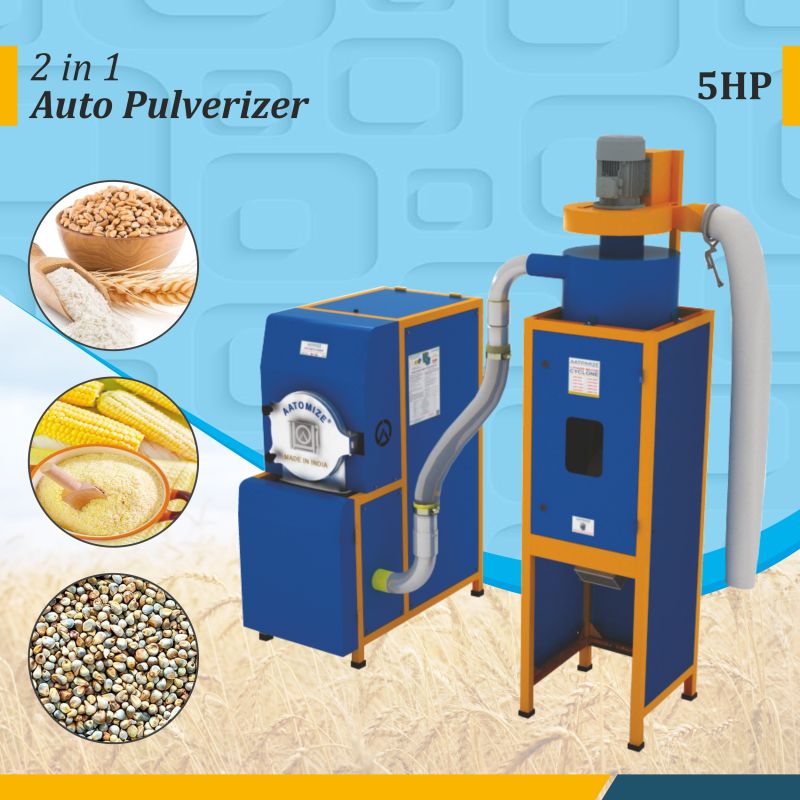

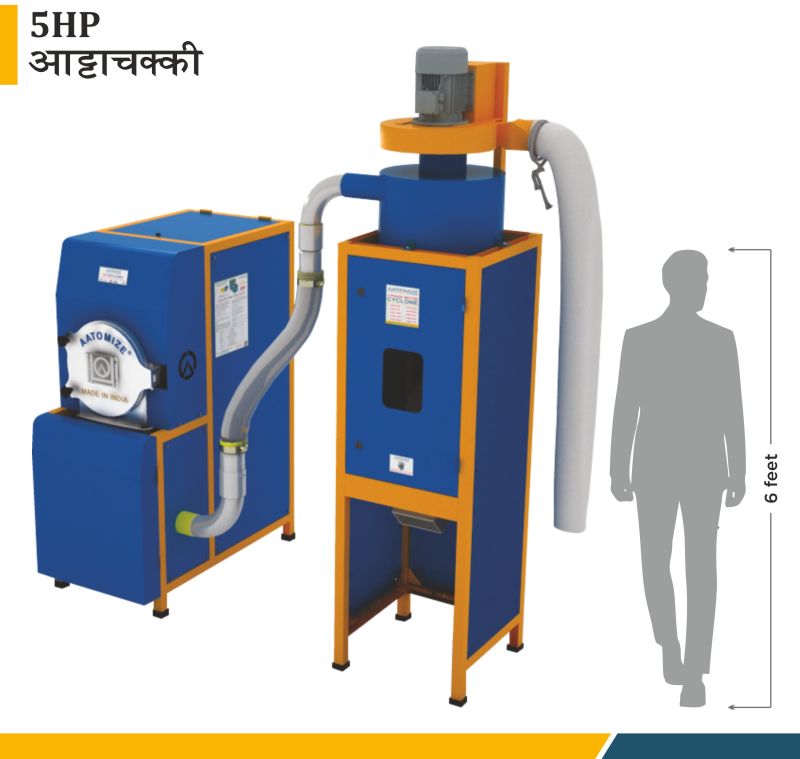

The AATOMIZE AZC502A is a 5HP semi-automatic pulverizer machine equipped with a cyclone dust separator, designed for efficient, dust-free grinding of grains and spices. With a double chamber structure, dual hopper, and dual high-speed beater system, this machine delivers fine powder output with reduced residue loss, making it perfect for grinding wheat, maize, pulses, turmeric, chili, coriander, and other dry food ingredients.

The cyclone unit ensures effective powder collection, maintaining a cleaner and more hygienic processing environment. Its compact design, powder-coated mild steel body, and customizable mesh options make it ideal for flour mills, spice units, and herbal powder production businesses.

• Model: AZC502A

• Main Motor Power: 5HP (Three Phase 415V)

• Cyclone Motor: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 4560 kg/hr

  • Spices: 4055 kg/hr

• Chamber Type: Double Chamber (2 Hopper + 2 Beater)

• Dust Control: Cyclone Separator Included

• Material: Powder-Coated Mild Steel

• Power Consumption: 5.05.5 kWh

• Output Type: Fine Powder (Adjustable Mesh)

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

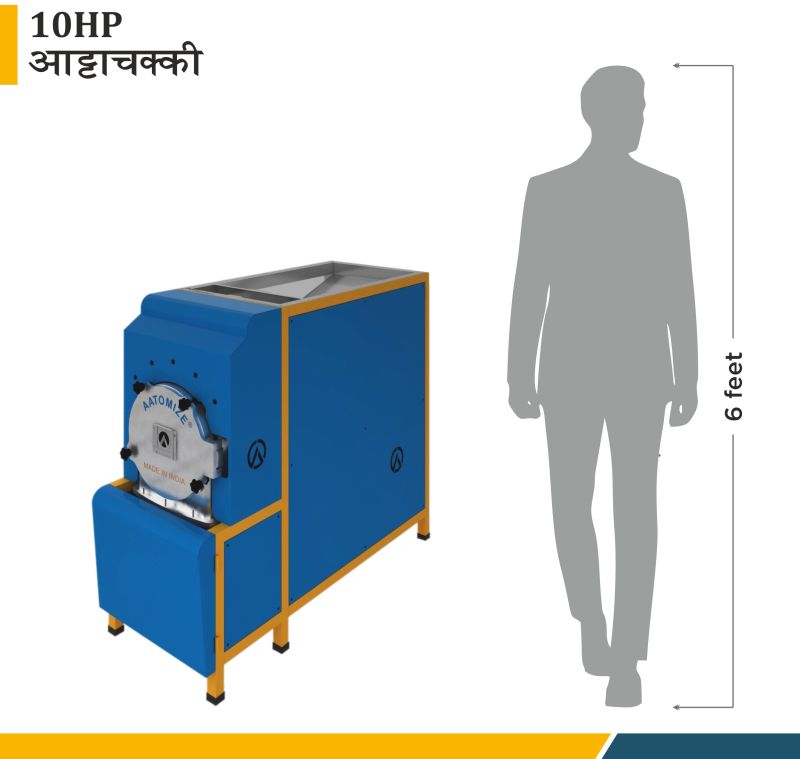

The AATOMIZE AZ1001A is a 10HP high-performance pulverizer machine built for industrial-grade grinding of both grains and spices. With its robust double chamber design, dual hopper, and dual high-speed beater system, this 2-in-1 unit ensures fine, uniform powder output and is capable of continuous operation in medium-to-large-scale food processing environments.

Designed for grinding wheat, maize, pulses, rice, turmeric, chili, coriander, and other dry food materials, the AZ1001A is ideal for flour mills, spice units, herbal powder manufacturers, and FMCG ingredient suppliers. The machine 's powder-coated mild steel construction ensures long life, while its compact design supports easy maintenance and installation.

Key Features:

• Model: AZ1001A

• Motor Power: 10HP (Three Phase 415V)

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 90120 kg/hr

  • Spices: 80100 kg/hr

• System Design: Double Chamber (2 Hopper + 2 Beater)

• Material: Powder-Coated Mild Steel

• Output Type: Fine Powder (Adjustable Mesh)

• Power Consumption: 9.510.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

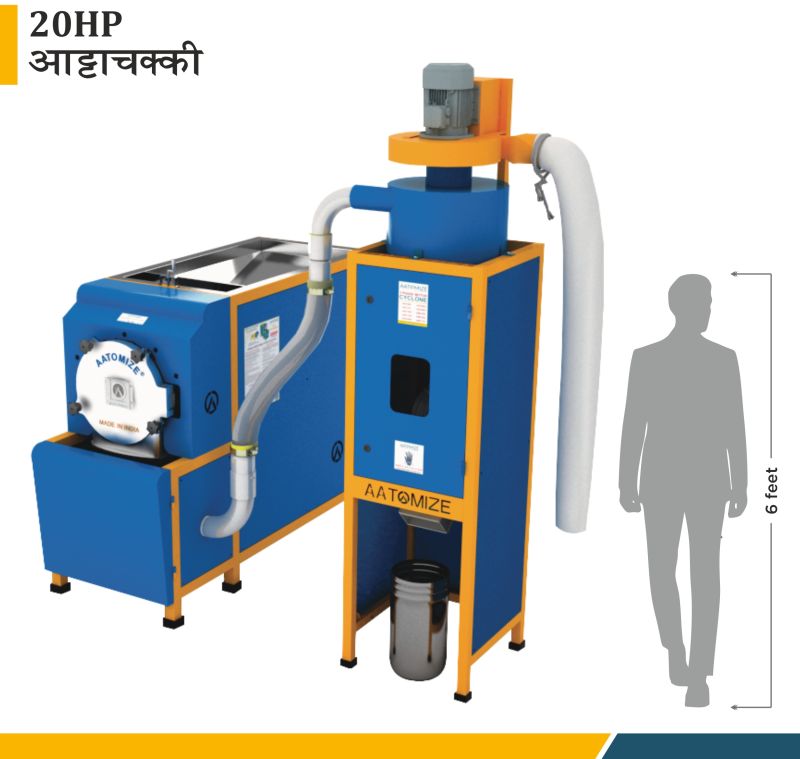

The AATOMIZE AZC2001A is a 20HP industrial pulverizer machine equipped with a cyclone dust separator, specifically built for dust-free, high-output grinding of grains, spices, and herbs. With a double chamber design, dual hopper, and dual high-speed beater setup, this machine ensures clean and consistent powder production from materials like wheat, maize, rice, turmeric, chili, coriander, and more.

The cyclone separator system collects fine particles efficiently, ensuring a dust-free operation and reduced material loss, making it ideal for commercial flour mills, spice units, and herbal powder manufacturers. Its robust construction, energy-efficient motor, and precision mesh output make it a long-lasting and high-performance solution.

• Model: AZC2001A

• Main Motor Power: 20HP (Three Phase 415V)

• Cyclone Motor: 1HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 160200 kg/hr

  • Spices: 140180 kg/hr

• System Configuration: Double Chamber (2 Hopper + 2 Beater) + Cyclone Separator

• Construction Material: Powder-Coated Mild Steel

• Output Type: Fine Powder with Adjustable Mesh Sizes

• Power Consumption: 15.016.0 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

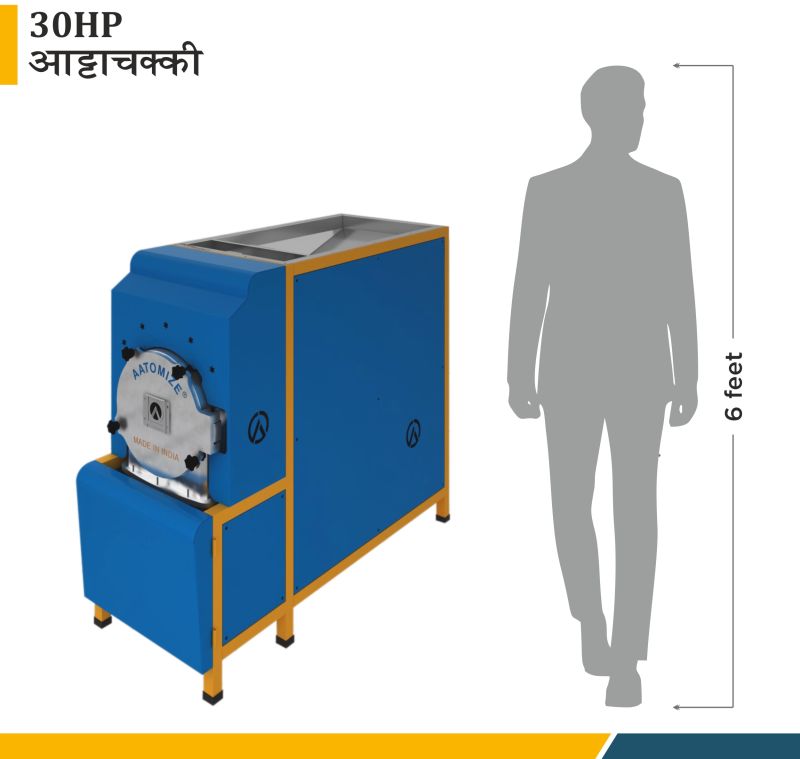

The AATOMIZE AZ3001A is a 30HP industrial-grade 2-in-1 pulverizer machine, engineered for continuous, high-output grinding of a wide range of materials including wheat, maize, rice, pulses, turmeric, chili, coriander, and other dry food ingredients. Featuring a double chamber body, dual hopper, and dual beater system, it ensures uniform, fine powder output with exceptional efficiency.

Designed for large-scale food production units, flour mills, spice processing plants, and export-grade agro-industries, the AZ3001A offers long-lasting performance, low maintenance, and high durability. Its powder-coated mild steel construction makes it resilient and suitable for tough industrial environments.

• Model: AZ3001A

• Main Motor Power: 30HP (Three Phase 415V)

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 250300 kg/hr

  • Spices: 220260 kg/hr

• System Configuration: Double Chamber (2 Hopper + 2 Beater)

• Material: Powder-Coated Mild Steel

• Output: Ultra-Fine Powder (Mesh Customizable)

• Power Consumption: 17.018.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

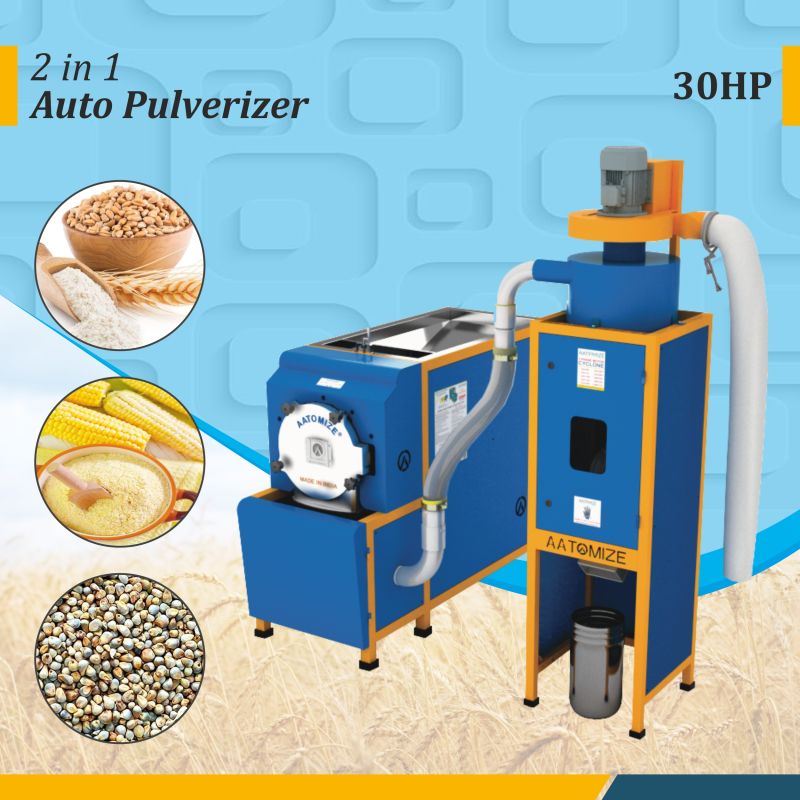

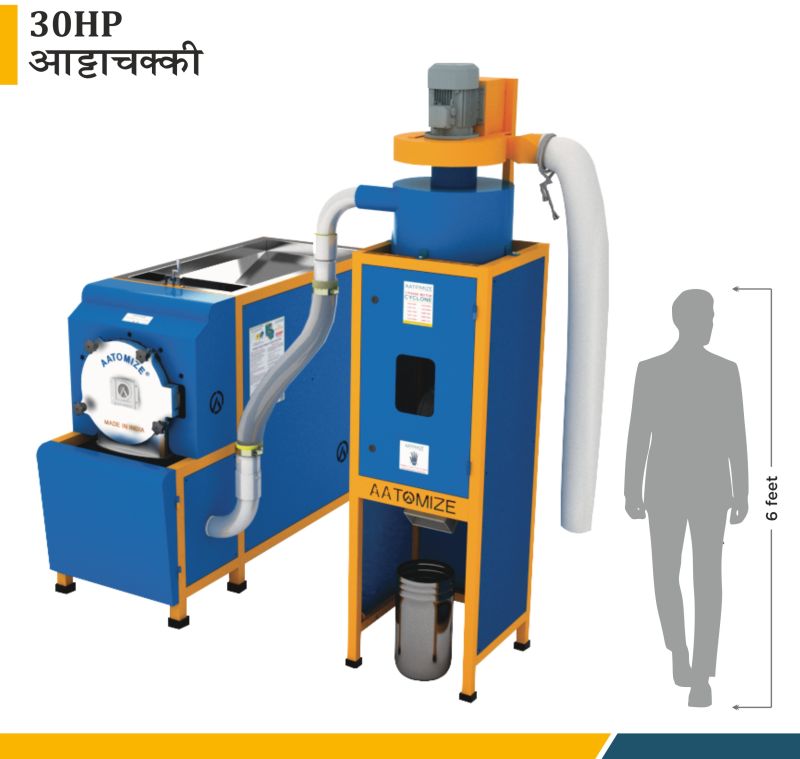

The AATOMIZE AZC3001A is a 30HP high-output pulverizer machine with an integrated cyclone dust separator, built for dust-free, large-scale grinding of grains and spices. Engineered with a double chamber body, dual hopper, and dual high-speed beater setup, it delivers ultra-fine powder with efficient cyclone-based dust collection, ideal for industrial-grade food processing.

Capable of processing wheat, maize, pulses, rice, turmeric, chili, coriander, and more, the AZC3001A is perfect for large food processing plants, spice packaging units, herbal powder production, and FMCG manufacturers. The cyclone system ensures cleaner operation, reducing powder loss and creating a hygienic processing environment.

• Model: AZC3001A

• Main Motor Power: 30HP (Three Phase 415V)

• Cyclone Motor: 1HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 250300 kg/hr

  • Spices: 220260 kg/hr

• System Design: Double Chamber (2 Hopper + 2 Beater) + Cyclone Separator

• Construction Material: Powder-Coated Mild Steel

• Output: Fine Powder (Adjustable Mesh Sizes)

• Power Consumption: 18.019.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

The AATOMIZE AZAGC751A is a 7.5HP multi-functional pulverizer machine designed for efficient grinding and automatic flour grading, combining a cyclone dust collection system and an integrated atta grader for clean, uniform, and high-quality flour output. Ideal for medium-scale flour mills, masala processors, and herbal powder makers, it supports grinding of wheat, rice, maize, turmeric, chili, and pulses.

With its double chamber body, dual hopper, and dual high-speed beater system, this machine ensures precise, continuous powder processing. The attached mesh-based grading unit provides clean flour separation into fine and coarse grades, while the cyclone system reduces airborne particles and maximizes powder recovery.

• Model: AZAGC751A

• Main Motor Power: 7.5HP (Three Phase 415V)

• Cyclone Motor: 1HP

• Grader Motor: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grinding: 6585 kg/hr

  • Grading Output: 4055 kg/hr (fine flour)

• System Design: Double Chamber + Cyclone Separator + Flour Grader

• Construction: Powder-Coated Mild Steel

• Output Type: Fine and Graded Flour (Mesh Adjustable)

• Power Consumption: 7.58.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

The AATOMIZE AZAGC1001A is a 10HP high-capacity pulverizer machine equipped with a cyclone dust separator and an integrated atta grading system, specifically designed for dust-free, continuous grinding and mesh-based flour separation. This versatile machine is ideal for processing wheat, maize, rice, pulses, chili, turmeric, and other dry agro-food materials.

With its double chamber design, dual hopper, dual beater system, and flour grading attachment, this unit ensures high efficiency, cleaner working conditions, and better powder separation for packaging. The AZAGC1001A is best suited for flour mills, herbal powder units, contract food processors, and spice grinding factories looking to optimize output and reduce wastage.

• Model: AZAGC1001A

• Main Motor Power: 10HP (Three Phase 415V)

• Cyclone Motor: 1HP

• Grader Motor: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grinding: 90120 kg/hr

  • Grading Output: 6080 kg/hr (fine flour)

• System Type: Double Chamber + Cyclone Separator + Atta Grader

• Construction: Powder-Coated Mild Steel

• Output: Graded Powder (Multiple Mesh Sizes)

• Power Consumption: 9.511.0 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

The AATOMIZE AZAGC3001A is a 30HP industrial pulverizer machine with an integrated cyclone separator and atta grading system, purpose-built for high-volume, dust-free grinding and flour separation. Designed for continuous operation in large-scale food processing environments, this machine grinds a wide range of materials including wheat, maize, pulses, rice, chili, turmeric, and more.

Featuring a double chamber construction, dual hopper, dual high-speed beater system, and a mesh-based flour grader, the AZAGC3001A delivers ultra-fine powder, minimizes wastage, and ensures clean, uniform flour output. It 's an ideal fit for flour mills, spice plants, herbal product manufacturers, and export-grade packaging units requiring precision and high throughput.

• Model: AZAGC3001A

• Main Motor Power: 30HP (Three Phase 415V)

• Cyclone Motor: 1HP

• Grader Motor: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grinding: 250300 kg/hr

  • Grading Output: 150180 kg/hr (Fine Flour)

• System Design: Double Chamber + Cyclone Separator + Atta Grader

• Body Material: Powder-Coated Mild Steel

• Output Type: Multi-Mesh Graded Flour Powder

• Power Consumption: 18.019.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)
