The 5 HP Masala Pulverizer Machine from Aatomize Manufacturing Pvt. Ltd. is a powerful and durable spice grinding machine designed for fine and efficient grinding of a wide range of spices including turmeric, chili, coriander, cumin, black pepper, fennel, and more. Built with precision engineering and robust materials, this machine is ideal for commercial use in spice processing units, food industries, and masala manufacturing businesses.

• High-Speed Grinding: Equipped with a 5 HP motor and double chamber for smooth and consistent spice grinding.

• Cyclone & Dust Collector System: Ensures cleaner output with minimal dust and wastage.

• Heavy Duty Build: MS or SS body construction for long-lasting performance in continuous operations.

• Adjustable Fineness: Multiple sieves included for customized grinding sizes.

• Low Maintenance: Easy to operate, clean, and maintain with minimal downtime.

• Motor Power: 5 HP (Three Phase or Single Phase as per requirement)

• Capacity: Up to 50–60 kg/hr (varies with material type)

• Chambers: Double Chamber

• RPM: 2880

• Material Compatibility: Dry spices only

The 5 HP Masala Pulverizer Machine from Aatomize Manufacturing Pvt. Ltd. is a powerful and durable spice grinding machine designed for fine and efficient grinding of a wide range of spices including turmeric, chili, coriander, cumin, black pepper, fennel, and more. Built with precision engineering and robust materials, this machine is ideal for commercial use in spice processing units, food industries, and masala manufacturing businesses.

• High-Speed Grinding: Equipped with a 5 HP motor and double chamber for smooth and consistent spice grinding.

• Cyclone & Dust Collector System: Ensures cleaner output with minimal dust and wastage.

• Heavy Duty Build: MS or SS body construction for long-lasting performance in continuous operations.

• Adjustable Fineness: Multiple sieves included for customized grinding sizes.

• Low Maintenance: Easy to operate, clean, and maintain with minimal downtime.

• Motor Power: 5 HP (Three Phase or Single Phase as per requirement)

• Capacity: Up to 50–60 kg/hr (varies with material type)

• Chambers: Double Chamber

• RPM: 2880

• Material Compatibility: Dry spices only

Model No. : AMC302

Grinding Capacity : 30 to 35 kg

Automation Grade : Semi Automatic

Material : MS Body

Power Source : Electric

Voltage (V) : 415

Current (A) : 5

Corrosion Resistance : Yes

Power Consumption : 3.5 KWH

Motor Speed RPM : 1440 rpm

Bitter (Cutter) RPM : 3840 rpm

Frequency (HZ) : 50

Motor Type : Three Phase

Motor Capacity : 3HP

Coating : Powder Coating

Chamber : Double Chamber

Machine Dimension Inch : L-43" W-17" H-33"

Front Chamber Dimension Inch : 10" Dia x 5" Depth

Back Chamber Dimension Inch : 7" Dia x 4" Depth

Cyclone Motor : 0.5 hp & 1 hp

Cyclone Dimension Inch : L-22" W-22" H-78"

Machine Design : Pully - Belt

Machine Weight : 191.4 kg

MODEL NO. : AMC502

Grinding Capacity : 50 to 60 kg

Automation Grade : Semi Automatic

Material : MS Body

Power Source : Electric

Voltage (V) : 415

Current (A) : 8

Corrosion Resistance : Yes

Power Consumption : 4 KWH

Motor Speed RPM : 1440 rpm

Bitter (Cutter) RPM : 3840 rpm

Frequency (HZ) : 50

Motor Type : Three Phase

Motor Capacity : 5HP

Coating : Powder Coating

Chamber : Double Chamber

Machine Dimension Inch : L-46" W-19" H-37"

Front Chamber Dimension Inch : 10" Dia x 6.5" Depth

Back Chamber Dimension Inch : 7" Dia x 4" Depth

Cyclone Motor : 0.5 hp & 1 hp

Cyclone Dimension Inch : L-22" W-22" H-78"

Machine Design : Pully - Belt

Machine Weight : 204.7 kg

Model no. : AMC752grinding capacity : 70 to 80 kgautomation grade : semi automaticmaterial : ms bodypower source : electricvoltage (v) : 440current (a) : 11corrosion resistance : yespower consumption : 7. 25kwhmotor speed : 2880frequency (hz) : 50motor type : three phasecoating : powder coatingchamber : double chambermachine dimension : l-48", w-22", h-57"cyclone dimension : l-22", w-22", h-78"

10hp masala pulverizer with cyclone

model no : amc1002

grinding capacity per hour : 80 to 100 kg

automation grade : semi automatic

material : ms body

power source : electric

voltage (v) : 415

current (a) : 16.5

corrosion resistance : yes

power consumption : 9.50 kwh

motor speed : 1440

frequency(hz) : 50

motor type : three phase

coating : powder coating

chamber : double chamber

machne dimension inch : l-63.5", w-24", h-50.5"

front chamber dimension inch : 14" dia x 8.5" dep.

cyclone dimention inch : l-24", w-22", h-89"

cyclone motor : 0.5 & 2 hp

The Aatomize 20HP Industrial Spice Grinding Masala Machine (With Cyclone) is a powerful and efficient solution for large-scale spice processing needs. This robust equipment is designed to cater to the demands of high-capacity spice manufacturers and commercial food processing units.

Key Features:

High-Powered Motor (20HP): Equipped with a powerful 20HP motor, this machine ensures superior grinding performance, capable of handling bulk quantities of spices seamlessly.

Cyclone Technology: Integrated cyclone system for enhanced dust collection and minimal wastage. This technology ensures a clean and efficient grinding process, reducing product loss and maintaining workplace hygiene.

Heavy-Duty Construction: Built with high-grade, durable materials to withstand continuous industrial usage and extend the machine's lifespan.

Consistent Output: Provides uniform and fine particle size, crucial for maintaining the quality and flavor profile of ground spices.

Easy Operation and Maintenance: User-friendly interface with straightforward controls and easy-to-clean components to reduce downtime.

Versatility: Suitable for grinding a wide range of spices and masalas, including but not limited to turmeric, chili, cumin, coriander, and mixed masala blends.

Benefits:

Enhanced Productivity: With its powerful motor and cyclone technology, this machine boosts productivity by allowing continuous operation without frequent interruptions.

Cost-Efficiency: Reduces material loss and enhances overall efficiency, leading to cost savings over time.

Quality Assurance: The uniform grinding process ensures high-quality output, making it ideal for producing premium spice blends.

Ideal for:

Large-scale spice manufacturers

Commercial food processing facilities

Exporters of spice products

Specialty food producers

Choose the Aatomize 20HP Industrial Spice Grinding Masala Machine (With Cyclone) for its unmatched performance, reliability, and efficient design tailored to meet the rigorous demands of the spice industry.

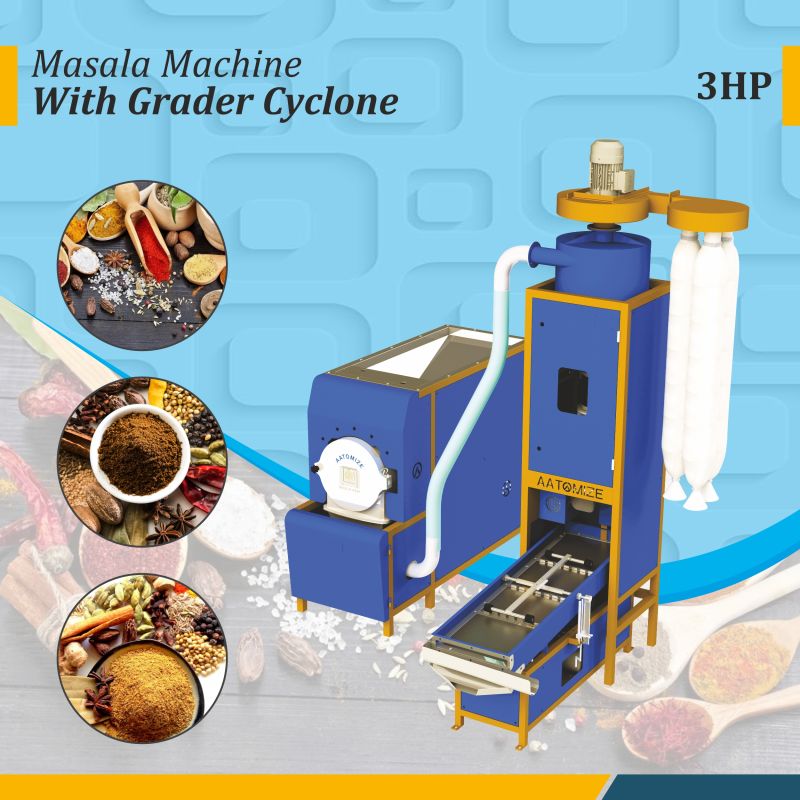

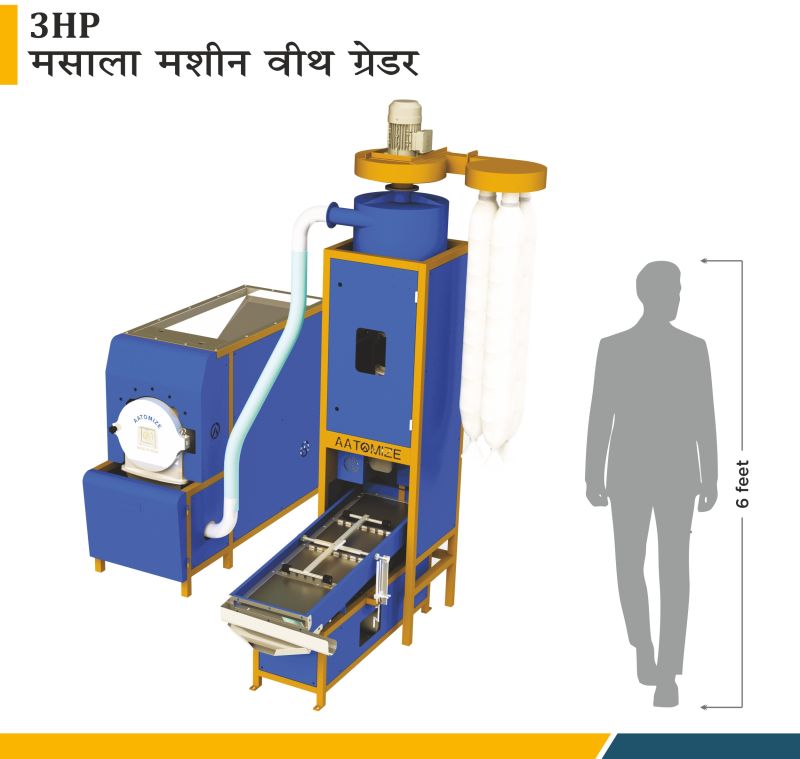

The AATOMIZE AMMGC302 is a 3HP multi-function masala mixer grinder integrated with a cyclone separator and vibro grader, designed for efficient blending, fine grinding, and mesh-wise separation of spice powders. Ideal for small-scale masala processing units, this machine simplifies the complete post-grinding workflowgrinding, dust-free collection, and fine gradingin one compact system.

Capable of handling spices like turmeric, chili, coriander, cumin, garam masala, and other herbal powders, the AMMGC302 ensures consistent flavor mixing and uniform mesh output, making it ideal for packaging, retail, and private label production.

The cyclone unit ensures dust-free operation, and the attached vibro grader offers mesh-wise powder separation for different commercial requirements.

rn
• rn

  Model: AMMGC302

  rn
rn
• rn

  Main Motor Power: 3HP (Single/Three Phase)

  rn
rn
• rn

  Cyclone Motor: 0.5HP

  rn
rn
• rn

  Grader Motor: 0.5HP

  rn
rn
• rn

  Speed: 2880 RPM (Motor), 3840 RPM (Beater)

  rn
rn
• rn

  Processing Capacity: 2030 kg/hr (varies by material)

  rn
rn
• rn

  System Includes:

  rn
  rn
  • rn

    Masala Mixer Grinder

    rn
  rn
  • rn

    Cyclone Dust Collector

    rn
  rn
  • rn

    Vibro Mesh Grader (Customizable mesh sizes)

    rn
  rn
  rn
rn
• rn

  Construction: Mild Steel (Powder-Coated)

  rn
rn
• rn

  Power Consumption: 3.03.5 kWh

  rn
rn
• rn

  Automation Grade: Semi-Automatic

  rn
rn
• rn

  Warranty: 1 Year (Motor & Machine)

  rn
rn

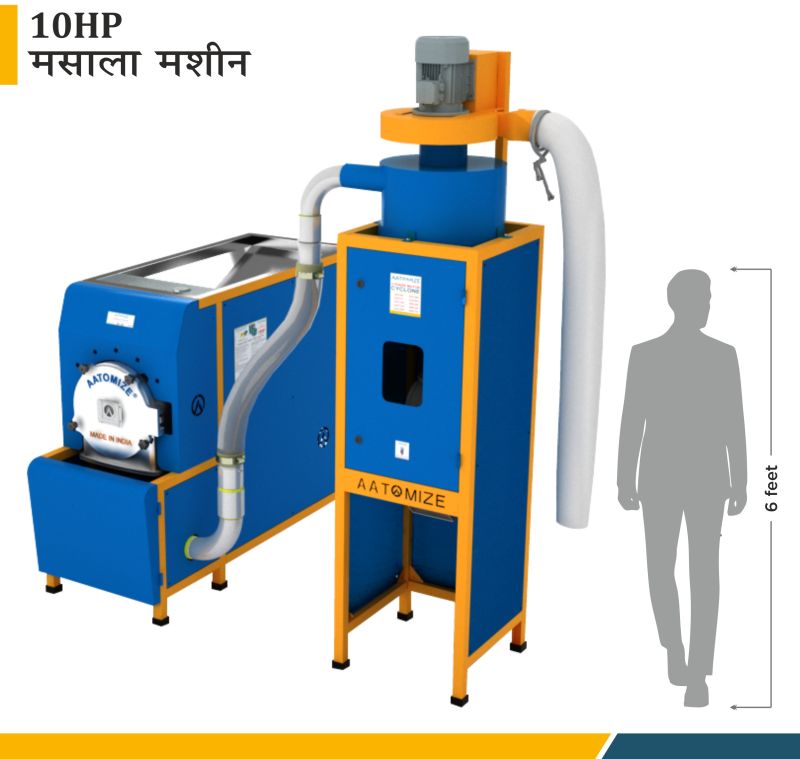

The AATOMIZE AMC1002 is a 10HP heavy-duty masala pulverizer machine equipped with a cyclone separator, engineered for large-scale spice grinding operations. Designed for continuous, high-capacity output, it is ideal for processing turmeric, chili, coriander, black pepper, cumin, and other dry spices into fine, uniform powder.

Built with a double chamber design, dual hopper + dual beater system, and cyclone-based dust collection, the AMC1002 ensures fine mesh powder output, minimal heat generation, and clean, dust-free operationperfect for commercial food processing and packaging plants.

Its robust powder-coated mild steel body, high-speed motors, and consistent performance make it a trusted choice for spice brands, herbal powder manufacturers, and export-oriented agro units.

rn
• rn

  Model: AMC1002

  rn
rn
• rn

  Main Motor Power: 10HP (Three Phase 415V)

  rn
rn
• rn

  Cyclone Motor: 1HP

  rn
rn
• rn

  Main Motor RPM: 2880

  rn
rn
• rn

  Beater Speed: 3840 RPM

  rn
rn
• rn

  Processing Capacity: 90120 kg/hr (material dependent)

  rn
rn
• rn

  Chamber Type: Double Chamber (2 Hopper + 2 Beater)

  rn
rn
• rn

  Body Material: Powder-Coated Mild Steel

  rn
rn
• rn

  Dust Collection: Cyclone Separator Included

  rn
rn
• rn

  Output Type: Fine Powder (Mesh Adjustable)

  rn
rn
• rn

  Power Consumption: 9.510.5 kWh

  rn
rn
• rn

  Automation Grade: Semi-Automatic

  rn
rn
• rn

  Warranty: 1 Year (Motor & Machine)

  rn
rn

The AATOMIZE AMMGC302 is a 3HP compact masala grinding machine, equipped with a cyclone dust separator and vibro mesh grader, offering a 3-in-1 solution for clean grinding, dust-free powder collection, and mesh-wise spice separation. Designed for small-scale spice processing businesses, this unit is ideal for grinding turmeric, chili, coriander, cumin, black pepper, and more into ultra-fine, graded powders.

The integrated cyclone separator prevents dust and enhances powder recovery, while the vibro grader allows for sorting of the final spice powder by mesh sizeessential for packaging-grade consistency. Its mild steel powder-coated body, high-speed motor, and easy operation make it a reliable machine for retail spice manufacturers, food startups, and local processors.

rn
• rn

  Model: AMMGC302

  rn
rn
• rn

  Main Motor Power: 3HP (Single/Three Phase)

  rn
rn
• rn

  Cyclone Motor: 0.5HP

  rn
rn
• rn

  Grader Motor: 0.5HP

  rn
rn
• rn

  Main Motor RPM: 2880

  rn
rn
• rn

  Beater Speed: 3840 RPM

  rn
rn
• rn

  Grinding Capacity: 2535 kg/hr (depends on material)

  rn
rn
• rn

  System Type: Double Chamber + Cyclone Separator + Vibro Grader

  rn
rn
• rn

  Body Material: Powder-Coated Mild Steel

  rn
rn
• rn

  Output Quality: Fine Powder with Mesh Separation

  rn
rn
• rn

  Power Consumption: 3.54.0 kWh

  rn
rn
• rn

  Automation Grade: Semi-Automatic

  rn
rn
• rn

  Warranty: 1 Year (Motor & Machine)

  rn
rn

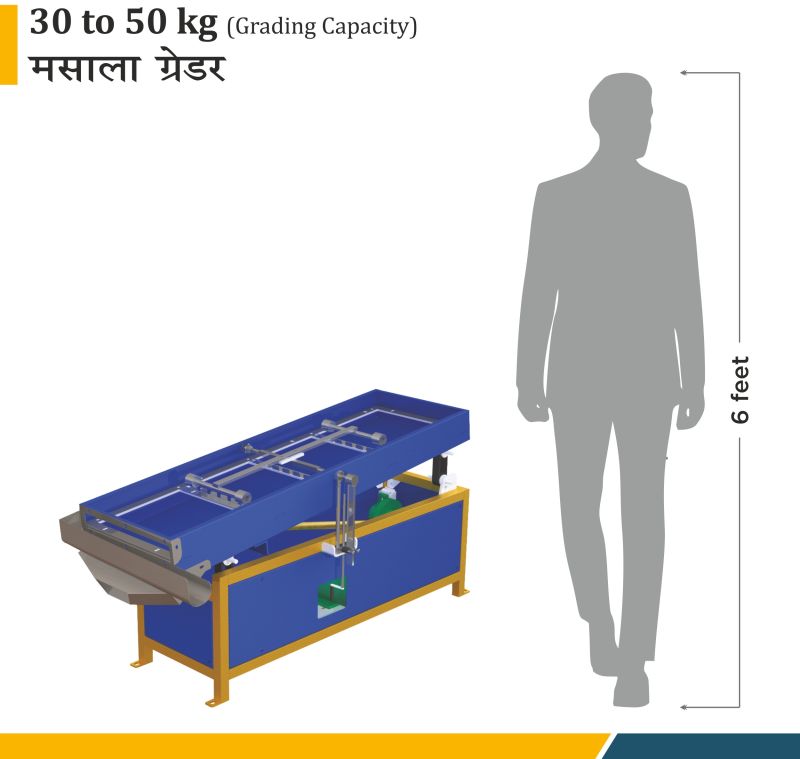

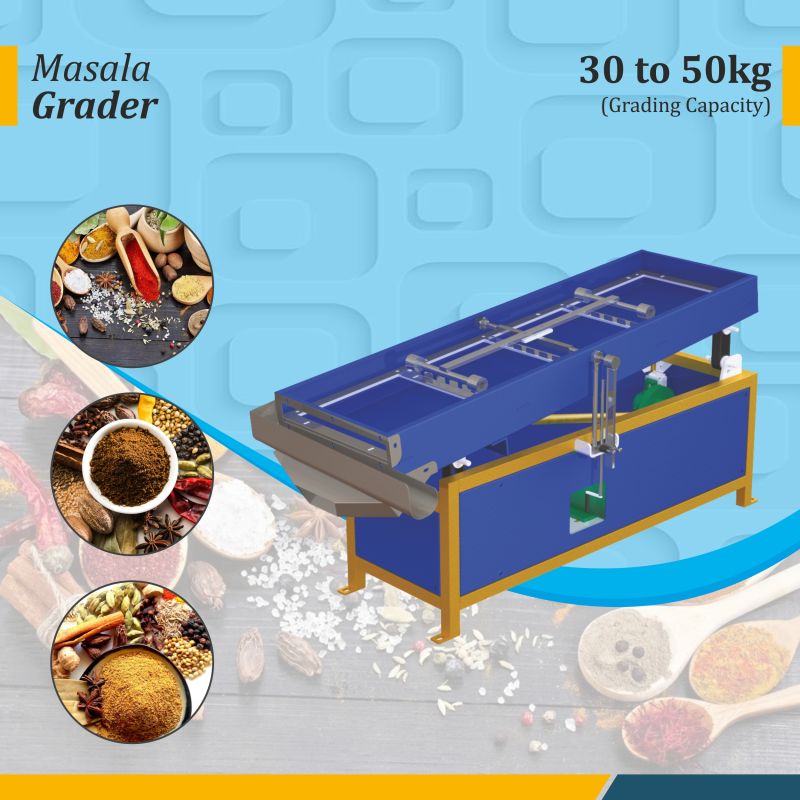

The AATOMIZE AMG05N is a vibro-type masala grader machine powered by a 0.5HP motor, specifically engineered for mesh-wise separation and grading of spice powders such as turmeric, chili, coriander, cumin, black pepper, and herbal materials. This compact and efficient unit is ideal for post-grinding mesh classification, enabling clean, dust-free, and precise grading of powdered spices before packaging.

With a durable powder-coated mild steel body, vibratory mesh system, and easy mesh changeability, the AMG05N is widely used by spice manufacturers, herbal powder processors, flour mills, and private label packagers to maintain product consistency and meet retail-ready standards.

rn
• rn

  Model: AMG05N

  rn
rn
• rn

  Motor Power: 0.5HP (Single Phase)

  rn
rn
• rn

  Function: Mesh-Based Spice Powder Grading

  rn
rn
• rn

  Technology: Vibro Sifter (Vibratory Motion Grading)

  rn
rn
• rn

  Mesh Options: Multiple (customizable as per need)

  rn
rn
• rn

  Body Material: Powder-Coated Mild Steel

  rn
rn
• rn

  Processing Capacity: 3040 kg/hr (spice dependent)

  rn
rn
• rn

  Power Consumption: 0.50.7 kWh

  rn
rn
• rn

  Output Channels: Up to 23 Grades per Batch

  rn
rn
• rn

  Automation Grade: Semi-Automatic

  rn
rn
• rn

  Warranty: 1 Year (Motor & Machine)

  rn
rn

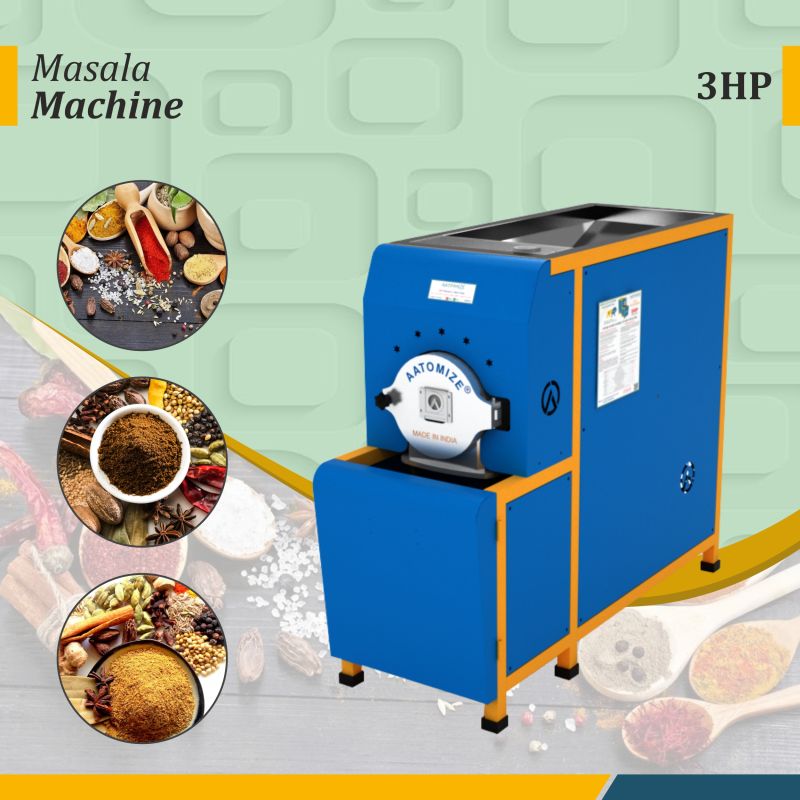

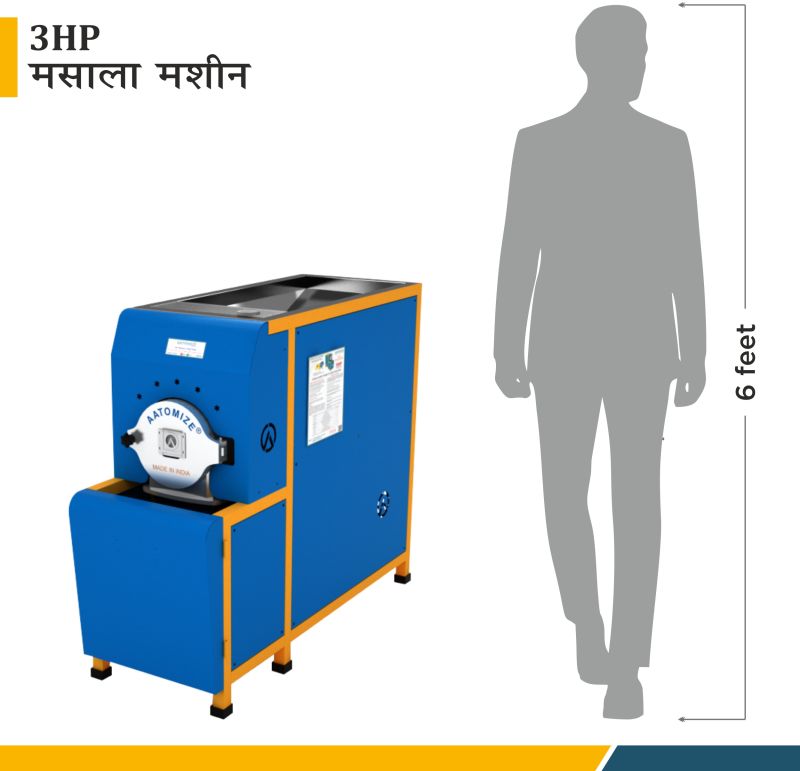

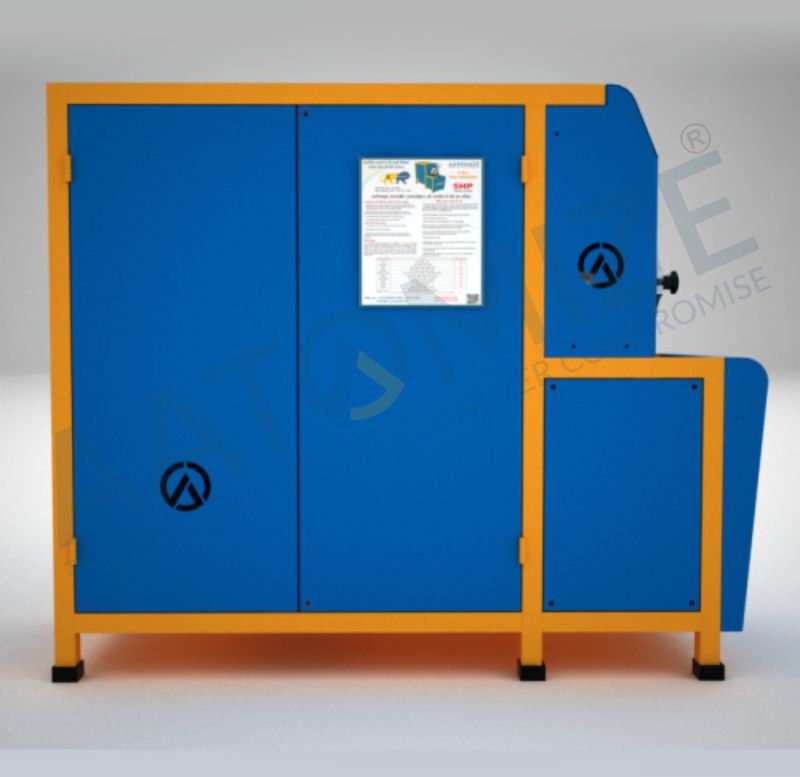

The AATOMIZE AM312 is a 3HP compact masala grinding machine, ideal for dry spice grinding applications such as turmeric, chili, coriander, cumin, pepper, and other food-grade materials. Built with a double chamber design, dual hopper, and dual high-speed beater system, it ensures consistent powder quality with minimal heat buildup.

This machine is ideal for small-scale spice processing businesses, retail packaging startups, herbal powder producers, and local grocery operators. The powder-coated mild steel construction makes it both durable and easy to maintain, while its user-friendly design supports long operational hours in compact commercial spaces.

rn
• rn

  Model: AM312

  rn
rn
• rn

  Motor Power: 3HP (Single/Three Phase Available)

  rn
rn
• rn

  Motor RPM: 2880

  rn
rn
• rn

  Beater Speed: 3840 RPM

  rn
rn
• rn

  Processing Capacity: 2535 kg/hr (material dependent)

  rn
rn
• rn

  Chamber Type: Double Chamber (2 Hopper + 2 Beater)

  rn
rn
• rn

  Output Type: Fine Powder (Mesh Customizable)

  rn
rn
• rn

  Material: Powder-Coated Mild Steel

  rn
rn
• rn

  Power Consumption: 2.83.2 kWh

  rn
rn
• rn

  Automation Grade: Semi-Automatic

  rn
rn
• rn

  Warranty: 1 Year (Motor & Machine)

  rn
rn

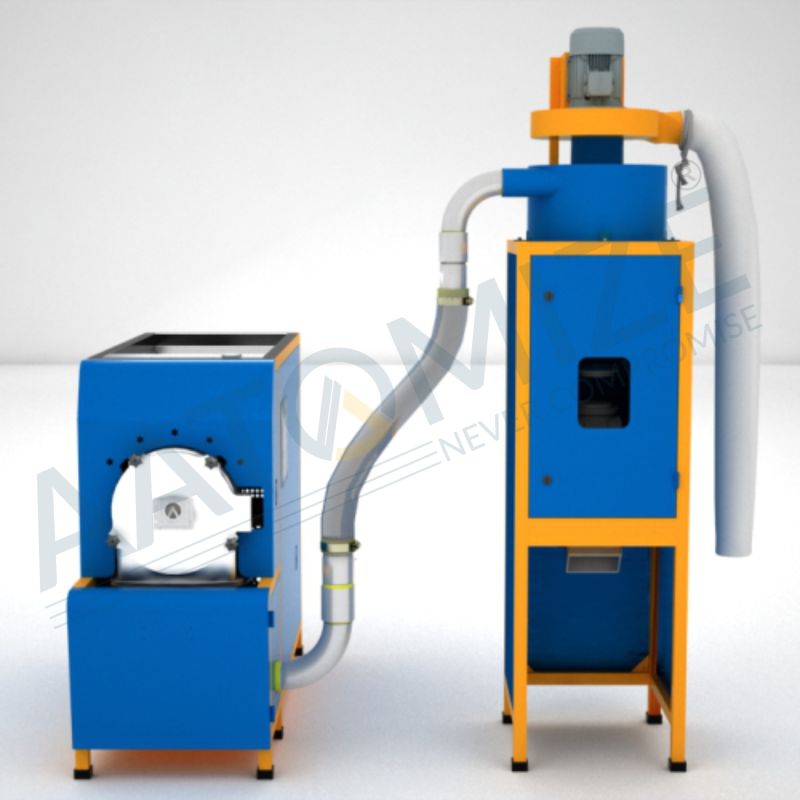

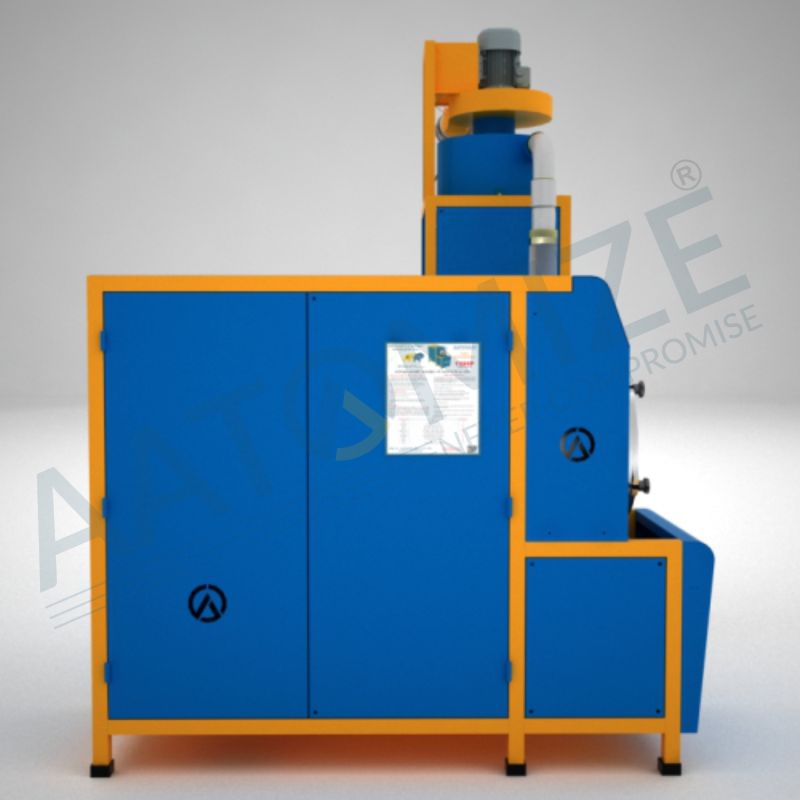

The AATOMIZE AMC302 is a 3HP compact masala grinding machine integrated with a cyclone separator, offering a dust-free solution for fine grinding of dry spices such as turmeric, chili, coriander, cumin, pepper, and herbal ingredients. With a double chamber structure, dual hopper, and dual high-speed beater system, it ensures efficient grinding, fine mesh powder, and cleaner operations through cyclone-based powder collection.

Ideal for small-scale spice processors, retail packaging units, and herbal powder makers, the AMC302 ensures maximum material recovery and hygienic output. The powder-coated mild steel body, compact design, and low power consumption make it a highly functional and economic solution for commercial use.

rn
• rn

  Model: AMC302

  rn
rn
• rn

  Main Motor Power: 3HP (Single/Three Phase)

  rn
rn
• rn

  Cyclone Motor: 0.5HP

  rn
rn
• rn

  Main Motor RPM: 2880

  rn
rn
• rn

  Beater Speed: 3840 RPM

  rn
rn
• rn

  Processing Capacity: 2535 kg/hr

  rn
rn
• rn

  System Type: Double Chamber + Cyclone Separator

  rn
rn
• rn

  Output Type: Fine Powder with Dust-Free Collection

  rn
rn
• rn

  Body Material: Powder-Coated Mild Steel

  rn
rn
• rn

  Power Consumption: 3.03.5 kWh

  rn
rn
• rn

  Automation Grade: Semi-Automatic

  rn
rn
• rn

  Warranty: 1 Year (Motor & Machine)

  rn
rn

The AATOMIZE AMC502 is a 5HP heavy-duty masala grinding machine featuring a cyclone separator for dust-free operation, specially engineered for fine and hygienic grinding of dry spices such as turmeric, red chili, coriander, cumin, and pepper. Designed with a double chamber structure, dual hopper, and dual beater system, it ensures consistent powder quality and high recovery rate.

With its integrated cyclone dust collector, this model minimizes airborne particles and enhances working cleanlinessmaking it ideal for retail masala packaging units, herbal powder production, and small food processing plants. Built from powder-coated mild steel, the AMC502 offers durability, ease of use, and energy-efficient performance.

rn
• rn

  Model: AMC502

  rn
rn
• rn

  Main Motor Power: 5HP (Three Phase 415V)

  rn
rn
• rn

  Cyclone Motor: 0.5HP

  rn
rn
• rn

  Main Motor RPM: 2880

  rn
rn
• rn

  Beater Speed: 3840 RPM

  rn
rn
• rn

  Processing Capacity: 4060 kg/hr

  rn
rn
• rn

  System Type: Double Chamber + Cyclone Separator

  rn
rn
• rn

  Output Type: Ultra-Fine Spice Powder (Mesh Adjustable)

  rn
rn
• rn

  Material: Powder-Coated Mild Steel

  rn
rn
• rn

  Power Consumption: 5.05.5 kWh

  rn
rn
• rn

  Automation Grade: Semi-Automatic

  rn
rn
• rn

  Warranty: 1 Year (Motor & Machine)

  rn
rn

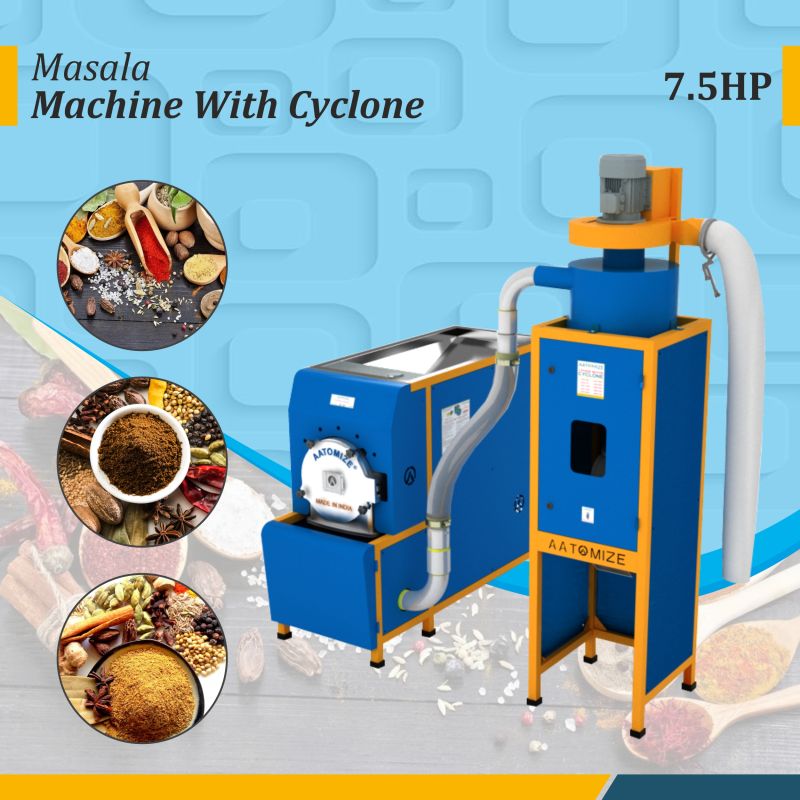

The AATOMIZE AMC752 is a 7.5HP high-performance masala grinding machine with an integrated cyclone dust separator, designed for dust-free, fine grinding of dry spices like turmeric, chili, coriander, cumin, and black pepper. Its double chamber configuration, dual hopper, and dual high-speed beater system allow for continuous, efficient processing, delivering ultra-fine powder with minimal product loss.

Built with a powder-coated mild steel body, the AMC752 is suitable for commercial spice manufacturers, herbal powder producers, and agro-based food processors seeking clean, hygienic, and high-capacity spice grinding solutions. The cyclone system ensures that the powder is collected with minimal dust dispersion, keeping your workspace clean and safe.

rn
• rn

  Model: AMC752

  rn
rn
• rn

  Main Motor Power: 7.5HP (Three Phase 415V)

  rn
rn
• rn

  Cyclone Motor: 1HP

  rn
rn
• rn

  Main Motor RPM: 2880

  rn
rn
• rn

  Beater Speed: 3840 RPM

  rn
rn
• rn

  Processing Capacity: 6585 kg/hr

  rn
rn
• rn

  System Type: Double Chamber + Cyclone Separator

  rn
rn
• rn

  Output: Fine Spice Powder (Customizable Mesh)

  rn
rn
• rn

  Material: Powder-Coated Mild Steel

  rn
rn
• rn

  Power Consumption: 6.57.5 kWh

  rn
rn
• rn

  Automation Grade: Semi-Automatic

  rn
rn
• rn

  Warranty: 1 Year (Motor & Machine)

  rn
