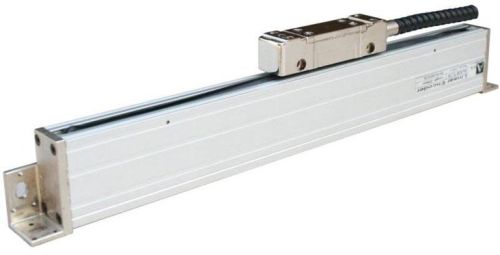

MLC310 Series Magnetic Linear Encoder System

We are MLC310 Series Magnetic Linear Encoder System Manufacturer, Exporter and Supplier based in Delhi (India). We manufacture MLC310 Series Magnetic Linear Encoder System in compliance with the industry set norms. The MLC310 Series Magnetic Linear Encoder System, offered by us, is technologically advanced and thus, high in demand.

• Contactless and Wear-Free System
• High Tolerance to Shock and Vibration
• Measuring Lengths of Up to 20 Meters
• Resistant to Dirt, Humidity and Dust
• Requires No Cleaning or Maintenance
• Robust Shielded Metal Enclosure
• Protection Class IP67
• Compact Design

• The encoder forms a compact unit. The scanning unit is guided within the housing along scale.
• Long life linear motion guide system. The scale, scanning unit and guide are protected against contamination by an aluminum extrusion and elastic sealing lips.
• The coupling elements between the scanning carriage and transfer web are designed to transfer motion in the measuring direction only.
• Pitch or other motion of the connecting web in a direction perpendicular to measurement is compensated without affecting accuracy.

• Lathes, Milling, Drilling, Grinding Machines
• Sheet Metal Working Machines
• Welding Machines
• Bending Machines
• Robotics/Materials Handling
• Marble Machines
• Wood Cutting Machines
• PVC Profile Cutting Machines
• Glass Working Machinery

• TTL : 5VDC ± %5 Power Supply, 5 VDC TTL RS422 Line Driver Output
• PPL : 24 VDC ± %20 Power Supply, 24 VDC Push-Pull Output
• HTL : 24 VDC ± %20 Power Supply, 5 VDC TTL RS422 Line Driver Output

• 3M : 3 Meters
• 5M : 5 Meters
• 8M : 8 Meters
• 10M : 10 Meters
