We are leaders in the market for providing best range of Clean Room 6 Door Interlocking
Clean Room Door Interlocking Description
Clean Room Door Interlock Systems: are Electrically Controlled devices for monitoring the Door Status (Open & Close monitoring) and Door Lock with Electrically operated Locks like EM Lock/Electric Deadbolt / Solonid Lock etc.
The Interlock Devices are primary function is to stop people from bringing pollutants into the room, allow to Open one Door at a time avoiding cross contamination and maintain Positive Pressure. They are used in conjunction with an airlock system. You may ensure that your clean-room stays clean and that your product isn't polluted. They have several advantages, including limiting contamination and lowering the possibility A door interlock can also increase a clean room's effectiveness by preventing unauthorized door openings.
Safety Switches: Like Emergency and Fire Panel integration:
By Pressing Emergency Push Button, All the Doors connected to the Panel will be released or Open unconditionally for 20 Secs and reset and resume to Normal working Condition.
Fire trigger from Fire Alarm Panel will unconditionally Open all Doors and retains until the reset for Fire Alarm Panel.

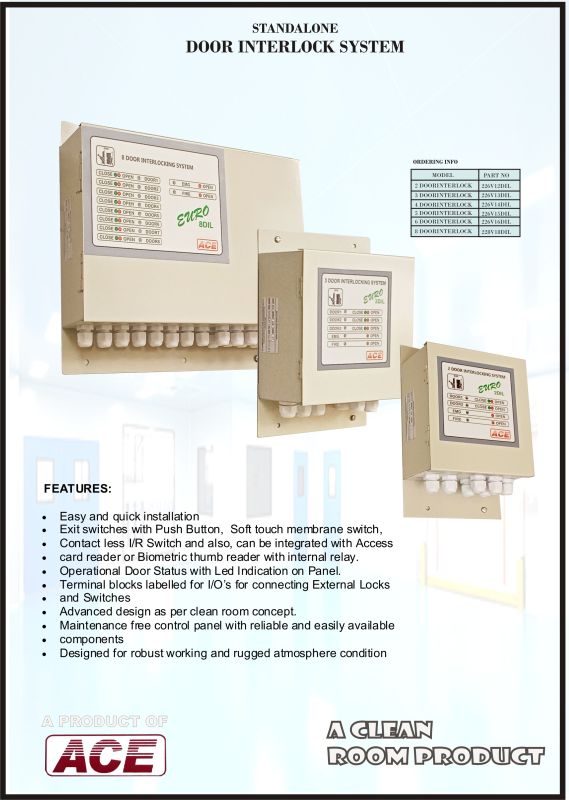

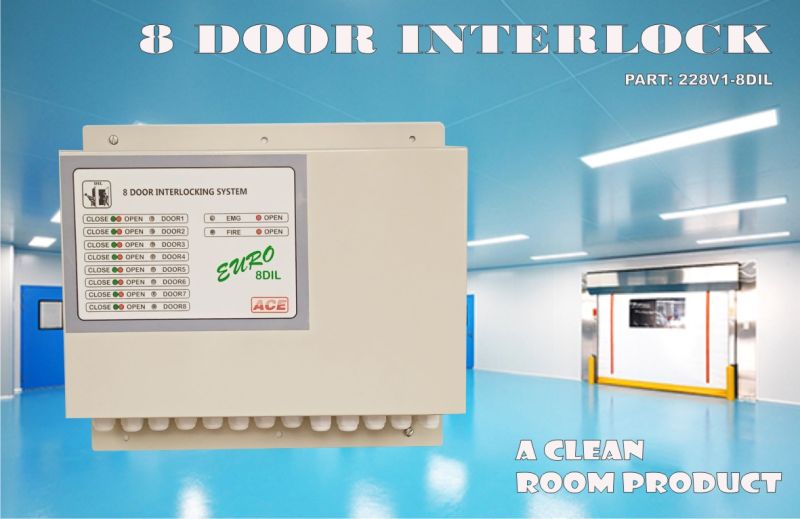

Door Interlock System in Many Models: Basic starts with 2 Door Interlocking System to 8 Door Interlocking System.
SPECIFICATION & FEATURES :
Easy Connectivity.
Positive Voltage for Trigger function.
Switches - NO Operation
Output & Input with terminal
Terminal connector with Identification Sticker
Status : With Led on Panel and sound with Buzzer.
Low Voltage Operation
Normal 12VDC & 24VDC Optional
Additional Information:
Payment Terms :
Packaging Details : CARTON BOXES
Delivery Time : 2-5 DAYS
