Our Product / Services
We offer a complete product range of 2 Door Interlock System, Clean Room Door Interlocking System and Rapid Shutter Door Interlocking System
door interlock system features:
easy and quick installation
exit switches with push button, soft touch membrane switch, contact less i/r switch and also, can be integrated with access card reader or biometric thumb reader with internal relay.
operational door status with led indication on panel.
terminal blocks labelled for i/os for connecting external locks and switches
advanced design as per clean room concept.
maintenance free control panel with reliable and easily available components
designed for robust working and rugged atmosphere condition.
product describtion:
dil controls interlocking of doors using door feedback sensors. it is a system which on request allows:
access to only one door for a predefined time and makes other door secure within the designated area.
buzzer and indicators show forcible operation of a door, which is blocked by the system.
switches with no contact type for entry side and exit side of each door for access.
general purpose inputs (gpi) are provided for fire door opening (e.g. through output of fire alarm system or manual emergency door open switch).
provision to connect fire signal input from fire panel.
the door will be in disabled condition until the fire input signal retains,
fire input or switch momentary trigger, the door will be in disabled condition until 20seconds retains, and back to normal condition.
operational status is displayed with led indication on the panel with red for open and closed with green, and red indication for fire / emergency.
door status feedback detection with logic high for door close & green indication on panel
door status feedback detection with logic low for door close & red indication on panel.
switch logicfor exit & emg should be memontary-lowtohighfor door open
Additional Information:
Payment Terms :
Packaging Details : CARTON BOX
Delivery Time : 1 WEEK
DOOR INTERLOCK SYSTEM FEATURES: Common for 2 / 3 / 4 / 5 / 8 Interlock System
· Easy and quick installation
· Exit switches with Push Button, Soft touch membrane switch, Contact less I/R Switch and also, can
be integrated with Access card reader or Biometric thumb reader with internal relay.
· Operational Door Status with Led Indication on Panel.
· Terminal blocks labeled for I/O’s for connecting External Locks and Switches
· Advanced design as per clean room concept.
· Maintenance free control panel with reliable and easily available components
· Designed for robust working and rugged atmosphere condition
. Can be integrated with third part Access Control –Optional with RFID / Fingerprint / Face for
Access and Exit control
PRODUCT DESCRIBTION:
DIL controls interlocking of Doors using Door Feedback sensors. It is a system which on request allows:
Access to only one door for a predefined time and makes other door secure within the designated area.
Buzzer and indicators show forcible operation of a Door, which is blocked by the system.
Switches with NO Contact type for Entry side and Exit side of each door for access.
General purpose inputs (GPI) are provided for Fire Door opening (e.g. through output of fire Alarm
system or manual emergency door open switch).
Provision to connect –Fire--- signal input from Fire Panel.
The door will be in disabled condition until the Fire input signal retains,
Fire Input or Switch momentary trigger, the door will be in disabled condition until 20Seconds retains,
and back to normal condition.
Operational Status is displayed with Led indication on the Panel with Red for OPEN and Closed with
GREEN, and RED Indication for Fire / Emergency.
Door Status feedback detection with Logic High for DOOR CLOSE & GREEN INDICATION on Panel
Door Status feedback detection with Logic LOW for DOOR CLOSE & RED INDICATION ON PANEL.
Switch Logic for Exit & Emg should be momentary- LOW to HIGH for Door Open
Additional Information:
Payment Terms :
Packaging Details : CARTON BOX
Delivery Time : 2-5 DAYS

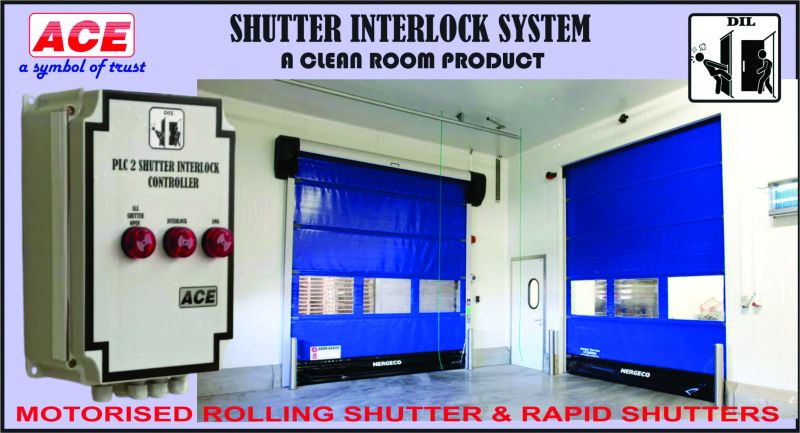

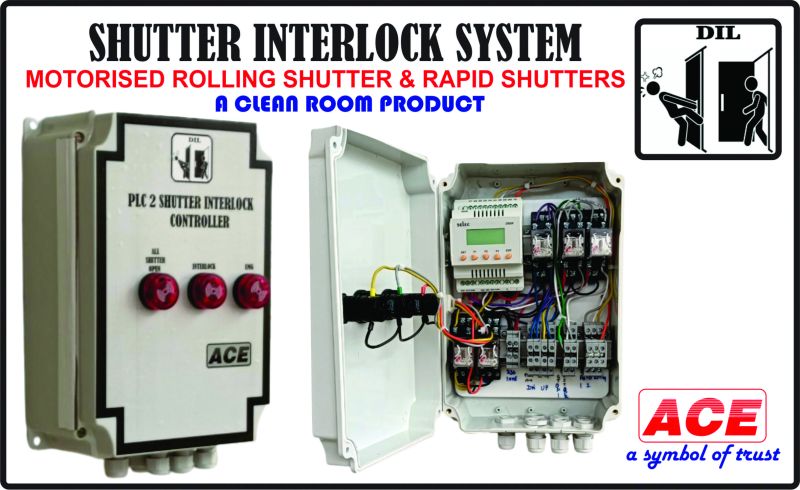

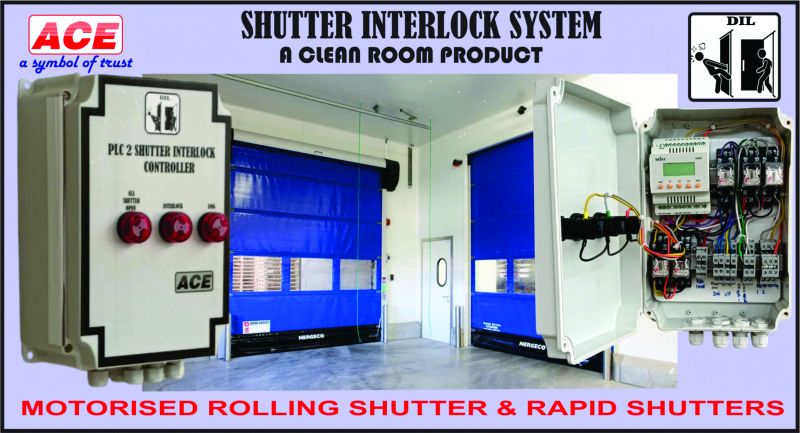

Shutter Interlock System
The SShutter Interlock Systems controls more than one shutter prevent the opening of both Shutterat the same timeavoiding direct exposed to Dust and Particles, between Material Entry and Material Exit Shutters contamination and maintaining Clean & Hygienic environment through Interlocking System.
ShutterInterlocking Systems, are sameas Door Interlocking System used in Airlock LockControl Systemfor Clean Room Areas, a mutual locking of Doors/ Shutterand prevent the opening of both door at the same time.
The Shutter Doors are like Motorized Rolling Shutter and Rapid Shutters are giant wide Doors for Material Entry and Material Exit for Factories / Hospitals / Food Processing & Manufacturing industries /Malls and Storage Area, and Raw Material Stores in Pharmaceutical Company s.
Features & Specification
* PLC Based Control System
* Semi Automatic Function
* Function of Open/Close by Existing Switches
* Emergency OPEN Switch - Available
* Power on CLOSE - Available
* Shutters Close monitored with Magnetic Feedback Switch
* Potential free Contact for Interlock Control between Shutters
* Supports Mortised Shutters and Rapid Doors
* Status Panel Indicator with Buzzer for Operation & Error Indication.
* Power Source-230VAC
* Terminal Connectors for I/Os
* Integration of Air Curtain O/P - Optional
Additional Information:
Payment Terms :
Packaging Details : STANDARD PACKING
Delivery Time : 2-3 Working Days
