Our Products
Our product range contains a wide range of Porcelain Square Threaded Tubes, Ignition Tubes, Ceramic Collar Tube, Ceramic Tube - One End Closed and Ceramic Tube
We offer our customers good quality Porcelain Square Threaded Tubes which are used for making RESISTORS,
Wire is wounded through these threads upon its entire length. These Porcelain Square threaded tube are of high dimensional accuracy and provide as excellent insulator for resistors.
Size : We are currently manufacturing Square tube with Threads - 35, 45, 51, 59, 64, 68, 72, 79, 85 & 100 over its constant length.
We also Manufacture Special STAR Shaped Threaded tubes used for resistors. It has threads on all its 4 arms over which windings are done.

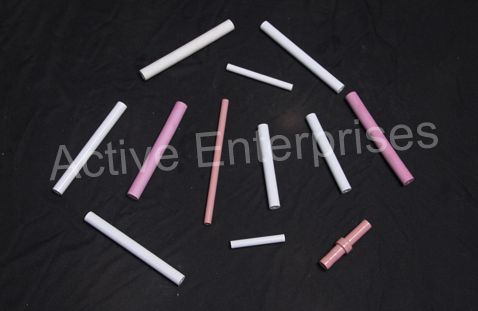

We manufacture for our clients good quality Ignition Tubes. These Ignition tubes are used widely in Ignition devices of Combustion machines. These Ignition tubes provide Insulation at High temperature. These Tubes can be manufactured in glazed type and non glazed type. These Tubes are straight hence enabling in proper working.
We provide Ignition tubes in various sizes and also in special sizes as per customers requirement.
Features of our Ignition Tubes: High Temperature & Corrosion ResistantHigh Dielectric StrengthEasy InstallationReliable performanceDimensional accuracy and straightness
We manufacture Ceramic Collar Tubes which are of good quality which are Crack free. These Collar Tubes are used in industrial furnaces for passing or taking out Electrical Terminals. It acts as a casing for Terminals and helps in insulating the body of furnace from electric current.
These tube are made from good quality raw material making them strong and temperature resistant.
Size : Diameter : 12mm Outer Dia to 65mm Outer dia Length : up to 450mm long.
Thermocouple assembly is used for measuring unknown temperature of bodies in this case industrial furnaces or Industrial Ovens. Thermocouple consists of 2 different types of metals joined to form 2 junctions. One junction is exposed to heat of the furnace with help of Ceramic one end closed tube and other junction is connected to the sensor where temperatures are calculated.
Ceramic One end closed tube holds the junction of the thermocouple which is exposed to high temperature and also acts as insulator between thermocouple and furnace body. These Thermocouple tubes are made up of good quality raw material having high alumina content enable it to work at very high temperature. These ceramic tube have high thermal conductivity hence helping in more accurate results of Thermocouple.
Size :We manufacture Tubes of 12mm Outer Diameter to 30mm outer diameter till 600mm long in length. Special sizes can be made as per requirement.
Features of Ceramic Tube One end closed :High Temperature ResistantThermal Shock ResistantGood Thermal ConductivityCorrosion resistantStraightness & Dimensional accuracy
Using our experience, we are highly engaged in manufacturing a wide range of Ceramic Tubes. These tubes are manufactured with the help of High Quality raw material and integrated technology. Apart from this, the offered tubes are tried on various stages by our excellent professionals assuring their flawlessness and maintenance of quality standards. These tubes are widely used in various applications like for element support in furnace, boilers and heaters, passing of gases, coiled upon and used as heater support in low temperature melting applications etc. Salient Features of our Ceramic Tubes : Straightness in LengthRoundness (Zero Ovality at ends and across length)Thermal shock resistanceHigh Working lifeAffordable Price

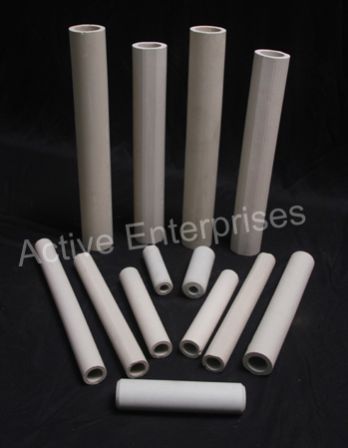

We manufacture best quality Porcelain Tubes or Porcelain Cores. These Porcelain tubes are mostly used as base for making RESISTORS.
The Porcelain tubes we manufacture have zero moisture absorption and no electrical conductivity hence are best used as base for many types of electrical resistors. These Tubes are manufactured from good quality raw material and with integrated machinery enabling us to make porcelain tube of high dimensional accuracy and of physical characteristics required to act as perfect insulator for electrical resistors.
The Porcelain tubes are manufactured in Round as well as Slotted design.
Size :We make a wide range of porcelain tubes with outer diameter 10mm to 50mm and length up to 400mm long. Special sizes can also be made as per customers requirement.
