Our Products

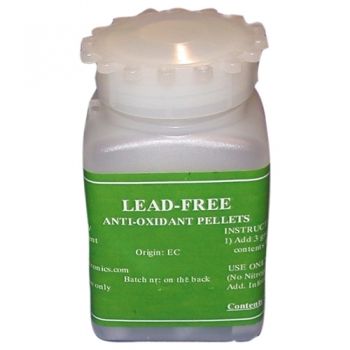

Our product range contains a wide range of Abisofix A5LM, Equipments TQ-77, Digital Screw Driver, Digital Screw Driver DID-4 and Anti Oxidant Pellets
*The torque screwdriver is Ergonomic and light weight, yet ruggedly constructed *Available in: lb-in, kg-cm and N-m (mN-m*Peak, Real Time and Peak Down measuring mode (selectable)*800 data memory.*Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing *Programmable screw tightening counter*Programmable Auto Zero function resets unit to zero for easy operation*Both CW and CCW operation*ASCII format output(USB)*Runs on internal Ni-MH batteries (for 12 hours) Auto shut-off after 10 min. of non-use* AC charger and carrying case included.
| pecification | DID-05 | DID-4 | |
| Measuring range | 2.0 - 500 mN-m | 0.020 - 4 N-m | |
| 0.020～5 kgf-cm | 0.20～40 kgf-cm | ||
| 0.020～4.5 lbf-in | 0.20～35 lbf-in | ||
| Accuracy | ± 0.5% (in case of reading 499 or less = last digit +/- 3 reading) | ||
| Display | The 4 figures digital display of LCD | ||
| The measurement direction | CW-CCW (right and left) | ||
| Measuring mode |
P-P Peak | Holding Peak Load Value | |
| T-R Track | Showing Real time torque value ( Used for Zero-Adjustment ) | ||
| P-D Peak down | Holding Load Value at the moment to change from upward to downword | ||
| C Real-time output |
Load torque value is outputted every about 1/ 160. |
||
| Decision function |
Setting of torque value | Programmable High and Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing | |
|
The Maximum, the minimum, and the average value |
The data number, the maximum, the minimum value, and the average value of memory data are displayed. |
||
| Data spec. | Data transfer | ASCII format (Baud rate : 19200) When outputting data,the cable(USB miniB) is needed. |
|
| Data memory |
800 data |
||
| A setup of the number of counts | One to 99 count (count in a direction with a bundle) | ||
| Power supply | Ni-MH chargeable battery 1.2V×4cells 800mAh | ||
| Auto power save | 10 minutes no use, automatically switch off. | ||
| Charging time | From empty - less than 5hours | ||
| Continunous working time | 12 hours | ||
| Bit /Socket part | φ4 | HEX6.35 | |
| Weight | about 180g | about 400g | |
| Attachment | Bit　（＋）　＃１　 For one-wey ×1　For fixation×1 |
Bit　（＋）　＃１　＃２ | |
| Accessories (one piece each) |
AC/DC Adaptor (Charger) | ||
| An inspection report, a proofreading certificate, a traceability system figure | |||
| Model No. | Torque Range | Available controller | No load speed | Available Screw | ||
| kgf-cm | ibf-in | Machine screw | Tapping screw | |||
| BS-2000 | 0.3~2.0 | 0.26~1.7 | APS-301A AM-30 | 700-1000 | 1.0~202mm/0.04~0.09in | 1.0~2.0mm/0.04~0.08in |
|
Model No. |
Torque Range |
Available controller |
No load speed |
Available Screw |
||
|
kgf-cm |
ibf-in |
Machine screw |
Tapping screw |
|||
|
ASA-S2000M |
0.3~2.0 |
0.26~1.7 |
APS-301A AM-30 |
650-1000 |
1.0~2.2mm/0.04~0.09in |
1.0~2.0mm/0.04~0.08in |
when Economics and quality. Size 115mm.
Abisofix A5 standard stripper for Enamelled and Braided wire type 5, dia 1.2-4.5 mm (MK5LM die). length stop function from 3 to 40 mm and length stop can be removed if more than 40 mm length to handle. power supply is Optional
Large heating area quickly provides uniform heat on large multi-layered PCBs. PID control achieves precise temperature control for lead-free solder. Comes with anti-warping tool. Instant upgrade when combined with XFC series rework station.
Availability:Out Of stock
| MODEL | XPR-600 | XPR-610 | XPR-1000 |
| Voltage | 110–120V, 220–240V AC 50/60Hz | 220V, 240V AC 50/60Hz | |
| Power Consumption | 560–650W, 530–630W | 2,100W | |
| Power Cord Length | 1.5m Inlet type | 3m (3 core cord) w/o plug | |
| Heater | Nichrome Heater | IR | |
| Temperature Control System | ON-0FF Control | PID Control | |
| Temperature Setting Range | 100–300ËšC | Room temperature–300ËšC | |
| Heating Area | 58 x 58mm | Min. 10 x10mm /Max. 58 x 58mm | 270x270mm |
| Air Flow (Fan Performance) | 0.23m3/min | 0.23m3/min | ï¼ |
| Recommended Holder | XU-1/XU-1S | Mini PCB Holder Assy (included) | Board Holder (included) |
| Max. PCB size | 305mm x open side | 150mm x open side | 424 x 460mm (Max.) |
| Dimensions | 266(W) x 90(H) x 413(D)mm | 180(W) x 90(H) x 256(D)mm | 508(W) x 145(H) x 610(D)mm |
| Weight | 5.1kg | 2.8kg | 16.6kg |
SMT Rework Flux from Interflux Belgium Model IF-8300 is gel flux with High tackiness. It has helps in holding SMD component during soldering. Excellent solderability and evaporate if enough energy is applied. Flux is Ideal for BGA Soldering. For detail down load PDF??. From:IF Belgium
Interflux Belgium Bath Treatment Prevent dross formation, Reduce dross amount, Remove impurities, SAVE MONEY ! This is effective solution to Floating particles in the solder, Bad heat transfer, Bad flowing solder, Dirty boards, Lumpy Solder, Micro bridging, Higher solder consumption: cost, More frequent Maintained of Machine. Applicable for Wave soldering Machine, . Hot air Levelling Machine, Static Solder Bath For detail down load PDF??. From:IF Belgium
Digital Torque Screw Driver
ESD type is available for ordering.
ESD Type is available for Ordering
ASA Pneumatic screwdriver has following four features:
Accuracy:ASA Provide patent clutch with +-3% accuracy of torque, assure the best quality.
Economic:Wide-ranging torque with many patent and longer life cycle of motor.
Delicacy:Combination of art, ergonomics and mechanical design.
Technology:Special mechanical structure and patent motor give you low noise, low vibration and high accuracy.
Fully- Auto Shut off Push to Start Pneumatic Screw Driver (2.016.0 Kgf-cm /1800rpm)
Availability:In Stock
