Our Complete range of products are Weld in Thermowells and Flanged Thermowells.

Weld In Thermowells

Material Alloy 400, Alloy 600, Alloy 800, Alloy C22, Alloy C276, Aluminium, Brass, Carbon Steel, PTFE, Stainl
Construction Solid Drilled, Fabricated
Process Connection Parrallel, Tapered. Stepped
Instrument Connection BSPP, BSPT, NPT, Metric
Stem Type Parallel, Tapered, Stepped
Options Plug & Chain, Tag Plate

Description

H&B Sensors design and manufacture a range of weld in solid drilled thermowells and weld in fabricated thermowells. Available in a variety of materials including 316 Stainless Steel, Carbon Steel, Inconel 600, Monel 400, Hastelloy C276 and Hastelloy C22.

Weld in thermowell stem profiles available include parallel, tapered and stepped types. To ensure stem strength and suitability Wake Frequency Calculations can be carried out in accordance with the ASME PTC 19.3 TW-2010 specification.

A variety of protective sheaths and coatings are available to protect against corrosive and high temperature processes including FEP, PTFE, tantalum, tungsten carbide and stellite.

A wide range of thermowell testing is available including pressure testing, x-ray, positive material identification (PMI), magnetic particle inspection, oxygen cleaning and ultrasonic.

View Complete Details

Ask Latest Price & Details

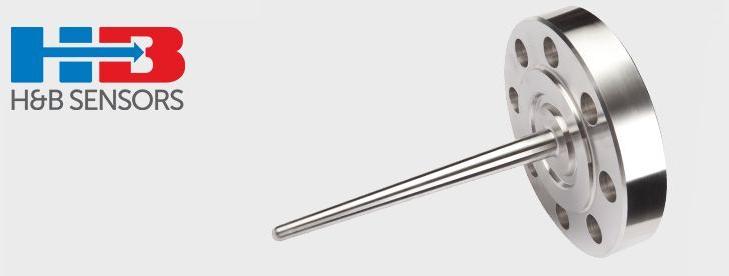

Flanged Thermowells

Material Alloy 400, Alloy 600, Alloy 800, Alloy C22, Alloy C276, Aluminium, Brass, Carbon Steel, PTFE, Stainl
Construction Solid Drilled, Fabricated, One Piece
Process Connection Raised Face, Ring Type Joint, Flat Face
Instrument Connection BSPP, BSPT, NPT, Metric
Stem Type Parallel, Tapered, Stepped
Options 3.1 Material Certificate, Plug & Chain, Tag Plate, Full Penetration Weld, Heat Treatment to NACE MR

Description

H&B Sensors design and manufacture a wide range of flanged solid drilled thermowells and flanged fabricated thermowells. Material options include 316 Stainless Steel, Carbon Steel, Inconel 600, Monel 400, Hastelloy C276 and Hastelloy C22.

Flanged thermowells are available with either seal welded, full penetration welded or one piece forged style flange connections. A wide range of flange sizes and ratings are available in either raised face (RF), flat face (FF) or ring type joint (RTJ) configurations. Other options include velocity collars and cover flanges.

Thermowell stem profiles available include parallel, tapered and stepped. To ensure stem strength and suitability Wake Frequency Calculations can be carried out in accordance with the ASME PTC 19.3 TW-2010 specification.

A variety of protective sheaths and coatings are available to protect against corrosive and high temperature processes including FEP, PTFE, tantalum, tungsten carbide and stellite.

A wide range of thermowell testing is available including pressure testing, dye penetrant, x-ray, positive material identification (PMI), heat treatment to NACE MR0175, magnetic particle inspection, oxygen cleaning, ultrasonic and charpy impact testing.
