Our Products

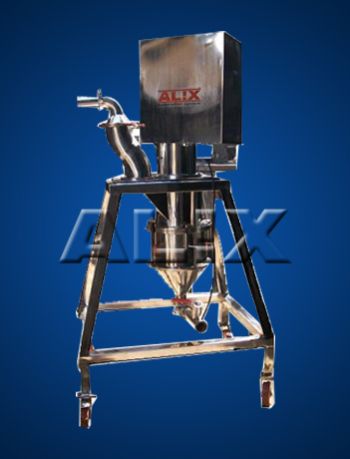

Our Complete range of products are Automatic Bag Cutting Emptying Machine, Inline Sifter Conveying System and Dust Contained Milling System- Inline Co Mill.
| Inline Sifting Mc. is the new innovation to the industry with a combination of our experience and industry demand, for multiple selection in a single source. AL!X - Inline Vibro Sifter (Vacuum rated Vibro Sifter) is excellent for high speed Sifting & Sizing of wet and dry products, used in Pharmaceuticals, Chemicals , Cosmetics, Food Product, Ceramics, Dyestuff etc.The food & pharmaceutical industry demand extremely high degree of hygiene and safety during the process. That only can be achieved through basic equipment With high degree of versatility, quick response and Users friendly in a compliance of cGMP standard. Sifting is a beginning of Formulation process, Better shifting is a positive sign for future process that can be achieved through AL!X -Sift. AL!X Sift is specially designed with Vibro motor Principle in a vacuum rated construction. Enclosed And inline shifting is only possible through AL!X Sift. | ||
| Applications : | ||
| ||
| Typical features of Inline Sifting Machine : | ||
|
| Technical Specifications : | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

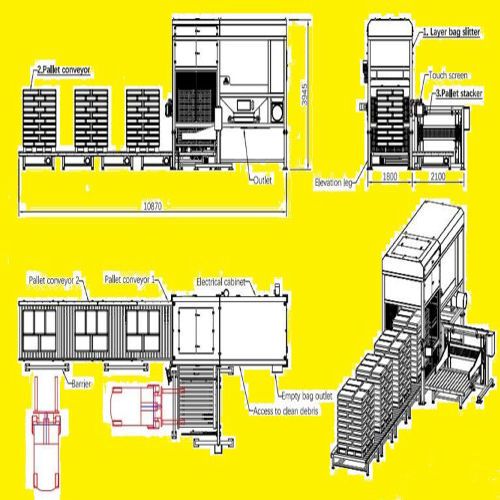

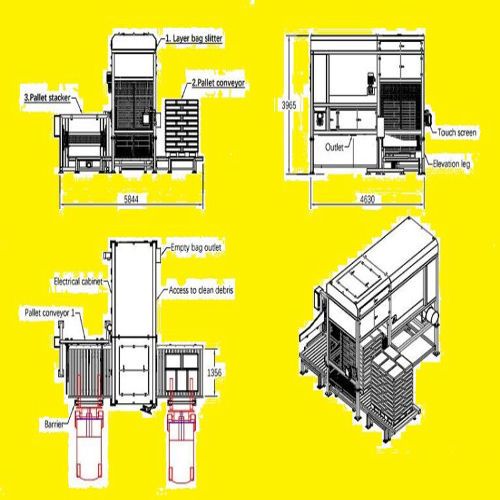

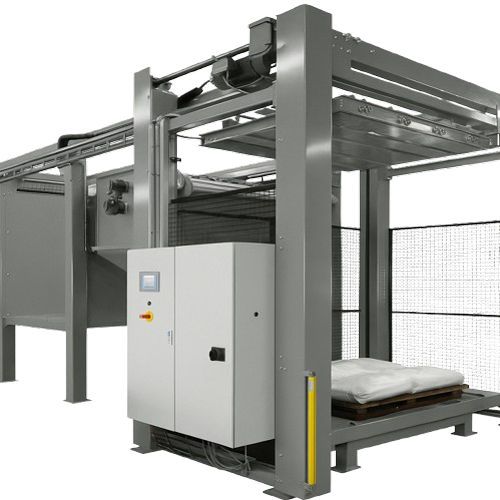

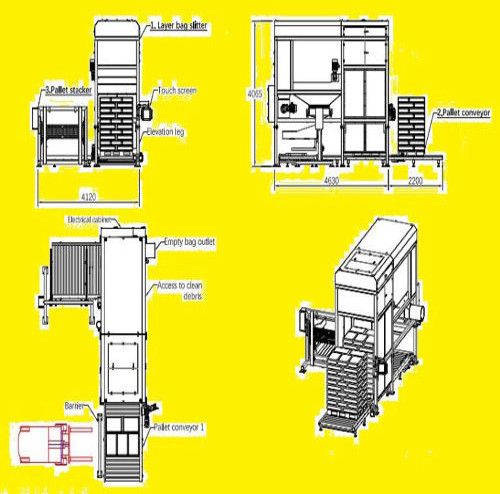

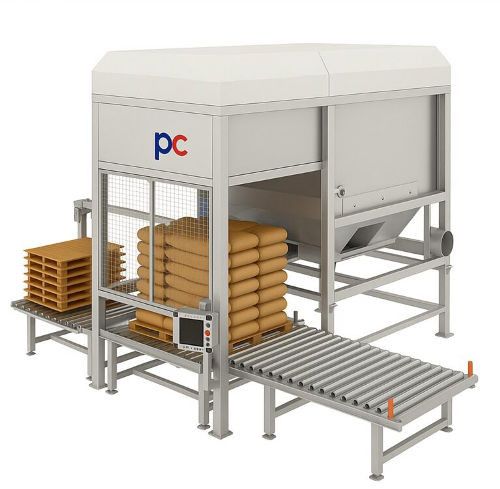

A Fully Automatic Sack Emptying Station is designed for dust-free, high-capacity unloading of powder and granular materials from 25–50 kg sacks without manual intervention. It ensures consistent throughput, worker safety, and compliance with hygiene standards, making it ideal for pharmaceutical, chemical, food, and plastic processing industries.
In Automatic Bag Emptying system operates the roller conveyor line, the entire stack will be automatically conveyed into the catching position of bag slitter, the catching device of the bag slitter will come down to grab the whole layer bags layer by layer, and raise up to the set position, then move inside the machine, during this process the cutter blade will cut open the bags from the bottom, material emptying device to empty the material inside the bag, the material by gravity fall into the hopper, empty bag into the waste bag compactor, which collect, compact and extrude out the waste bag. When the whole stack bag is unpacked, the roller conveyor line will automatically transport the empty pallet to the pallet collector to complete automatic collection and stacking of the empty pallet.
Working Process:-
Working Principle:-
Advantages:-
Technical characteristic :-
| High integration | The equipment integrates the functions of automatic stack feeding, bag catching, bag emptying, pallets collection and collection & compaction of empty bags. |
| Intelligent control | PLC built-in program, one click-start, unpacking speed adjustable, automatic fault alarm. |
| High emptying rate | Above 99.9% – 99.98% high emptying rate, close to 0. material left in empty bag. |
| Easy maintenance | The equipment is equipped with access doors to facilitate the maintenance of various components outside the equipment. |
| No bag debris | Through special design, less bag debris generated during the cutting process, equipped with dust filter box, almost 0 dust into the material |
Bag size :
Additional Information:
Payment Terms : L/C
Packaging Details : 11 nos. boxes including structure, railing, pumps, drive & panels
Delivery Time : 1 month
