Temperature Sensors

Our product range contains a wide range of Thermocouple Temperature Sensor, Bayonet Type Thermocouples, High Temperature Thermocouples and High Temperature K Type Thermocouple

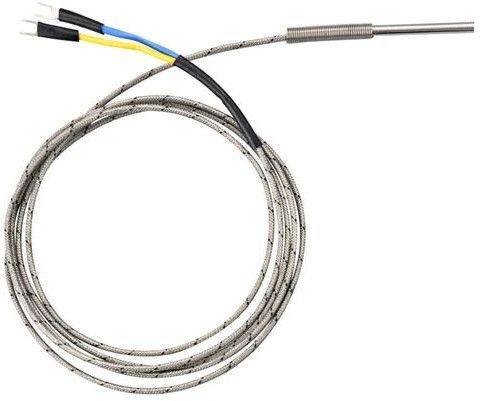

Thermocouple Temperature Sensor

Min. Order (MOQ) 50 Piece
Country of Origin India
Sheath Material SS 304, SS 316
Sheath O.D. 5mm, 6mm, 8mm
Stem Length 4mm, 6mm, 12mm
Shape Round
Extension Wires FG/FG/SS, Teflon on/Teflon on
Type of Thermocouples Chromel-Alumel (K), Iron Constantan (J), Copper Constantan

TRANSITION JOINT THERMOCOUPLES

Are available to measure low temperature up to a maximum of 400° C.

Type of Thermocouples : Chromel-Alumel (K), Iron Constantan (J), Copper Constantan (J)
Sheath Material : SS 304, SS 316
Sheath O.D. : 5mm, 6mm, 8mmOther sizes available on request
Stem Length : 4”, 6”, 12”Other sizes are available on request
Extension Wires : FG/FG/SS, Te on/Te on

View Complete Details

Ask Latest Price & Details

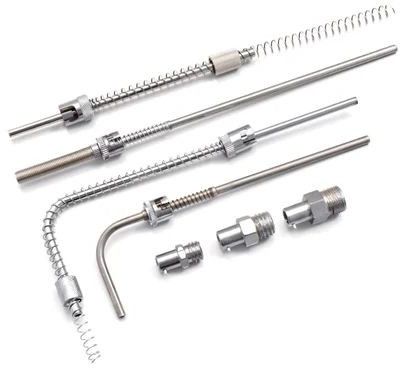

Bayonet Type Thermocouples

Min. Order (MOQ) 50 Meter
Application Industrial
Country of Origin India
Finishing Type Polished
Type of Thermocouples Chromel-Alumel (K),
Sensors Iron Constantan (J)
Bayonet Assembly Type PT-100
Bayonet Adaptor Type 1/8” BSP, 1/2” BSW, 1/4” BSW, 1/5” BSP, 5/8” BSW, 3/8” BSP
Adaptor Material M.S. and Plated Brass
Extention Wire Fibreglass/ Fibreglass/ SS & Teflon on/ Teflon on

Bayonet Type Thermocouples & R.T.D. (PT-100 Sensors)

Available to measure temperature of the barrel and dies of injection moulding,

extruders and blow moulding machines. The spring loaded thermocouples and

sensors assure proper rm tip contact to give accurate temperature.

Type of Thermocouples : Chromel-Alumel (K),
Sensors Iron Constantan (J)
Bayonet Assembly Type : PT-100
Bayonet Adaptor Type : 1/8” BSP, 1/2” BSW, 1/4” BSW, 1/5” BSP, 5/8” BSW, 3/8” BSP
Adaptor Material : M.S. and Plated Brass
Extention Wire : Fibreglass/ Fibreglass/ SS & Te on/ Te on

View Complete Details

Ask Latest Price & Details

High Temperature Thermocouples

Min. Order (MOQ) 50 Piece
Material SS 304, SS 316, SS 310, Cast Iron
Application Industries
Length 12mtr, 18mtr, 20mtr, 24mtr, 30mtr
Country of Origin India
Sheath O.D 19mm, 22mm, 25mm Etc
Sheath Type Welded Pipe and Solid Drilled
Type of Thermocouple Chromel-Alumel (K)

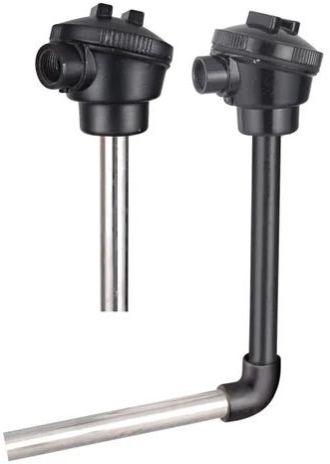

High Temperature Head Type Thermocouples

High Temperature Thermocouples are available to measure high temperature up to

1050° C . Di erent type of sheath materials are available for various applications.

Type of Thermocouple :- Chromel-Alumel (K)
Sheath Material :- SS 304, SS 316, SS 310, Cast Iron
Sheath O.D. :- 19mm, 22mm, 25mm etc.
Thermocouple Length :- 12”, 18”, 20”, 24”, 30” Other lengths are available on request
Sheath Type :- Welded Pipe and Solid Drilled
Construction of the :- Simplex & Duplex type, Straight & Angle type (for angle typelength of cold arm and the hot arm plus the media of working isto be speci ed).

View Complete Details

Ask Latest Price & Details

High Temperature K Type Thermocouple

Min. Order (MOQ) 50 Piece
Application Industries
Country of Origin India
Color Black
Length 12mtr, 18mtr, 24mtr
Feature Good Quality
Sheath Material Ceramic Sheath & Recrystalised Alumina
Type of Thermocouples Platinum- Platinum/Rhodium (Pt-Pt/Rh) 13% & 10%
Sheath O.D. 12mm, 15mm, 19mm, 22mm

Very High Temperature Thermocouples

Very High Temperature Thermocouples are used in the industry to measure very high

temperature up to 1600° C.

Type of Thermocouples : Platinum- Platinum/Rhodium (Pt-Pt/Rh) 13% & 10%
Sheath Material : Ceramic Sheath & Recrystalised Alumina
Thermocouple Length : 12”, 18”, 24” Other lengths are available on request
Sheath O.D. : 12mm, 15mm, 19mm, 22mm
Construction of the : a) Single refractory & Double refractoryb) Straight type & Angle type.

View Complete Details

Ask Latest Price & Details
