Thermocouple

Our offered Product range includes Washer Type Thermocouples, Thermocouples, Stainless Steel Precision Thermocouples, Molten Alminum Thermocouples and Precision Thermocouple.

Washer Type Thermocouples

Min. Order (MOQ) 50 Piece
Material Stainless Steel
Application Industries
Feature Good Quality
Country of Origin India
Sheath OD 1 mm, 2 mm, 3 mm, 4.5 mm, 6 mm, 8 mm, 9mm etc.

^{Washer Type Thermocouples}

Are used to measure the temperature of at surface like PackagingMachines, Rubber Moulding Machines, Hot Plates Platons etc.
These Thermocouples are custom designed therefore the length & type ofthermocouple is to be speci ed alongwith the O.D., I.D. and thickness of thewasher.

View Complete Details

Ask Latest Price & Details

Thermocouples

₹ 8,500 / Piece Get Latest Price

Number Of Flower Thermocouple
Material Plastic, Stainless Steel
Length 2.5mtr, 3.5mtr
Application Industries
Power Source Electric
Feature Durable, Fine Finished, High Strength, Quality Tested
Tenmperature 0-100 Deg C, 100-200 Deg C, 1000-1100 Deg C, 1100-120 Deg C

View Complete Details

Ask Latest Price & Details

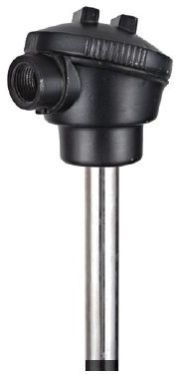

Stainless Steel Precision Thermocouples

Min. Order (MOQ) 50 Piece
Material SS 304, SS 316
Application Industries
Length 6mtr 12mtr, 18mtr, 24mtr
Country of Origin India
Size 6mm, 8mm, 10mm, 12.7mm
Maximum Temperature 700° C

General Purpose Thermocouples

GENERAL PURPOSE HEAD TYPE THERMOCOUPLES

Used in the industry to measure temperature up to a maximum of 700° C

Type of Thermocouple : Chromel-Alumel (K), Iron Constantan (J)
Sheath Material : SS 304, SS 316
Sheath O.D. : 6mm, 8mm, 10mm, 12.7mm, Other sizes available on request
Thermocouople Length : Standard 6”, 12”, 18”, 24”, Other sizes are available on request
Process Connection : Standard 1/2” BSP, Others are available on request
Compression Fittings : 1/4”, 3/8”, 1/2”, 3/4”, 1”, BSP & NPT

View Complete Details

Ask Latest Price & Details
