Amco - Yale Smart Door Locks

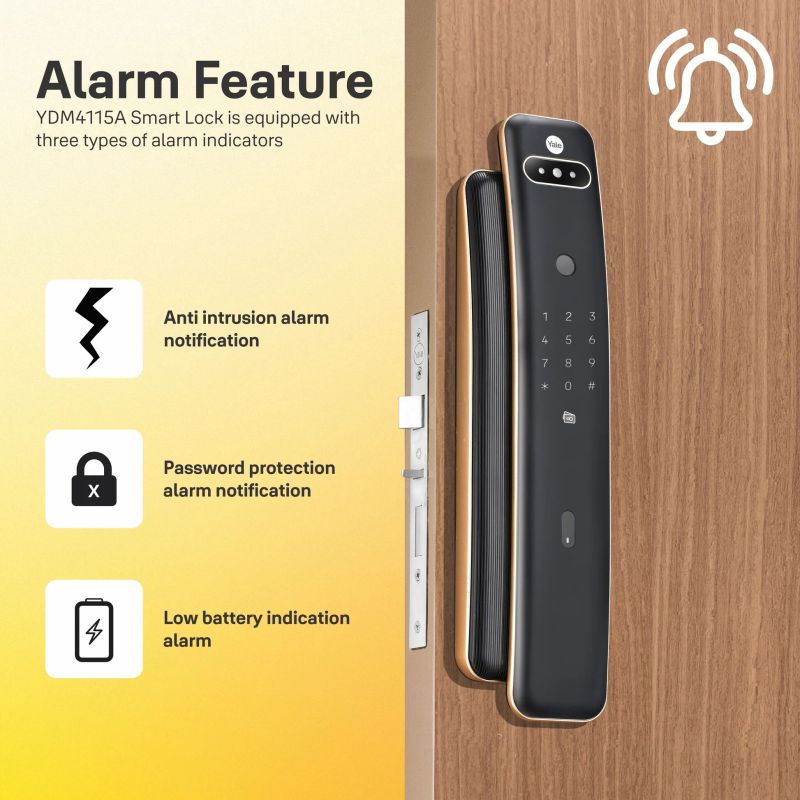

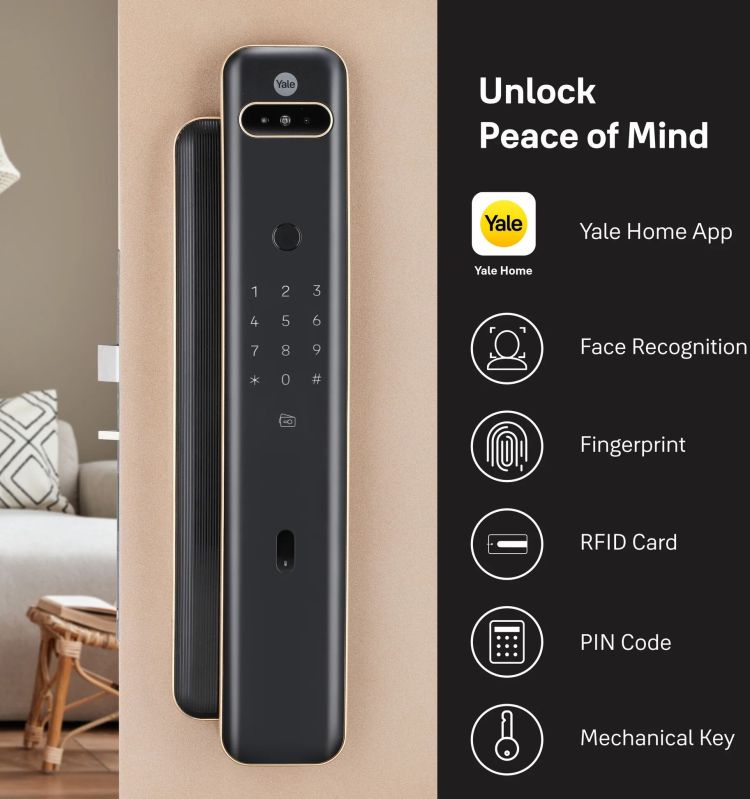

Technical Specifications:

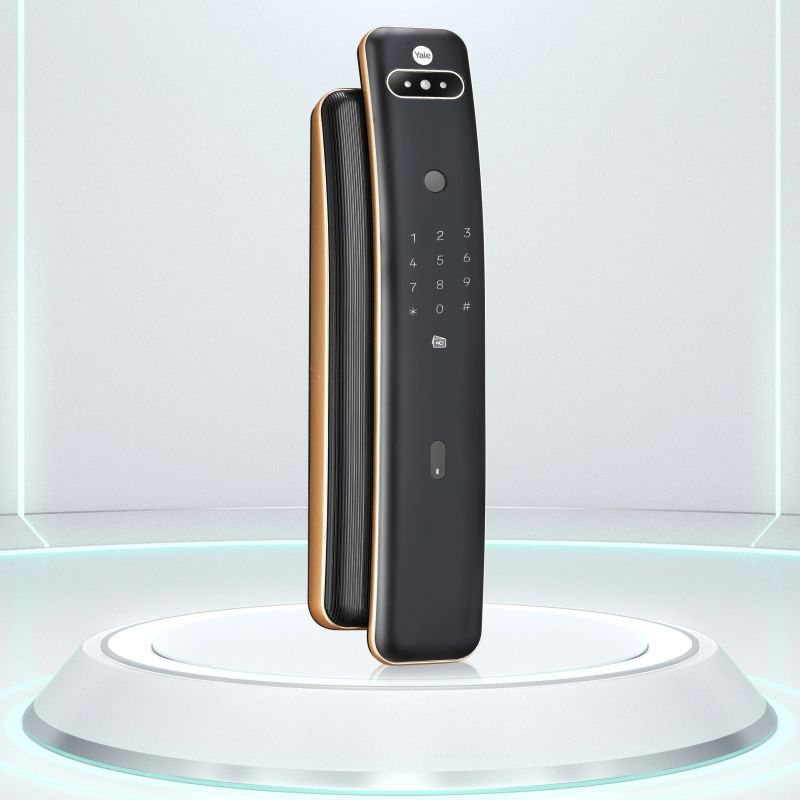

• Access Modes: Face Recognition, Fingerprint, PIN Code, RFID (CPU Card), Mechanical Key
• Face Recognition: Up to 100 users
• Fingerprint Capacity: Up to 50 users
• PIN Code Capacity: Up to 100 users
• RFID Card (CPU Card): Up to 100 users
• Mechanical Key Override: 2 keys provided

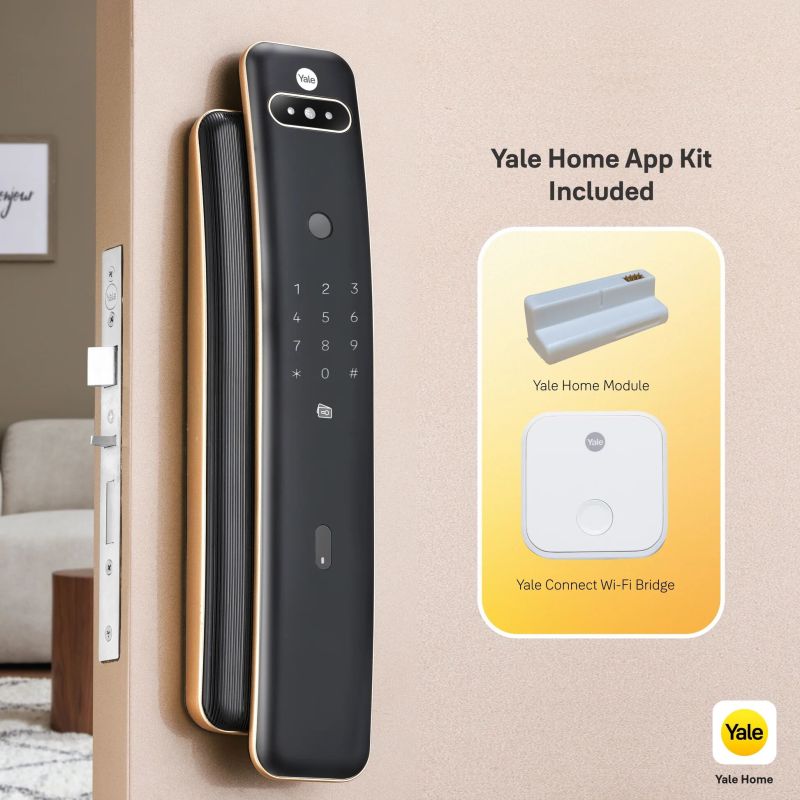

• Bluetooth: Available (module included)
• Wi-Fi Bridge: Included
• Remote Control Option: Available (optional, sold separately)
• Lock Type: Mortise
• Backset: 60 mm

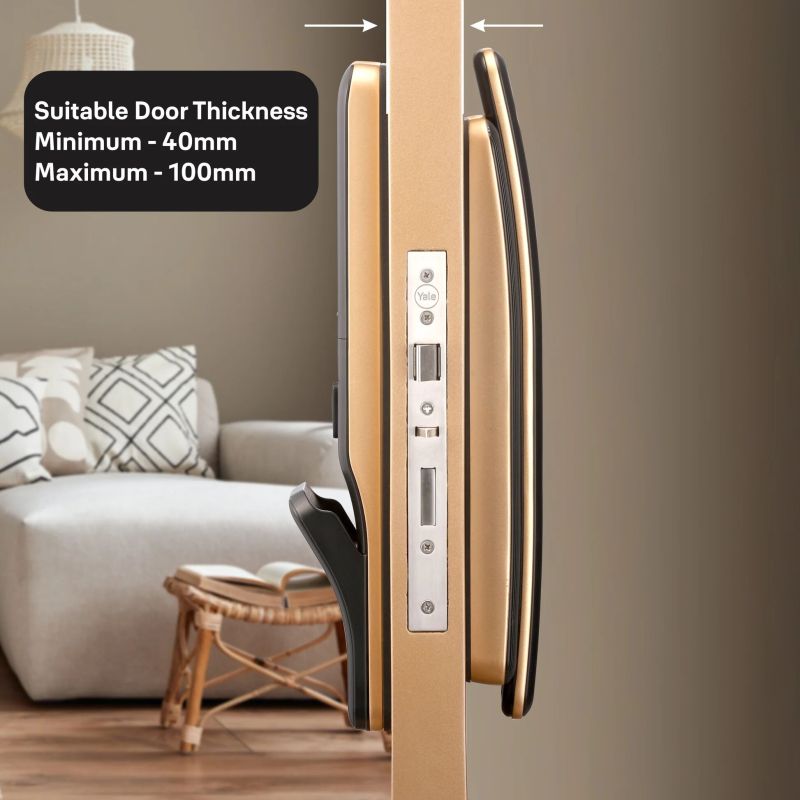

• Door Thickness Compatibility: 40 mm 100 mm
• Battery Type: Rechargeable lithium battery

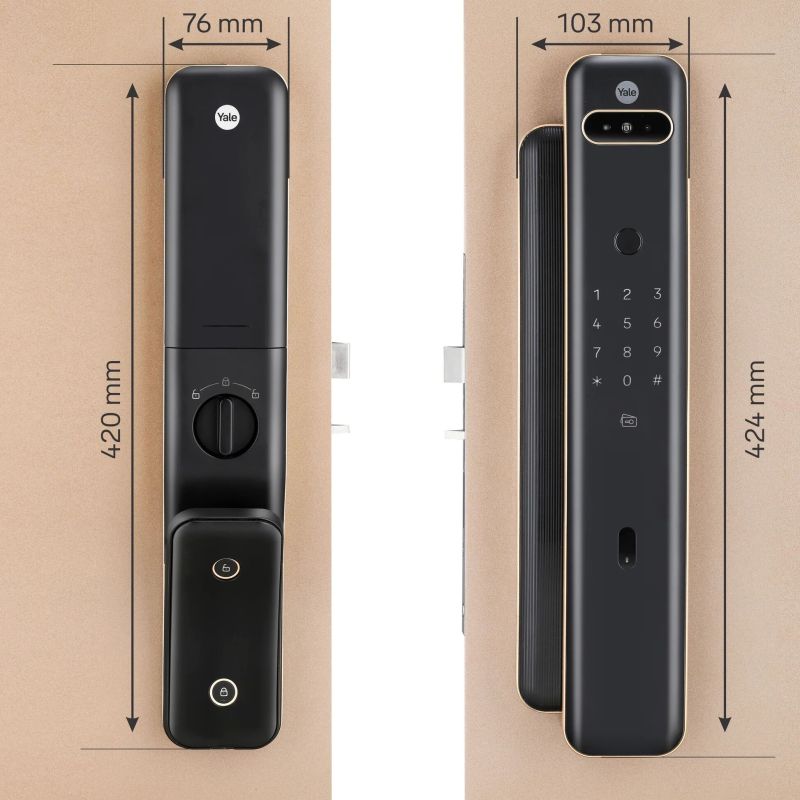

• Front Body Dimensions: 103(W) 424(H) 49(D) mm
• Back Body Dimensions: 76(W) 420(H) 62.7(D) mm

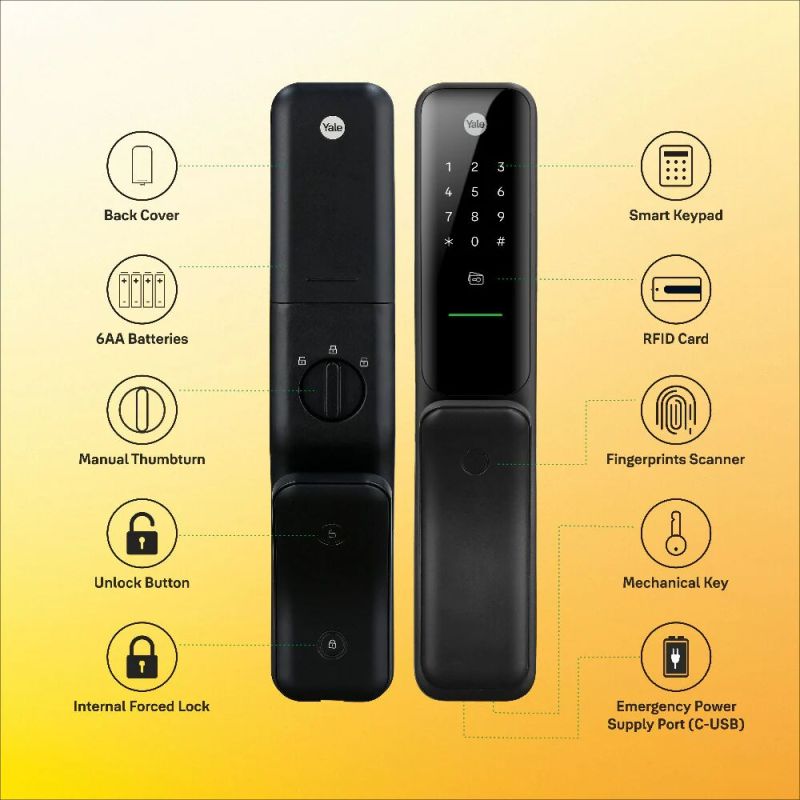

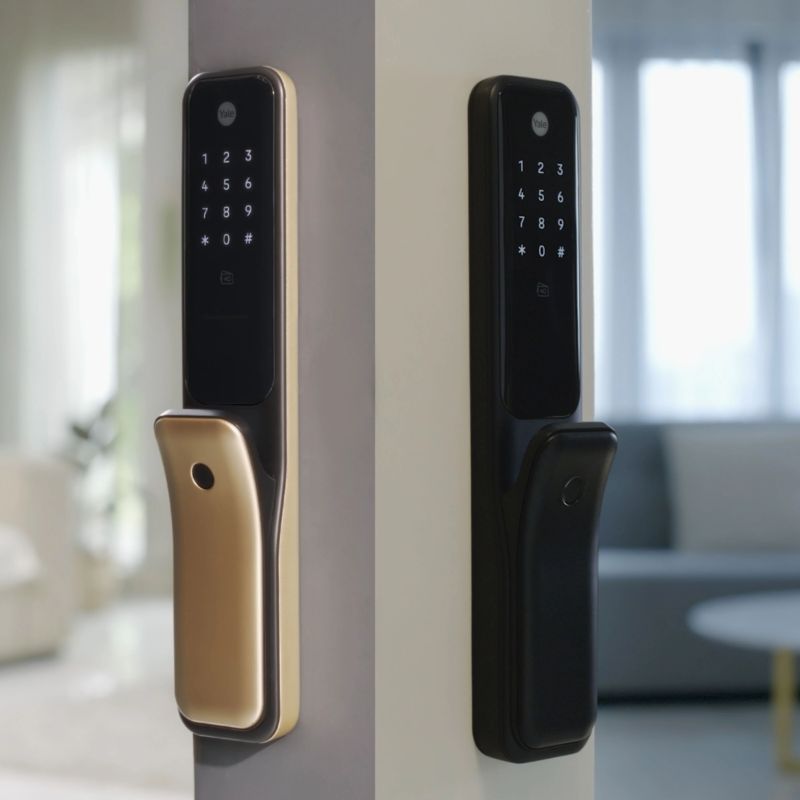

Technical Specifications:

• Access Modes: Fingerprint, PIN Code, RFID Key Tag, Mechanical Key
• User Fingerprints: Up to 100
• User PIN Codes: Up to 100
• RFID Key Tags: Up to 100
• Mechanical Key Override: Available (manual key access)
• Lock Type: Mortise
• Backset: 60 mm

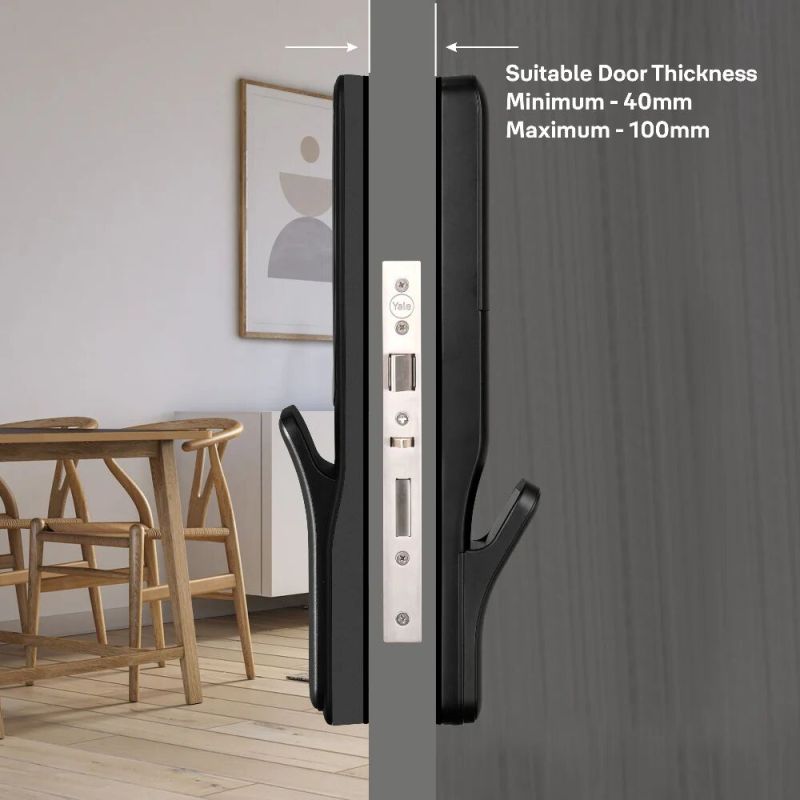

• Door Thickness Compatibility: 40 mm 100 mm
• Battery Type: Alkaline batteries (typically 4 AA)
• Front Body Dimensions: 78 (W) 390 (H) 50 (D) mm
• Back Body Dimensions: 76 (W) 390 (H) 60 (D) mm
• Design: Push-Pull style
• Color Options: Gold and Black
• Yale Dealers Pune

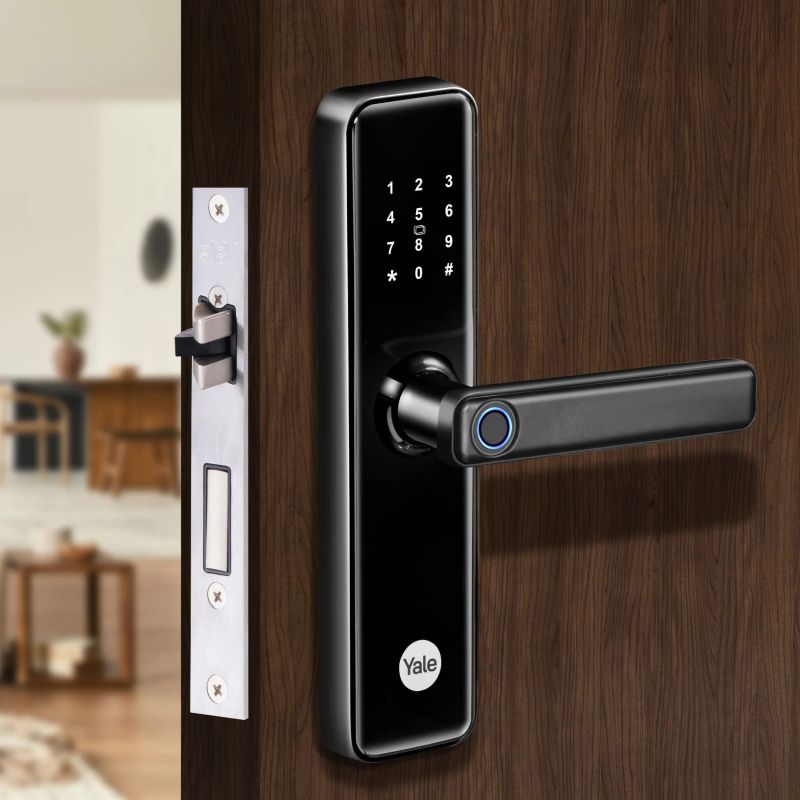

Technical Specifications:

Access Modes: Fingerprint, PIN Code, RFID Card, Manual Key

Fingerprint Capacity: Up to 100 users

PIN Code Capacity: Up to 100 users

RFID Card Support: Yes

Manual Key Override: 2 keys included

Lock Type: Mortise

Door Thickness Compatibility: 35 mm 65 mm

VDP (Video Door Phone) Integration: Not supported

Color: Black

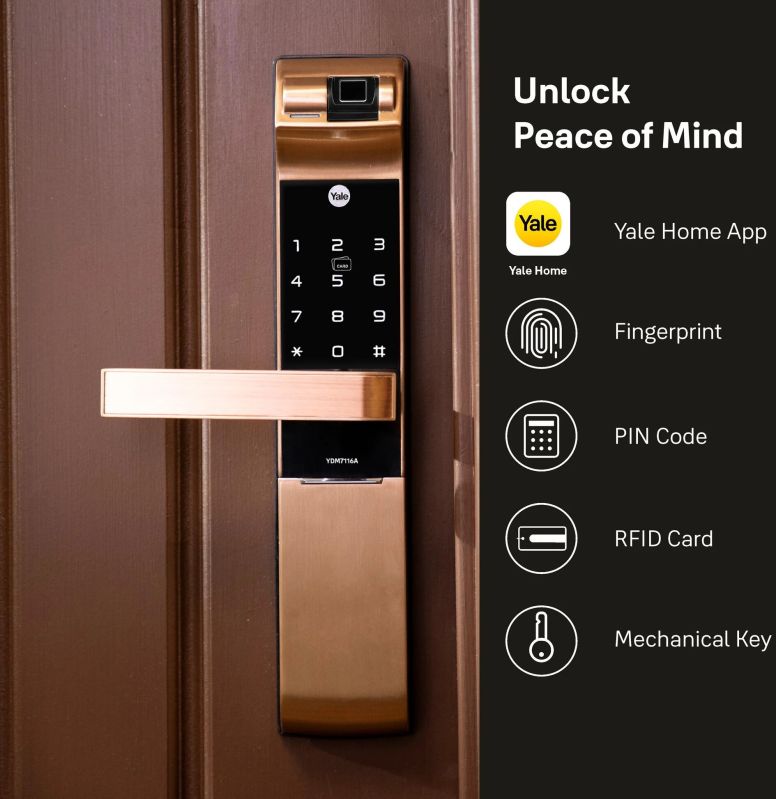

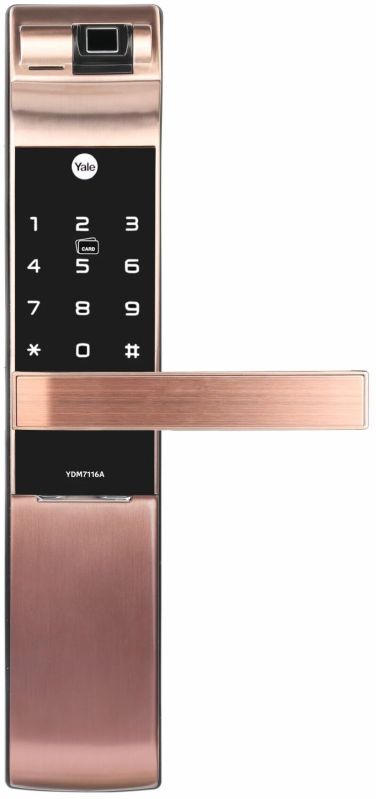

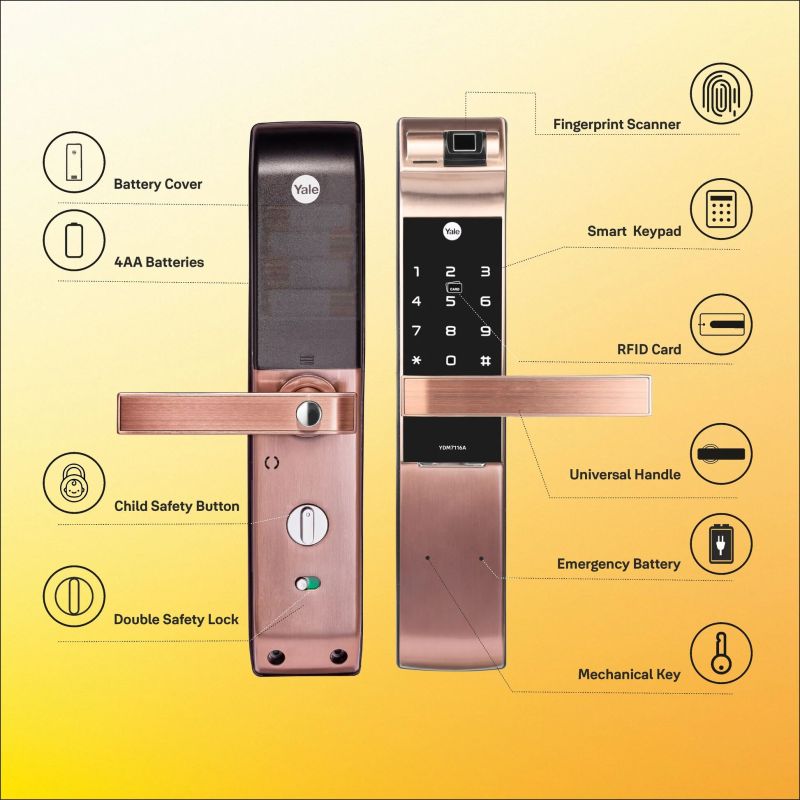

Technical Specifications:

• Access Modes: Fingerprint, PIN Code, RFID Card, Mechanical Key, Bluetooth
• Fingerprint Capacity: 100
• PIN Code Capacity: 100
• RFID Card Capacity: 100
• Manual Keys: 2
• Lock Type: Mortise
• Door Thickness Compatibility: 40 mm 90 mm
• Alarm (Break/Damage): Yes
• Auto Locking: Yes
• Bluetooth Option: Yes
• Remote Control Option: Yes (via Yale Home App and Yale Wi-Fi Bridge)
• VDP Integration: Yes (Video Door Phone supported)
• Mobile App: Works with Yale Home App
• Emergency Power Supply: 9V battery terminal
• Low Battery Alert: Yes
• Color: Red Bronze
• Security Features:
• Tamper alarm
• Wrong password lockout
• Scrambled PIN code
• Internal forced lock
• Anti-panic handle
• Battery: 4 AA batteries
• One-Time Password Support: Yes
• Voice Guidance: Yes
• Temperature Alarm: Yes
• Yale Dealer Pune

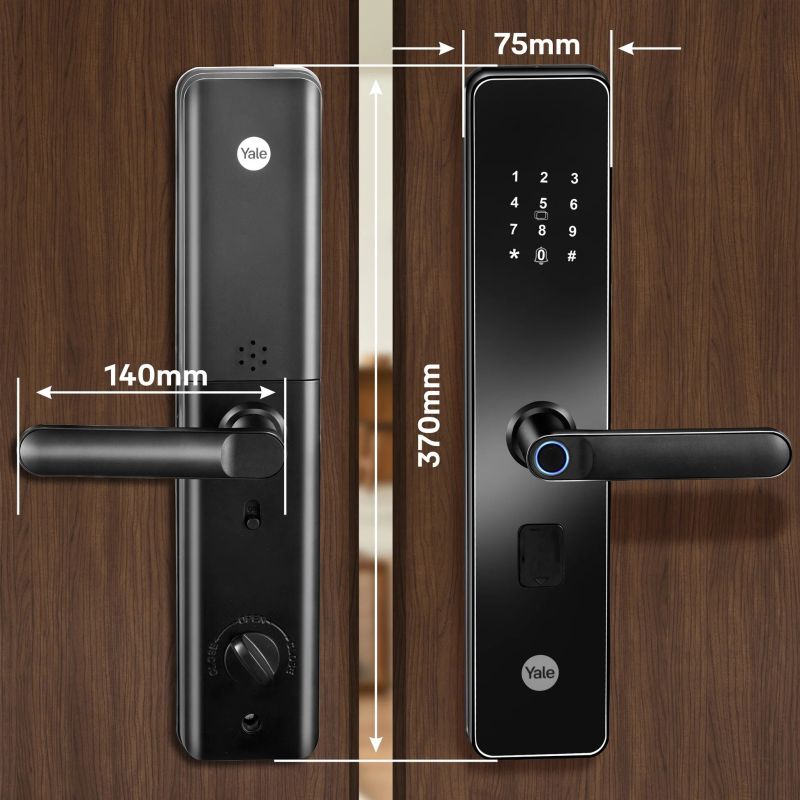

Technical Specifications:

Access Modes: Fingerprint, PIN Code, Manual Key, Mobile App (Yale Home App)

Fingerprint Capacity: Up to 100 users

PIN Code Capacity: Up to 100 users

RFID Card: Not supported

Manual Key Override: 2 keys provided

Lock Type: Mortise

Door Thickness Compatibility: 38 mm 80 mm

Auto Locking: Yes

Break-in/Damage Alarm: Yes

VDP (Video Door Phone) Integration: Supported

App Compatibility: Works with Yale Home App

Color: Brown

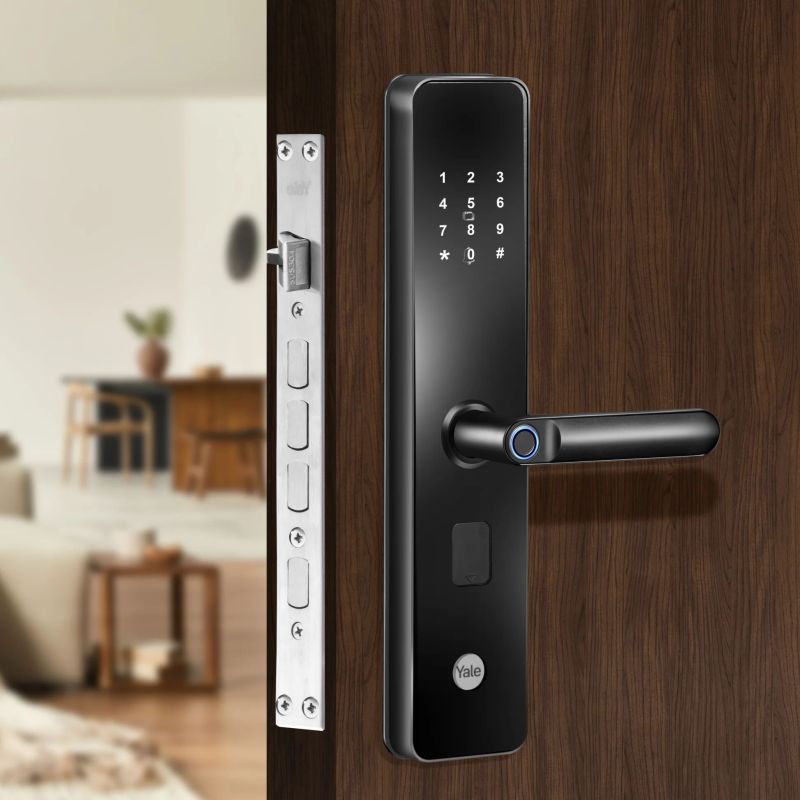

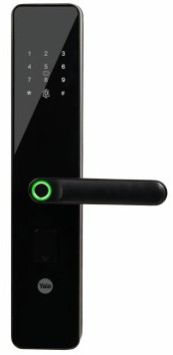

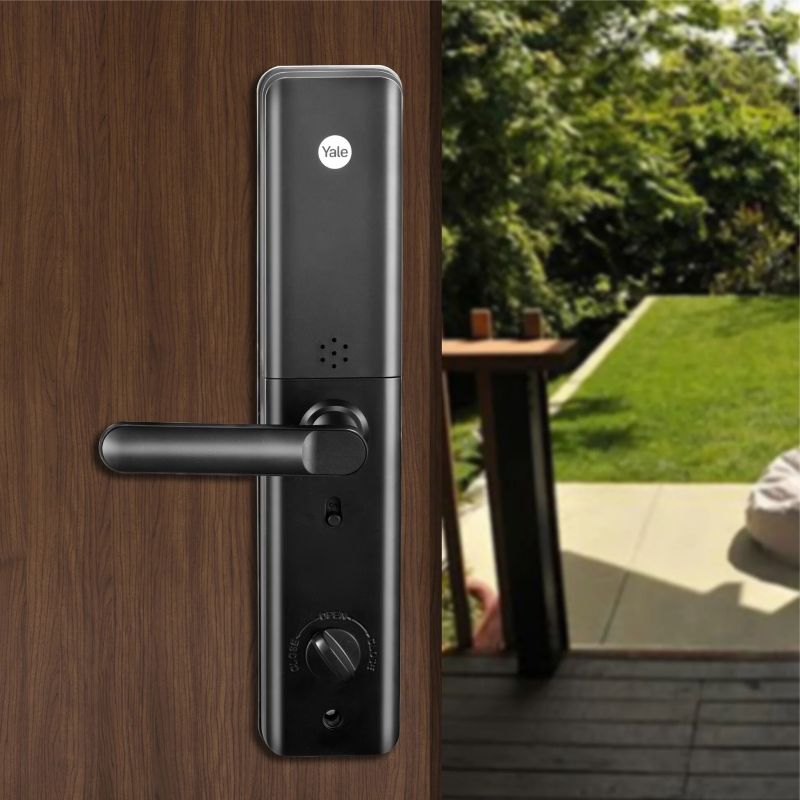

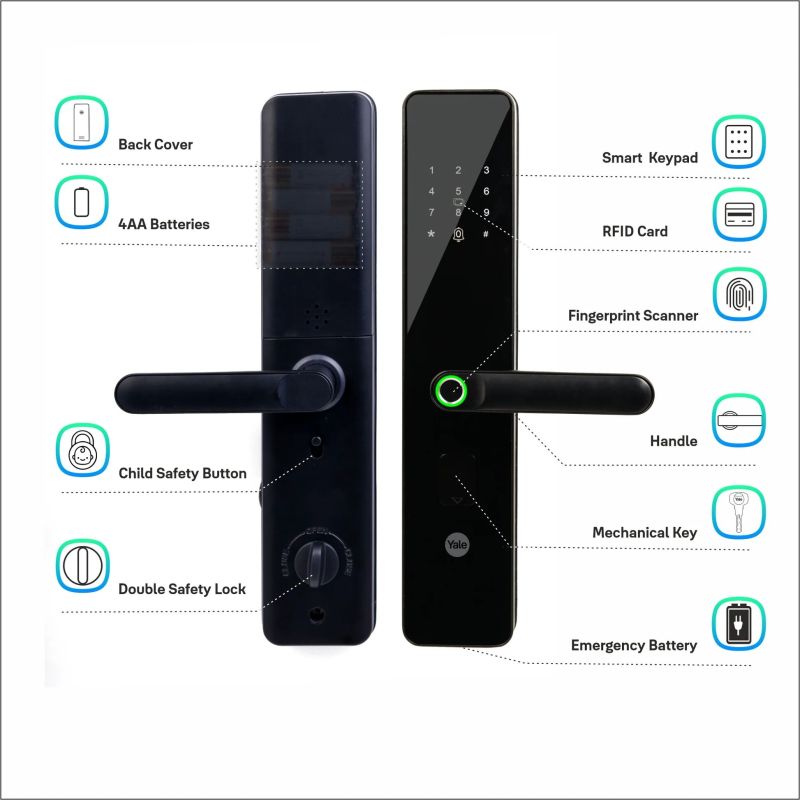

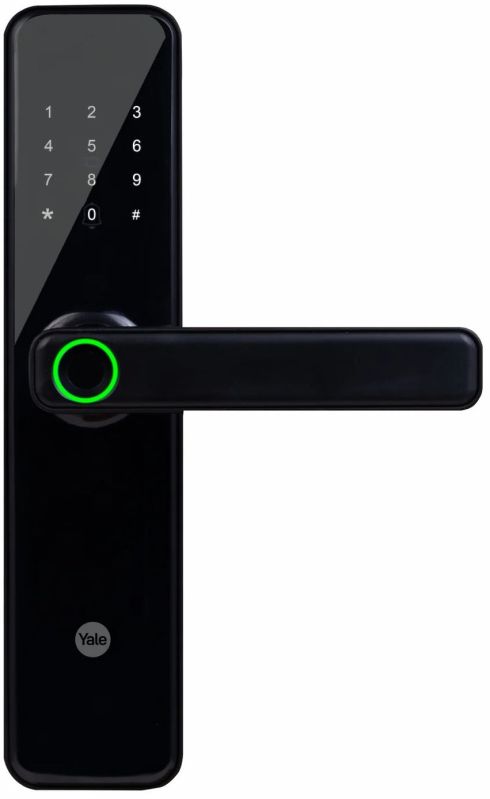

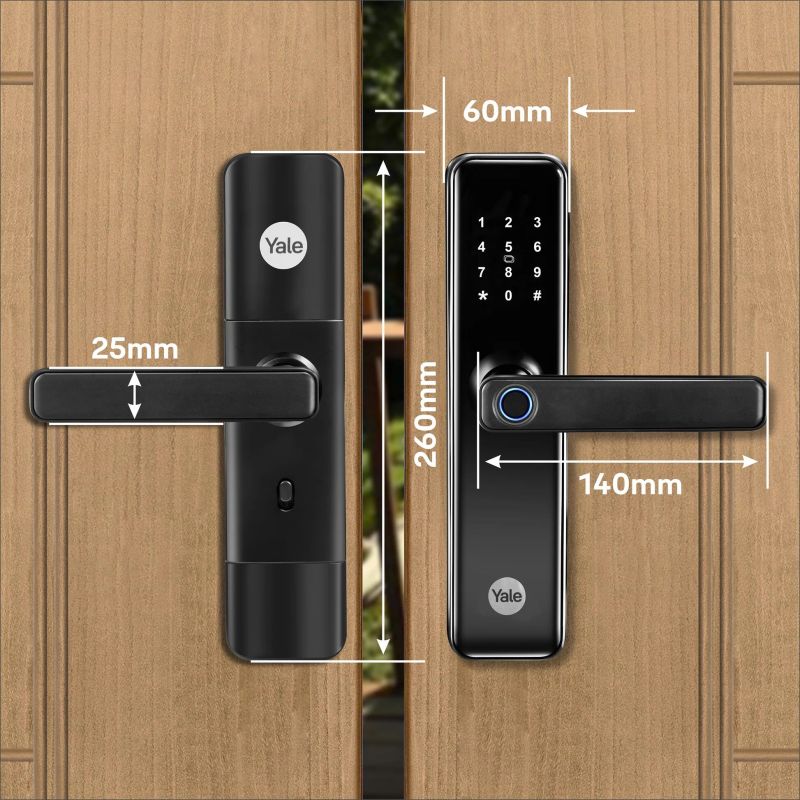

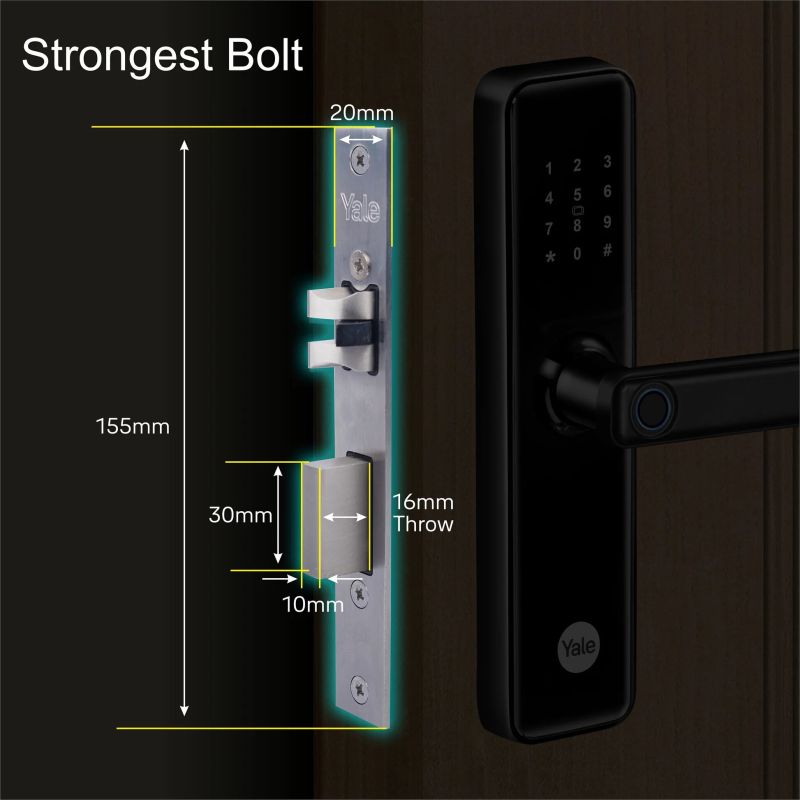

Technical Specifications:

• Access options: Fingerprint, PIN code, RFID card, and manual key
• Fingerprint capacity: Up to 100 fingerprints
• PIN code capacity: Up to 100 PIN codes
• RFID card: Supported
• Manual key access: 2 keys provided
• Lock type: Mortise lock
• Door thickness compatibility: 35 mm to 65 mm
• Integration with VDP (video door phone): Not supported
• Power source: 4 AA batteries
• Emergency power: USB-C port for external power supply
• Security features: Scrambled PIN, tamper alarm, low battery alert, lockout after wrong attempts
• Built-in doorbell: Available on some variants
• Color: Black
• Suitable for: Main doors, wooden or metal doors
