Simulation Environment High Low Fast Temperature Heat Cycling Test Chamber

Application:

High Low Fast Temperature Cycling Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Inner door with operation hole (optional)

50mm or100mm Entrance hole for test wire, Dia. 50mm or 100mm

Sample Shelves, two layers

RS-232 or RS-485 communication

Dimension:

1.Interior Dimension : W500*H600*D500mm

2.Exterior Dimension : W1050*H1550*D1050mm

3. Volume: 150 Liters

Temperature Range:

1. Temperature: -70150 (adjustable)

2. Humidity: 20%R.H. 98%R.H.(adjustable)

temperature rising falling speed rate:

1. temperature rising speed: approx.0.14.0/min non-linear control without load

2. temperature falling speed: approx.0.31.0/min non-linear control without load

Simulation Environment Temperature Heat Cycling Test Chamber Features:

1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, Safe and reliable.

2. Rectangular double-paned viewing window for observation of sample under test, with interior lights

3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying Pot and automatically recyclable.

5. French Tecumseh is used as compressor, with environment friendly refrigeration R23, R404A

6. LCD display screen is used for the control unit, capable of displaying set point and actual point at the Same time

7. The control unit has the functions of multiples segment program editing

8. Quick or ramp rates control of temperature and humidity.

battery heating shock testing thermal shock chamber with viewing window

thermal shock chamber technical parameters:

1.interior dimension : w400*h500*d500mm

2.exterior dimensionw1400*h2000*d1700mm

3. structurehigh temperature zone, low temperature zone, testing zone

4. internal material : sus#304 hardy heat-resistant stainless steel

5. outter shell material : sus#304 sus#304 hardy heat-resistant stainless steel

structure:

1.graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. easy to operate, safe and reliable.

2.interior material:sus#304 stainless steel , mirror polishing.

3.exterior material:sus#304 stainless steel.

4.insulation material:resistant to high temperature, high density, formate chlorine, ethyl acet

heating shock testing machine control system:

1.imported lcd display screen, capable of displaying the measured value as well as the set value and time.

2.fixed condition or programmable condition can be set.

3.fixed condition setting time range: 999 h .

4.programmable mold can set 120 different programe at the same time, each programe can set serverial segement to do cycle testing.

5.each prgrame can have max.50 segement with different temperature setting, segement runing time

max.530 h99m , max.can do 999 times cycle."

6.with power off memory device, reply message to continue with the rest of the program.

7.the control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.

8.with timer signal output relay.

9.temperature sensor adopt din pt-100.

10. adpot bthc system to control temperature and humidity , p.i.d. control s.s.r.

11.with p.i.d. auto calculate funtion.

short introduction about asli factory:

we are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and mechannical vibration and shock testing machine. thermal shock chamber with viewing window, battery heating shock testing machine is our star products , and we had obtained the ce certification for this machine.

service:oem service, design service, buyer lable service.um foam insulation materials.

5.test hole: one hole (dia.50mm or dia.100mm) on left side of chamber, for connecting outside 's powerline or signal line.

features:

1. graceful appearance, circularly shaped body for , surface treated with mist strips and plane handle with no reaction. our temperature humdity climatic chamber is easy to operate, safe and reliable.

2. water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

main technical parameters

2-1 dimension: according to customer's requirements

2-2 material : sus#304ss

2-3 temperature :-40c150c (according to customer's requirements)

2-4 temperature indication resolution: 0.1c

2-5 temperature control accuracy: 0.5c

2-6 temperature distribution uniformity:2c

2-6 humidity: 20%98%r.h (according to customer's requirements)

2-7 humidity indication resolution: 0.1%r.h

2-8 humidity distribution uniformity: 5.0%r.h

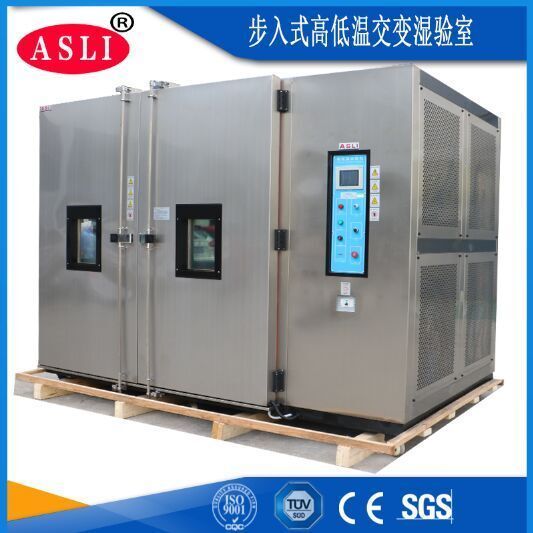

application:

walk in environmental temperature humidity chamber used to test various types of materials for their tolerances of heat, cold, dry, humidity. it is applied for for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

short introduction about asli factory:

we are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and mechannical vibration and shock testing machine.walk in test chamber is our star products, and we had obtained the ce certification for this machine.

constant environment temperature and humidity test machine

What is a humidity chamber used for?

Humidity chamber is a vital testing instrument for analysing the prolong effect of humidity on components to fix its quality parameters. This instrument is not subjected to only one industry applications. It is used in pharmaceuticals, plastic and rubber industries for quality assurance testing.

Parameters:

Temperature Range

Low Temperature(A:25 B:0 C:-20 D:-40 E:-60 F:-70)

High Temperature 150

Humidity Range

20%98%R.H.(10%-98% R.H. / 5%-98% R.H , is optional , need Dehumidifier)

Control Accuracy of Temperature and Humidity

0.5; 2.5% R.H.

Temperature Rising/Falling Velocity

Temperature rising approx. 0.13.0/min ;

temperature falling approx. 0.11.0/min;

( Falling Min.1.5/min is optional)

Inner and Outer Material: Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.

Product Description

programmable constant temperature test box are applicable for testing the performance indexes of aeronautic & astronautic products, ships, weapon, accdemies, motorcycle, information electronics, instruments & meters, materials, electronic engineering, electronic products, various electronic elements, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, materials, plastics, medical and so on in high-low temperature or temperature and humidity alternation environment.

Temperature Humidity Chamber Feature

1. The adjustable air outlet to keep the best temperature/humidity level regularity; the treble independent temperature security protector, it does not effect the other two because of the failure of one of them.

2. evaporator coils, the fin and the other connectors are all made of copper, coefficient of heat transfer is over 20, and it avoid the chemical couple from stainless steel or aluminum.

3. Depending on the strong control system, refrigeration system has perfect functions, the chamber can reach -90C on the condition that just depend on mechanical refrigeration.

4. The appearance break tradtional design which could match various colors and different appearance effect. "L" solid design is not only beautiful but also stands for "LIK" culture.

5. Large-scale temperature range: -40C200C; 2.0mm thickness sheet metal.

6. Unique temperature and humidity controlled range.

7. (1)This serious equiment, our company adopt automatic watering and drawer type hidden water tank double-duty device.

(2) water recovery system, customers could decide whether recycle automatically or not.

(3) with water level sensor and could observe water level and watering automatically on the basis of water level.

8. high competitive factory price with high quality and power after-sales service.

ISTA 1A 2A 3A large 100mm displacement high frequency vibration test machine

high frequency vibration test machine is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.

high frequency vibration machine Parameter:

Maximum sine excitation force 5000Kg.f peak

The biggest random vibration force 5000Kg.f r.ms

The biggest shock vibration force 10000Kg.f peak

Frequency Range DC4000 Hz

Maximum displacement 75mm p-p(peak-to-peak value)

Maximum speed 1.8m/s

Maximum acceleration 100G(980 m/s2)

First resonant frequency 3500Hz

Maximum load 750kg

Moving coil diameter (working mesa diameter) Diameter of 450 mm

The quality of moving coil 50kg

Product features

* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.

* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.

* rapid self-examination diagnosis and chain protection, high safety and reliability;

* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.

* Provide different use of horizontal and vertical expansion platforms;

* It can be used with all kinds of vibration controllers, and the operation is simple.

horizontal stand features:

Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.

High Frequency Horizontal Vibration Table Test Equipment For Automotive Testing

Temperature Humidity Vibration Integrated Environmental Test System

Large LCD touch screen, easy operation.

Independent control systems: Vibration control system, constant temperature control system and constant humidity control system.

Mobile orbit design, easy to operate combined test.

Safety device RS-232&RS-485 communication interface.

CE certification

Touch screen controller

Simulated Environmental Temperature Humidity High Frequency Vibration Table Tester matched with appropriate vibration test bench to meet with respective corresponding environmental test requirements of temperature, humidity and vibration; extensively applied in aviation and aerospace, shipping, electronics, automobile car, telecommunications, Industry.

High Frequency Sine Horizontal Vertical Temperature Humidity Combined Vibration Tester Feature:

1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console

2. Original refrigerating compressor unit and its main accessories are international famous brand;

3. LCD color touch screen controller, capable of automatic control of temperature humidity programs;

4. RS-232 communication. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,

5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Temperature Humidity Vibration Combined Tester for Auto Parts Comprehensive Test is our star products , and we had obtained the CE certification for this machine .
